Electrostatic field measuring instrument SIMCO FMX-003

ر.س1,347.90

Clear
Qty:
Compare

Request quotation for: Electrostatic field measuring instrument SIMCO FMX-003

Product Description



5a2bad48N35a2ca38

FMX-003 electrostatic tester



The FMX-003 is a non-contact portable electrostatic field tester with a built-in micro-control processor for accurate measurement, but is compact and easy to use.
Features: The FMX-003 has a measurable range of +/-20 KV and is equipped with 2 LED lights to ensure a measurement distance of 25mm. The outer casing is made of anti-static material and has a grounding buckle to ensure the measurement results are correct and reliable. The numbers and graphics are displayed clearly and clearly. It can be equipped with an ion balance measuring board to measure the residual voltage of the ion generator. The measuring range is +/-200V.



Model: FMX-003

Order number: Description:
FMX-003 FMX-003 electrostatic tester +9V laminated battery + portable leather bag + manual, certificate. 12 months warranty





Introduction to FMX-003
The electrostatic field tester is a non-contact portable electrostatic field tester. The measurable range is +/-20KV (working distance is 1 inch, 25mm). There are 2 LED lights to ensure 25mm away from the object under test. The housing is made of anti-static material and has a grounding buckle to ensure reliable measurement results.

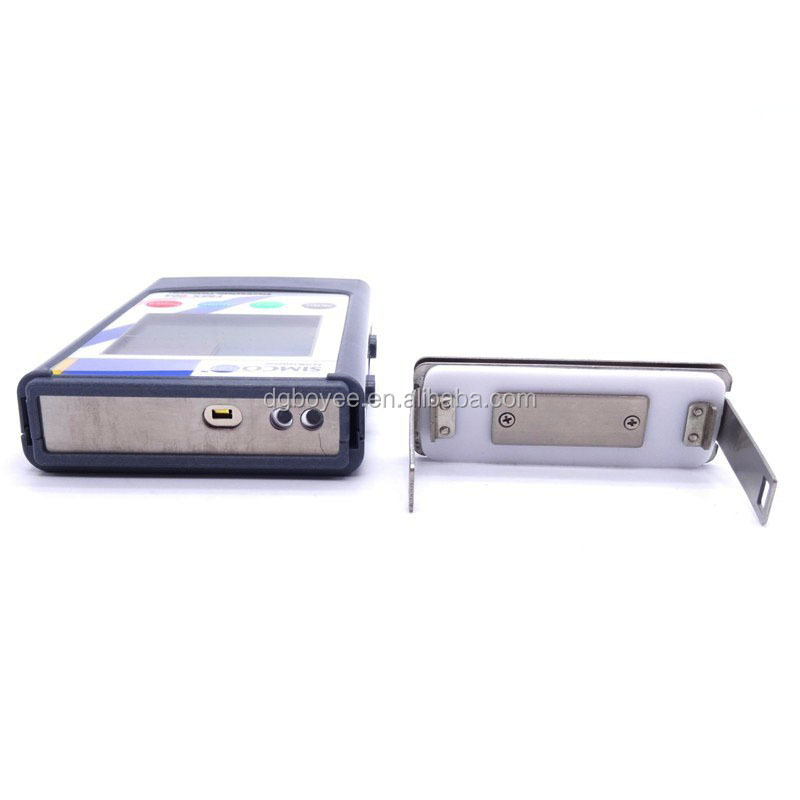

The tester is also equipped with an ion balance measurement board for periodic calibration of ion balance in the ±200V range.

It is mainly used to measure the electrostatic properties of textile raw materials and finished products (including fiber, yarn, fabric, carpet, decorative fabric) under laboratory conditions. It can also be used to measure other sheets and plate materials such as paper, rubber, plastic and composite. Electrostatic properties of sheets and the like. The instrument main body consists of a corona discharge device, a probe and a detection system. Using a given high-voltage electric field, the sample to be tested is periodically discharged, and the sample is induced to generate static electricity, thereby performing electrostatic energy, static voltage half-life, and electrostatic residual amount detection to determine the electrostatic properties of the sample to be tested.



SIMCO FMX-003 electrostatic field tester performancecharacteristics

Single press to zero reset
Single press display lock
Idle automatic shutdown
Battery performance display
Function: Effectively detect ESD workplace equipment, work surface, tools with electrostatic charge.
Features: LCD / level display detection data, test data retention, digital clear display, high / low range.
Output: red LCD shows positive charge, blue LCD shows negative charge
Accuracy: Low range accuracy: plus or minus 0.1kv High range accuracy: plus or minus 1kv
Input voltage: 9V, 6F22 nickel battery
Electrostatic field can be measured: +/- (0.00-20.0kV) (automatic display adjustment)
Standard ranging: 25mm +/- 1mm
Ion balance can be measured: +/- (0-200V)
Measuring distance according to: ESD-STM3.1-2000 ion balance standard
LCD display update: 5 times per second
Reaction time: 1 second
Working temperature and humidity: 10-40 deg C/RH: 0-60%R
Graphic display: positive: red / negative: blue
Audible alarm: power on/idle automatic shutdown / out of measurable range
Auto power off: idle for about 5 minutes
Measurement mode switching
Electrostatic field: single press the Power button, there is a beep
Ion balance (please install ion balance measurement board first) Press Zero and Power at the same time, there are two beeps
