Electronic Testing Equipment For 2m Underground Pipe Locator Water Leakage Detection

Introduction to Instrument

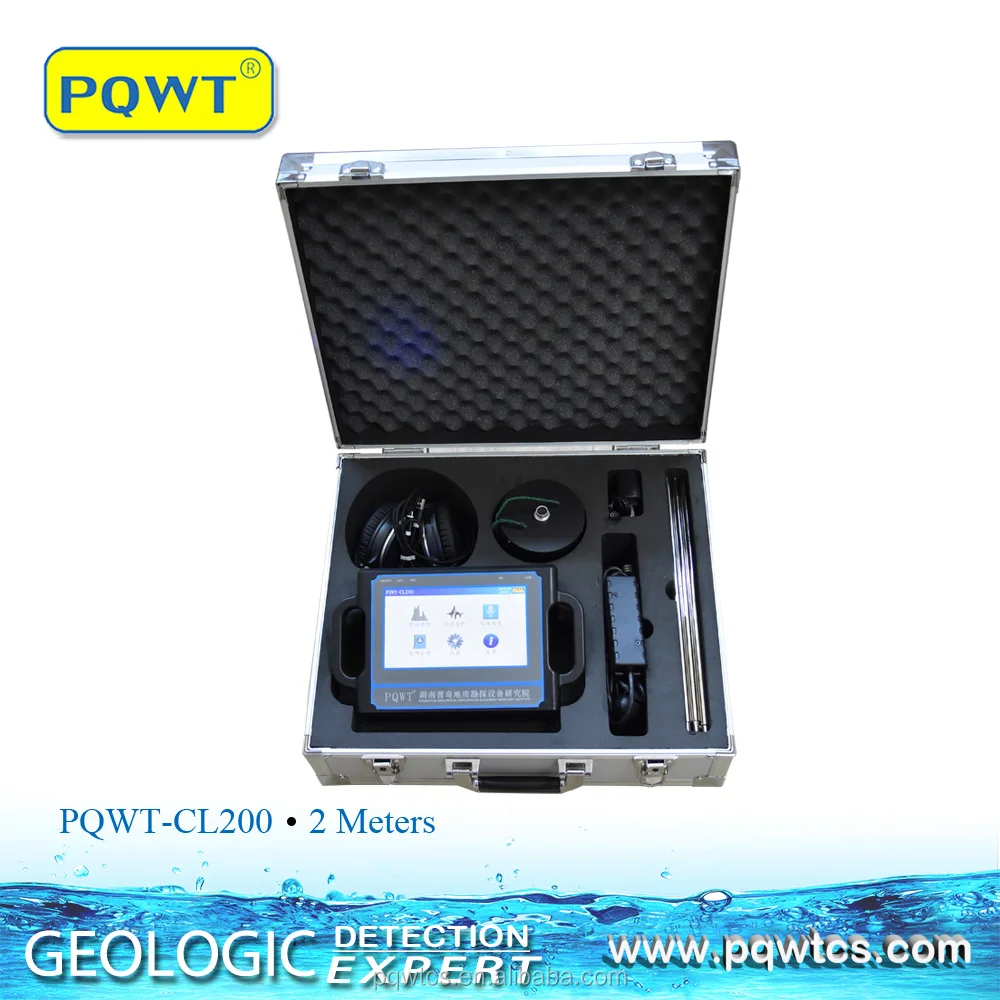

PQWT-CL200 pipe leak detectors are a professional instrument that water supply companies, heating companies, municipal construction companies and property companies inspect whether underground pipes leak water.

They are mainly used to find and determine the location of leakage points of water supply pipeline, and they can also be used to detect the leakage of other pressure piping systems.

When the fluid in pipeline erupts through leakage source due to the pressure, the noise produced by the impact on internal wall will spread along the pipeline or along the buried layer medium to the ground, and the instrument determines the leakage source through an industrial-grade amplification of leakage noise.

Main Features

1.The use of latest digital signal processing chip and a digital filter chip, 16M cache controller integrated, more responsive. In particular, it can filter with the interference of environmental noise, screening out the leakage noise, allowing the operator to lock leakage points quickly.

2. 7-inch high-definition digital color LCD touch screen with a resolution of 800 * 480, can provide 8 display pages, can show the measurement parameters more clearly and intuitively, and full touch screen design, simple operation.

3. 1 ~ 5000 Hz frequency range (spectrum analysis), real-time display of the noise signal distributed on each frequency.

4.Sensor is built-in preamp circuit, using a rubber ring seal and cushion, and the application of professional acoustic methods, making the ability to capture the noise is higher than similar products.

5,Adopt latest noise detecting element, sounds clear.

6. Save 8 sections totaling eight minutes of recording, which is not lost after shut down, could be analyzed at any time.

7. Using a large capacity battery, can work for more than ten hours , and can be removed charging and online charging.

8. Super anti-jamming circuit design, digital signal and analog signal effectively isolate and eliminate the noise generated by the digital circuit .

Technical Parameters

Operation Tips:

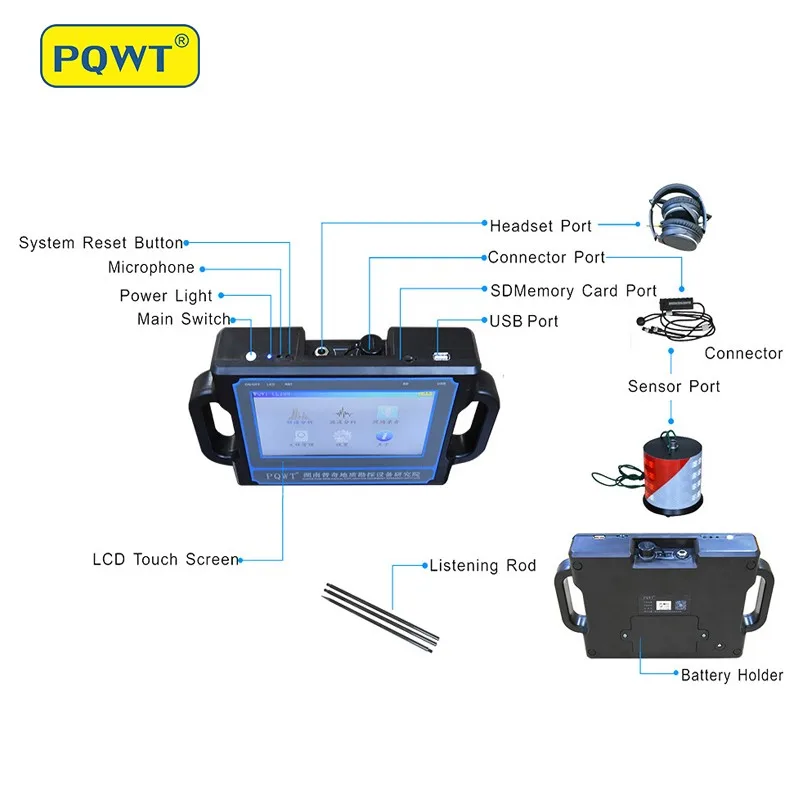

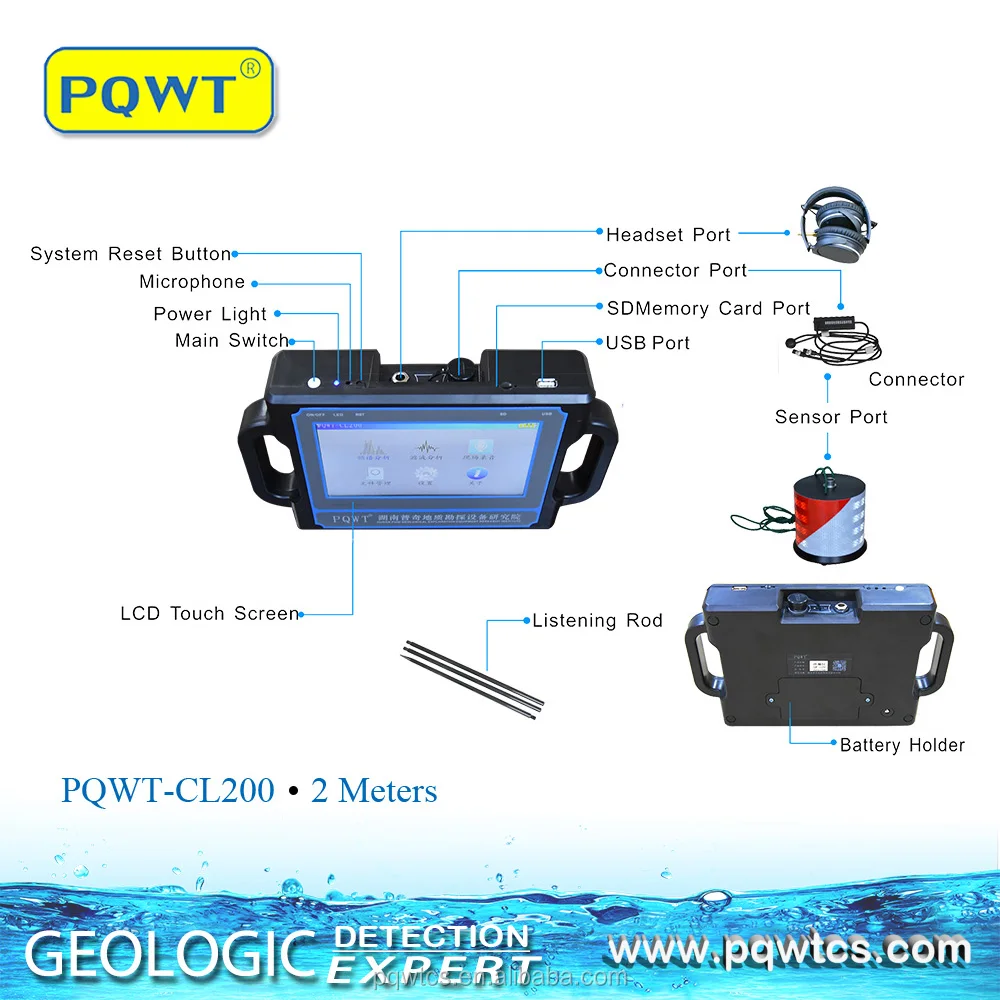

On the boot screen, the instrument will show 6 options:
Spectrum analysis, Filtering analysis, Live recording, File management, Setting and About.

There are 2 main measurement methods :
1.Rough measurement:spectrum analysis
Double-click “spectrum analysis” to enter the spectrum analysis measurement mode, until hear the clear sound effect.Put the probe on the pavement below the pipelines which needs to be detected,and long press the handle switch of connecting wire, finish the measurement of one point, and then loose the handle switch.Press the switch to inspect every one meter along the pipelines. When it is next to the lead source, there will be a sound in the earphones. If the volume increases, the whole spectrum on the instrument’s screen will increase.If it is more close to the leak source, the reaction is more obvious.So this place can be temporarily thought as a leak source.
2.Accurate measurement :filtering analysis
There are eight options on the screen,each option has a different frequency band according the situation of actual measurement field ,and choose corresponding frequency band to measure according to the situation of actual measurement field.
Matters needing attention
1. It is forbidden to put the sensor probe in water.
2. The sensor probe shall be handled gently.
3. The measurement shall be conducted under a circumstance that there is a smaller environmental disturbance, and it would be best to conduct at midnight.
4. If the instrument isn’t used for a long time, it should be charged every month.

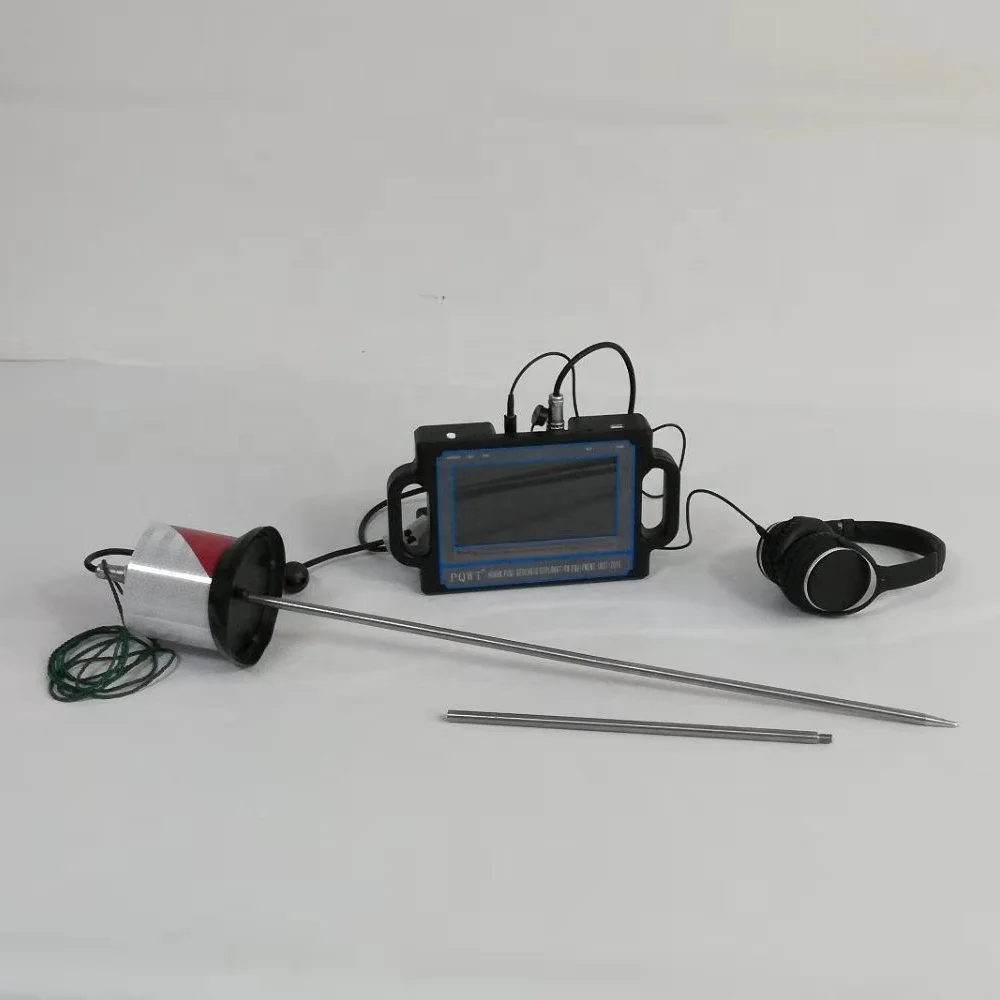

5. If the measurement is conducted in soft soil, the sensor should be connected with the sound pole and insert into the soil so as to get a best effect.
