Own Core Technology To adopt the self-developed core decoding technology, can read various low quality barcode
Long-distance Code Reading Field of Depth As for Code128(20mil), field of depth reaches 80cm, as for Code128(40mil), reaches 1.4m
Clear Laser Aiming To meet the requirement of long-distance code reading, clear laser aiming with red cross, it’s suitable for outdoor application too.
Compatibilities with Multiple Systems Be paired with Windows, Android, Linux System

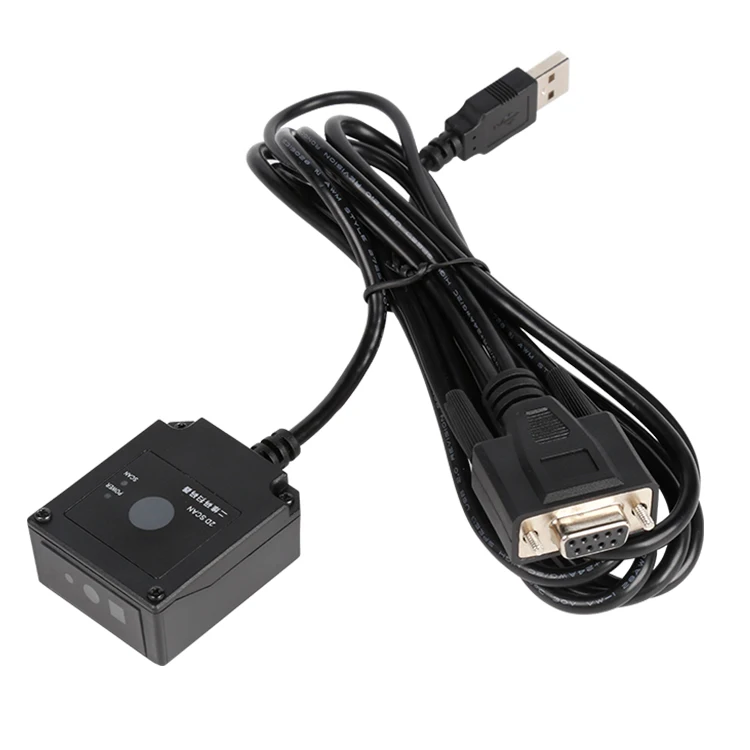

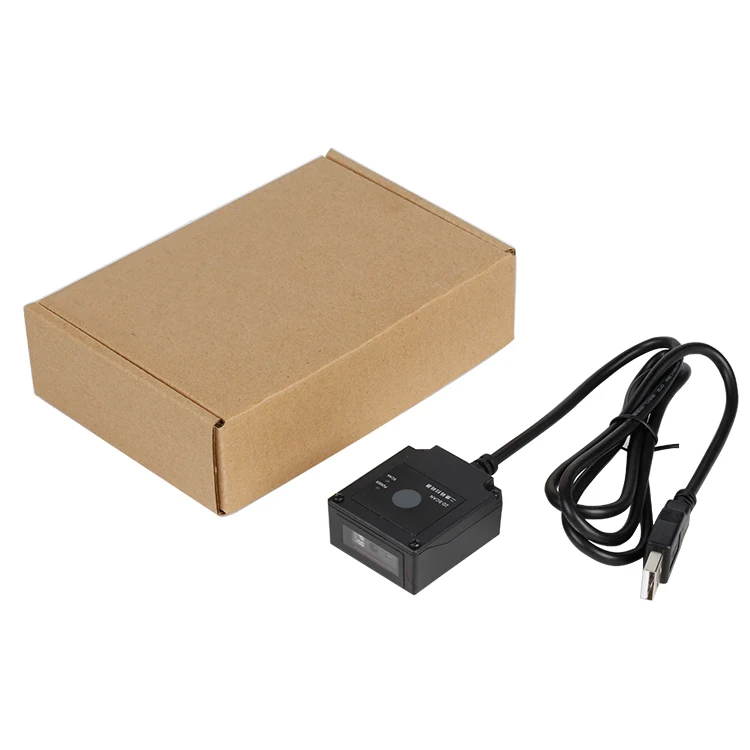

F40-11/Fixed Mount Barcode Scanner
|
Performance
|
Image sensor
|
640H*480V
|
|
|
Illumination
|
White LED
|
||
|
Aiming
|
Red LED (625nm)
|
||
|
Symbologies
|
2D
|
PDF417, Data Matrix, QR Code
|
|
|
1D
|
Code 128、Ean-13 、Ean-8、UPC-E、UPC-A、ITF-25（Interleaved 2 0f 5）、Code39、Code93、Codabar
|
||
|
Scan Precision*
|
≥5mil
|
||
|
Typical Depth of view*
|
EAN-13
|
45mm-269mm (13mil 13 byte)
|
|
|
Code39
|
35mm-119mm（5mil 7 byte）
|
||
|
Code128
|
43mm-310mm (13mil 10 byte)
|
||
|
QR Code
|
19mm-185mm (15mil 30 byte)
|
||
|
Data Marix
|
45mm-116mm（10mil 30 byte）
|
||
|
Symbol Contrast*
|
≥20%
|
||
|
Sensitivity*
|
Skew ±55°，Pitch ±55°，Roll 360°
|
||
|
Field Angle
|
Horizontal 36°，vertical 27°
|
||
|
Mechanical/
Electrical |
Communication interface
|
USB，RS232（optional）
|
|
|
Size(mm)
|
41.4(W)×50.0(D)×22.2(H)（max）
|
||
|
Weight
|
70g
|
||
|
Operation Voltage
|
5.0 VDC±5%
|
||
|
Current
|
Operation
|
135mA
|
|
|
Standby
|
40mA
|
||
|
Environmental
|
Operation Temperature
|
-20℃~+55℃
|
|
|
Storage Temperature
|
-40℃~+70℃
|
||
|
Operation Humidity
|
5%~95%（Non-condensing）
|
||
|
Illumination
|
0~100,000LUX
|
||
|
Certification
|
FCC Part15 Class B,CE EMC Class B, RoHS2.0, IEC62471
|
Our Advantages
Production Workshop

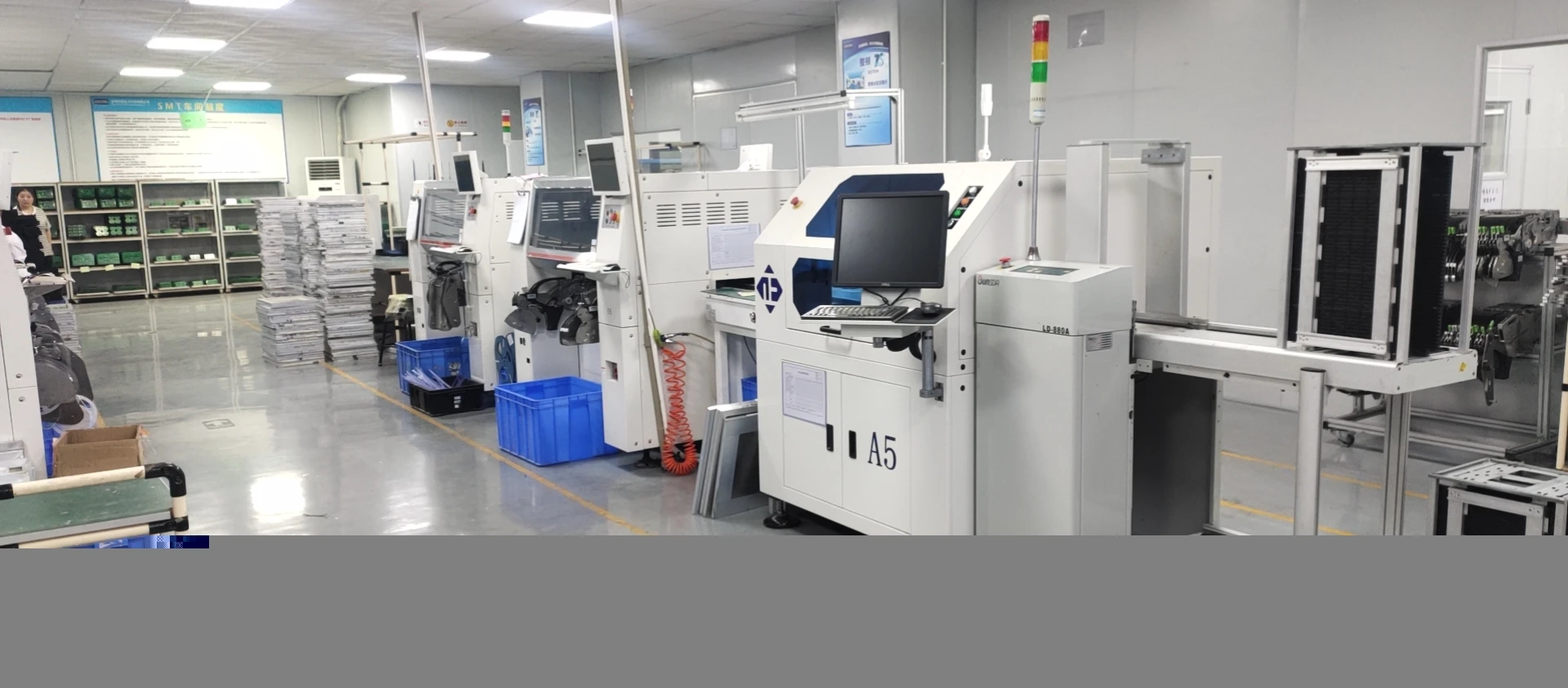

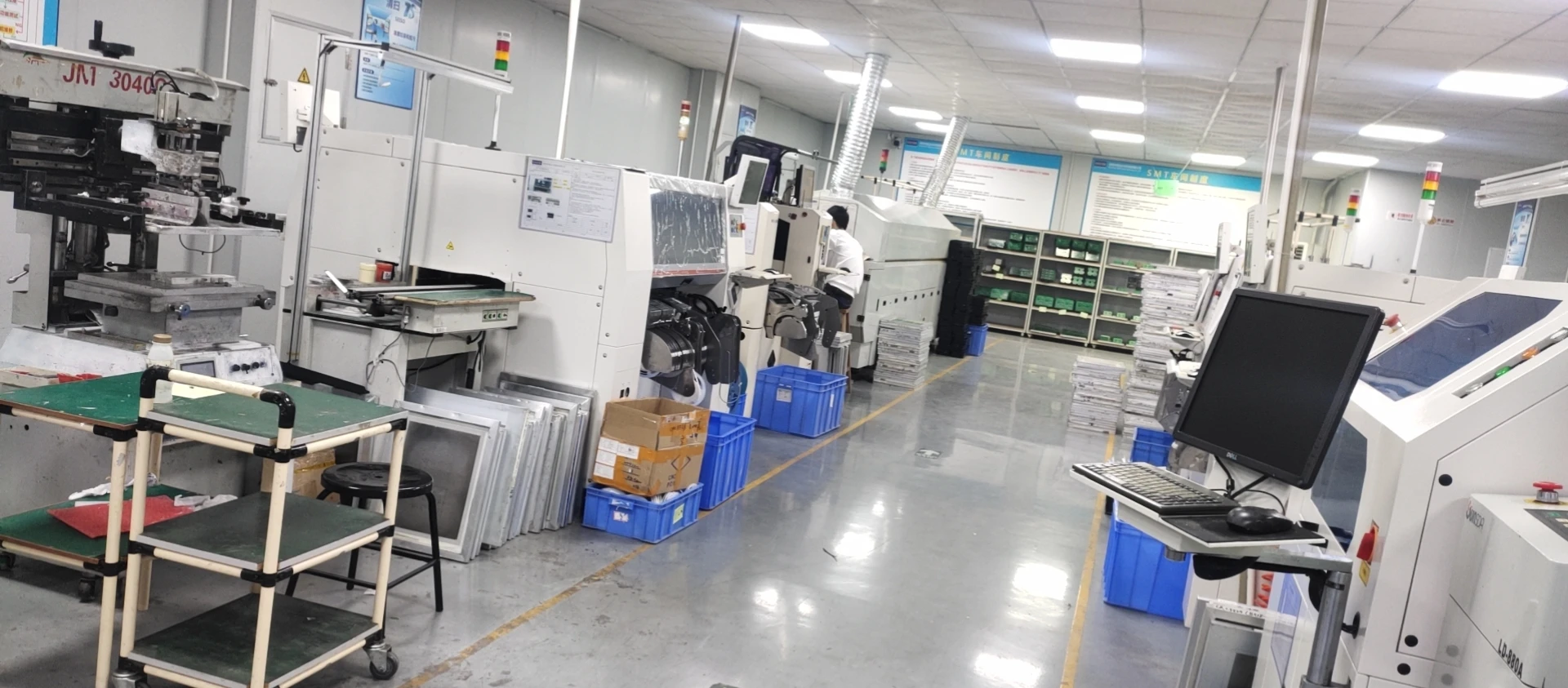

Production Equipment

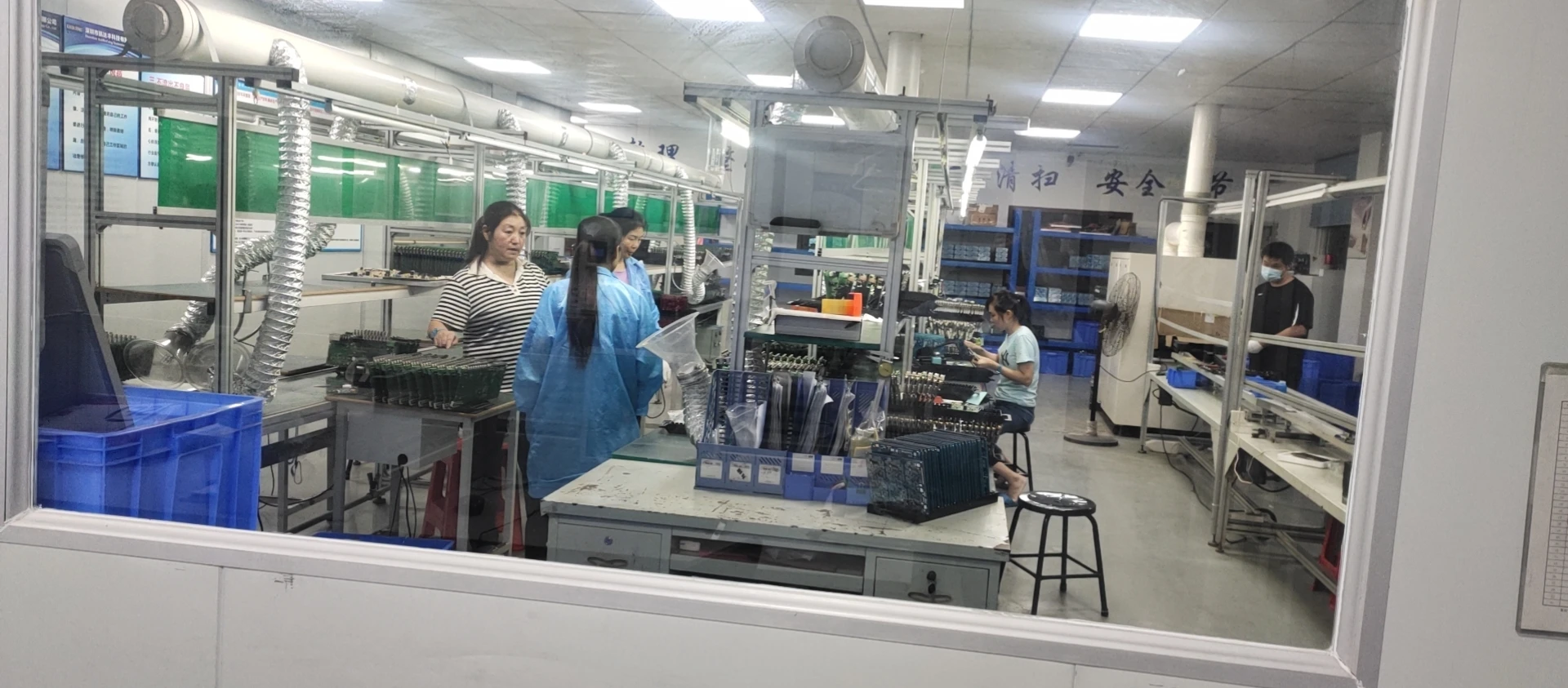

Clean Room of Workshop
Workshop

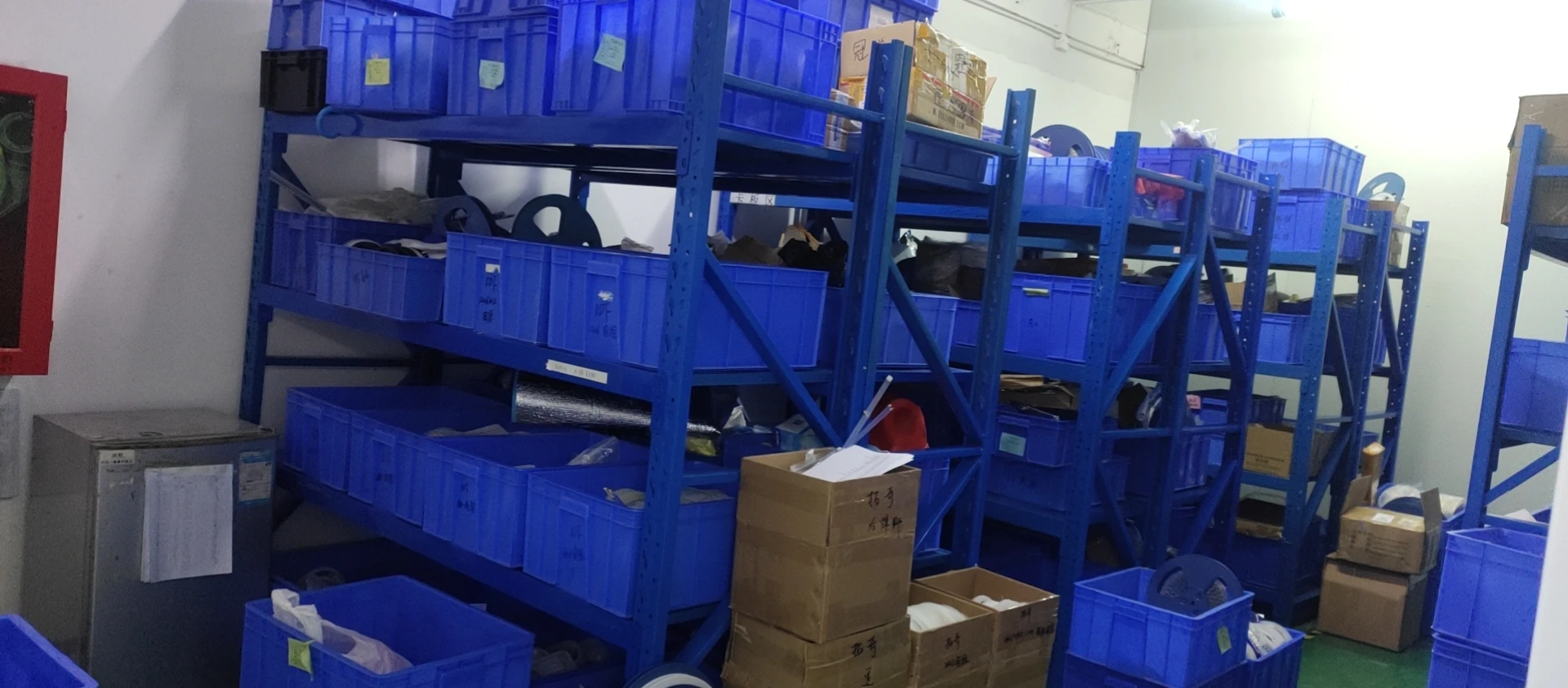

Warehouse
