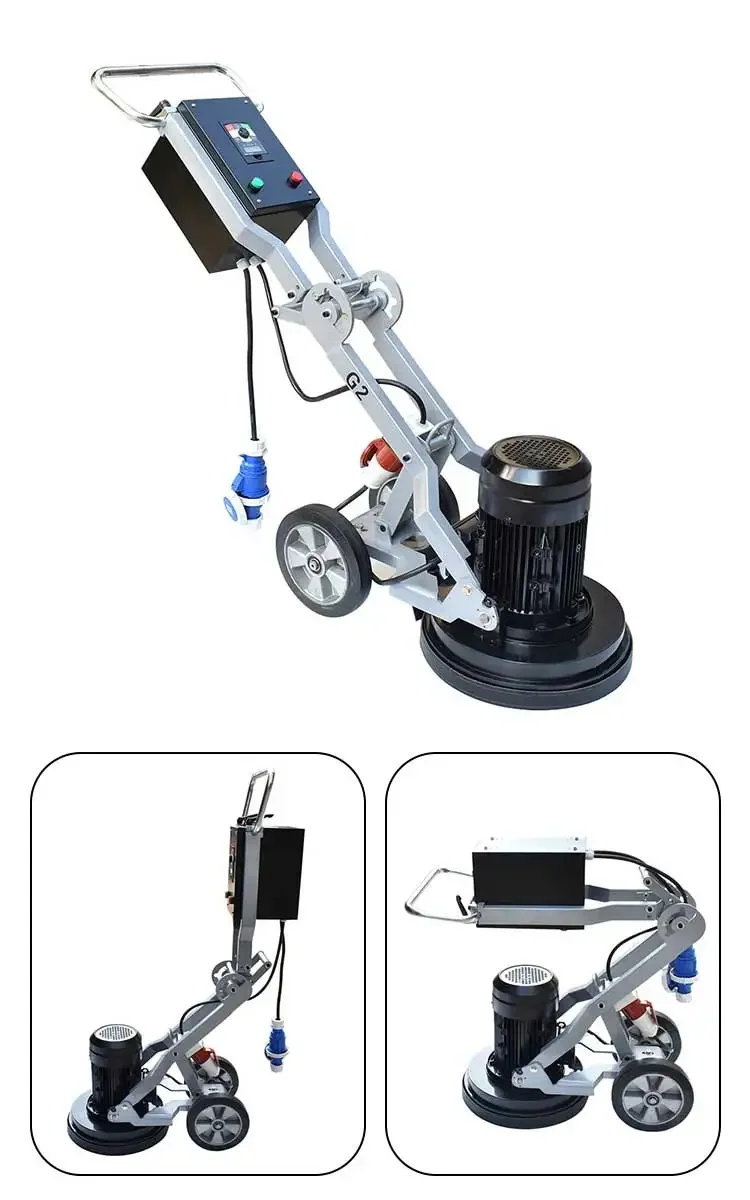

G2 concrete floor grinder
|
Model
|
G2A
|
G2B
|
|
Power
|
380V-440V/4KW
|
220-240V/4KW
|
|
Frequency |
50/60hz
|
50/60hz
|
|
Inverter
|
–
|
5.5KW
|
|
Current |
8.8A |
12.8A
|
|
Plate Speed
|
1440rpm
|
0-1600rpm
|
|
Work Area
|
400mm
|
400mm
|
|
Disc Diameter |
50mm
|
50mm
|
|
Extra Weight
|
84KG
|
84KG
|
|
Weight
|
80kg
|
80kg
|
|
Dimension
|
800*450*1000mm
|
800*450*1000mm
|

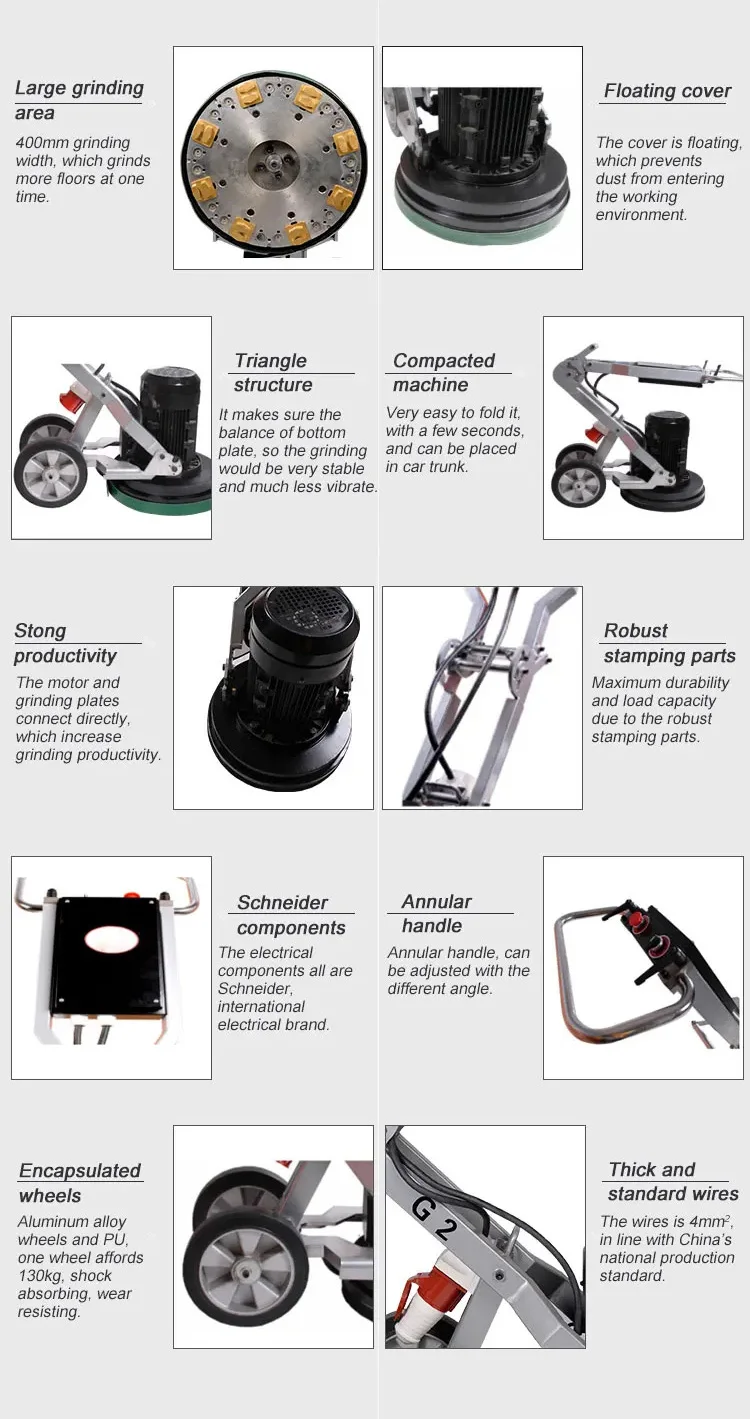

Key features
* Dust-free operation thanks to floating cover;
* Schneider electrical element guarantees electrical safety;
* Compacted, very easy for transportation and set-up;

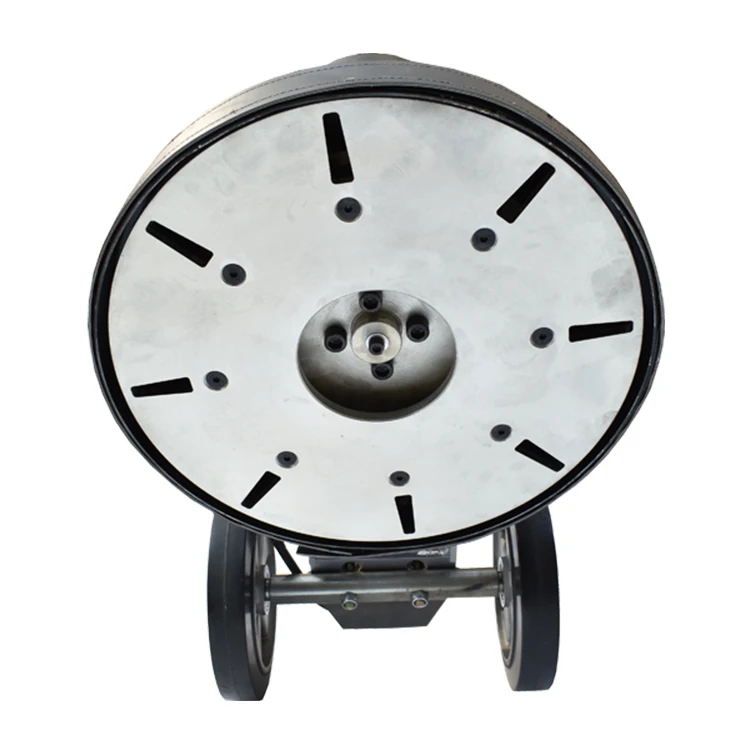

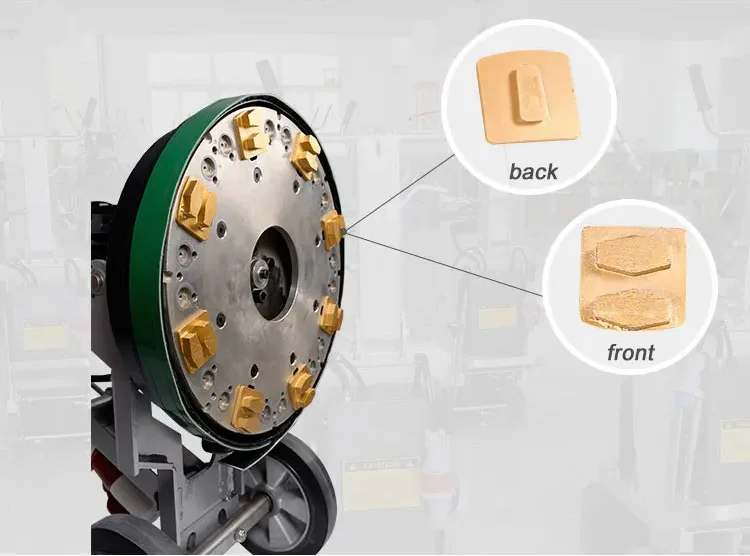

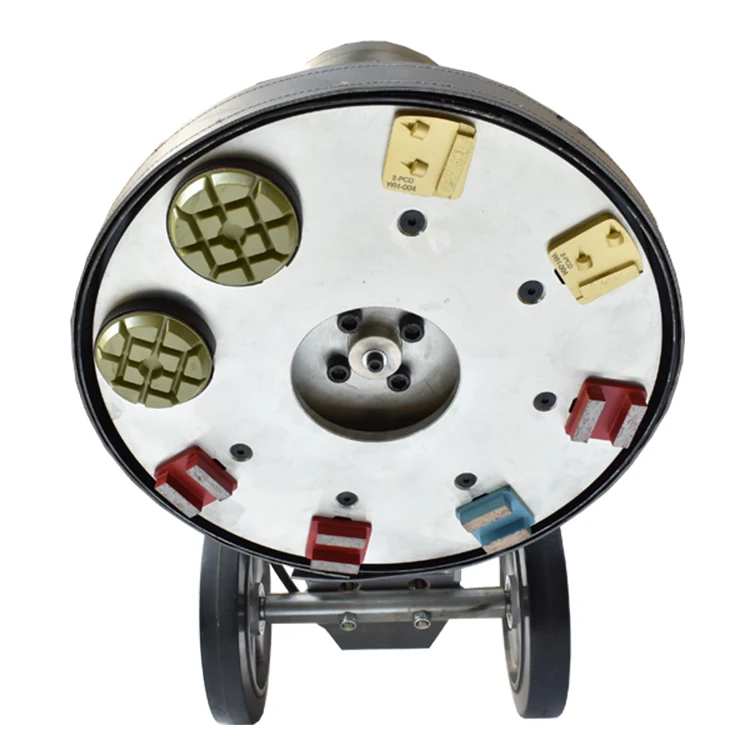

* Quick change of diamond pad, just with a hammer;
* Ergonomic working posture
* Easy for machine maintenance
* Schneider electrical element guarantees electrical safety;
* Compacted, very easy for transportation and set-up;
* Quick change of diamond pad, just with a hammer;
* Ergonomic working posture
* Easy for machine maintenance
One of design principle is easy to maintain
So every parts are assembled and dissembled like building block, with a few common tools, you could enter into the machine heart easily. The screws and nuts are high strength 10.8 degree, big aperture, no slip.
|
Packaging: Pallet packing
|
||
|
Size（mm）
|
800*450*1000mm
|
|
|
Weight
|
95kg / 205 lbs
|
|
|
Package Details
|
The regular package is carton box, fumigated wooden box packing for optional, we will customize the pallet size according to the
models Nos, load more quantities to save space when shipped by container. |
|
