Durable Non Destructive Testing Rebound hummer of Concrete

 2,307.60

Saudi riyal (ر.س) - SAR
  • Saudi riyal (ر.س) - SAR
  • United States dollar ($) - USD
  • United Arab Emirates dirham (د.إ) - AED
Qty:
Compare

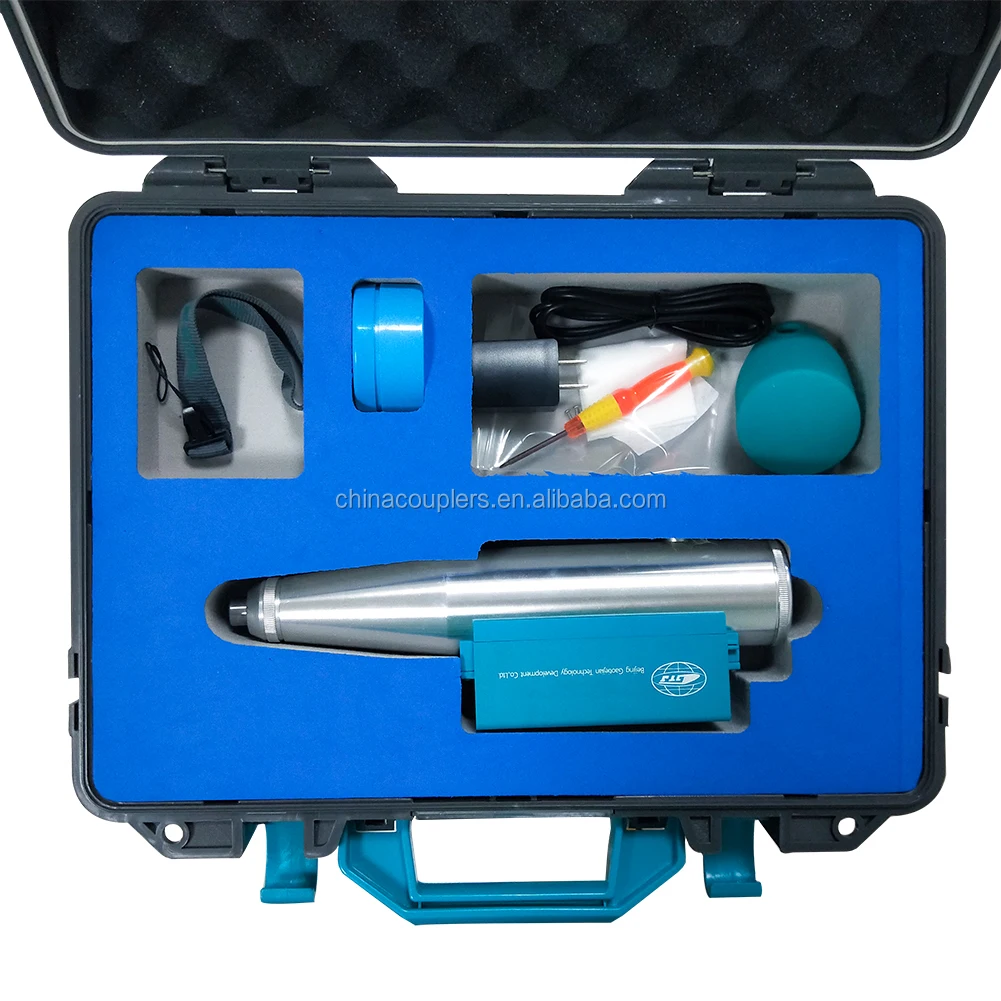

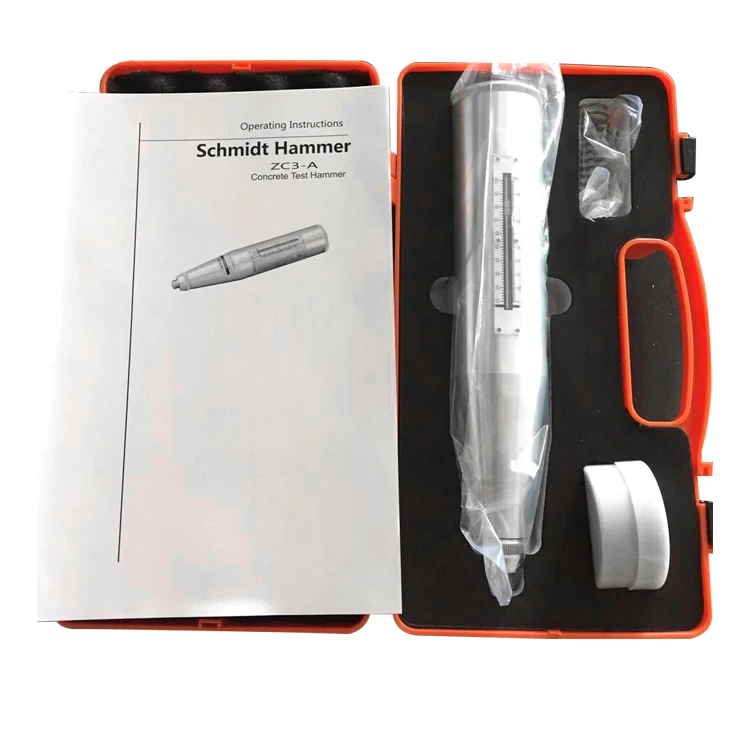

Durable non destructive testing rebound hummer of concrete

 .jpgschmidt impact test hammer resiliometer

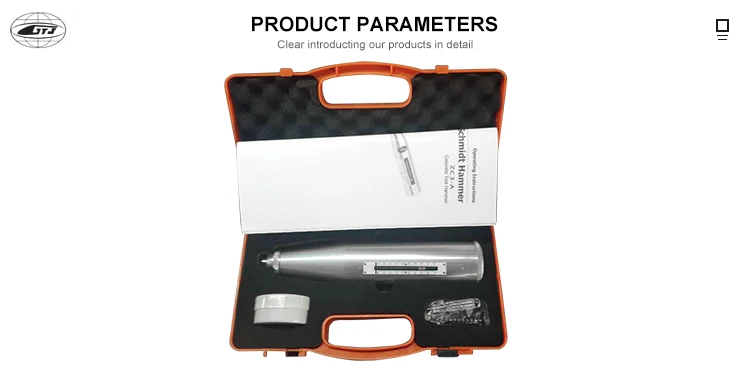

Product Parameters



Gtj-ht225 fully automatic integrated resilience tester is used for non-damage detection and assessment of compressive strength of hardened concrete in building structures.It can detect and record the parameters such as rebound value, carbonization depth value, Angle and test surface.The strength estimation results of the component can be given immediately after testing.

Data Collectien Terminal

transducer

mos image sensor

input mode

Automatically record the rebound value

data processing

Automatic data correction, calculation and statistical analysis according to the specification

system capacity

Two hundred thousand observation points

power supply mode

Rechargeable large capacity lithium battery

volume

123mm×55mm×25mm

weight

200g

operating ambient temperature

-10~45℃

Mechanical resilience

Scope of strength

10-60Mpa

The kinetic energy of the nominal

2.207J

Spring stiffness

7.84N/cm

Impact hammer stroke

75mm

Consistency error

≤±0.5(The difference between the reading of the pointer of the mechanical resilience meter and the reading of the instrument screen)

Steel anvil rate set rebound value

80±2

volume

55×55×270



weight

1.0kg

  operating ambient temperature

-10℃~40℃

   packing specification

Material: engineering plastics volume:420*140*335mm weight:6kg

Product advantages



Concrete reinforcement detected





appearance



Integrated design. Small size.





1







fittings



We have more accessories than our competitors



2





4



 materials



The shell of the instrument is made of polymer composite material with good impact strength.Due to its excellent impact strength, creep resistance, heat resistance, cold resistance and electrical insulation, this material is widely used in aviation, construction, machinery and other fields.






Features
1 Integrated design. Small size.
2 The shell of the instrument is made of polymer composite material with good impact strength.Due to its excellent impact strength, creep resistance, heat resistance, cold resistance and electrical insulation, this material is widely used in aviation, construction, machinery and other fields
3 Every important part of ht-225 springback instrument has been improved systematically, and the strict quality control process has greatly improved the overall performance of the springback instrument, and extended the maintenance cycle and service life of the instrument.
4 The shell sprayed with elastic rubber paint has viscoelastic damping damping to structural vibration and noise, and has special soft touch and high elastic surface feel.Impact resistance, restorability, soft feel, even and smooth film and strong chemical resistance
5 The machine is matched with national unified and local curves, and can be set and selected by itself.
6 The parameters such as Angle, test surface, pumping and carbonization can be set on site
Applications
