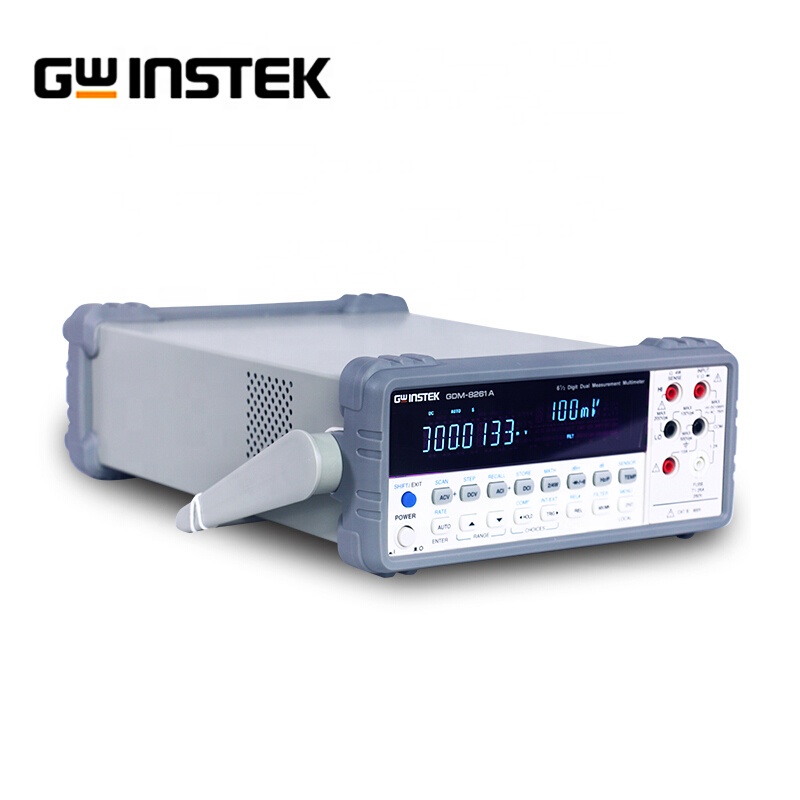

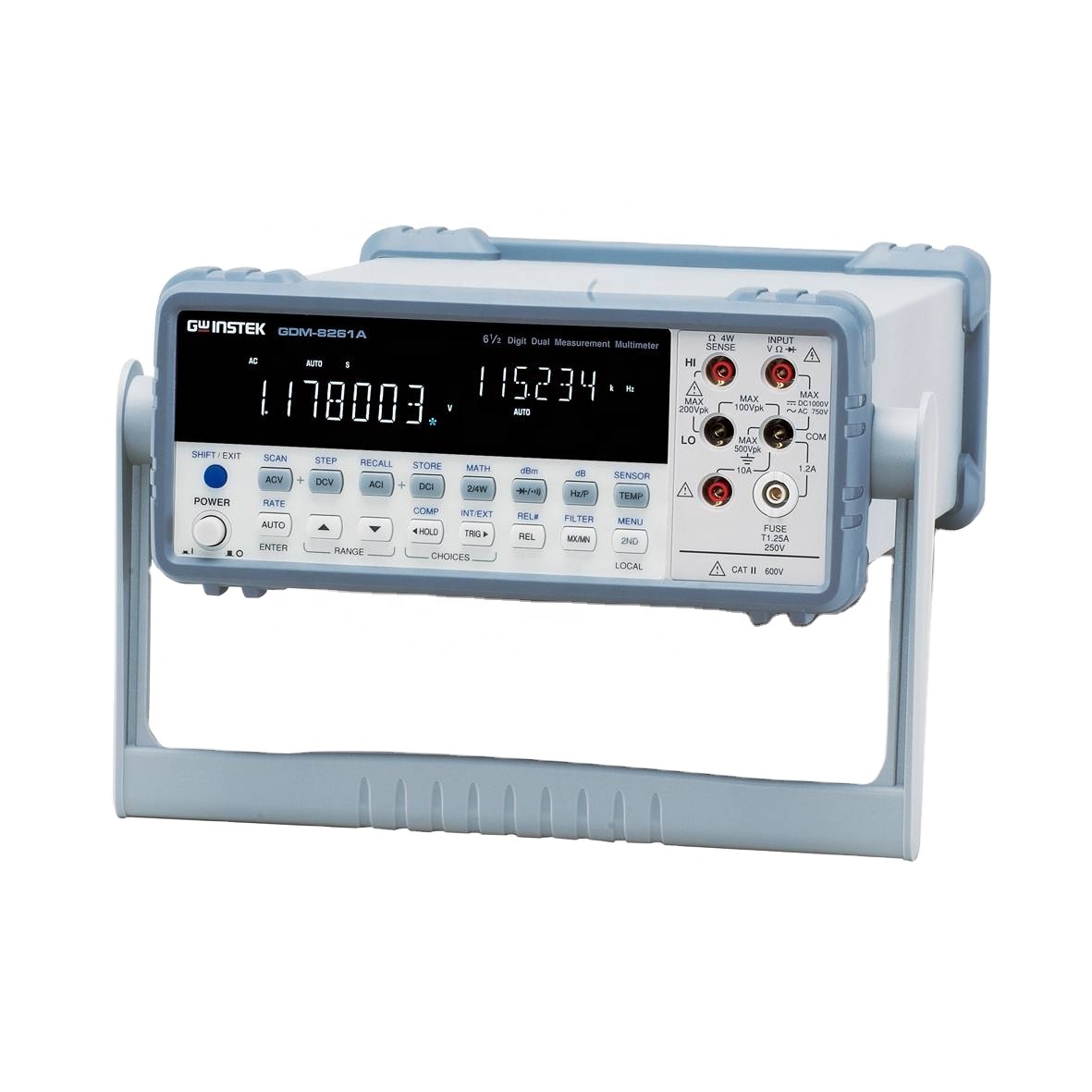

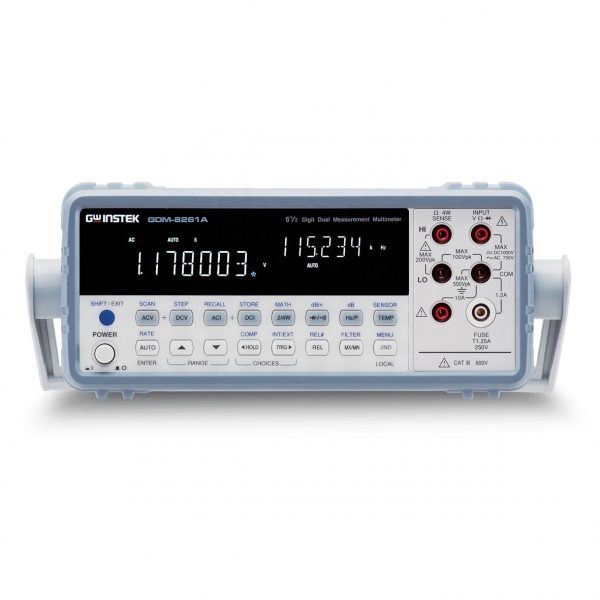

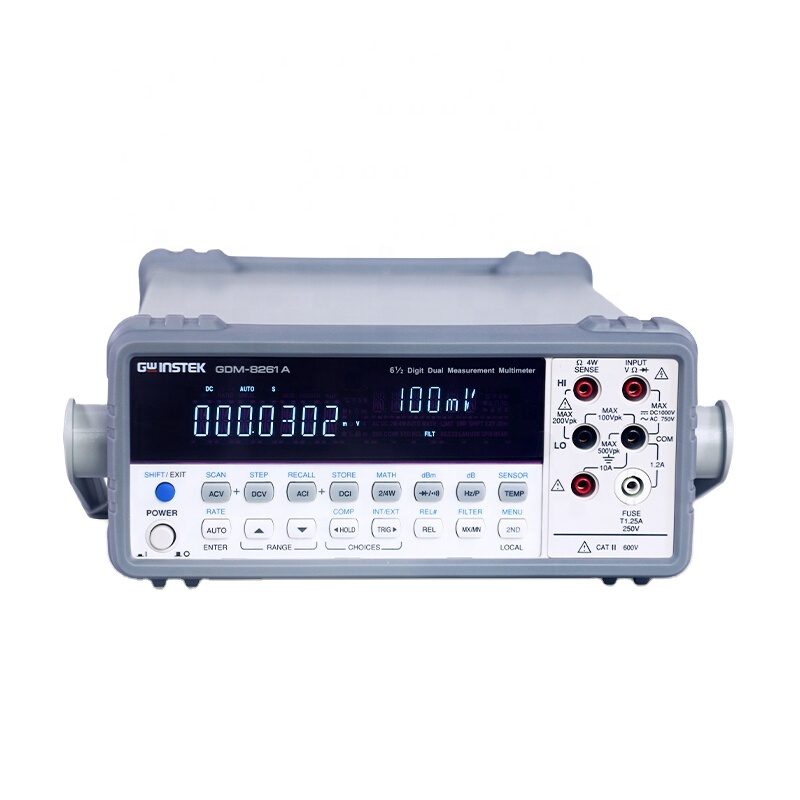

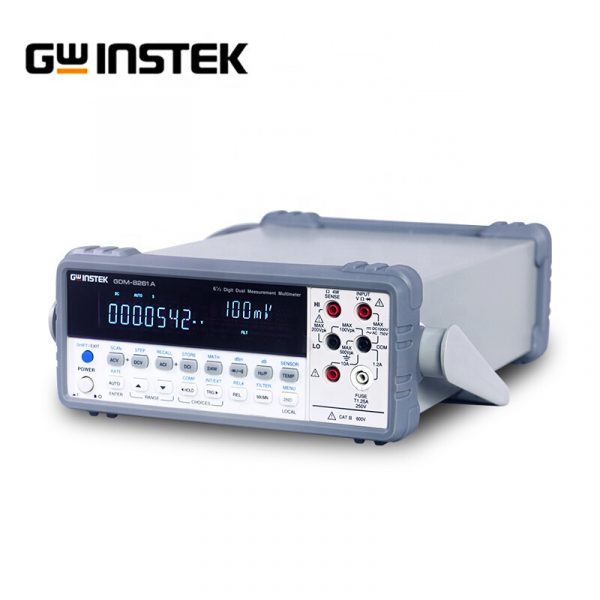

Dual display high precision 1,200,000 counts 6 1/2 digit Digital Benchtop Multimeter GDINSTEK GDM8261A with RS232 and USB
The GDM-8261A is a high precision 6 ½ digit Digital Multimeter with dual measurement displays, 11 measurement functions and 10 math functions at high accuracy (35ppm DC voltage accuracy) to accommodate the most frequently performed parameter measurements in various application fields today.
The GDM-8261A adopts a scanner card, which carries 16 V-Channels and 2 I-Channels, to facilitate the measurements of multiple-test points on either a device or multiple devices all at a press of a button. With this multi-point measurement capability, the GDM-8261A can be used as a semi-auto ATE System to increase the throughput of manufacturing test or as a data logger to perform long-term monitoring or characterization of a DUT. A PC Software, DMM-Viewer, is available with GDM-8261A to support multi-channel panel setting and data logging of the scanner card. Besides, a LabVIEW driver is also supported to help users create his/her own virtual instrument on the PC screen for easy programming. For ATE system measurements or remote control applications, both USB and RS-232 Interfaces are provided as standard, and either GPIB or LAN can be selected as optional interface for the GDM-8261A.
- Ideal for Bench Assignments
- Dual Measurements with Dual Displays
- High Measurement Resolution & High Sampling Rate
- 2/ 4 Wire Resistance Measurement
- Store/Recall Function
- Math Measurement
- Temperature Measurement
- Versatile Interfaces & Transmitted Speed
- Multipoint Scanner Card Measurement
- Convenient PC Software
Features:
6 1/2 Digit Display:1,200,000 counts
DCV Basic Accuracy:0.0035%
Dual Measurements to perform two selected measurements simultaneously
Bright Vacuum Fluorescent Display (VFD)
Provide AC+DC Voltage or Current Measurement Functions
11 Measurement Functions & 10 Math Functions
High Resolution: Up to 100pA with DCI and 1nA with ACI Measurements
Temperature Measurement (RTD & Thermocouple) from -200°C ~ +1820°C
High Transmission Speed: Up to 2,400 readings/sec through the USB

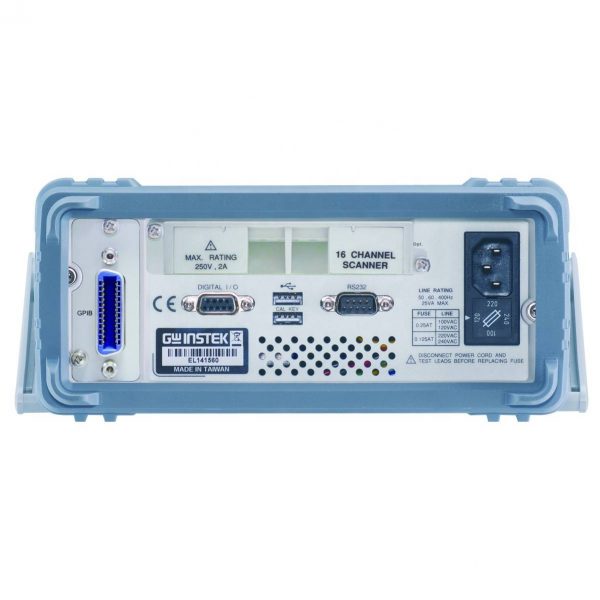

Standard Interfaces : USB, RS232C, Digital I/O
Optional Interfaces : GPIB or LAN
Optional Scanner Card : GDM-SC1A (V ch x16, I ch x2)
Free PC software : DMM Excel ADD-INS , LabVIEW Driver
Included Accessories
Quick start guide x1, Power cord x1, Test lead GTL-207A x1, USB Cable GTL-247 x1,
CD x1 (including complete user manual, upgrade program and PC software)
Calibration key GDM-01 x1 (for Firmware upgrade)
PACKAGE:
For small items, we will fully pack with Yellow Tape to protect water.For standard carton we will pack with stretch film and psate with client’s shipping mark mentioning company name,carton number.
DELIVERY TIME:
We have all items in stock, for sample we can send out within 3 working days, for OEM we can send within 35 working days,mosty depends on the quantity and our sales season!
