DSO Nano V3 Digital Oscilloscope USB Handheld Oscilloscopes Kit 200KHZ Analog Bandwidth Osciloscopio Cheaper than DSO203 DS203
The DSO Nano V3 is a pocket-size compatible 32bit digital storage oscilloscope. Based on ARM -M3, it’s equipped with 320*240 color display, SD card, USB port and recharging function. It’s compact, simple to operate; meets the basic demands of school lab, electric furniture repairment and electric engineering.
This is a updated and cool version of DSO Nano which features a firmware and a embedded 2 Mbyte storage chip instead of micro SD card slot. The documents of this version in detail is on this page, please refer to it.
Updates in v3:
V3 used a new firmware with user-friendly interface, easier to operate.
Upgraded firmware via virtual disk.
Added build-in 2Mbyte storage chip instead of micro SD card slot.
Black metal shell.
Features:
*Portable and lightweight.
*Color display.
*Waveform storage and playback.
*6 triggering modes.
*200Khz Analog Bandwidth.
*Complete measurement markers and signal characteristics.
*Built-in Signal Generator.
*Accessories available.
*Open Source
Specifications:
Display: 2.8" Color TFT LCD
Display Resolution: 320*240 Display Colors 65K
Analog Broadband: 0 ~ 200kHz
Max. Sampling Rate: 1Msps 12Bit
Sampling Storage Depth: 4096 Points
Transverse Sensitivity: 1uS/Div~10S/Div(1-2-5 stepping)
Vertical Sensitivity: 10mv/Div~10V/Div(x1 probe) 0.5V/Div~10V/Div(x10 probe)
Input Resistance: >500K?
Max. Input Voltage: 80Vpp?x1 probe?400Vpp(x10 probe)
Coupling Mode: DC
Triggering Mode: Auto?Normal?Single?None
Auto Measurement: Frequency, cycle, duty, Vpp, Vram, Vavg, DC voltage; Vertical Precise Measurement Cursor; Horizontal Precise Measurement Cursor; Rising/Falling Edge Trigger; Triggering Cursor; Triggering Sensitivity Cursor; Hold/Run
Inbuilt Test Signal: 10Hz~1MHz(1-2-5 stepping)
Waveform Storage: build-in 2Mbyte
PC Connection Interface: Connection through USB
Recharging Method: Recharging through USB Interface
Dimension: 90 * 60 * 12mm / 3.54 * 2.36 * 0.47in (L * W * H)
Item Weight: 100g / 3.53oz
Package Size: 15 * 10 * 3.5cm / 5.9 * 3.94 * 1.38in (L * W * H)
Package Weight: 181g / 6.39oz

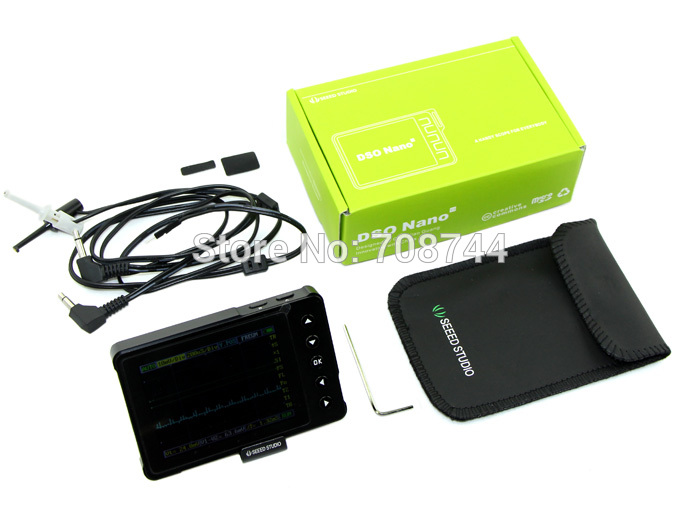

1 * DSO Nano V3 Oscilloscope
1 * PU Case
1 * Stand
1 * Screwdriver
2 * Cable
