• 1/2.5″ Progressive Scan CMOS
• 3840 × 2160@15fps
• 2.8/4/6/8mm fixed lens
• Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
• H.265+, H.265, H.264+, H.264
• 120dB WDR
• 2 Behavior analyses
• BLC/3D DNR/ROI/HLC
• SD/SDHC/SDXC card slot, up to 128 GB
• 3-Axis adjustment
* • 3840 × 2160@15fps
* • 2.8/4/6/8mm fixed lens
* • Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
* • H.265+, H.265, H.264+, H.264
* • 120dB WDR
* • 2 Behavior analyses
* • BLC/3D DNR/ROI/HLC
* • SD/SDHC/SDXC card slot, up to 128 GB
* • 3-Axis adjustment
* • Built-in microphone
|
Camera
|

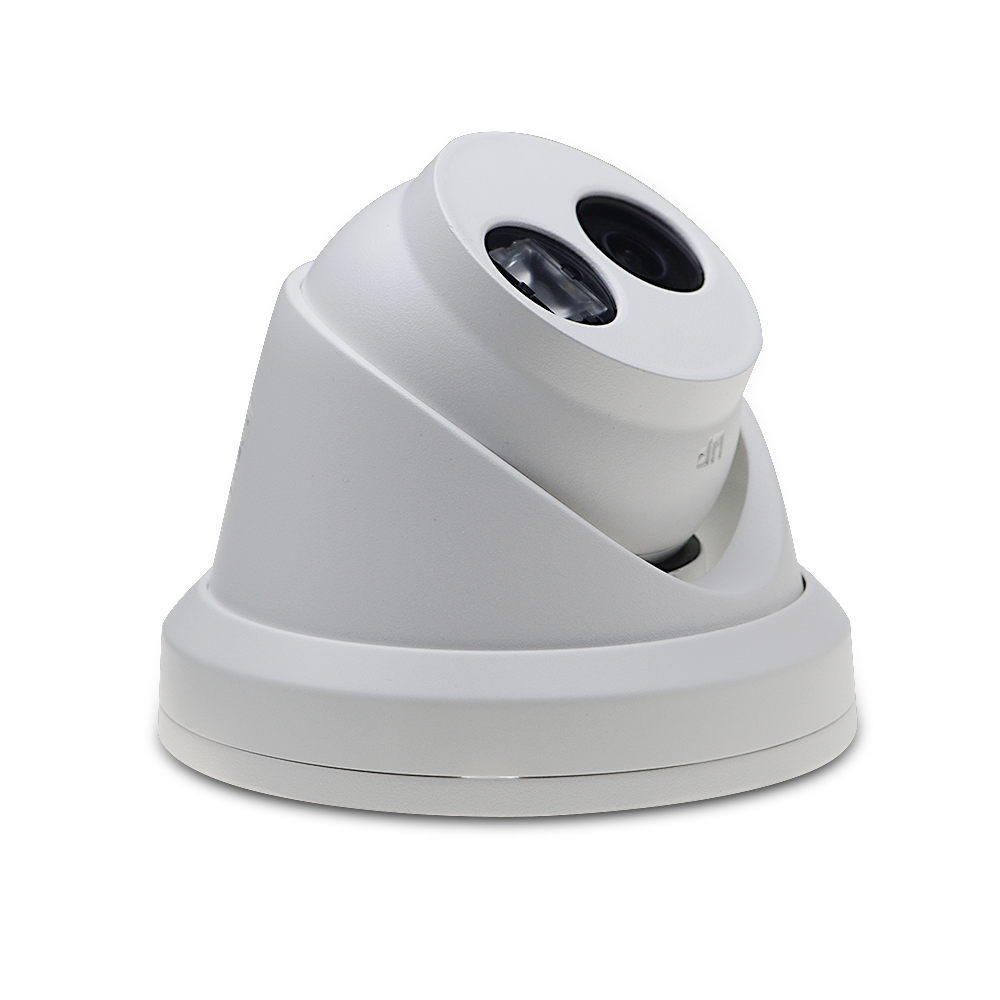

DS-2CD2383G0-I(U) 8MP IP Camera DS-2CD2383G0-I(U)8 MP(4K) IR Fixed Turret Network Camera
|
|
Image Sensor:
|
1/2.5″ Progressive Scan CMOS
|
|
Signal System:
|
PAL/NTSC
|
|
Min. Illumination:
|
Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR
|
|
Shutter time:
|
1/3 s to 1/100,000 s
|
|
Slow shutter:
|
Support
|
|
Lens:
|
2.8 mm, horizontal field of view: 102°
|
|
4 mm, horizontal field of view: 79°
|
|
|
6 mm, horizontal field of view: 50°
|
|
|
8 mm, horizontal field of view: 40°
|
|
|
12 mm, horizontal field of view: 23°
|
|
|
Lens Mount:
|
M12
|
|
Adjustment Range:
|
Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
|
|
Day& Night:
|
IR cut filter with auto switch
|
|
Wide Dynamic Range:
|
120 dB
|
|
Digital noise reduction:
|
3D DNR
|
|
Compression Standard
|
|
|
Video Compression:
|
H.265+/H.265/H.264+/H.264/MJPEG
|
|
Video bit rate:
|
32Kbps~16Mbps
|
|
Triple Streams:
|
Yes
|
|
|
|
|
Max. Image Resolution:
|
3840 × 2160
|
|
Frame Rate:
|
50Hz: 20 fps (3840 × 2160), 25 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
|
|
60Hz: 20 fps (3840 × 2160), 30 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
|
|
|
Sub Stream:
|
50Hz: 25fps (640 × 360, 352 × 288)
|
|
60Hz: 30fps (640 × 360, 352 × 240)
|
|
|
Third Stream:
|
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
|
|
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
|
|
|
Image Enhancement:
|
BLC/3D DNR
|
|
Image Settings:
|
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
|
|
Target Cropping:
|
Support
|
|
ROI:
|
Support 1 fixed region for each stream
|
|
Day/Night Switch:
|
Auto/Scheduled
|
|
Network
|
|
|
Protocols:
|
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
|
|
General Function:
|
One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
|
|
mask, Watermark, IP address filtering
|
|
|
System Compatibility:
|
ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
|
|
Interface
|
|
|
Communication Interface:
|
1 RJ45 10M / 100M Ethernet interface
|
|
On-board storage:
|
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
|
|
Smart Feature-set
|
|
|
Behavior Analysis:
|
Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
|
|
Line Crossing Detection:
|
Cross a pre-defined virtual line
|
|
Intrusion Detection:
|
Enter and loiter in a pre-defined virtual region
|
|
Unattended Baggage:
|
Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
|
|
Object Removal:
|
Objects removed from the pre-defined region, such as the exhibits on display.
|
|
Recognition:
|
Face Detection
|
|
General
|
|
|
Operating Conditions:
|
-30 °C ~ 60 °C (-22 °F ~ 140 °F)
|
|
Humidity 95% or less (non-condensing)
|
|
|
Power Supply:
|
12 VDC ± 25%, PoE (802.3af Class3)
|
|
Power Consumption:
|
12 VDC ± 25%, 6.2W
|
|
PoE(802.3af, class 3), 9W
|
|
|
Weather Proof:
|
IP67
|
|
IR Range:
|
Up to 30m
|
|
Dimensions:
|
Camera: Φ 127.3 × 95.9 mm (5.01″ × 3.78″)
|
|
Package: 150 × 150 × 141 mm (5.91″ × 5.91″ × 5.55″)
|
|
|
Weight:
|
620 g (1.37 lb.)
|
DS-2CD2625FHWD-IZS
DS-2CD2625FWD-IZS
DS-2CD2645FWD-IZS
DS-2CD2665G0-IZS
DS-2CD2685G0-IZS
A: Usually OEM made by Hik/Dahua(no logo on the products). Customs order is welcome here. Pls contact with the sales for more details for you need.
Q. What’s ETA time and stock status?
A: With Sales & Support department and US/EU/AU warehouse, we provide most lines of stock products. So if stock products, the ETA is about 3-5 days, and for products with bulk quantity, the delivery time is about 2-4 weeks.
Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products, OEM products are with 3 years.
Q.What is your method of payment?
A: T/T, Western Union, Paypal, credit card is welcomed.
Q.What is Minimum Order Quantity?
A: Sample order is welcomed, while the price is more competitive for big quantity .
Q: How to ship the goods?
A: For small parcels, we recommend to use the express, such as Fedex, DHL, Fedex, TNT, UPS etc. For bulk order, we can ship the products to your forwarder or will find a best shipping way for you.
