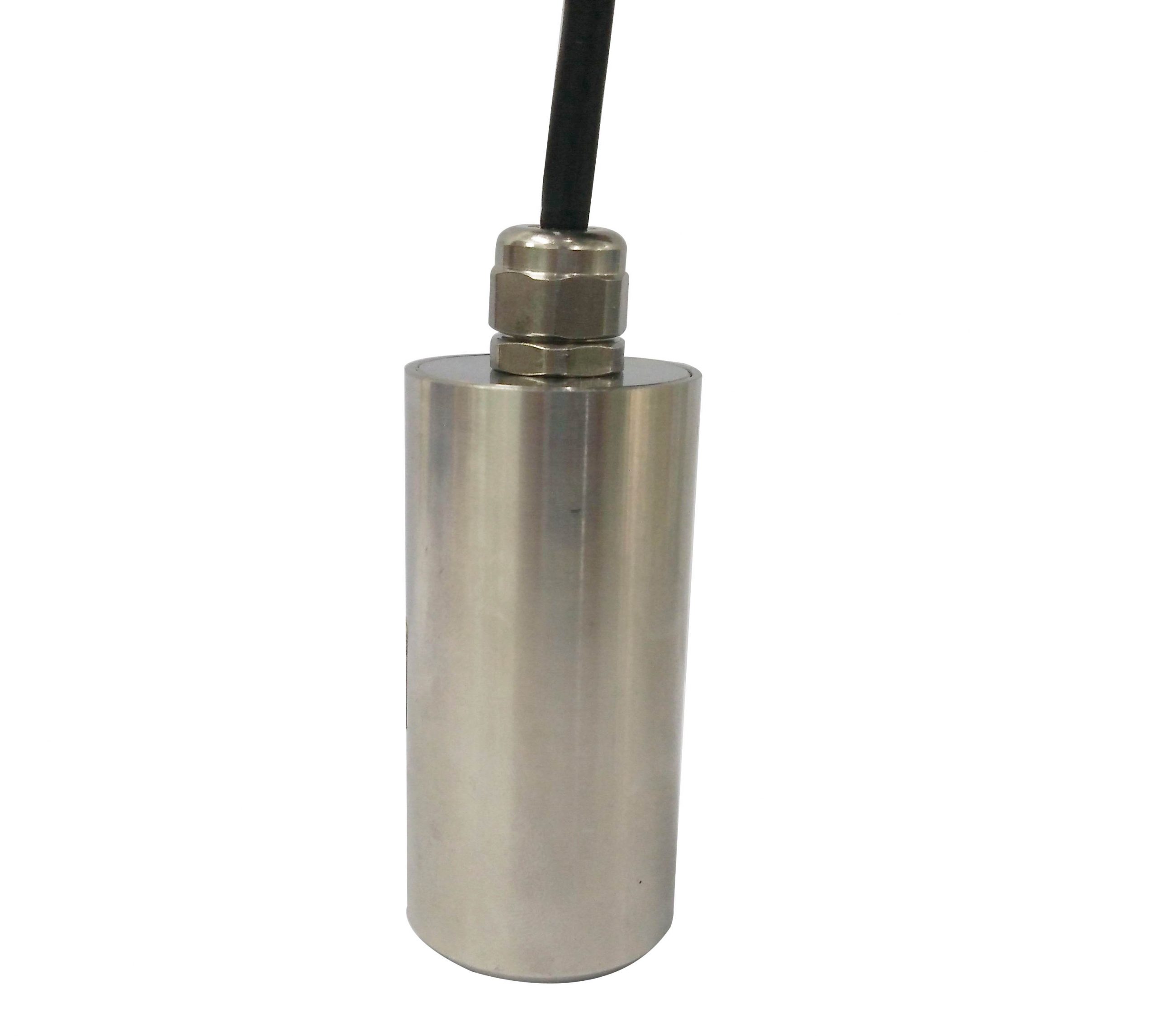

0DK200 Vibration Transmitter For Motors Replace Metrix Vibration Meter
Features:
• Magnetoelectric vibration sensor
• Measurable physical quantity: vibration speed,vibration displacement
• Operating voltage: +12~+24V DC
• Measuring range : 0-100 mm/s;0~2000μm
• Analog output : 4-20 mA
• Frequency range : 10-1,000 Hz
• 2-wire connection technology
• Application:Widely used in rotating machinery, such as fans, pumps, compressors, steam turbines, etc. inthe power, steel, petrochemical and other equipment.
Technical parameters:
|
Measure range |
vibration velocity 0 – 100mm/s vibration displacement 0-2000μm |
|
Output current |
4 – 20mA two wire system |
|
Frequency response |
10~1000HZ(Universal, vertical, level) 4.5~1000Hz (vertical, level) 2~500Hz(vertical, level) |
|
Temperature drift |
<0.1%/℃ |
|
Ambient temperature |
-40℃ – +85℃ |
|
Supply voltage |
+12~+24vdc |
|
Shell material |
stainless steel |
|
Load resistance |
<500Ω |
|
Transverse sensitivity |
<2%
|
|
Output way |
two-wire (one for +24VDC power supply and one for 4-20mA output) |
|
IP grade |
IP62(Aviation plug) IP65(Direct lead) |
|
Weight |
400g |
|
Accessory |
calibration certificate parameters; a mounting screw; an aviation plug cable (standard: 3m, can be customized) <Click for more information> |
Parameter selection tabe :
Select prduction parameters as required,for more information,pls send message to us.
- DK200-
|
Measurement Range
|
Mounting thread
|
Cable length
|
Lead way
|
Protection |
|
Vibration velocity 01:0-10mm/s 02: 0-20mm/s 03:0-30mm/s 04:0-40mm/s 05:0-50mm/s …… |
01:M10*1.5 02:M5*0.8 03:M8*1.25 04:1/4-28 05:Magnetic base 06:special customize
|
01:1m 02:2m 03:3m 04:4m …….. 06:special customize
|
01:Directly lead 02:Aviation plug (armored according to need)
|
01:yes 02:no |
| Installation position: vertical or horizontal vibration in the measured point, the sensor screws in the bottom of the test case,and then the sensor tighten screw on top . Installation dimensions and specifications:If the transmitter is mounted flush position when subjected to high temperatu steam , in order to reduce the ambient temperature transmitters , need to add protective measure, under normal circumstances do not add protection.Wiring Instructions: Brown wire connected to the positive terminal of the power DC24V,DC24V power blue wires connected to the negative side, both brown and blue wires is 4 ~ 20mA output leads . Connecting wires require good insulation properties, using standard GB 0.5MM2 two core shielded cable. |
1.What kind of sensor do we do?
We offer a very wide variety of vibration,pressure,proximity,wireless,laser,angle,displacement ,speed ,acceleration sensors or transmitter and so on establish the sensor manufactures of product internationalization system,In order to meet the needs of the international market, we have turn into become the general agent of bentley, shinkawa, honeywell,rosemount, Siemens, wika and other international famous brands in China zone.
2.How to get your offer?
Please send us your technical parameters,specification or product model ,quantity you want,we will send you our best quotation.
3.If i did not use sensor before,how shall i do?
It does not matter,please tell us some key technical parameters and the order quantity,we’ll choose you most suitable one and give our best service.
4.How to place the order?
If you accept the price,we would send you the profoma invoice to arrange the payment.
5. What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU.
6.How long is the production time after placing the order?
It would take 7-10 days ,anyway,when you place the order,we would confirm the delivery time to you.
7. Do you test all your goods before delivery?
Yes, we have 100% test before delivery
8. What is your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
9.How do you send the goods?
We normally send the goods by DHL,FEDEX,UPS,TNT through our agent.And it will take 3-5 days for shipping.
10: How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefit ;
B: We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
