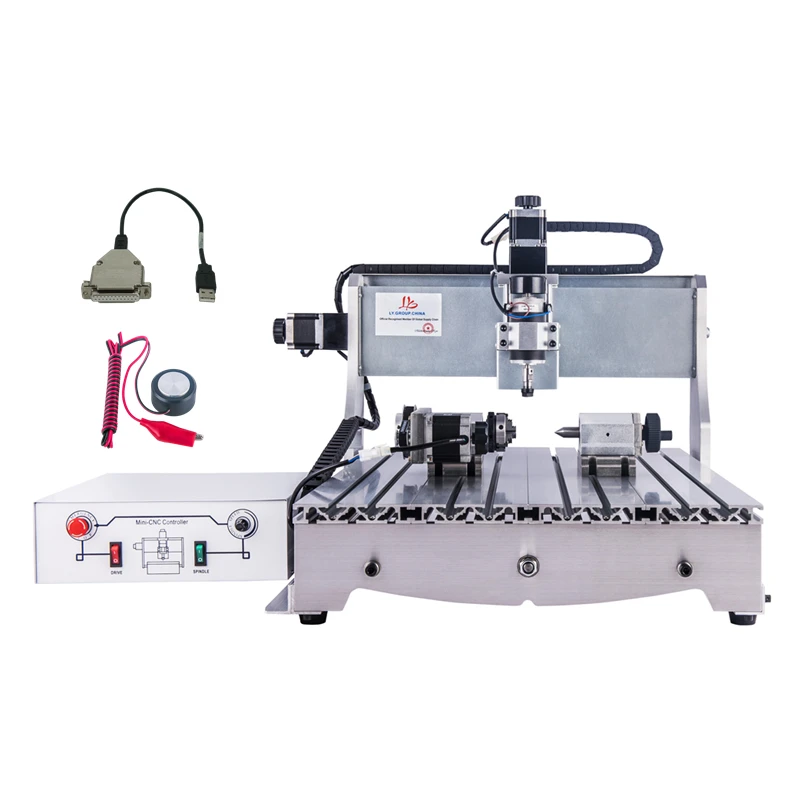

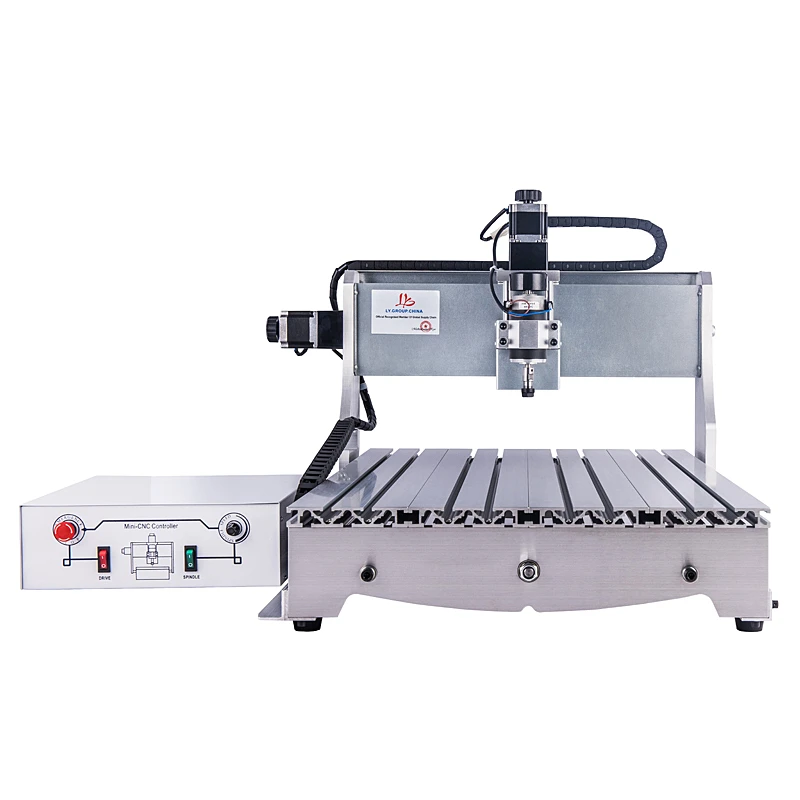

DIY Mini CNC 6040 500W 4 Axis Engraver 150mm Z Stroke for Milling Engraving Machine 600x400mm Wood Lathe Metal Router

MODEL

CNC 6040

Attribute

Z-500W

3axis

Z-500W

4axis

ZH-500W

3axis

ZH-500W

4axis

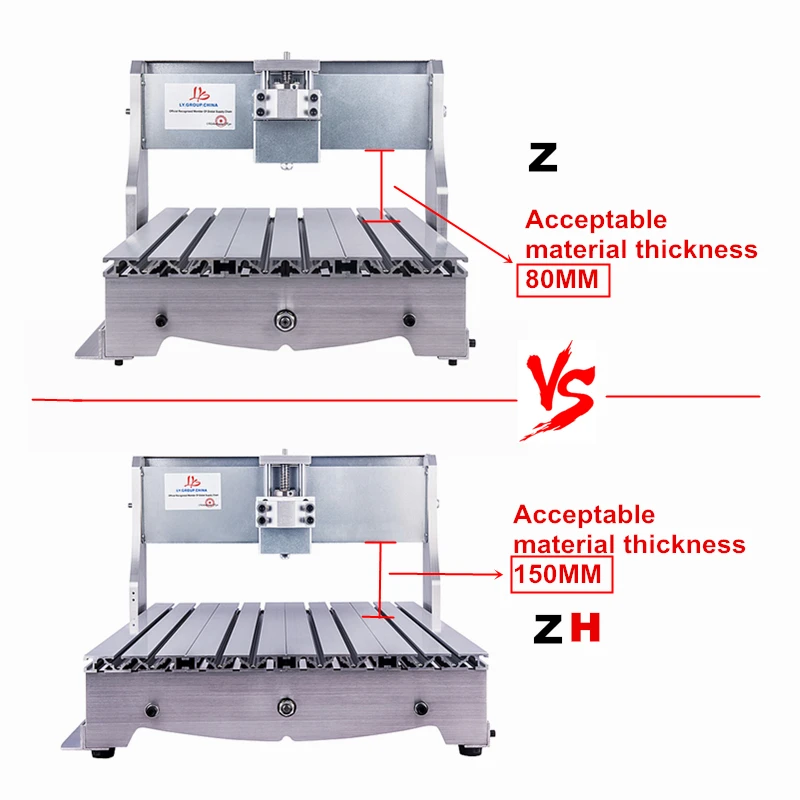

Acceptable material thickness

80MM

80MM

150MM

150MM

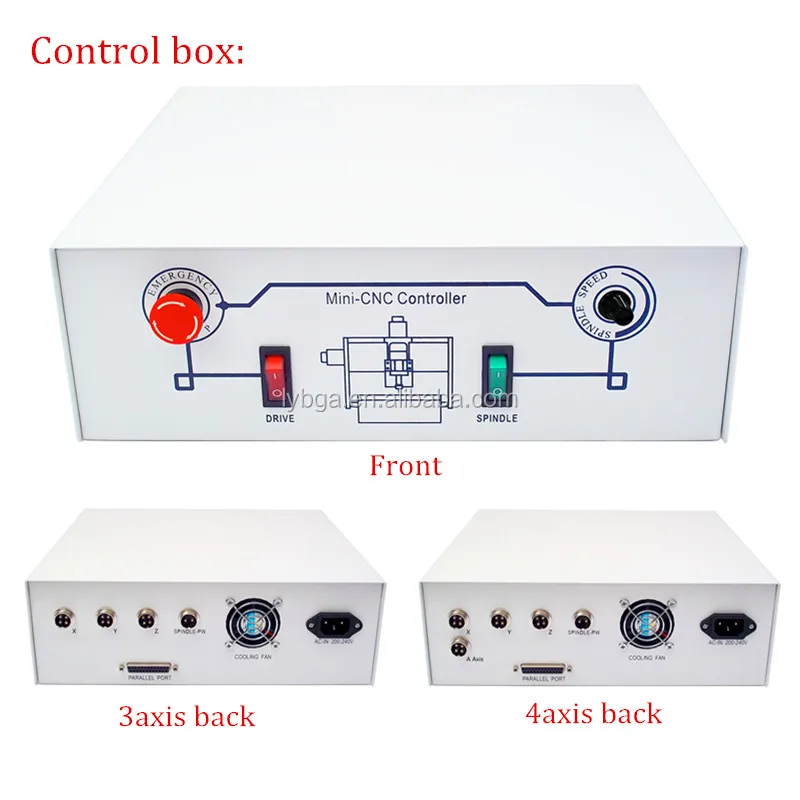

Interface

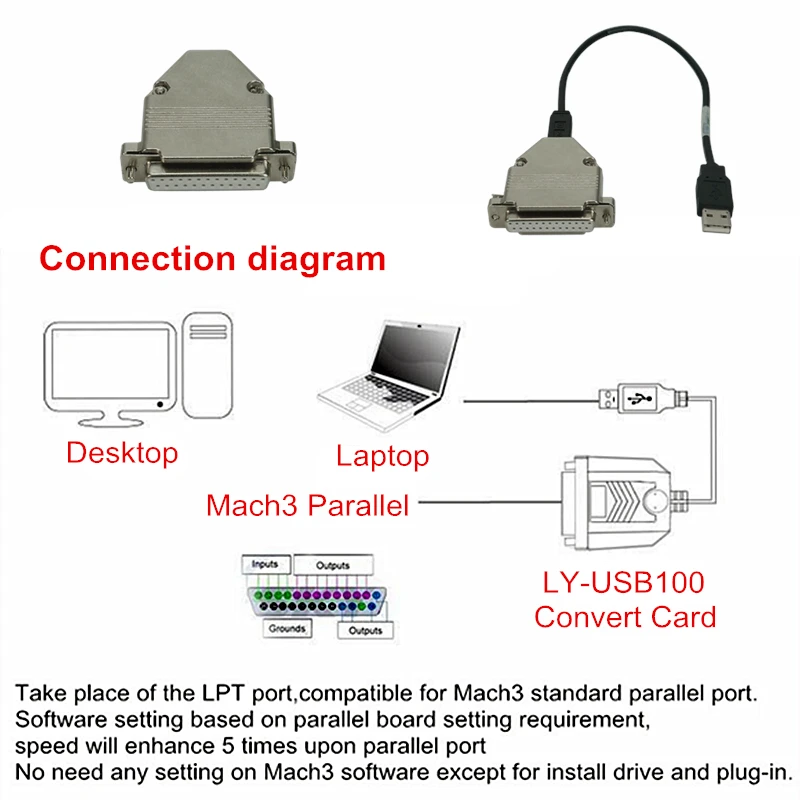

USB + LPT Port

USB+ LPT Port

USB + LPT Port

USB + LPT Port

Toolauto-checking

Yes

Yes

Yes

Yes

Spindle Motor:

500W

500W

500W

500W

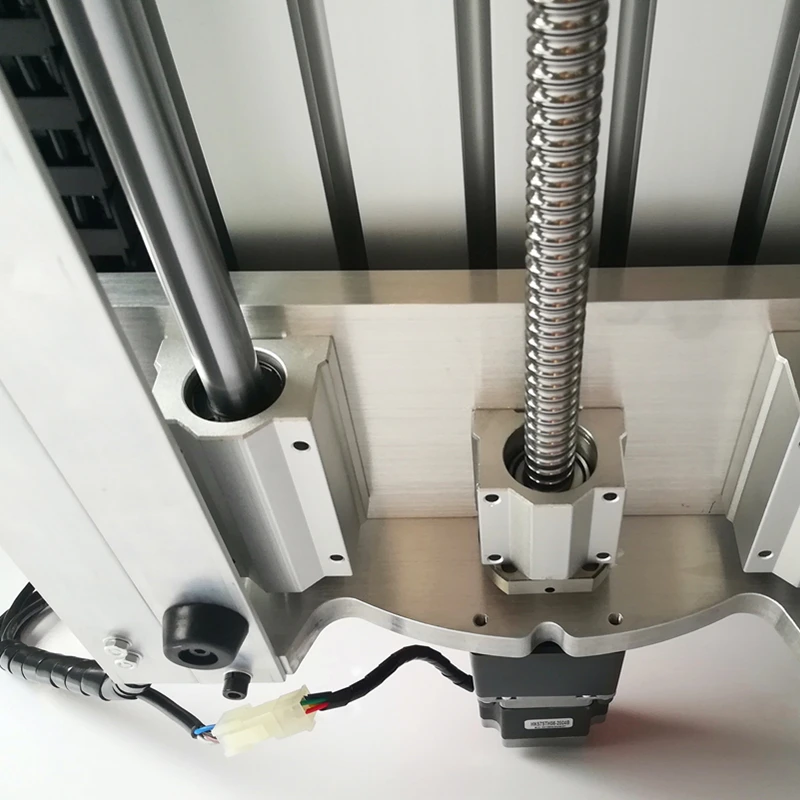

Type of screw

1605

Ball screw

1605

Ball screw

1605

Ball screw

1605

Ball screw

Weigh

46KG

50KG

49KG

53KG

Machine Dimensions:

860X690X550mm

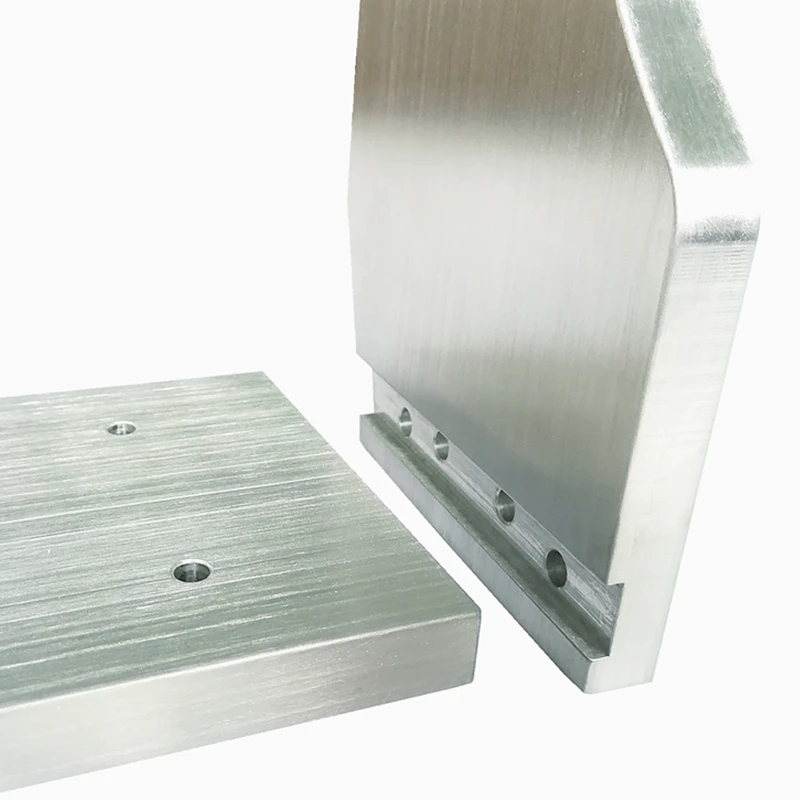

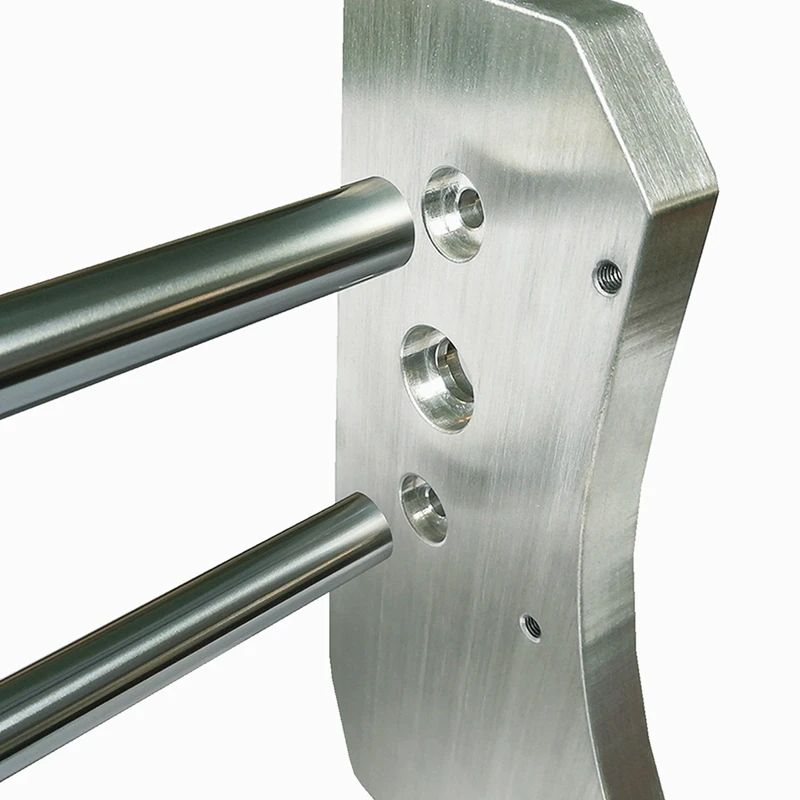

Rack material:

6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Engraving area:

600X400mm

Z-Axis Stroke:

80mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness:

Rail type:

Chromeplate shaft+Linear Bearings,Surface hardening 61HRC

Spindle motor:

500W/12000r/min(Very small noise)

Collet type:

ER11,1/8″(3.175mm) Collet

Stepper motor and drive:

two-phase hybrid stepping motor3A/PHASE,150N.cm, 8 segments drive.

Maximum operating speed:

4000mm/min (Engraving speed : 300-3000mm/min)

Repeat positioning Accuracy:

≤0.03mm

Software Compatability:

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam)

Command code:

G code/.nc/.ncc/.tab/.txt

Rotation Axis (4^th Axis)

Description:

Chuck Size: 50mm self-centering chuck

Center height: H = 51mm

Clamping diameter: 50mm or less

Deceleration mode: synchronous wheel / belt

Deceleration ratio: 4:1

Stepper motor:NEW 57 type / 3A

Stepper Drive: T65-axis drive

Positioning accuracy: 0.075 °

Weight: 4kg
