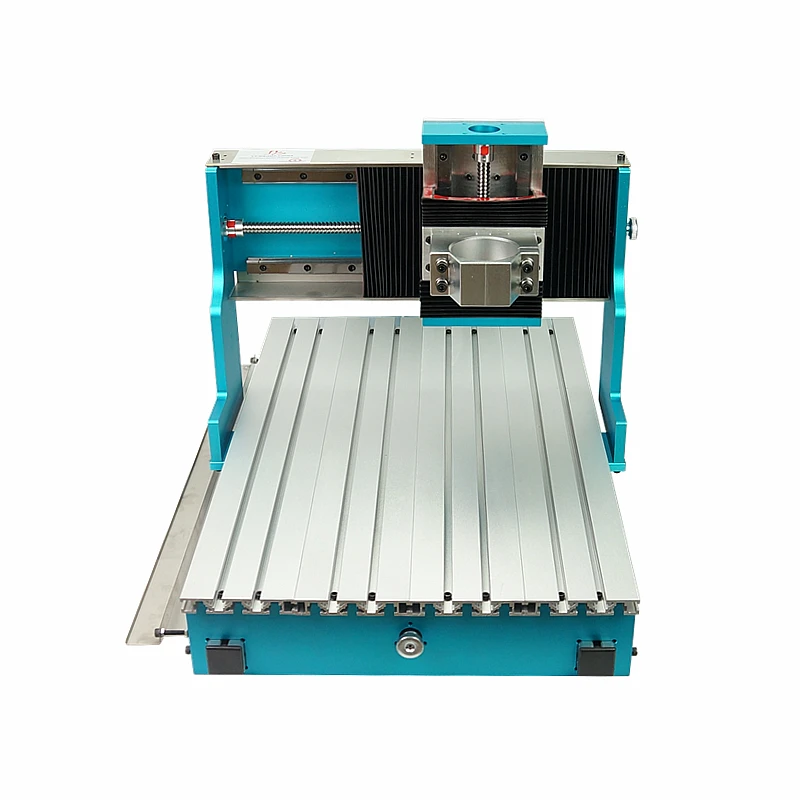

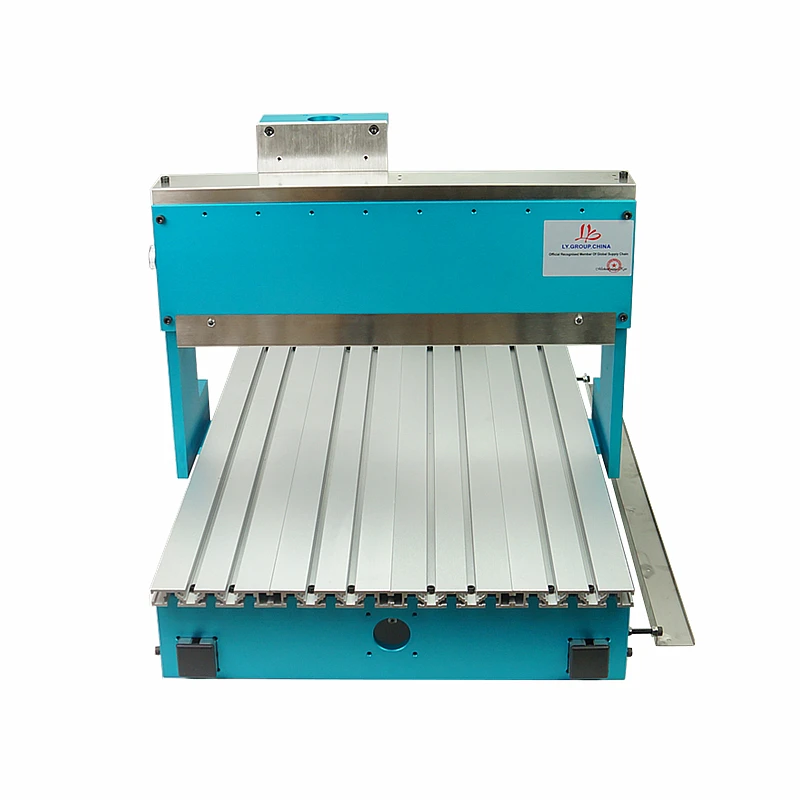

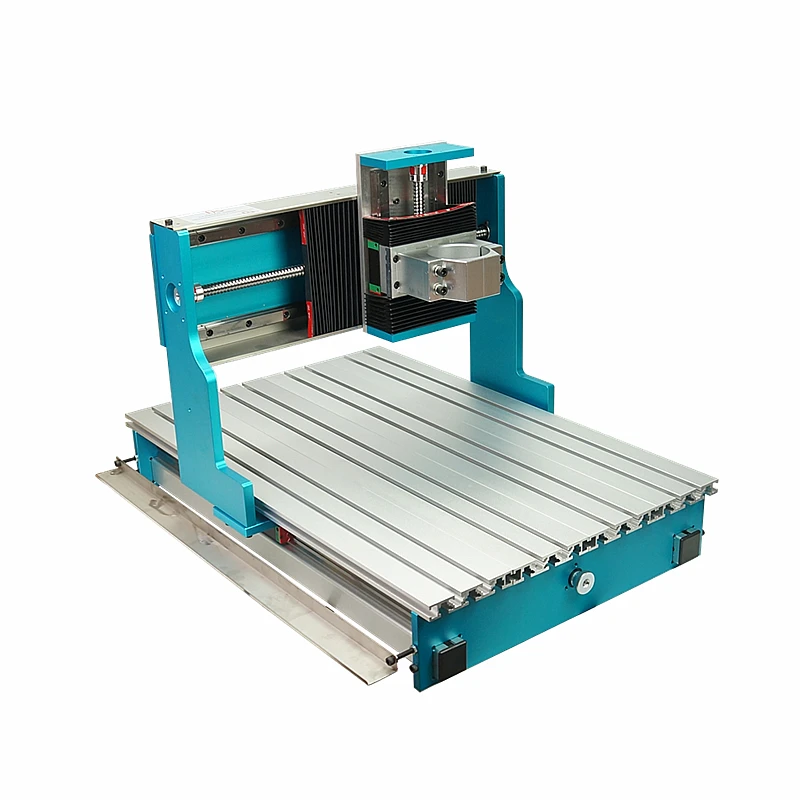

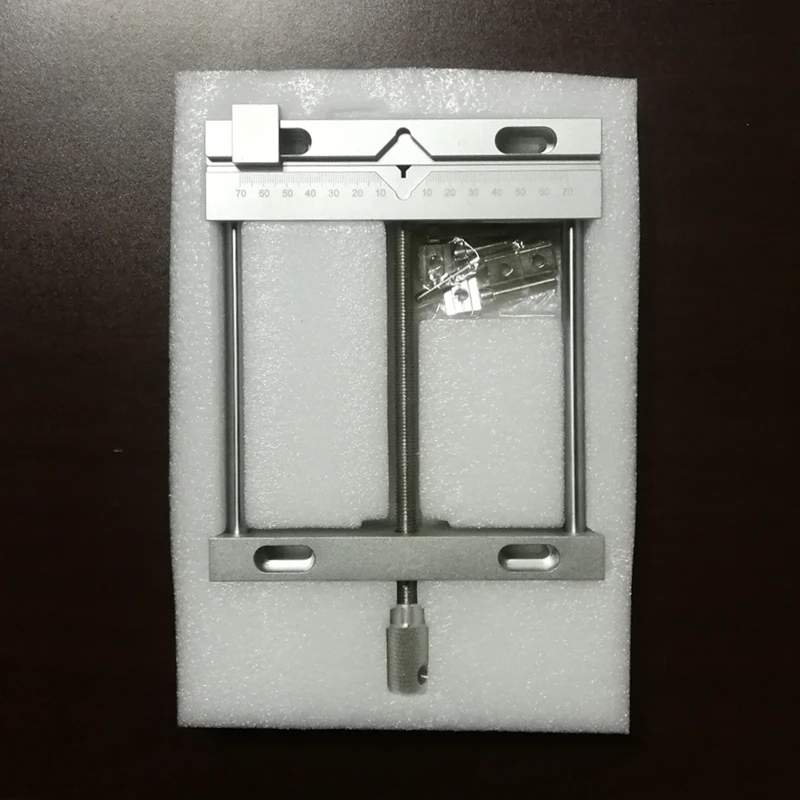

DIY CNC Linear Guideway Frame 6040L 3040L 4th Axis for CNC 3040 6040 Metal Engraving Drilling Milling Machine Wood Router Tool

MODEL

CNC Frame 3040L/6040L

Attribute

3 axis Without

Motor

3 axis With Motor

4 axis Without Motor

4 axis With Motor

Axis

3axis

3axis

4axis

4axis

Have motor?

No

Yes

No

Yes

Have 4^th axis?

No

No

Yes

Yes

Rack material:

6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Table material:

3040L:320 * 520mm     6040L:740 * 480mm                                (20mm aluminum alloy T table)

Engraving area:

3040L:260*380*110mm   6040L:360*570*120mm

Z-Axis Stroke:

3040L:110mm, 6040L:120mm

Engraving depth depends on the length of the tool edge

Acceptable material thickness:

3040L≤ 135mm    6040L≤ 140mm

Rail type:

Square line rail track, three-axis is 20 mm square wire track,

high precision, high strength, top configuration.

Type of screw:

Ball screw 1605

Diameter of Spindle motor:

80mm

Motor

Nema 23 (57*76mm)

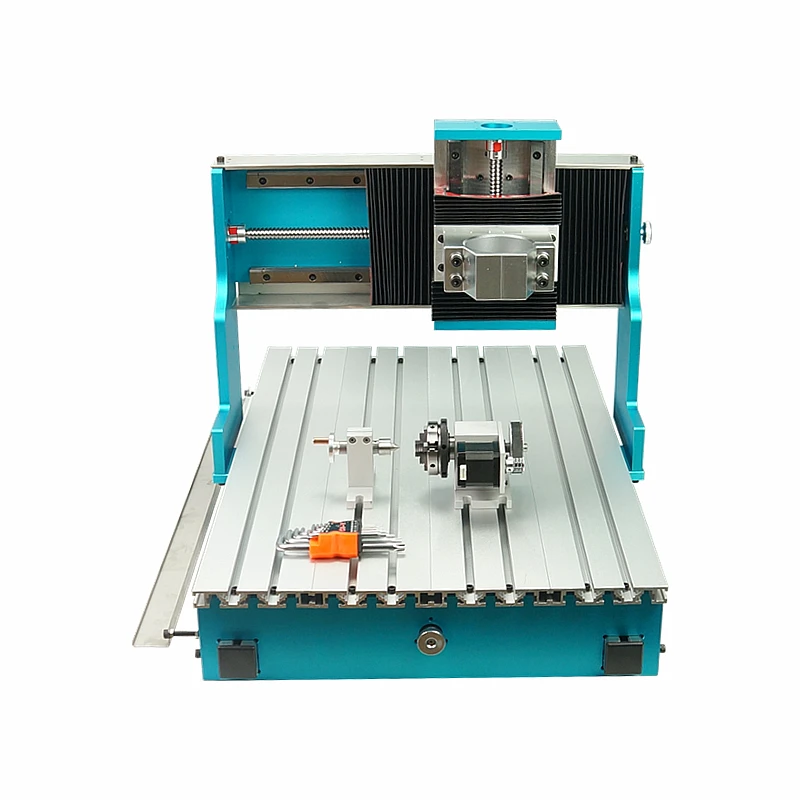

Rotation Axis (4^th Axis)

Description:

Chuck: 65MM 4-jaw chuck

Center height: 54MM

Speed reducing ratio: 4:1

Stepper motor: Two phase 42 stepper motor
