Available Fuel List
Our burner can utilize all kinds of liquid oil/waste oil with or without impurities, can be divided into six types,
1) Waste car/engine oil from car, truck, garage, motor oil ,hydraulic oil, etc
2) #2-#5 fuel oil
3) Vegetable oils, like palm oil, soybean oil, used cooking oil from restaurant as well as animal fat oil, etc
4) Mix oil
5) Diesel oil
6) KV-Artesian Oil Burner for Corrosive fuel, strongly acidic, strongly alkaline, such as pyrolysis oil, waste oil from tire&plastic, methanol, etc (Link)
Waste Engine Oil
Vegetable Oil
Diesel Oil
Do you know how much heat/power you can gain from different fuels? Please choose the correct model from the below table before you put an order.
|
Fuel
|
Diesel Oil, Fuel Oil,
Pyrolysis Oil Sample-C1
(Reference Calorific Value:
10 000Kcal/kg)
|
Vegetable Oil
(Reference Calorific Value:
9 000Kcal/kg)
|
Engine Oil/Waste Engine Oil
(Reference Calorific Value:
8 500Kcal/kg)
|
||||||
|
Model
|
Max. output heat(Kcal/h)
|
Max.output power(Kw)
|
Max. output heat(Kcal/h)
|
Max.output power(Kw)
|
Max. output heat(Kcal/h)
|
Max.output power(Kw)
|
|||
|
30 000
|
34
|
27 000
|
31
|
25 500
|
29
|
||||
|
50 000
|
57
|
45 000
|
51
|
42 500
|
48
|
||||
|
100 000
|
114
|
90 000
|
102
|
85 000
|
97
|
||||
|
200 000
|
227
|
180 000
|
205
|
170 000
|
193
|
||||
|
300 000
|
341
|
270 000
|
307
|
255 000
|
290
|
||||
|
400 000
|
455
|
360 000
|
409
|
340 000
|
386
|
||||
|
500 000
|
570
|
450 000
|
511
|
425 000
|
483
|
||||
|
600 000
|
682
|
540 000
|
614
|
510 000
|
580
|
||||
|
900 000
|
1023
|
810 000
|
920
|
765 000
|
870
|
||||
|
12 00 000
|
1360
|
10 80 000
|
1227
|
10 20 000
|
1160
|
||||
|
18 00 000
|
2045
|
16 20 000
|
1840
|
15 30 000
|
1740
|
||||
|
24 00 000
|
2730
|
21 60 000
|
2455
|
20 40 000
|
2320
|
||||
|
36 00 000
|
4090
|
32 40 000
|
3682
|
30 60 000
|
3478
|
||||
Products Description

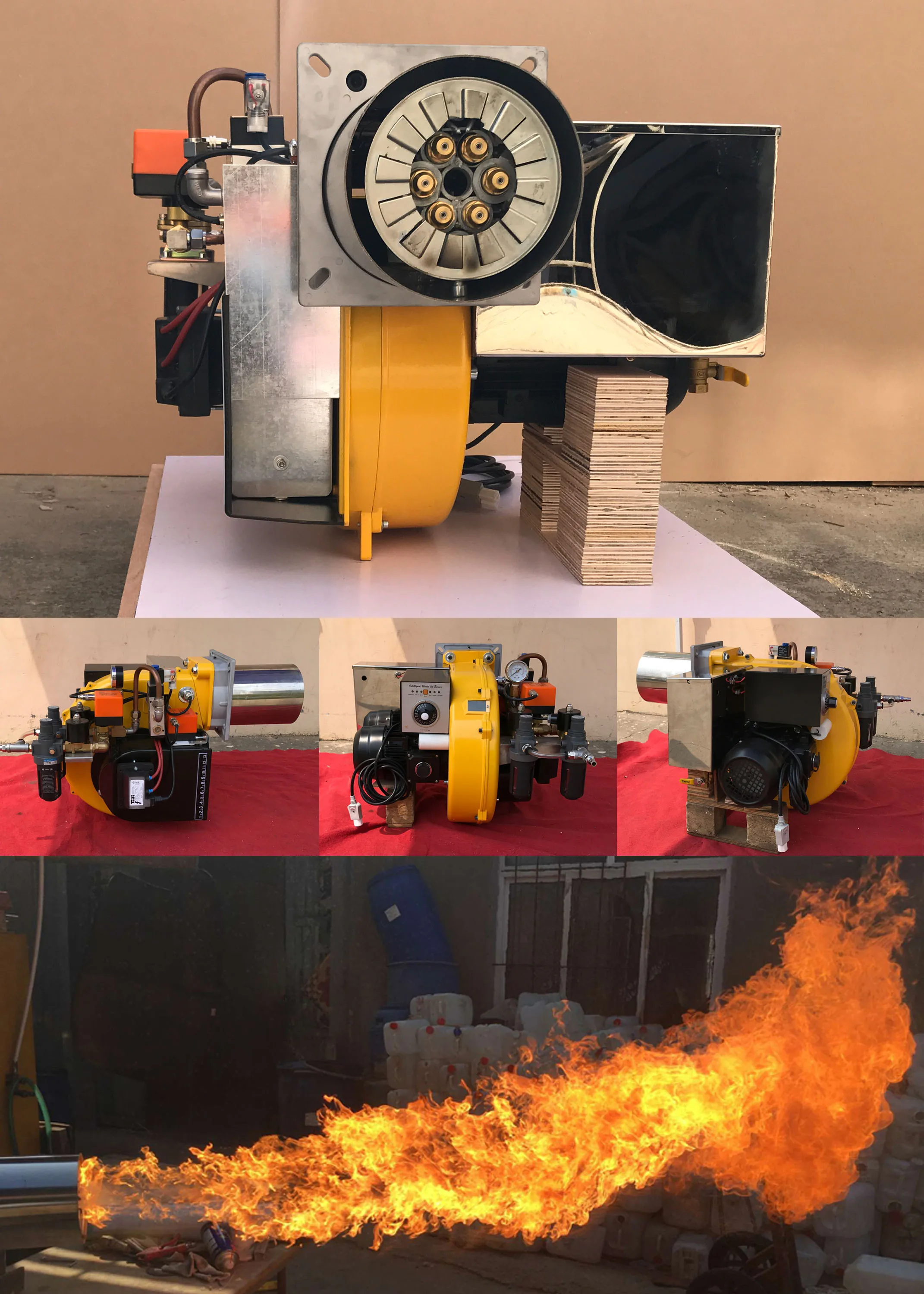

Details Images
★after connects with extra oil storage tank,power on,burner will start to work fully automatically.Five indictor lights in below sequence
oil supply,heating,blast,ignite,fire jet
★oil’s heating usually takes 4 minutes.You can rotate the temperature panel for heating different kinds of waste oil
★Flame can be observed via the front window
★manual adjustable air flap.Enlarge it accordingly,black smoke will disappear or relieve
★multi safety devices for air line’s protection,high sensitive photo cell inside
★one air gauge,all nozzle work together for both stage,save fuel,more efficiency
★must work with external air compressor

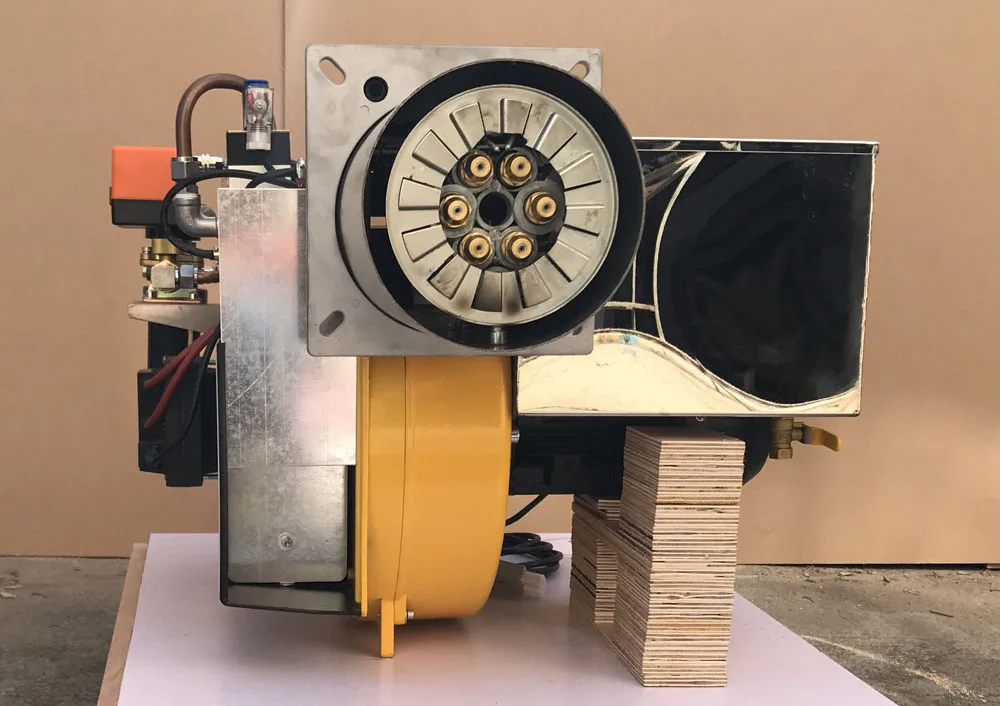

★ Customized six siphon brass nozzles,casted flame ring,form strong stable flame column
★standard tube diameter,comply well with almost all kinds of chamber room
★heating pipe is installed on bottom of small oil tank
★whole oil pump&filter system,extra spare parts,simple tool kit etc come with burner
★strong,durable fan motor
★beautiful owned molded aluminum casing
★assemble by hand,wire well connected,test well before delivery
No Smoke
Reference Air Compressor
|
Item
|
KV40-KV60 Oil Burner Reference Air Compressor
|
|
Feature
|
1) Piston air compressor with belt
2) Large displacement
3) Long stroke
4) High efficiency
|
|
Rotating speed
|
960rpm/min
|
|
Displacement
|
900L/min
|
|
Power
|
7.5Kw
|
|
Pressure
|
0.8Mpa
|
|
Gas Tank Capacity
|
155L
|
|
Size (L*W*H)
|
1320*490*980mm
|
|
N.W
|
140Kg
|
|
Voltage
|
380volt, 50hz, 3phase
|
Installation Example
