Model
|
LW-20/100,single wire
|
|
Capacity
|
70-80m*2/h
|
|
Wire diameter
|
1.3-4mm
|
|
Mesh opening
|
20-100mm
|
|
Weaving width
|
Max. 4 M
|
|
Max length of mesh
|
30m, adjustable freely as your request
|
|
Raw material
|
Galvanized wire, PVC Coated wire, etc.
|
|
Motor
|
3.8KW servo motor + 2.2KW weaving plate turning +1.1KW cutting wire + 0.75KW*2 mesh ends + 0.75KW mesh hole holding + 0.75KW mesh
tension + 1.1KW mesh rolling. |
|
Voltage
|
Customized as your request.
|
|
Dimension
|
4.2*2.2*1.7M (15CBM)
|
|
Weight
|
2.5T/ 2.8T
|

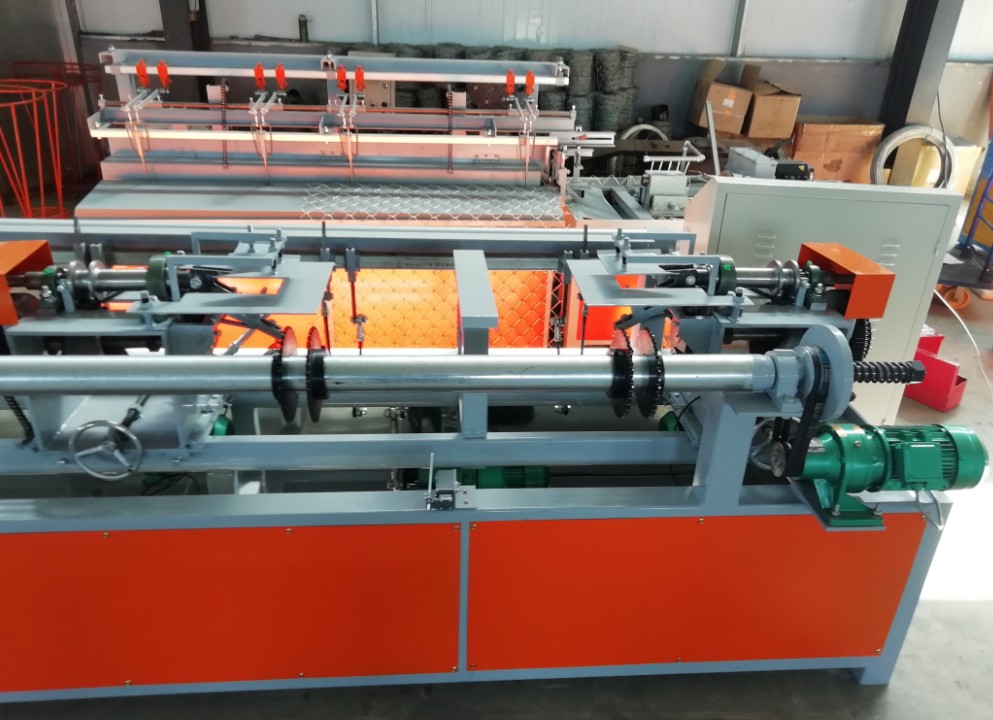

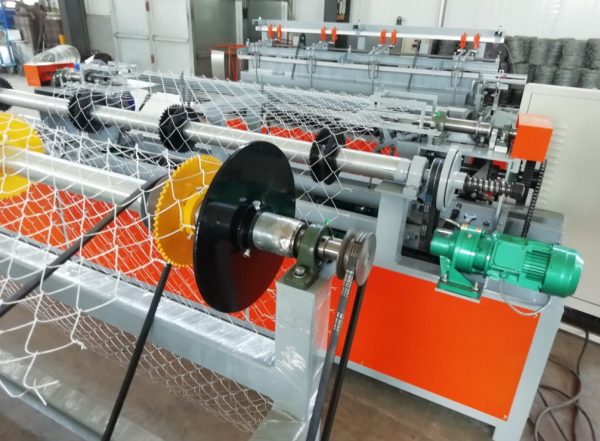

Chain link fence machine for manufacturing chain link fences of different sizes.
The wire is taken in from the payoff stand and passed through the dies where the diamond size takes place.
Different gap sizes. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the
stitching process.
Once the stitching is complete the woven is manually glided down to enable the next stitch to take place.
The chain link is automatically wound to form rolls when the desired length is manufactured.
The machine is controlled by PLC automatic controller, so only one person is needed to operate it.
Chain link fence making machine also called diamond mesh machine,spiral fence machine,cyclone fence machine,orthorhombic
machine.our fully automatic chain link fence machine is higher speed than the similar machinery.this chain link fence machine is
running smooth and reliable performance,the product is flat.
Yes, our factory design and produce kinds of different wire mesh machines.
√: Where is your factory located? How can i visit there?
Our factory is located in handan, hebei, China.when you prepare to come here, please tell me your place, then i can tell you how
to come here, for example, if you from beijing come here, then you can choice take the fast train, it will need about 1.5hours. if
you from guangzhou come here, then you can choice take air , it will need about 3hours.
√: What is the voltage ?
To ensure each machine runs well in different country and region, we will choose different voltage according to customer's
require.
√: How much is your machine ?
The machine price is related to the specification, so please first tell us your detail specification, then we can offer you the
accurate price.
√: What is your payment terms?
Usually 30% T/T in advance, 70% T/T before shipment or irrevocable L/C at sight or others…. It is negotiationable.
√: Do your supply includes installation and debugging ?
Yes. We can send at least one of our engineer to your factory for installation and debugging. The cost will be quoted separately
if you need such service.
√: How long is your delivery time?
Usually it will need about 30 days after received the deposit.
√: How long of your warranty?
Usually one year warranty.
