Products Description

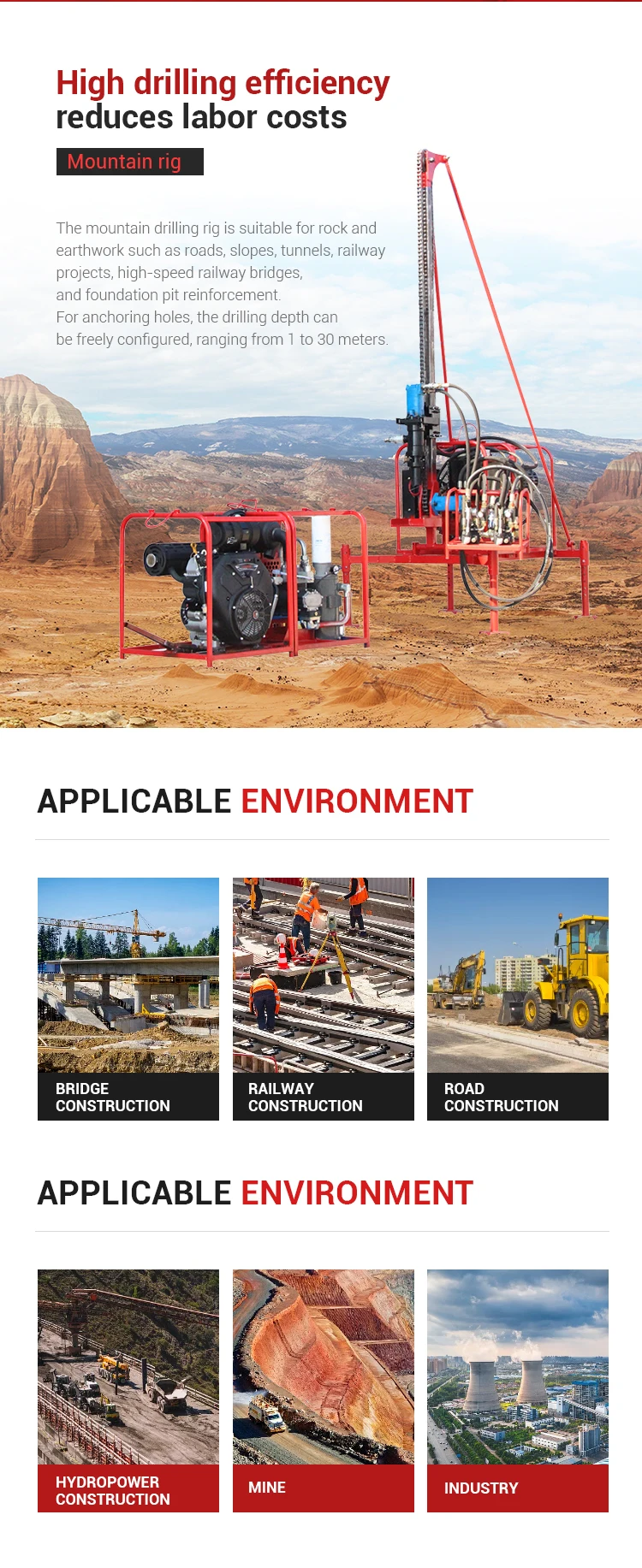

Details Images
|
Model
|
|
ZCS-30
|
||||
|
Drilling depth
|
30m
|
|||||
|
Drilling (hole forming) diameter
|
Air shock drilling
|
Rock formation 70-90mm
|
||||
|
Adapt to geology
|
Soil layer, loose overburden layer, various rock layers
|
Loose stratum 75-95mm
|
||||
|
Water Consumption
|
0.3L/min
|
75-90 mm
|
||||
|
Drill rod (diameter×length)
|
Air shock drilling
|
Φ50×1500 mm
|
||||
|
Power Head
|
Rated torque
|
800-900 N.m
|
||||
|
Rig pressurization and lifting function
|
Pressurize the feed
|
5500-6000 N
|
||||
|
Drill rod weight
|
Drilling tool lifting force
|
12-16 kN
|
||||
|
Gasoline engine model
|
Drilling tool lifting speed
|
0.71-0.81 m/s
|
||||
|
Main engine power
|
26/3600 kw/speed r/min
|
|||||
|
Hydraulic system
|
Flow
|
0-60 L/min
|
||||
|
|
Work pressure
|
20 Mpa
|
||||
