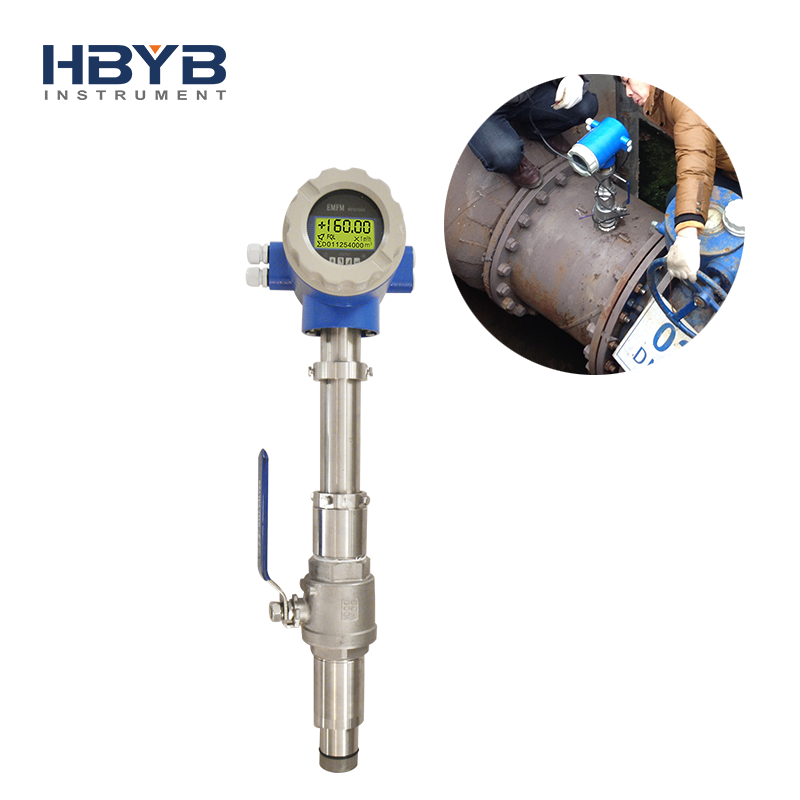

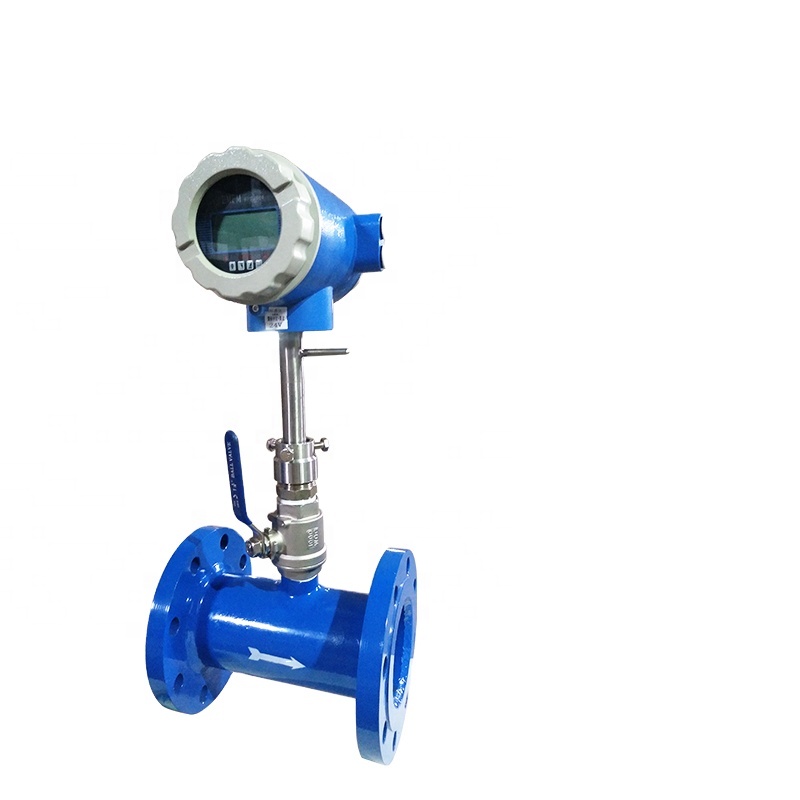

Insert type electromagnetic flow meter
HBLD/C Insert type electromagnetic flow meter is a new flow meter developed on the basis of pipeline electromagnetic flow meter. It retains the advantages of pipeline electromagnetic flow meter, and it is difficult to install pipeline electromagnetic flow meter for pipeline. Defects such as large cost, according to the Nikurads (NIKURADS) principle, the average flow velocity of the fluid is measured by the electromagnetic method to obtain the volume flow of the fluid. In particular, after adopting pressure opening and pressure installation technology, the Insert type electromagnetic flow meter can be installed without water, and can also be installed on cast iron pipes and cement pipes. The successful development of the Insert type electromagnetic flow meter provides a new method for the detection of fluid flow. Its
working principle is the same as that of electromagnetic flow meter, which adopts the principle of flange induction.
Insert type electromagnetic flow meter of Technical parameter
| Applicable scene | Closed pipe |
| Caliber range | DN100-DN3000 |
| Lining type | ABS,PTFE |
| Electrode type | 316L,HaB,HaC,titanium,tantalum,platinum-iridium alloy,stainless steel tungsten carbide |
| Pressure range | 0.6-1.6Mpa |
| Temperature resistance | -25~80℃ |
| Precision | ±1.5%,±2.0%,±2.5% |
| Protection level | Sensor IP65IP67IP68 (optional), converter IP65 |
| Output type |
Frequency, pulse, 4-20 mA, RS485, Modbus protocol; Hart protocol (optional), Profibus DP (optional) |
| structure type |
Simple type, threaded ball valve type, flanged ball valve type |
| Power supply |

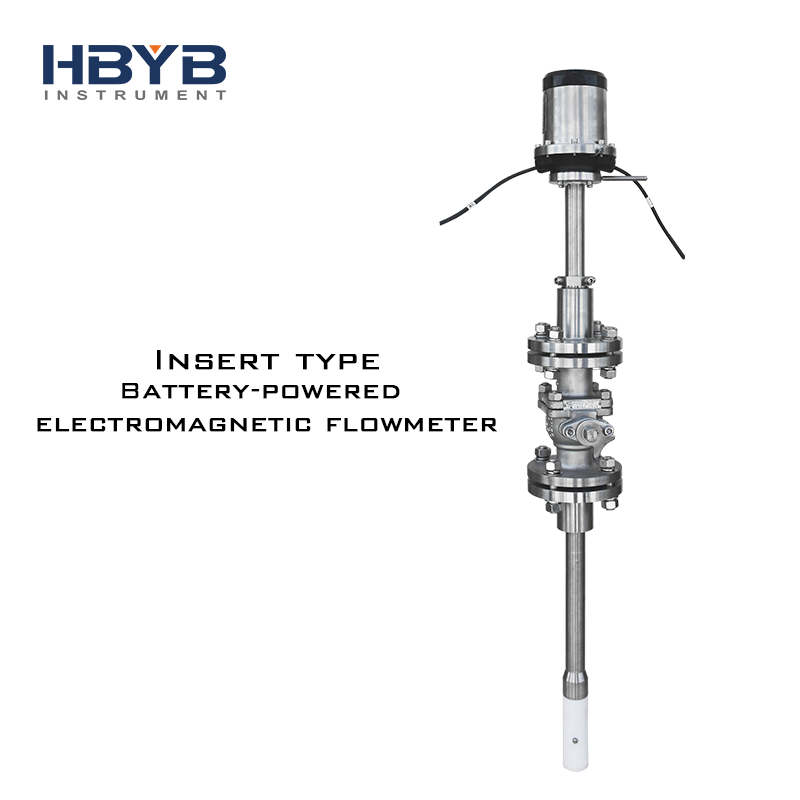

85~250V,45~63Hz,20VDC–36VDC, 3.6VBattery powered(DN100-1000) |
| Straight pipe requirements | Front 5DN, rear 3DN |
| Sensor material | 304,316 (optional) |

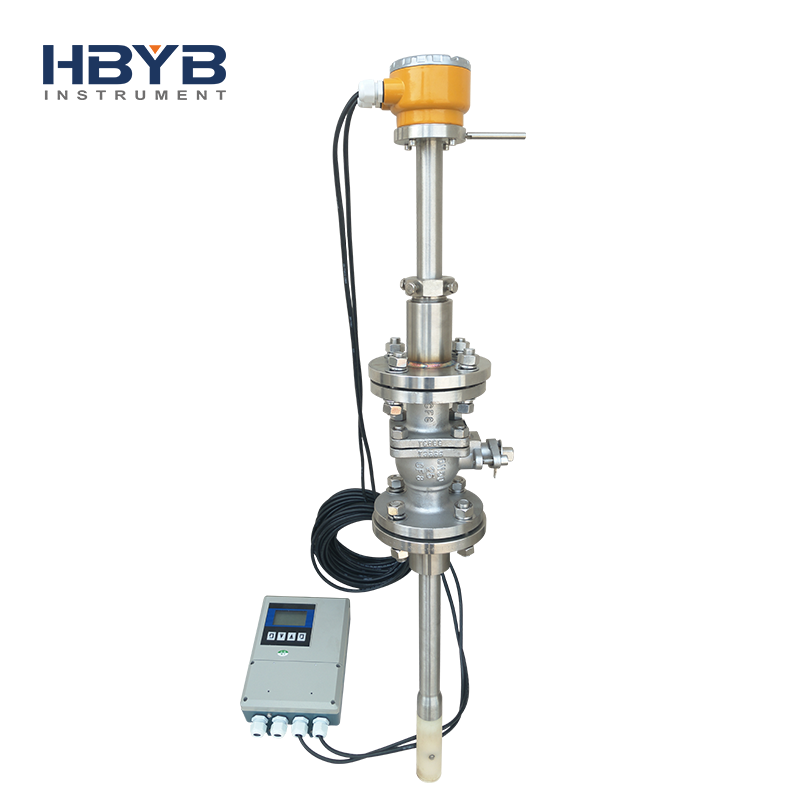

| structure type | Integrated type, split type |
1. Are you a manufacturer?
—We are manufacturer with 10 years experience!Welcome to visit our factory at any time.
2. How about the delivery time ?
—Around 3 working days for standard products. For customized orders, it takes about 10-15 days.
3. Do you accept OEM business?
—We do OEM .
4.Do you have ISO certificate?
— Yes, we have ISO, also CE, and Calibrate certificate.
