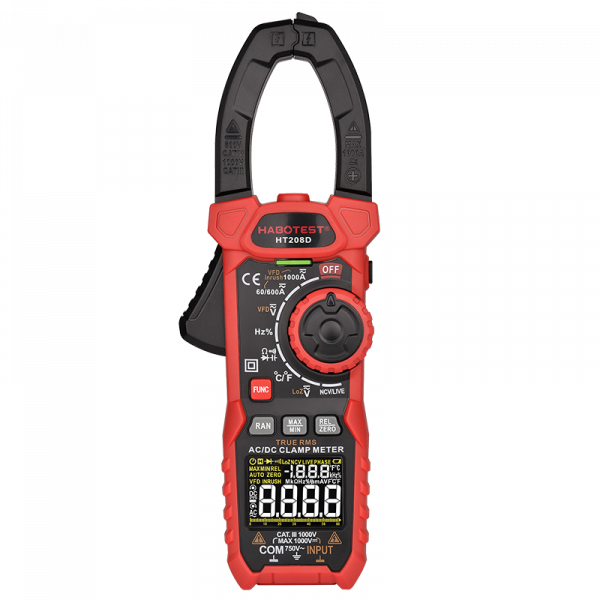

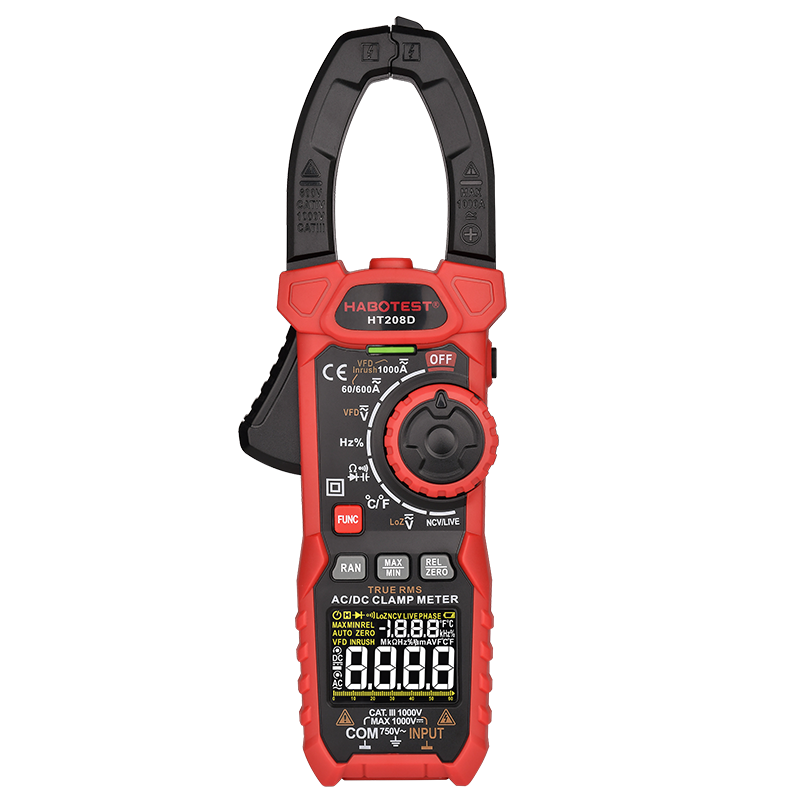

HT208D Digital Clamp Meter 6000counts Habotest HT208DAC/DC 1000V Ohm Hz Temperature NCV, VFD , DUTY test pinza amper Inrush DCA zero
- Port: Shenzhen
- Lead Time :
-
Quantity(Pieces) 1 – 40 41 – 1000 >1000 Est. Time(days) 3 25 To be negotiated Specification
|
Function |
Range |
Accuracy |
||
|
HT208A |
HT208D |
|||
|
DC Voltage |
600mV/6V/60V/600V/1000V |
±(0.5%+3) |
±(0.5%+3) |
|
|
AC Voltage |
600mV/6V/60V/600V/750V |
±(0.8%+3) |
±(0.8%+3) |
|
|
DC Current |
60A/600A/1000A |
|
±(2.5%+5) |
|
|
AC Current |
60A/600A/1000A |
±(2.5%+5) |
±(2.5%+5) |
|
|
Resistance |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
±(0.8%+3) |
±(0.8%+3) |
|
|
Capacitance |
10nF/100nF/1μF/10μF/100μF/1mF/10mF/100mF |
±(3.0%+3) |
±(3.0%+3) |
|
|
Frequency |
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
±(0.5%+5) |
±(0.5%+5) |
|
|
Duty |
1%~99% |
±(1.0%+2) |
±(1.0%+2) |
|
|
Temperature (°C/°F) |
-40°C~1000°C |
±(1.0%+2) |
±(1.0%+2) |
|
|
-40°F~1832°F |
±(1.0%+2) |
±(1.0%+2) |
||
|
Counts |
6000 |
6000 |
||
|
Auto/Manual range |
√ |
√ |
||
|
Continuity |
√ |
√ |
||
|
Diode |
√ |
√ |
||
|
Data Hold |
√ |
√ |
||
|
NCV |
√ |
√ |
||
|
Back light |
√ |
√ |
||
|
Flashlight |
√ |
√ |
||
|
DCA ZERO |
√ |
√ |
||
|
Low battery indication |
√ |
√ |
||
|
Auto power off |
√ |
√ |
||
|
True RMS |
√ |
√ |
||
|
VFD |
√ |
√ |
||
|
INRUSH |
√ |
√ |
||
|
MAX/MIN |
√ |
√ |
||
|
REL |
√ |
√ |
||
|
LowZ |
√ |
√ |
||
|
VA screen |
√ |
√ |
||
|
Power |

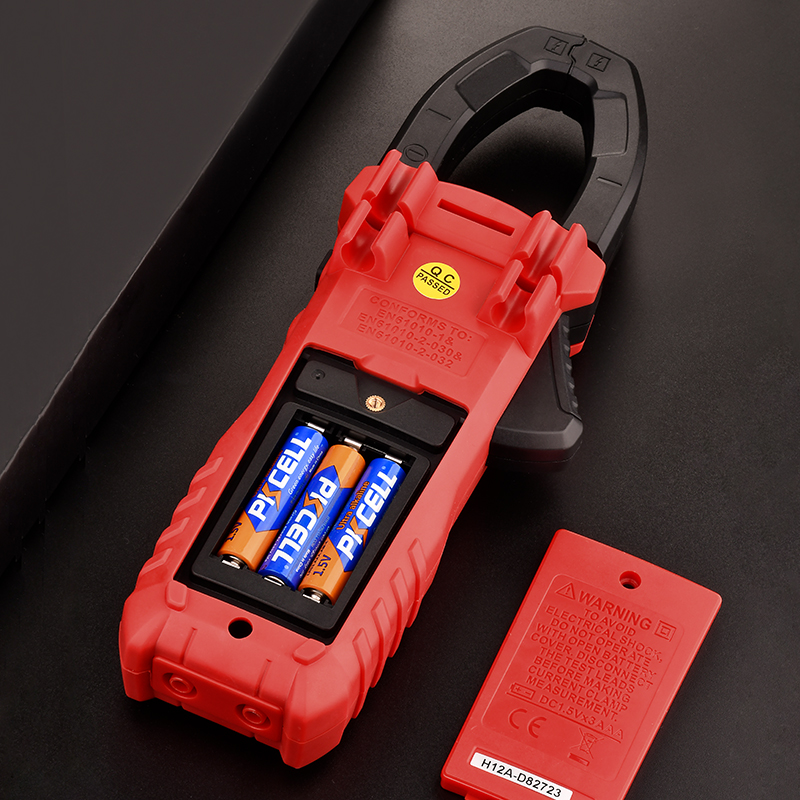

3xAAA(1.5V)Batteries |
|||
|
Safety Rating |
EN61010-1,-2-030 EN61010-2-033, EN61326-1 CAT III 600V |
|||
*Inquiry and sonsulting support *12 months warranty
*Online presentation if necessary *Spare parts delivery
*Company & Factory Visit ( Site or Online) *New product exchange
*Free Samples (Shipping Cost Excluded) (Term & Conditions Apply)
Dongguan Habotest Instrument Technology Co.,Ltd is an innovation orientied technology enterprise with an over 20 years R&D team, injection molding, professional production line and assembly capabilities.
We offering professional and innovative measuring products as Digital Mltimeter, Digital Clamp Meter, Earth Resistane tester, Insulation Tester, Enviromental detector and other detecting insturments for the worldwide customers to meet the growing global market demend, we also provide electronic test tools, measurement solutions and ODM and OEM services to specific customers.
Habotest is currently developing test meters and instruments in an industry park nearly 5000 square meter facility. With this new facility, Habotest is capable to fully supply product demands from all customers across the world.
“Talents Oriented, Technology Leading, Quality Assurance, Global Commitment” is our tenet.
We are aiming to build a long-lasting and win-win partnership with our worldwide customers.
