Product Description
Scope of application:
1. It is suitable for large area and high efficiency construction of fine aggregate aggregate filling layeror mortar filling
layer in floor heating engineering;
2. It is suitable for transportation of fire-resistant and thermal insulation materials in various engineering construction;
3. Pressure grouting of various foundation piles; over excavation and backfilling of tunnel;
4. After adding spraying accessories, it can be used as spraying pump for spraying and sprinkling of mortar, refractory
materials and green soil.
layer in floor heating engineering;
2. It is suitable for transportation of fire-resistant and thermal insulation materials in various engineering construction;
3. Pressure grouting of various foundation piles; over excavation and backfilling of tunnel;
4. After adding spraying accessories, it can be used as spraying pump for spraying and sprinkling of mortar, refractory
materials and green soil.

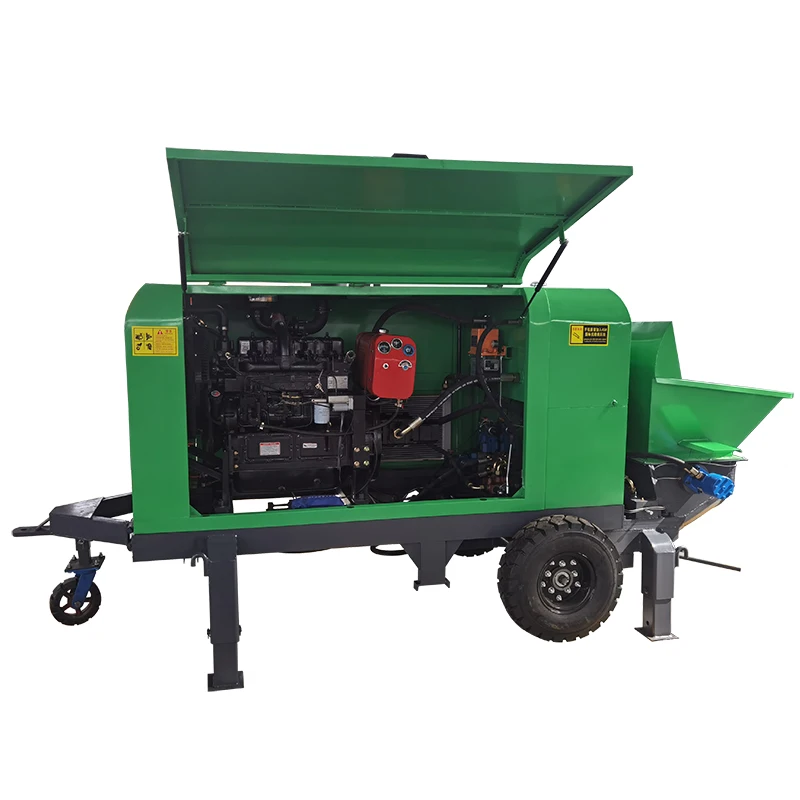

Main Features：
Focus on quality trustworthy
New way of concrete transportation
Strong momentum
Long transportation distance
Widely used
High efficiency
|
序号 number
|
主要部件
main parts
|
技术参数parameters
|
数量quantity
|
备注
comment |
||
|
1 |
底架总成
chassis assembly |
底架体 underframe
|
1
|
骐骥QJ
|
||
|
牵引架traction frame
|
1
|
骐骥QJ
|
||||
|
支地轮ground wheel
|
1
|
骐骥QJ
|
||||
|
2 |
搅拌系统
stirring system |
搅拌马达stirring motor |
1 |
骐骥QJ |
||
|
3 |
泵送系统 pumping system |
料斗 hopper charging bucket
|
料斗容积 ＞0.4m³
|
1
|
骐骥QJ
|
|
|
输送缸transport
|
Φ140×1000
|
2
|
国鼎
|
|||
|
油缸hydro-cylinder
|
Φ90×φ55×850
|
2
|
国鼎
|
|||
|
S管Svalve
|
1 set
|
|||||
|
4 |
液压系统 hydraulic system |
主油泵main oil pump
|
100
|
1
|
天宇
|
|
|
齿轮泵Gear Pumps
|
16
|
|||||
|
液压阀（3阀系统）hydraulic valves
|
Φ16
|
1 set
|
RSHON
|
|||
|
胶管sebific duct
|
1
|
恒宇Auria
|
||||
|
过滤器filter
|
1
|
|||||
|
5 |
电气系统 electrical systems |
电控柜electric control cabinet
|
中央控制系统
|
1
|
骐骥QJ
|
|
|
控制器controller
|
1 set
|
KEWEI科威
|
||||
|
显示屏display screen
|
1 set
|
KEWEI科威
|
||||
|
断路器circuit breaker
|
1 set
|
天正TENGEN
|
||||
|
按钮push-button
|
1.set
|
施耐德schneider
|
||||
|
6
|
动力系统
dynamical system |
柴油机motor |
4105 |
1 |
卡特
universally |
|
|
7
|
润滑系统
lubricating system |
液压润滑脂泵总成lubrication pump
|
带溢流式五孔分油器
|
1
|
||
|
紫铜管路Copper tubes
|
1.set
|
|||||
|
number
|
parameter list
|
unit
|
technical parameter
|
|||
|
1
|
最大理论混凝土输送量concrete
|
m³/h
|
30
|
|||
|
2
|
总功率aggregate capacity
|
KW/HP
|
66/90
|
|||
|
3
|
最大骨料aggregate
|
MM
|
15/25
|
|||
|
4
|
出口压力discharge pressure
|
MPa
|
10
|
|||
|
5
|
垂直/水平理论泵送距离verticalhorizontaldistance
|
M
|
80/200 60/150
|
|||
|
6
|
输送缸直径deliverdiameter
|
MM
|
140
|
|||
|
7
|
输送缸行程deliverroute or distance of travel
|
MM
|
850
|
|||
|
8
|
泵送料斗容积×上料高度volumealtitude
|
m³×mm
|
0.5×1000
|
|||
|
9
|
输送管直径ductdiameter
|
MM
|
Φ80
|
|||
|
10
|
砼塌落度caving
|
MM
|
140～230
|
|||
|
11
|
外形尺寸（长宽高）measurement
|
MM
|
4000*1500*1700
|
|||
|
12
|
整机质量approximate weight
|
KG
|
2000
|
|||
