Die Cut Sticker Cutting Plotter Machine with Feeder Cutting Machine Paper Label

ر.س6,904.04

Qty:

Product Description



 Die cut sticker cutting plotter machine with Feeder cutting machine paper Label

Label cutter.jpg

 Die cutting machine.jpg

SPECIFICATIONS FOR MULTI SHEET CUTTER

Model

LN3

Main board

32-bit ARM7 CPU 168MHz,128Mb High-speed CACHE memory

Control panel

11 membrane buttons+3.0 inch touch screen

Driver

High speed, big power step motor, micro-step driver

Maximum cutting Area

(483*329)mm

Maximum cutting speed

500 mm/s

Cutting force

10-1000 g (digital adjustment)

Mechanical precision

0.025 mm

Repeatable precision

< ±0.025 mm

Type of plotter pen

All type diameter 11.4mm plotter pen

Plotter instruction

Auto Compatible DM/PL,HP/GL

Interface

USB/U disk/Serial Port/WiFi(Optional)

Power supply

AC220V/110V,50Hz

Power consumption

<80 W

Knife (Blade)

Imported hardness alloy steel blade

Operating environment

Temperature:5-35℃,Relative Humidity:30%~70%

Main Features

Work offline with USB flash
Huge pressure: 10-1000g(digital adjustment)

High definition carriage

High definition screen

Full Metal machine body, solid and practical workmanship

The newest ARM processor, smooth surface and accurate cutting

Big power motor, faster speed, working noise lower than 50db

Auto paper feeding system, maximum continuous cutting 30pcs

AAS automatic contour cutting, various materials can be scan

Product Application

What can Multi sheet cutter do ?

1.This machine allows die cutting without operator on adhesive sheets and digital prints on cardboard, silk-screen prints and print shop materials.
2.Auto-feeding system will feed media automatically
3.A3 A4 sheet cutting and mark alignment supported, Roller media normal cutting supported also Save people’s time to put media inside of it.
4.Can be applied in food packaging label cutting, mobile film cutting, traffic sign etc

product application (2).jpgproduct application (3).jpgproduct application (4).jpgapplication.jpg

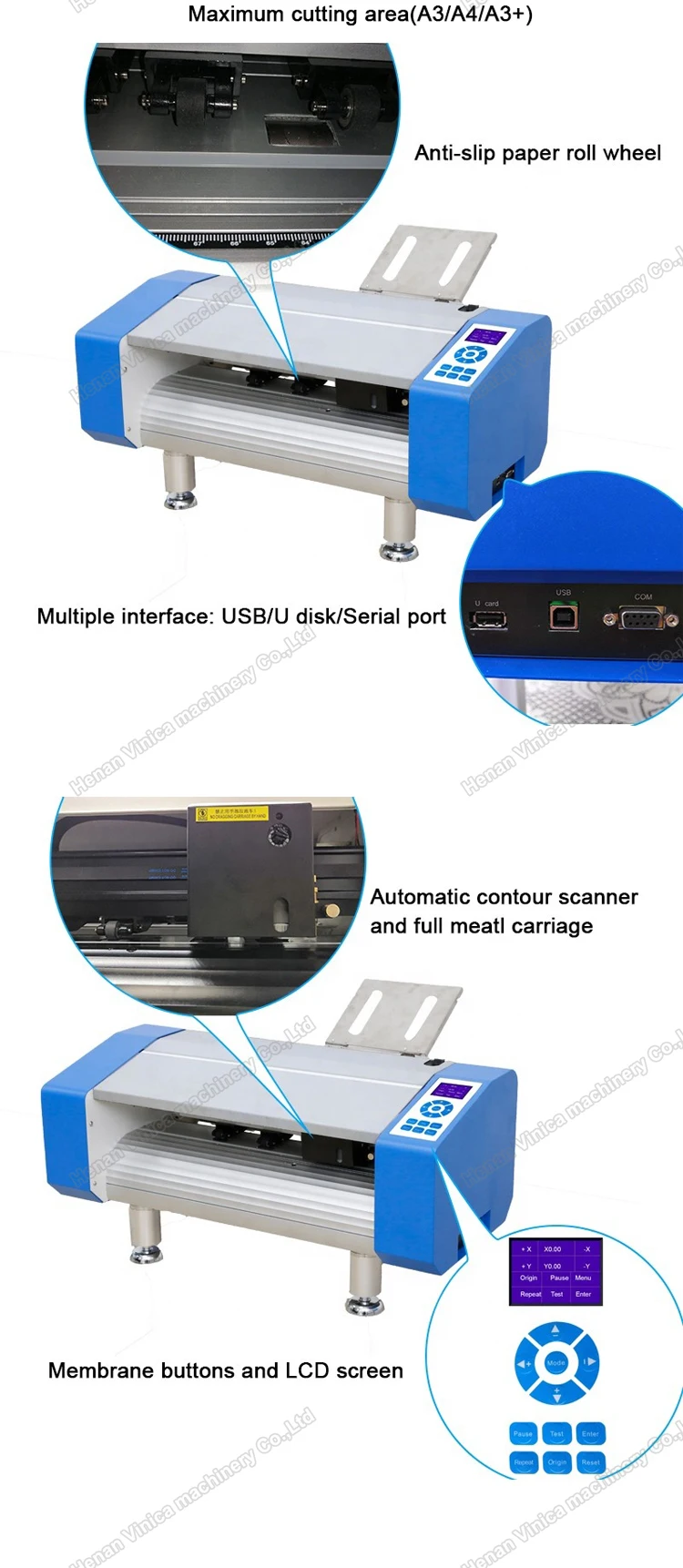

Detailed Images

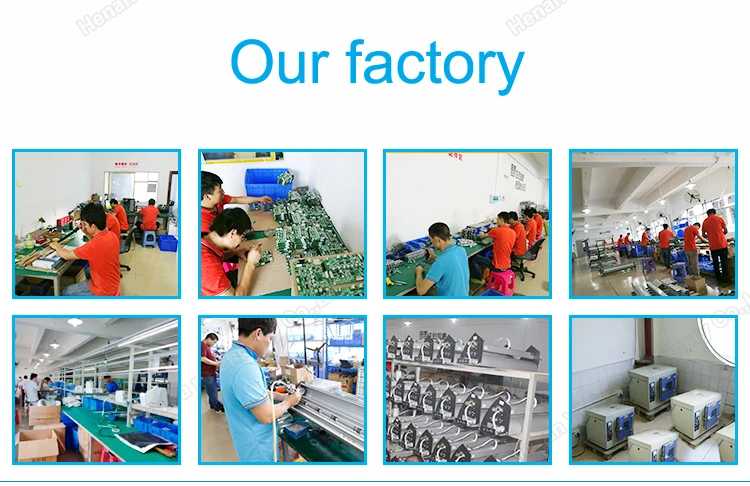

A3 cutting plotter.jpgHalf cutting machine.jpgfactory.jpg
