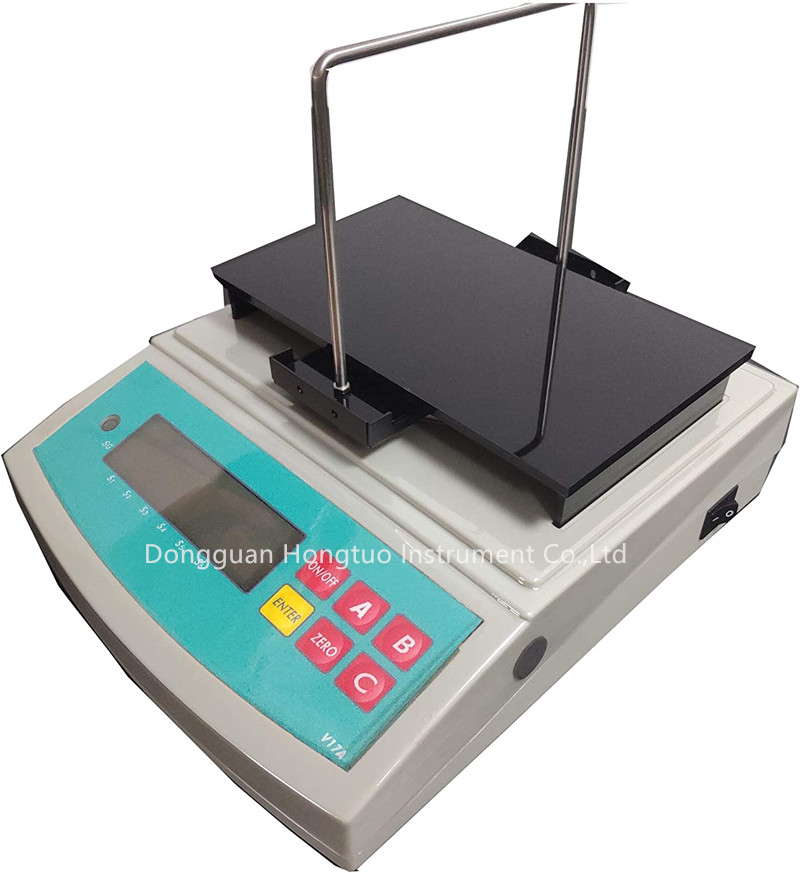

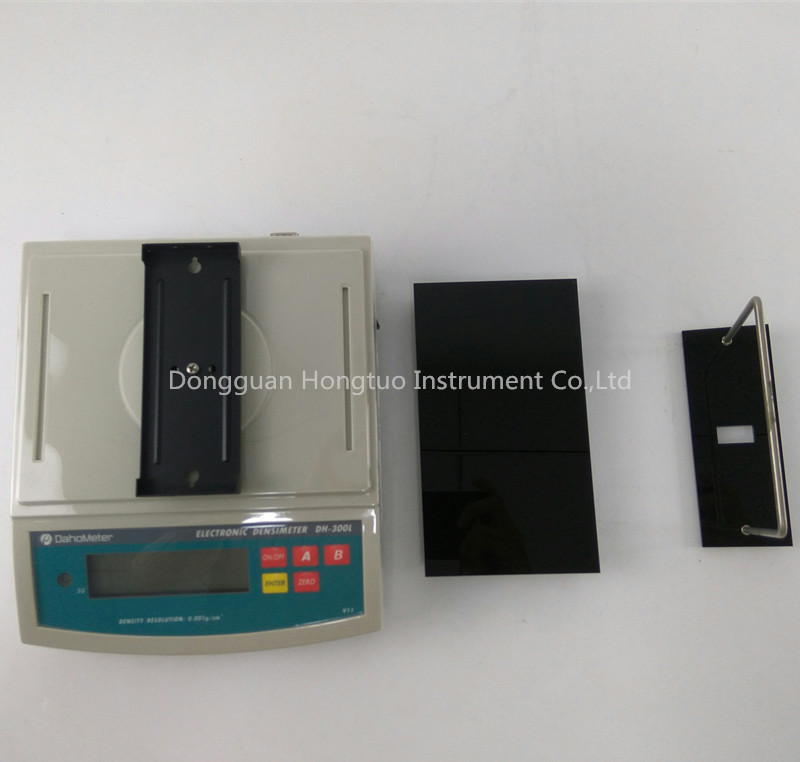

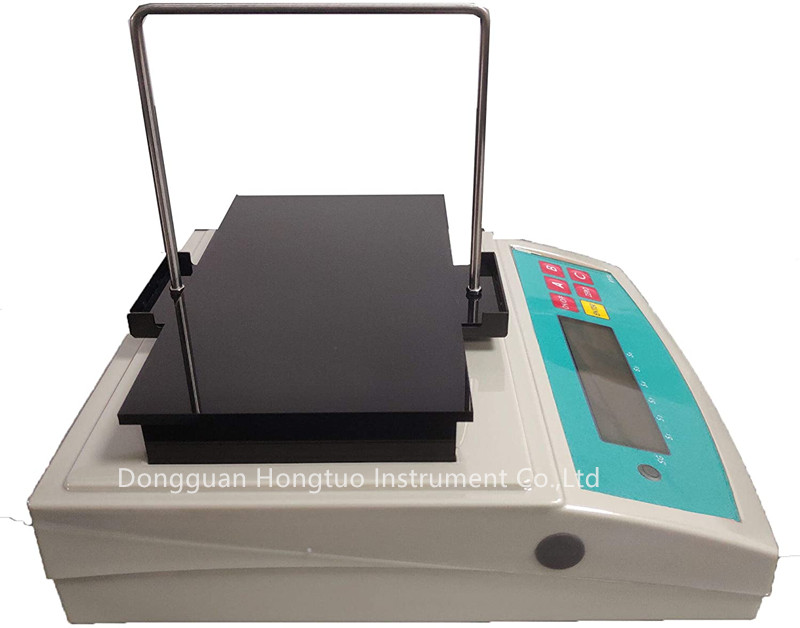

DH-300L DahoMeter Specific Gravity Fluid Density Gauge
Direct reading data, Shorter measuring time, Density resolution 0.001 g/cm3
Application:Chemical solution,modern energy,oil fuel,fine chemical engineering,chemical reagent,chemistry researching laboratory.
Standards:In accordance with Archimedes principle, GB/T 611,.GB/T11540,GB/T12206,GB/T5518 standards etc.
Combine Archimedes principle with modern electronics technique of DH-300L; Digital display liquid desimeter; The data can be read directly with high measurement accuracy; The operation is more easy and get away from the influence of external factor and temperature compared with traditional wechsler balance method and pycnometer method; It can be applied to the field of quality management, cost control,formula researching and so on. Also,the solvent,adhesive,paint, pitch,resin,chemical oils,edible oil,food additives,drink,dairy products can be measured.
Specification
Density resolution: 0.001 g/cm3
Maximum weight:300g
Minimum weight:0.005g
Measuring range: 0.001-99.999g/cm3
Features
(1)Density value can be showed by one procedure;repeatedly continuous rapid measurement can be worked.
(2)Digital display; High accuracy of measurement; Simple operation; Stable and Durable.
(3)Density value of samples with the temperature from normal to 100 centigrade can be measured.
(4)Take samples conveniently;50CC or less would be okay.
(5)There is no cumbersome debugging and operation compared with traditional wechsler balance method and pycnometer method.
(6)It is very easy to clean measurement cup;can’t get the limitation of the size of pycnometer caliber.
(7)Coordinate with the operation of thermostatic tank to measure the proportion with the required temperature.
(8)Adopt the completed special windproof and dustproof cover,which makes the structure convenient and durable.
(9)Volatile liquid,corrosivity liquid,vicidity liquid,strong acid and strong lye liquid can be measured quickly.
(10)Interface of RS-232C is included.the printer of DE-40 will be available to connect PC with the instrument.
Measurement procedure
(1)Place beaker with sample on testing board.and take off weight of pothook.
(2)Hang standard weight on the pothook and submerged in liquid to be tested totally;then press ENTER button to memory.Density valuve can be displayed.

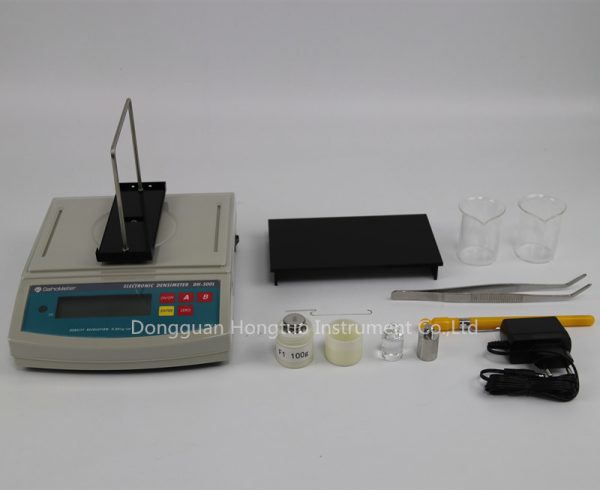

Standard accessories
Host,measurement frame,DE-20A standard liquid measurement assembly,tweezer,
thermometer,100G weight,wind and dust cover,measurement support,power transformer
DE-20A standard liquid measurement assembly:
Two stainless steel pothooks,one normal glass weight,one normal stainless steel weight,two beakers.
Optional accessories:
DE-40 printer,DE-20B anti corrosive liquid measurement assembly.
Instruction Table
|
Name/model |
DH-300L Electronical Liquid Densimeter |
|
Brand |
DAHOMETER |
|
Density resolution |
0.001 g/cm3 |
|
Density range |
0.001—99.999g/cm3 |
|
Measurement type |
a:mobility liquid,viscous liquid,volatile liquid,corrosivity liquid,high temperature liquid,suspension liquid,emulsion and so on
b:alcohol,scaling powder,essence,blood,sodium chloride,glycerol, electrolyte,diesel,refrigerating, hydrofluoric acid,dichloromethane,vitriol |
|
Measurement Principle |
Archimedes principle displacement method |
|
Measurement mode |
1 group |
|
Measurement time |
About 5 seconds |
|
Memory mode |
memory in shorter time by one procedure |
|
Result disply |
Density value |
|
Specific Gravity Measurement frame |
stainless steel specific gravity measurement frame |
|
Function of setting |
Temperature setting,solution density setting,measurement weights setting of weight in the normal liquid and water |
|
Calibration mode |
auto correction with one button,auto detection. |
|
Measurement testing |
distilled testing |
|
Output mode |
standard interface of RS-232,output and print testing data conveniently |
|
Standard accessories |
Host,measurement frame,DE-20A standard liquid measurement assembly,tweezer,thermometer,100G weight,wind and dust cover,measurement support,power transformer
DE-20A standard liquid measurement assembly: Two stainless steel pothooks,one normal glass weight,one normal stainless steel weight,two beakers. |
|
Optional accessories |
DE-40 printer,DE-20B anti corrosive liquid measurement assembly |
|
power |
AC~220V / 50HZ |
|
Main feature |
data display,accuracy,rapid,convenience durable,economy |
Packing size:42 X 16 X 32cm
Items will be shipped out within 2 days upon verification payment.
Items will be shipped out via:
- air shippment
- International Express: DHL/UPS/FEDEX/TNT .it will take around 5 to 7 days to get your door given considering everything goes well.
As leading manufacturer of densimeter,we guarantee below:
- 100% Competitive price we are the original manufacturer of densimeter for years, the large scale production make our products more competitive, that’s the reason we are very confident to offer the most possible competitive price for the same level testing instruments in the world.
- High quality standards we have the powerful professional researching and technology team to support quality;Our quality has been proved by the good market reaction for years;Our product are built to meet the industrial standards and global standards;Every instrument get checked and approved by our QC before delivery.
- Faultless service we have the professional customer service team to provide the one to one service for you;we can help you to enjoy the one-stop service without any worries;we have the completed after-sales service policy and quality insurance policy;we guarantee instruments for one year and life-long maintenance(Gold Purity Tester for two years)
- Efficient logistics we have the stable partner to help us to deliver the goods to the any corner of the worldwide shortly.Air shipment;International express:DHL/UPS/FEDEX/TNT(5 days to 7 days)
- OEM service We are the original manufacturer of densimeter,that is verified by the third party and Alibaba on site;We can provide you OEM service and print your logo on the instruments
