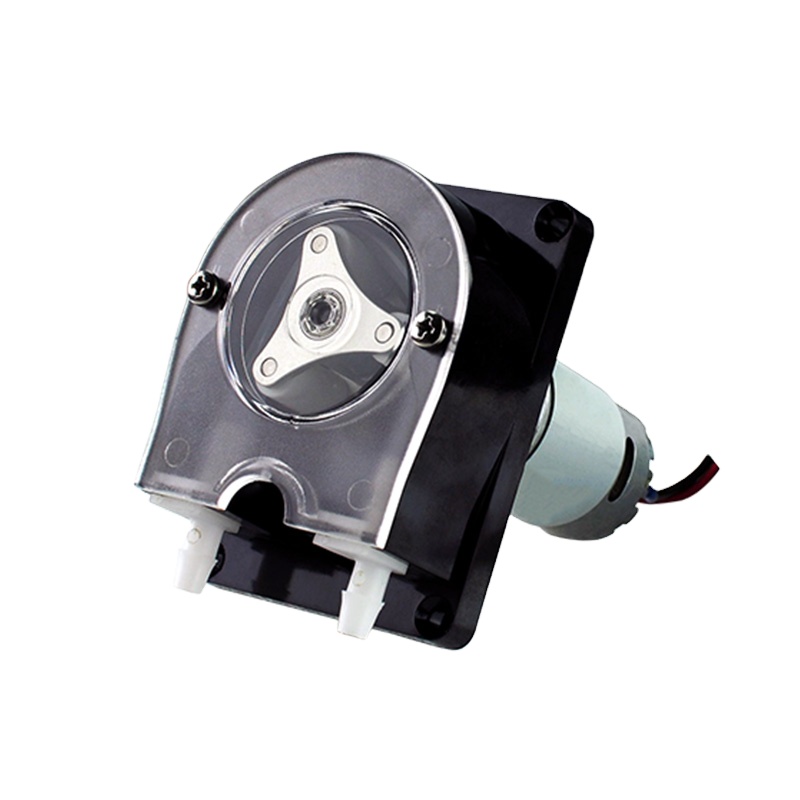

small peristaltic pump model
Custom mounting brackets available.
– Ideal for fluid transfer application which require high accuracy and repeatability.
– Pump head is compact and simple in design with same side tubing entry/exit.
– Perfect for space-limited applications.
– Pump heads are compact and easy to integrate into your OEM applications.
– Call for more information on our OEM services.
|
Order number
|
Model
|
Pump head
|
Motor Voltage
|
Motor speed
|
Flow with tube 18#
|
|
20624125
|
OEM206-1
|
WP300-3
|
DC24V
|
125rpm
|
400 ml/min
|
|
20624300
|
OEM206-1
|
WP300-3
|
DC24V
|
300 rpm
|
1000 ml/min
|
|
20612300
|
OEM206-1
|
wp300-3
|
DC12V
|
300 rpm
|
1000 ml/min
|
|
Tube model
|
ID(mm)
|
OD(mm)
|
Max Flow with 125 rpm(ml/min)
|
Max Flow with 300 rpm(ml/min)
|
|
18#
|
7.9
|
11.2
|
400
|
1000
|
|
17#
|
6.4
|
9.6
|
300
|
750
|
|
25#
|
4.8
|
8
|
200
|
500
|
|
14#
|
1.6
|
4.8
|
20
|
50
|
Small size, compact and robust design.
Trouble-free continuous tube loading in seconds.
Reliable performance without any operator adjustments.
Automatic tube stretch for high accuracy and repetitive flow.
Three roller pump head, low pulsation.
- 1，The package contains a peristaltic pump and its accessories.
2, foam and carton packaging can protect the safety of the peristaltic pump during transportation.
3，If you have other packaging needs, please contact our sales staff in time.
Dear All ,
Welcome to our website ,wish you have a nice day and will get the harvest from us .=))
To help you choose the suitable pump. can you help me to confirm some details as below :
1,what’s the application of the pump ? bottle filling or constant transfer ?
2,what kind of liquid you will transfer ? does it corrosive ? does it can flow as water ?
3, for constant transfer ,what’s flowrate you need? ml/min
4, for bottle filling ,what’s your bottle’s volume ? ml How many bottles you want to filling in 1 min ?
5, For the OEM pump. pls tell me the model no. you want ? Thanks
Pls send these answers or most details to us, then we will help u to choose the best pump and tube .
Thanks for your time .
Contact : Ella Xu
Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
