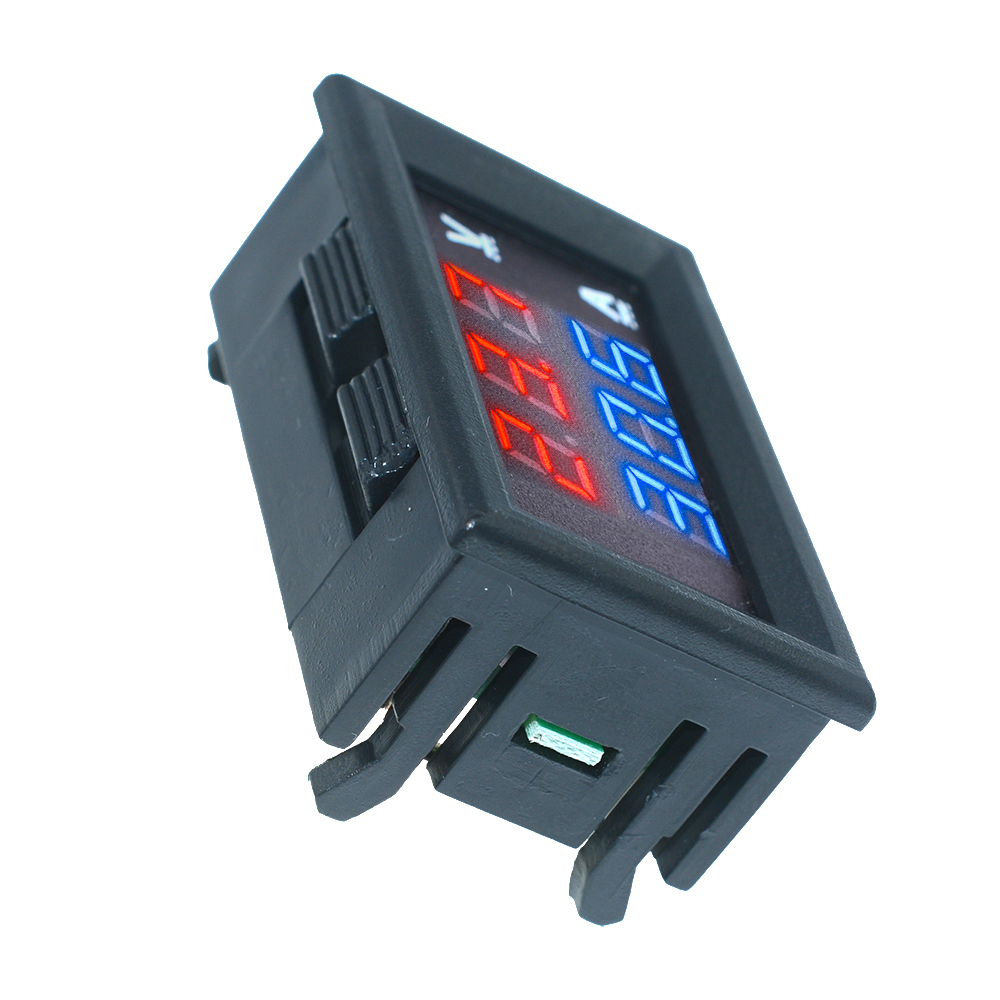

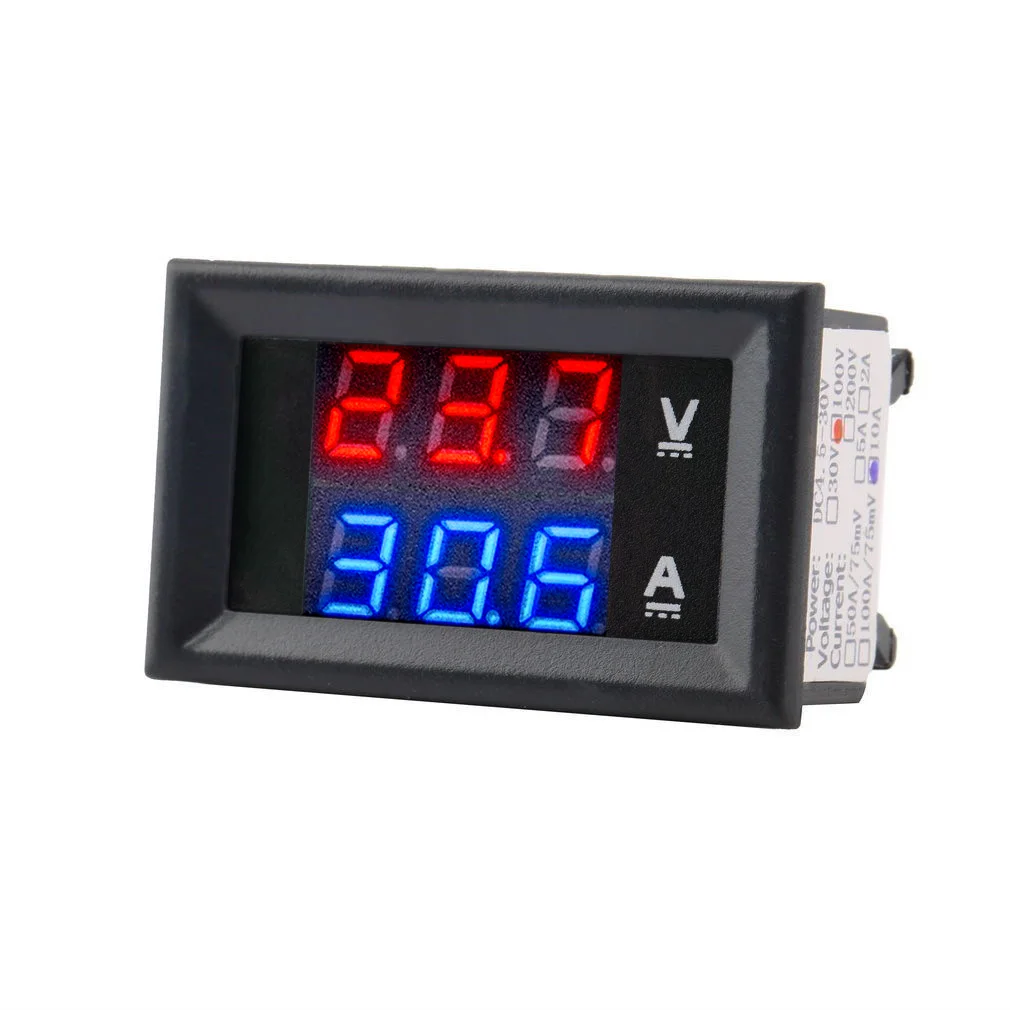

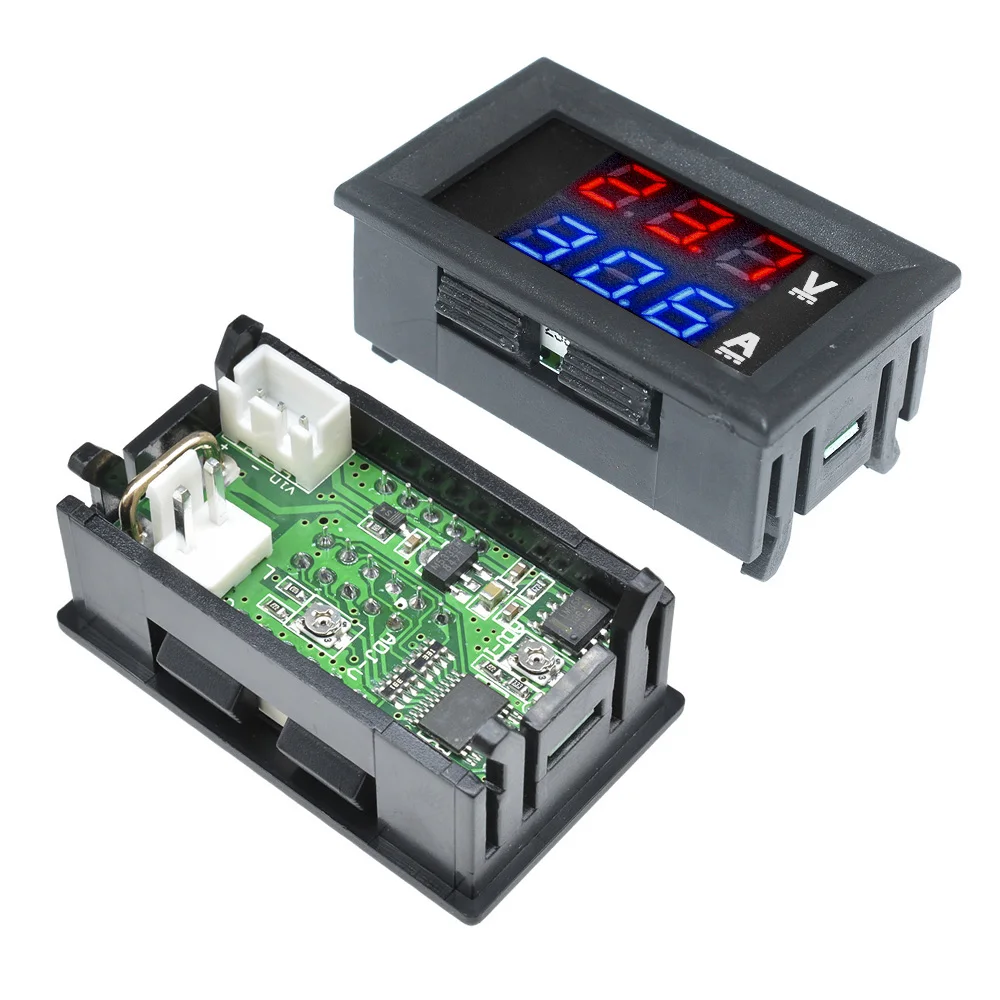

DC 0-100V 0-10A Digital Voltmeter Ammeter 12V 24V 36V 48V Car Motorcycle Electric Bicycle Voltage Current Meter Battery Tester

Working voltage of Meter itself:DC 4 – 30V(The maximum input voltage can not exceed 30V. Otherwise the meter will be burned)
Working current of Meter itself:≤20mA
Voltage Measuring range: DC 0 – 100V
Current Measuring range: DC 0 – 10A
Voltage resolution (V): 0.1V
Current resolution (A): 0.01A
Measure accuracy: 1% (± 1 digit)
Display: 0.56" digital tube, Two color blue and red
Refresh rate: about 300mS / times
Dimensions:48mm*29mm*26mm
Operation Temp: -10°-+65°

Wiring Diagram:

Black – Red : Working voltage of Meter itself:DC 4 – 30V
Black – Yellow : Voltage Measuring range: DC 0 – 100V

Package Include:

1 x DC 100V 10A Voltmeter & Ammeter
2 x Cable
