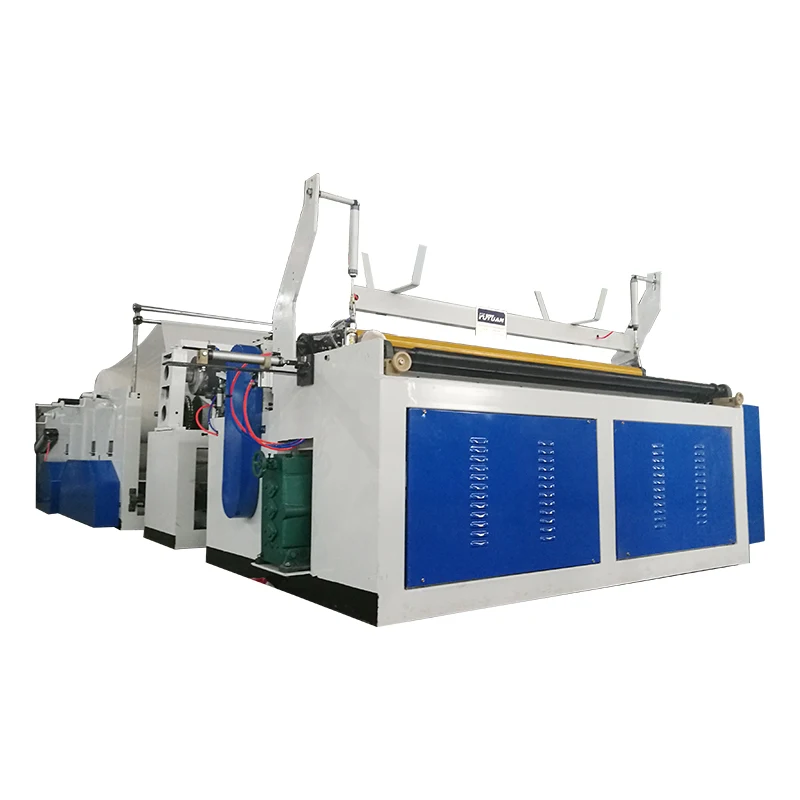

Customized Perforating Rewinder Toilet Paper Roll Rewinding Machine Toilet Tissue Paper Machine

With the development of paper machines towards large models, the original paper webs produced are averaged between 1.9 and 3 meters after slitting. Many large paper mills have more than three meters, and the 1880 toilet paper rewinder can be processed. Compared with other types of tissue paper production equipment, the 1880 model is more suitable for small and medium-sized enterprises and individuals. It not only has advantages in the selection of raw materials, but also it is also possible to reduce the paper loss while increasing the output to some extent.

 Main data:

According to the degree of automation, the toilet paper rewinder is divided into a fully automatic toilet paper rewinder and a semi-automatic toilet paper rewinder. The automatic toilet paper rewinding machine adopts computer programming technology to realize automatic change of paper tube (or coreless automatic roll paper), automatic glue injection, edge sealing and trimming, which reduces the strength of workers and improves product quality. The semi-automatic rewinding machine is slightly stronger than the manual operation. Only the toilet paper that can produce the paper tube is somewhat avoided in the project conversion, and the other is basically the same as the automatic toilet paper rewinding machine.

The automatic toilet paper rewinder

The automatic toilet paper rewinder is an ideal equipment for the production of toilet paper. Since its launch, it has been well received by domestic and foreign users.Consensus, production and sales continue to increase.

Main Feature

1. Full-automatic toilet paper rewinding machine can choose double-sided embossing, glue-bonding composite, which can make paper more soft than single-sided embossing, and the finished double-sided effect is consistent, and each layer of paper does not spread when used, especially suitable Processing rolls of kitchen paper towels and reducing weight by 15% or more when finished in the same size.

2, the machine is equipped with processing unintentional, solid, paper tube toilet paper, can instantly switch between products, can also be selected according to user needs.

3, automatic trimming, glue spraying, sealing, and shafting are completed synchronously, so that there is no paper loss when the roll paper is cut into the band saw and packaged, thus greatly improving the production efficiency and the grade of the finished product. Easy to enable.

4. Pneumatic belt feeding, double reel and each axis of the original paper have independent tension adjustment mechanism.

Semi-automatic toilet paper rewinder

The semi-automatic tissue machine has no PLC computer programming, the rear frame is a low frame, the synchronous shaft drive has small air tops on both sides, and the water is broken. It can be used to process 1-3 layers of toilet paper roll paper power of 3KW, but can not be made very tight coreless roll paper. .

The advantages of the semi-automatic toilet paper rewinder are: small footprint, low investment, less wearing parts, and low failure rate!

Compared with the automatic toilet paper machine, the semi-automatic tissue machine works at a relatively slow speed, the output is not as high as the automatic one, and the labor intensity is high. The core-free core paper tube toilet paper processing conversion process is laborious and cannot be rolled tightly without core. There is only one rear frame on the roll paper, which limits the speed of the equipment not to exceed a certain value, otherwise the stability of the equipment is reduced; the small gas top on both sides limits the pneumatic paper; the water break function limits the edge of the produced roll paper. In addition, the device does not have the function of automatic glue sealing, and it cannot be glued to the end, and there is no pneumatic paper feeding function.
