BLACK BOX CNC MINI LATHE MACHINE FOR HOBBY AND TRAINI
Features
1.The machine can process precisely internal or external diameter,face,taper and threading with high efficiency. 2.DC brushless spindle motor 3.Small occuping,lower energy consumption,easy operation,suitable for small processing 4,High-quality spindle by high-precision grinding and support by Angular contact bearing 5.Induction harden bed-way,Bed saddle with plastic sticker can improve the accuracy and service life of machine 6.Macro arithmetic operation can be performed,the processing of complex parts,fully functional,economical and practical with a textbook for teaching.
|
Max. swing over bed
|
210mm
|
|
Max. swing over cross slide
|
100mm
|
|
Tool holder
|
Electric four stations
|
|
Tool holder specifications
|
12mm
|
|
Max.machining length
|
250mm
|
|
Spindle bore
|
26mm
|
|
Spindle speed range/Grade
|
100~3000r/min
|
|
Proximal spindle runout
|
0.01mm
|
|
Diameter of tailstock sleeve
|
22mm
|
|
Max travel of tail-stock sleeve
|
50mm
|
|
Taper of tail-stock
|
MT2
|
|
X axis travel
|
90mm
|
|
Z spindle travel
|
300mm
|
|
X axis maximum moving speed (stepping)
|
2000mm/min
|
|
Z axis maximum moving speed (stepping)
|
2000mm/min
|
|
Positioning accuracy
|
0.02mm
|
|
Repeat positioning accuracy
|
0.02mm
|
|
Feed motor torque
|
3.0N.M
|
|
Cooling water pump power
|
40W
|
|
Motor power
|
1.2KW
|
|
Net weight/Gross weight
|
210kg/245kg
|
|
Overall dimensions
|
1170x700x860mm
|

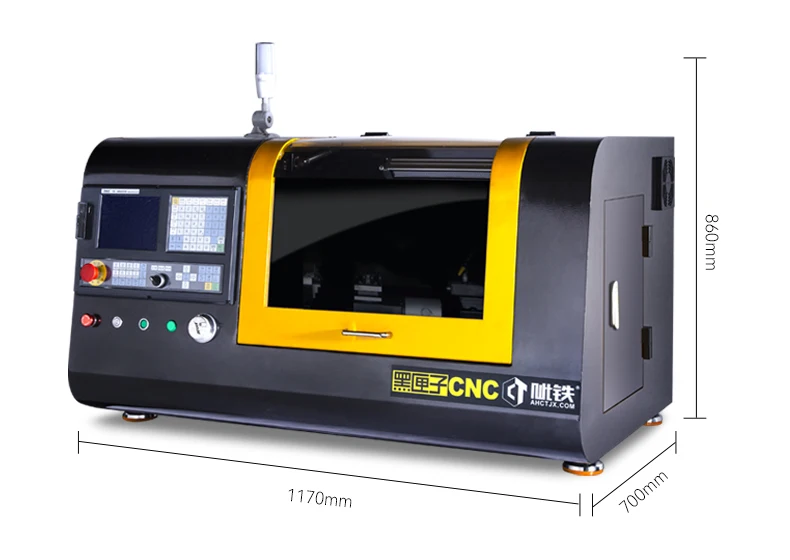

Size/Weight
The appearance/package size of the product is measured manually, and there is a small error. It is normal, and the specific object shall prevail. Net weight of machine210KG

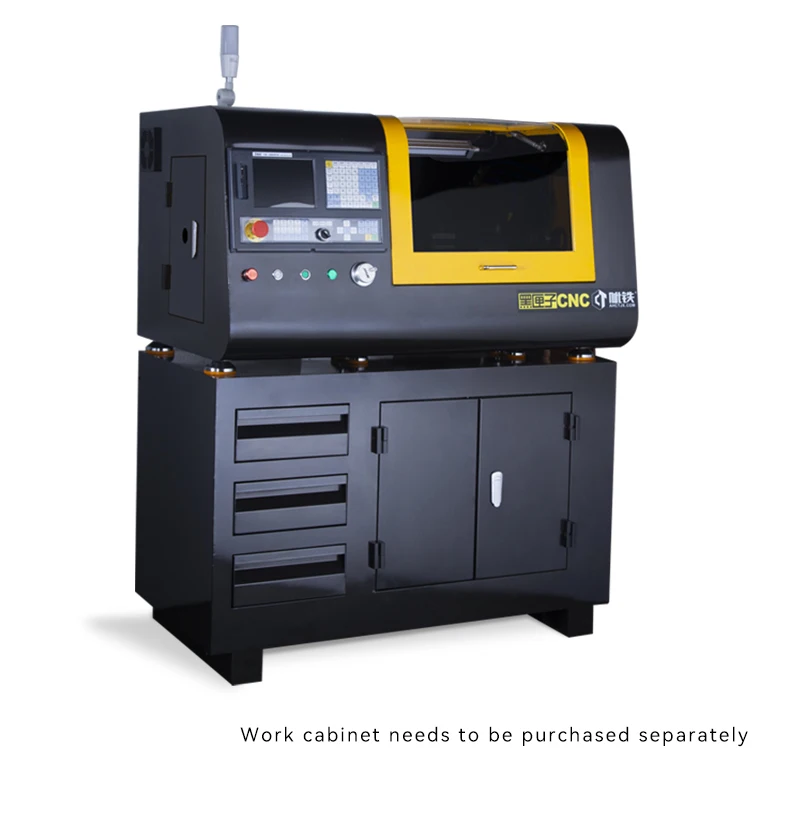

Product display

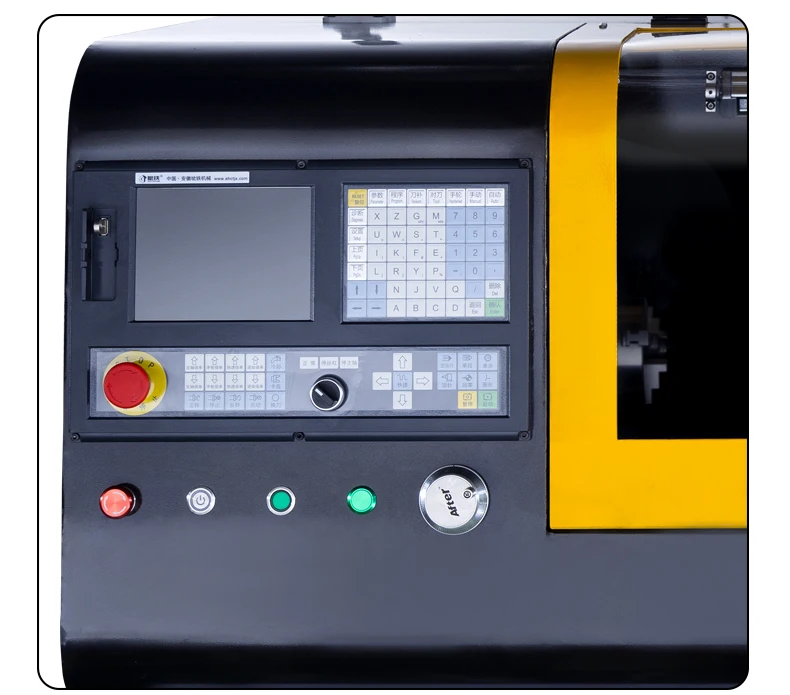

Details introduce

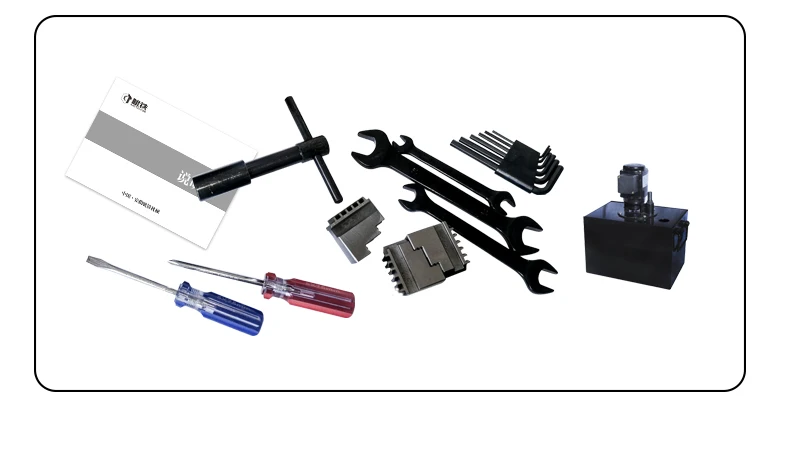

Standard Accessories
