Products Description
A programmable multi-layer coaxial wire stripper for coaxial cable, triaxial cable, shielded cable.
The machine can handle 3-25mm cable. For example: rf1.13;rf1.78,rf3.16;rg58,rg59;rg1.41 and so on. The machine’s program can be flexibly stored transferred to facilitate the processing of different diameter wire. Stable head technology for rapid processing of wire, Swiss tungsten steel blade material to ensure the life of the blade and precision.
The machine can handle 3-25mm cable. For example: rf1.13;rf1.78,rf3.16;rg58,rg59;rg1.41 and so on. The machine’s program can be flexibly stored transferred to facilitate the processing of different diameter wire. Stable head technology for rapid processing of wire, Swiss tungsten steel blade material to ensure the life of the blade and precision.
|
BG-TZ0.8-7-47 coaxial cable stripping machine
|
||
|
Model
|
BG-TZ0.8-7-47
|
|
|
Display
|

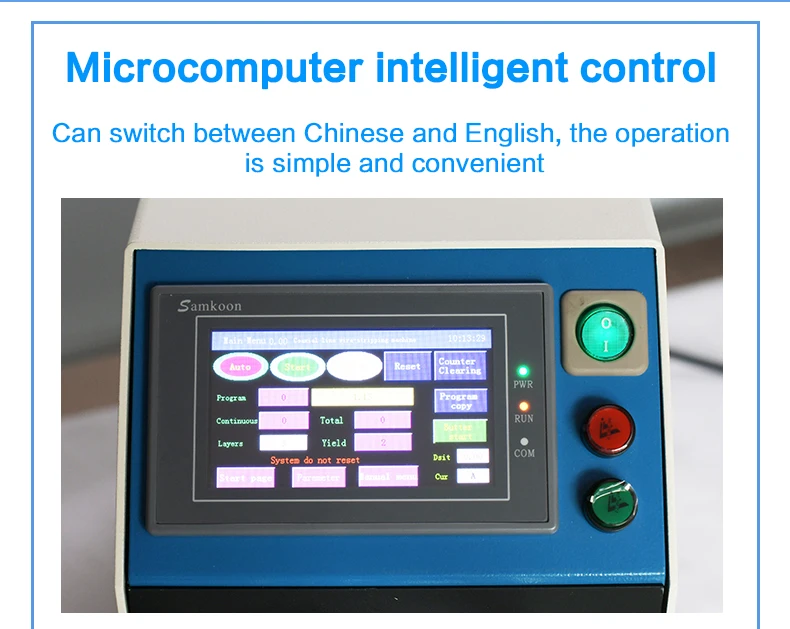

English 95mm*50mm touch screen
|
|
|
Power supply
|
AC220V/110V 50/60HZ
|
|
|
Power
|
400W
|
|
|
Process wire diameter
|
0.8-7mm
|
|
|
Cutting depth set unit
|
0.01mm
|
|
|
Max. stripping layers
|
9 layers
|
|
|
Dimensions
|
587x184x279mm
|
|
|
Weight
|
22KG
|
|
|
Drive mode
|
Servo Motor/TBI ball screw drive
|
|
|
Stripping mode
|
Rotary blade
|
|
|
Blade material
|
Tungsten steel
|
|
|
Working environment
|
-5 – 45 celsius dry and vibration free table
|
|
|
Production
|
800-1100pcs/h
|
|
|
Storage
|
99processing data
|
|
|
Stripping length
|
0.1-47mm
|
|
|
Application wire
|
Coaxial cable wire
|
|
Packaging & Shipping
Company Information
Certifications
FAQ
1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.
2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery
Take a video of the normal operation of the machine to you, and then confirm the delivery
3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples
Video for you to make samples
4. How to operate the equipment?
My friend, don’t worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication
5.When the machine can’t work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
