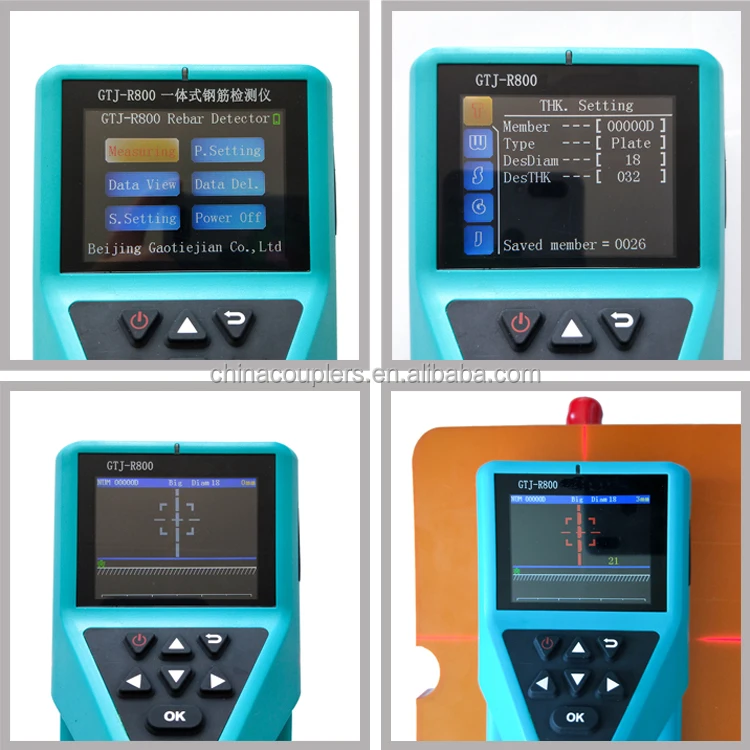

The integrated rebar detector is a portable non-destructive testing instrument, which can be used to test the construction quality of reinforced concrete structures. It can measure the position of rebars on the concrete surface, detect the thickness of the steel protective layer and the diameter of the rebar. Compact size, light weight, easy to carry, wireless cloud transmission function, laser，precise positioning of steel bar position;Thickness detection mode is intuitive, showing thickness and steel spacing at the same time. Waveform scanning mode shows the distribution of reinforcing bars intuitively, and it is more intuitive to detect and analyze dense reinforcing bars. The waveform scanning mode also shows the thickness and spacing of the rebar protective layer. It can detect the middle position of the two reinforcing bars, The instrument automatically stores the calibration value, realizes fast measurement and avoids the trouble of each calibration.
|
Specification model
|
GTJ-R800
|
||||||||
|
Rebar diameter
setting range(mm) |
∅6mm ~ ∅50mm
|
Host parameter
|
screen size:2.8inch
|
||||||
|
Small range
|
1-80mm
|
Resolution:240×320
|
|||||||
|
Large range
|
1-180mm
|
volume:220×93×110mm
|
|||||||
|
Maximum thickness
of protective layer |
±1(mm)
|
1-59mm
|
weight:0.6kg
|
||||||
|
±2(mm)
|
60~100mm
|
Data transmission
method |
TF-card
|
||||||
|
±4(mm)
|
100-180mm
|
Power supply
|
lithium battery
|
||||||
|
Diameter estimation range
|
∅6mm~∅32mm
|
storage
|
2000member*1000
Measuring point |
||||||
|
Diameter indication
maximum error |
±1specification
|
Working environment
requirements |
temperature:-10℃~+40℃
|
||||||
|
Profile measurement
function |
stand by
|
humidity:<90%RH
|
|||||||
|
Grid measurement function
|
stand by
|
other requirements
|
Does not contain corrosive
gases in the air |
||||||
|
Waveform measurement
function |
stand by
|
No strong electromagnetic
field interference. There should be no large vibration and shock |
|||||||
|
Probe self-calibration
|
stand by
|
Avoid direct sunlight
|
|||||||
|
Feature
|
|||||||||
|
1
|
The thickness detection mode displays the position of the reinforcing bar intuitively and
accurately, and simultaneously displays the thickness and the spacing of the reinforcing bars; |
||||||||
|
2
|
The thickness detection mode can automatically store the thickness and spacing, and the
detection efficiency is greatly improved; |
||||||||
|
3
|
The waveform scanning mode visually displays the distribution of steel bars, which makes the
detection and analysis of dense steel bars more intuitive; |
||||||||
|
4
|
The waveform scanning mode simultaneously displays the determined thickness and spacing of
the protective layer of the steel bar; |
||||||||
|
5
|
It can detect the middle position of two steel bars, aiming frame and indicator light, which is
convenient for punching and core; |
||||||||
|
6
|
The instrument automatically stores the calibration value to achieve fast measurement,
eliminating the trouble of each calibration; |
||||||||
|
7
|
Boundless mesh/section scanning, waveform scanning can measure up to 6m in length;
|
||||||||
|
8
|
TF card storage, large capacity, intuitive and convenient to transfer;
|
||||||||
|
9
|
2.8-inch high-resolution color LCD screen;
|
||||||||
|
10
|
One-piece design, small size, light weight, easy to carry;
|
||||||||
|
11
|
PC professional data analysis software, data processing and report generation is easy to complete;
|
||||||||
