Product Description

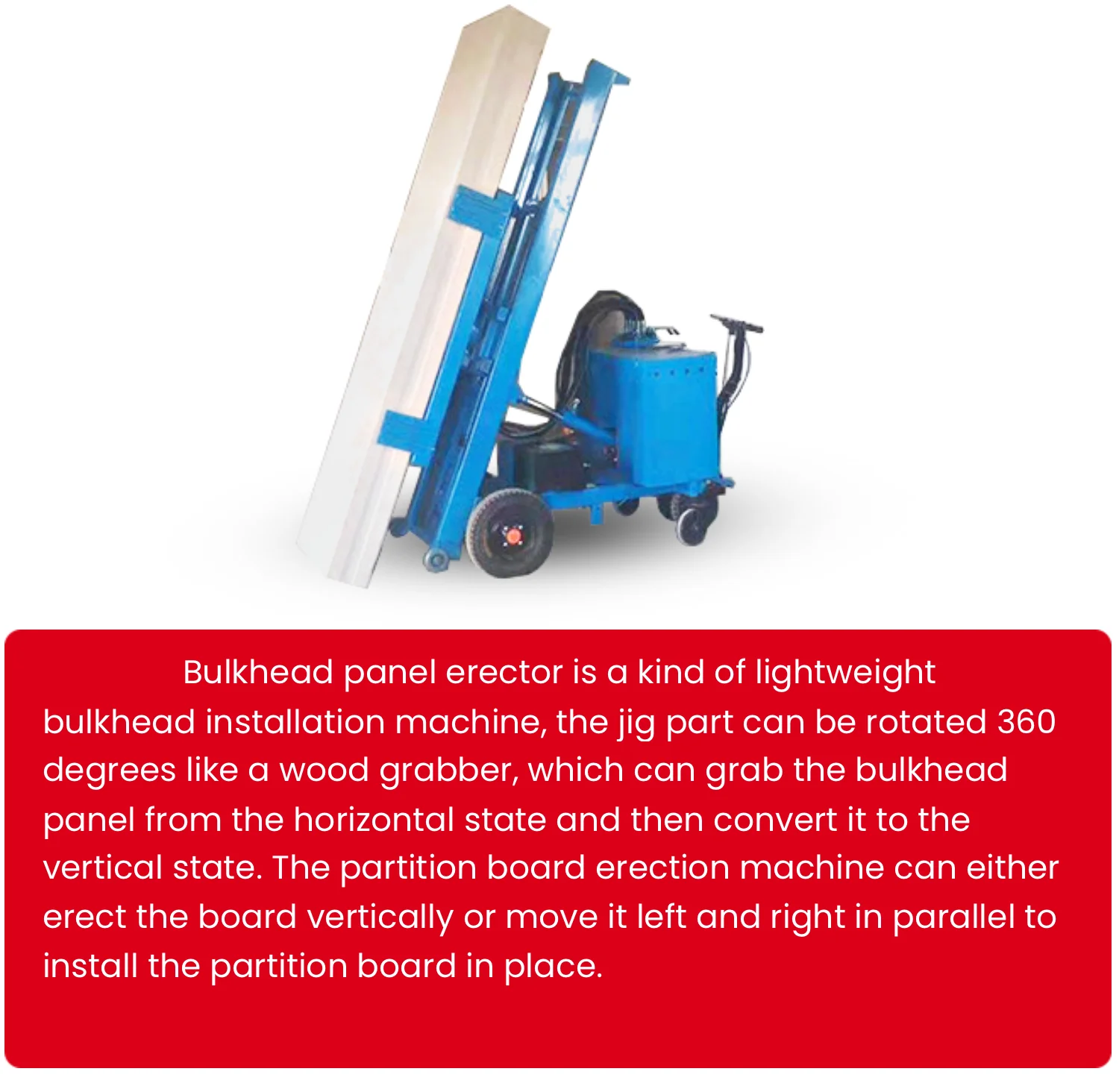

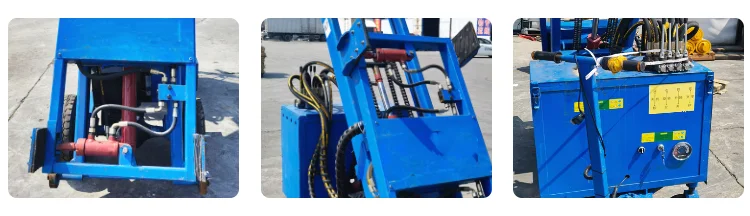

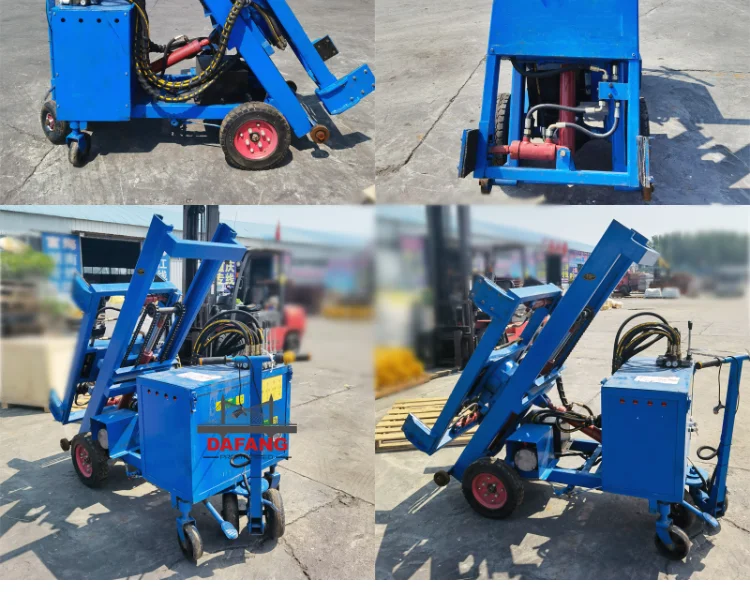

The clamping mechanism of the partition board installation machine is fully hydraulically operated, with strong clamping force. The clamp is equipped with anti-skid rubber pads to ensure that the clamped heavy objects will not slip. The lifting mechanism of the partition board installation machine adopts the principle of forklift, which is powerful enough to easily lift the partition board. The translation mechanism enables the partition board to move left and right, quickly aligning the male and female notches, and fully hydraulically operated, safe and reliable.
Specification
|
Applicable Industries
|
Hotels, Building Material Shops, Manufacturing Plant, Garment Shops, Restaurant, Home Use, Farms, Construction works , Other
|
|
Weight (KG)
|
230
|
|
Core Components
|
Motor
|
|
Product name
|
Lightweight concrete partition wall panel installation machinery
|
|
Application
|
Construction Project
|
|
Usage
|
Concrete slab installation
|
|
Type
|
Electric Hydraulic
|
|
Model
|
DF-LB2.6
|
|
Voltage
|
24V
|
|
Motor power
|
1000W
|
|
Rotation mode
|
360 degrees.
|
|
Dimensions
|
2600*1100*1200mm
|

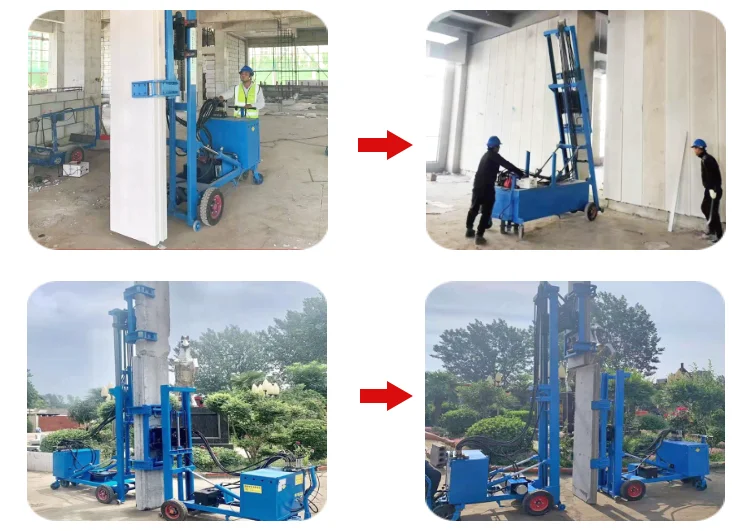

The partition board installation machine is suitable for the installation of building partition boards, cement boards, lightweight composite partition boards, and expanded clay boards in residential buildings, commercial housing, new schools, stadiums, exhibition centers, shops, office buildings, factories, etc.
