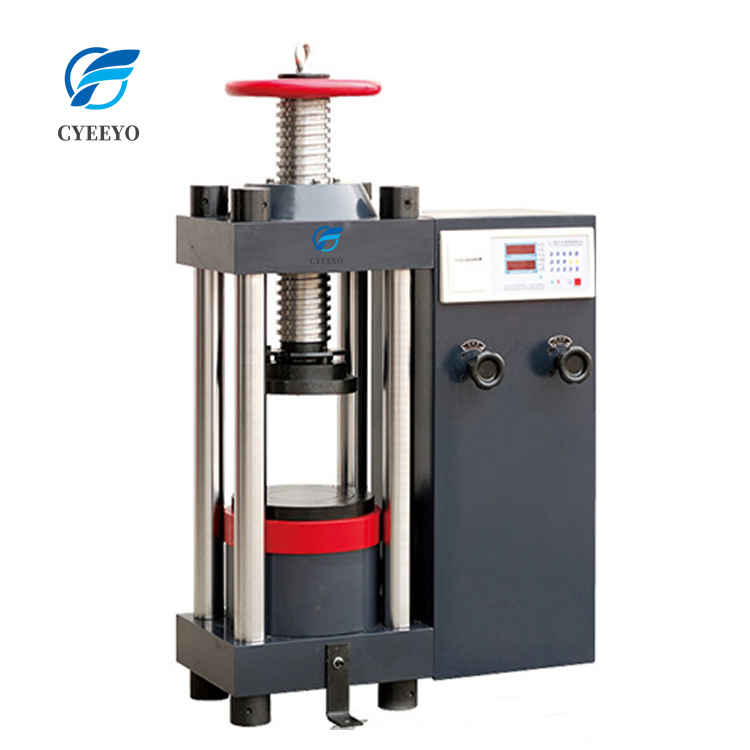

Concrete Compressive Strength Pressure Cement And Tension Concrete Compression Testing Machine Test Device Tester Price
The machine adopts the structure form of main engine and hydraulic system, compact and small.It adopts hydraulic loading and electronic measuring force, has the functions of loading rate display, peak holding and so on, and is equipped with a miniature printer.This machine is suitable for compressive test of cement, building mortar and also for four-point flexural test of concrete.
Hydraulic system
The hydraulic oil in the oil tank is driven into the oil path by the motor and enters the oil cylinder through the return valve.The force meter collects and analyzes the data through the sensor, displays the constant force value, and the tester controls the flow through the oil delivery valve to realize the speed of the test force.
Force measuring system
l Manually adjust the oil return valve for simple and flexible operation;
l Has the maximum load peak retention function;
l With dynamic display function of loading rate;
l Report of random test with test date, number, failure load, compressive strength, etc
Safety protection device
When the test force exceeds 3% of the maximum test force, the overload protection will stop the oil pump motor.
Technical indicator
|
name |
parameter |
Note |
|
Max test force(kN) |
300 |
—– |
|
Measuring range of test force |
10%-100% |
—– |
|
Relative error of test force indication |
< ±1% of the value indicated |
—– |
|
Distance of upper and lower pressing plates(mm) |
220 |
—– |
|
piston stroke(mm) |
80 |
—– |
|
distance between two columns(mm) |
215 |
—– |
|
plate size(mm) |
Φ155 |
—– |
|
dimension(mm) |
780*480*1120 |
—– |
|
power(kW) |
0.75 |
—– |
|
weight(kg) |
300 |
—– |
