Products Description

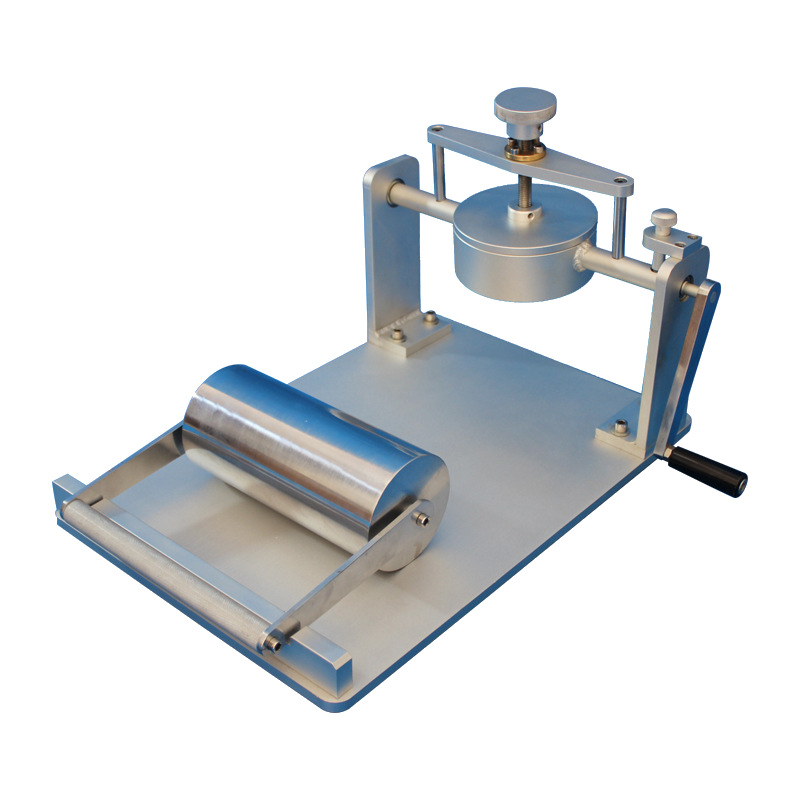

Technical parameters:
1. The cross-sectional area of the metal cylinder:100 ± 0.2 cm (the corresponding inner diameter is 112.8 ± 0.2mm)
2. The cylinder height :50mm, the contact surface of the cylinder ring and the specimen should be smooth.
3. The absorption rate :75mm / 10min. (When the single layer of absorbent paper is less than 200 ~ 250 g / m2, you can use multi-layer stack to meet the requirements).
4. Smooth metal flat roller: roller length 200 ± 0.5mm, the quality should be 10 ± 0.5kg.
5. Absorbent paper quantitative:200 ~ 250g / m2
6. Test water consumption: 100mm ± 5ml.
7. Size: 480 * 400 * 420 (mm)
8. Weight: 28kg
1. The cross-sectional area of the metal cylinder:100 ± 0.2 cm (the corresponding inner diameter is 112.8 ± 0.2mm)
2. The cylinder height :50mm, the contact surface of the cylinder ring and the specimen should be smooth.
3. The absorption rate :75mm / 10min. (When the single layer of absorbent paper is less than 200 ~ 250 g / m2, you can use multi-layer stack to meet the requirements).
4. Smooth metal flat roller: roller length 200 ± 0.5mm, the quality should be 10 ± 0.5kg.
5. Absorbent paper quantitative:200 ~ 250g / m2
6. Test water consumption: 100mm ± 5ml.
7. Size: 480 * 400 * 420 (mm)
8. Weight: 28kg
