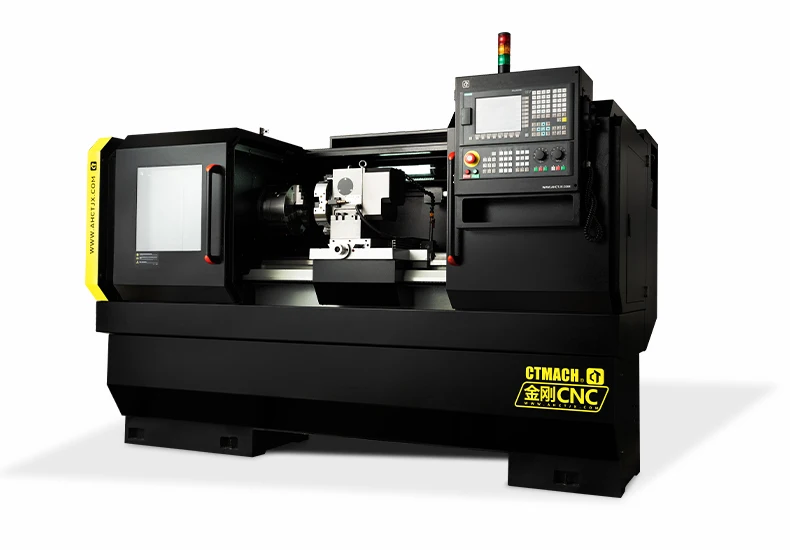

CTCNC40C Industrial CNC Lathe
1-High rigidity flat bed hard rail CNC lathe. 2-The surface of the bed guide is precision ground and hardened, HRC50. 3-The spindle adopts high-precision bearings to ensure the rigidity and precision of the machine. 4-High-precision grinding ball screw, positioning and machining accuracy is more stable. 5-Siemens 808D system. 6-Integral casting bed feet are optional to improve the overall rigidity of the machine.
|
Introduction to Parameters CTCNC40C
|
CTCNC40C
|
|
|
Rotation diameter of bed
|
400 mm
|
|
|
Swivel diameter on the middle carriage
|
210 mm
|
|
|
Maximum workpiece length
|
1000 mm
|
|
|
Spindle speed range
|
200-2000 rpm
|
|
|
Spindle diameter
|
82mm
|
|
|
Spindle hole taper
|
MT6
|
|
|
Number of stations
|
6
|
|
|
Tool holder specifications
|
25 mm
|
|
|
Tailstock sleeve taper
|
MT4
|
|
|
Tailstock sleeve stroke
|
120 mm
|
|
|
Main motor power
|
7.5 kw
|
|
|
Pump motor power
|
180 w
|
|
|
(ZX) Feed motor torque
|
6 NM
|
|
|
Z axis rapid traverse speed
|
10 m/min
|
|
|
X-axis rapid movement speed
|
8 m/min
|
|
|
Z-axis repeatability
|
≤ 0.01mm
|
|
|
Repeated positioning accuracy of X axis
|
≤ 0.008mm
|
|
|
XZ axis positioning accuracy
|
≤ 0.015mm
|
|
|
Machine size
|
≈2640x1500x1766 mm
|
|
|
Net weight
|
≈1800 kg
|
|

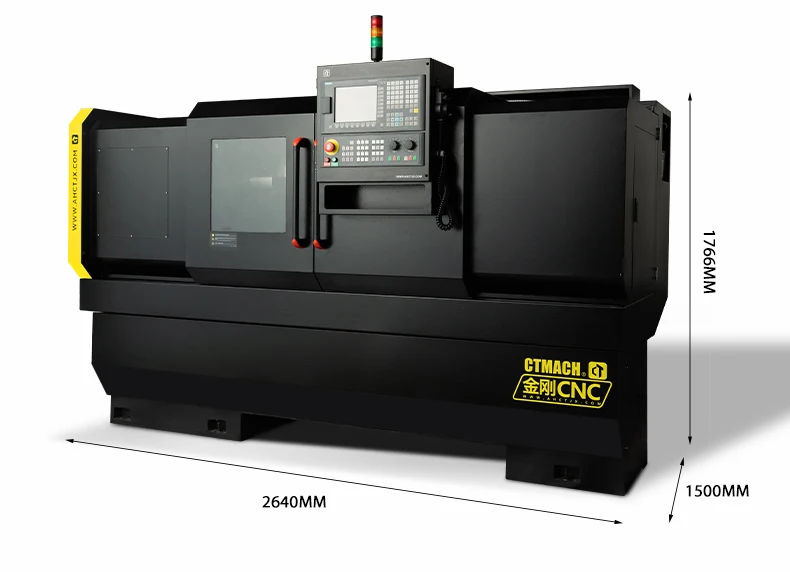

Machine Size
Machine size ≈2640x1500x1766 mm Net weight ≈1800 kg Reminder: The product size is measured manually, there is a small error, which is normal, and the actual product shall prevail.
Show Deails
Siemens 808D system

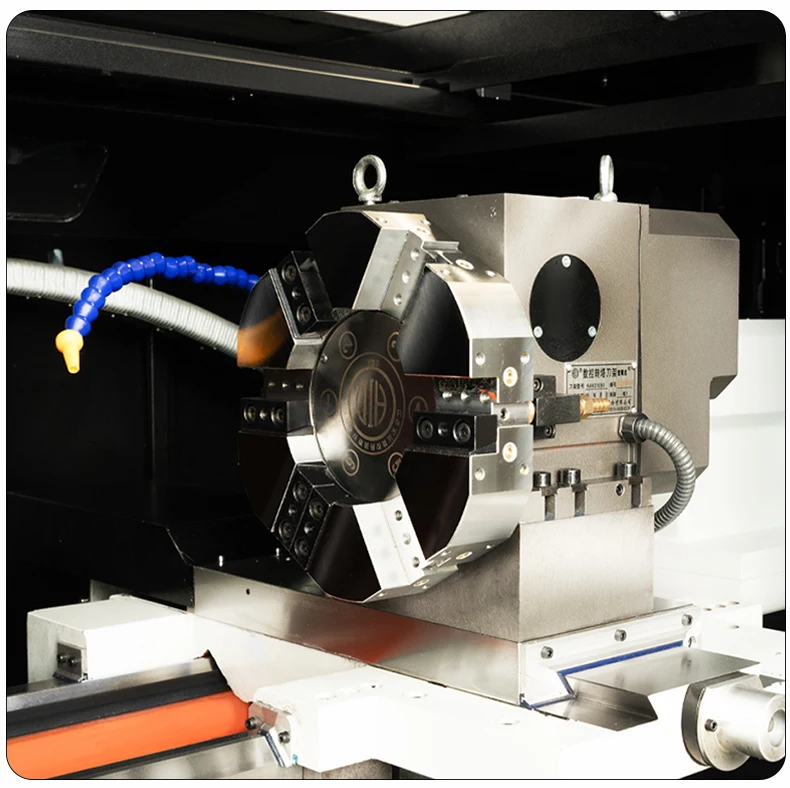

6-station electric tool holder Shank size: 25x25mm
All-Inclusive Sheet Metal Double sliding door power off

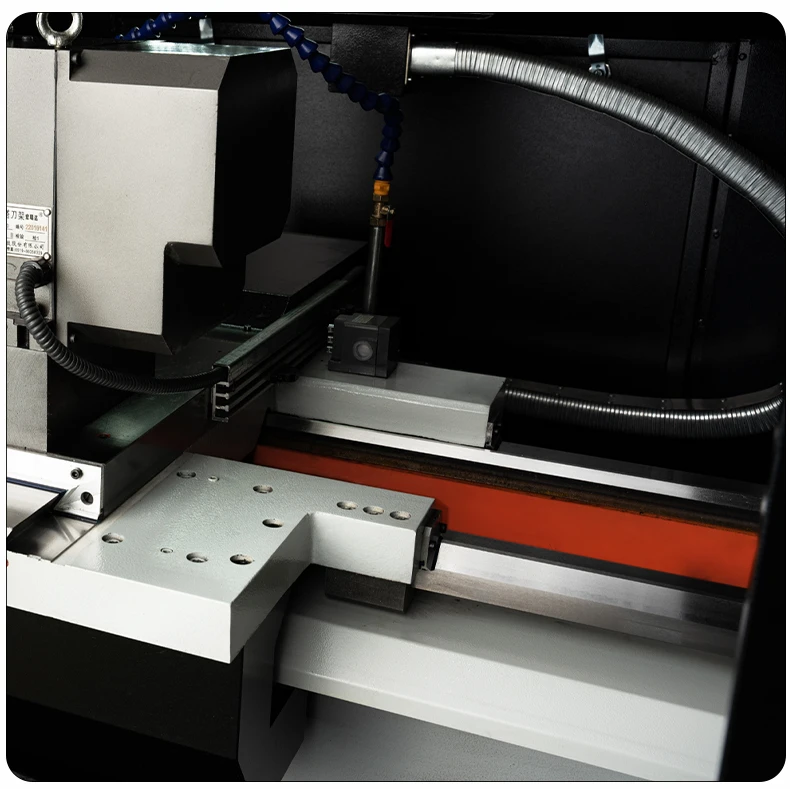

Induction hardening Hard rail High strength, strong bearing capacity
Continuously variable speed 200-2000rpm Independent Spindle A2-8
Frequency conversion main motor 7.5KW Spindle through hole 82mm

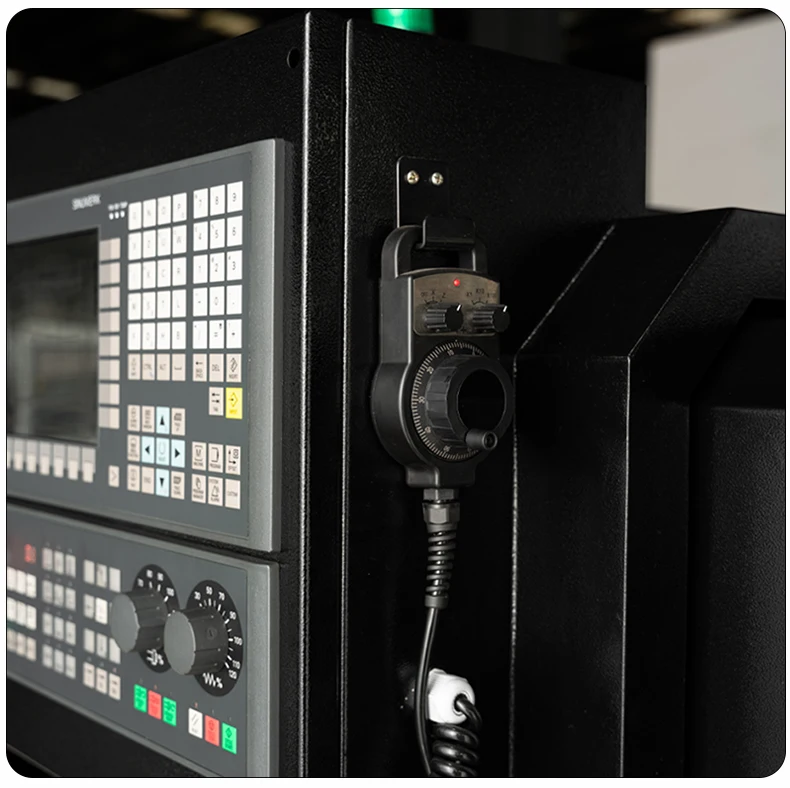

Handheld Electronic Handwheel
Automatic Lubrication Pump
Standard Accessories
