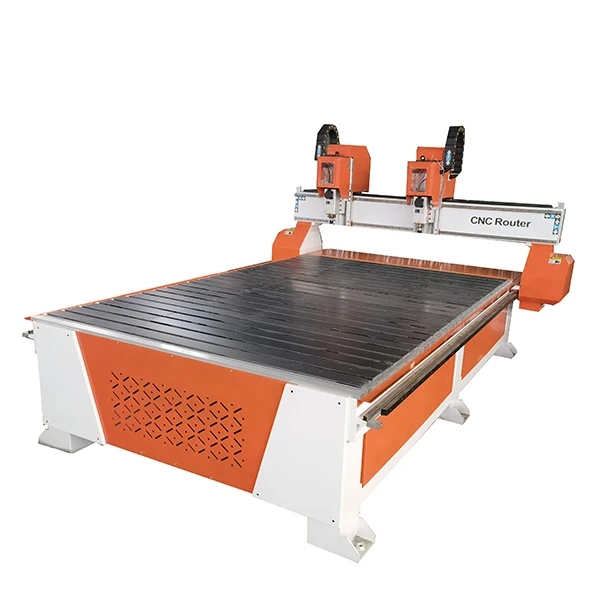

Product Description
1. X,Y axis are gear rack,steady rate transmission,fast speed and high efficiency. 2. Ball screw for Z axis.It’s stable running,precision and fast.
3. DSP control system, just need the handle to operate the machine,easy and convenient.
4.With vacuum table,holding the materials with vacuum pump,you can do varoety of high precision works.
5.Heavy duty frame and gantry,it’s very strong and stability.
Specification
|
item
|
value
|
|
Condition
|
New
|
|
Range of Spindle Speed(r.p.m)
|
1rpm – 18000rpm
|
|
Positioning Accuracy (mm)
|
0.03mm
|
|
Number of Axis
|
3
|
|
spindle
|
3.5Kw air Cooling Spindle
|
|
Control system
|
DSP
|
|
Inverter
|
Fuling Inverter
|
|
Driver
|
Leadshine M860
|
|
Motor
|
Stepper Motor
|
|
Table
|
T slot Table
|
|
Structure
|
Thick Steel Tube Welding
|
|
Table Size
|
1300mm*2500mm
|
Application
