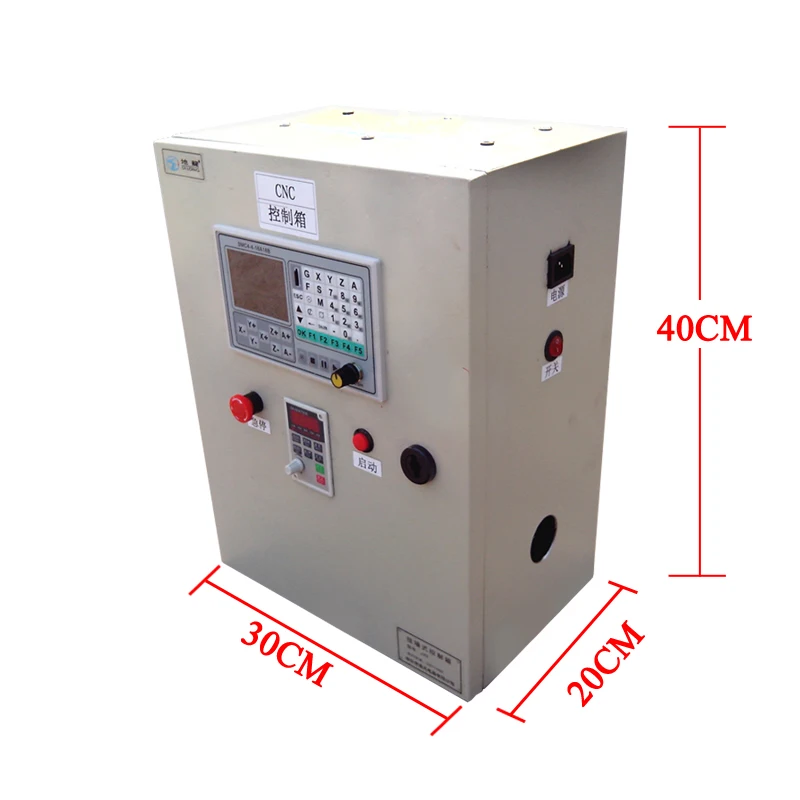

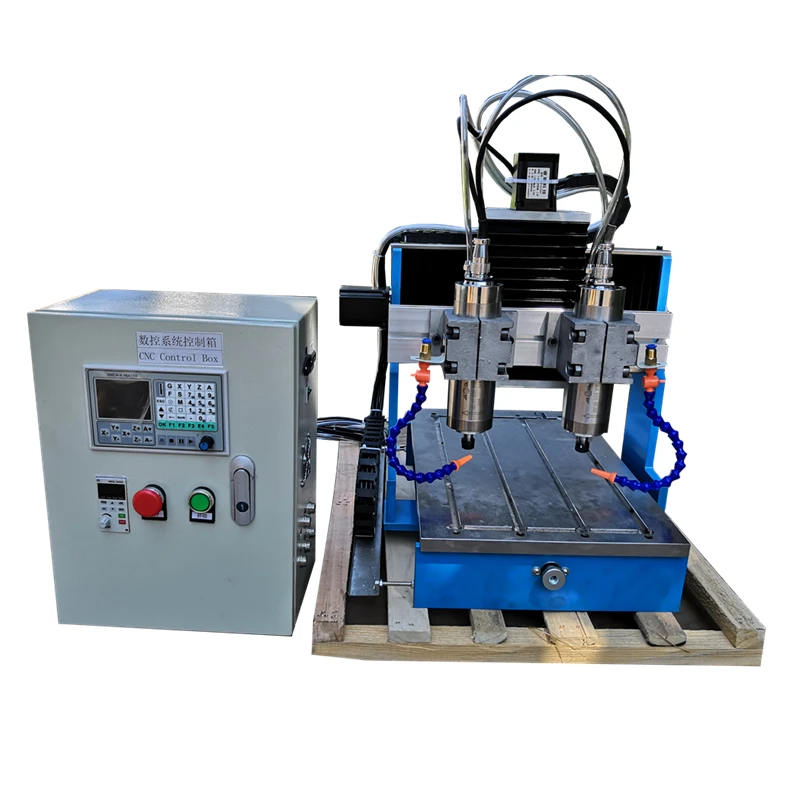

CNC router Offline DSP control system Engraving machine LY 3040L disk read G code CNC Router Linear Guide Rail machine
Introduction
The CNC 3040 Easily produce name badges, equipment tags, small signs, plaques and awards, gift items, pet tags, ID tags, electrical tags, name tags, desk plates, or mark industrial parts.
Whether you are a startup business, or a model enthusiasts, or looking to add a machine to supplement the capacity of an existing operation, the CNC 3040 is a great fit.
We look forward, CNC 3040 will become your good helper

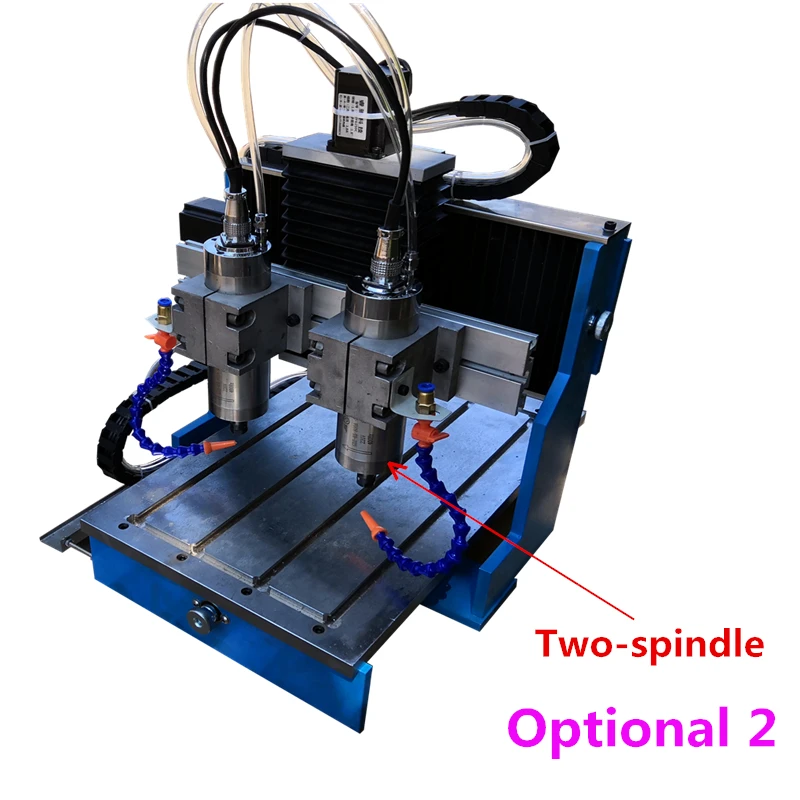

In addition, it can be upgraded to be installed a rotational axis.
Technical Parameters:
|
MODEL |
3040L |
|||
|
Attribute |
3axis-1.5KW |
3axis-2.2KW |
4axis-1.5W |
4axis-2.2KW |
|
Axis |
3axis |
3axis |
4axis |
4axis |
|
Toolauto-checking |
Yes |
Yes |
Yes |
Yes |
|
Weigh |
115 |
115 |
120 |
120 |
|
45# steel (14mm and 12mm) |
||||
|
Table material: |
18 mm t-slot table, 45th steel six-sided flat grinding, one table, water holes, the water cycle, t-slot for M8 screws, t-slot width of 80 mm. |
|||
|
Machine Dimensions: |
550*660*600mm |
|||
|
Engraving area: |
260*380*120mm |
|||
|
Z-Axis Stroke: |
120mm, Engraving depth depends on the length of the tool edge |
|||
|
Acceptable material thickness: |
≤ 135mm |
|||
|
Rail type: |
Square line rail track, three-axis is 20 mm square wire track, high precision, high strength, top configuration. |
|||
|
Type of screw: |
Ball screw 1605 |
|||
|
Spindle motor: |
VFD water cooling spindle ,0-24000r/min |
|||
|
Collet type: |
ER11(1.5KW) & ER20(2.2KW) Collet |
|||
|
Stepper motor and drive: |
two-phase 57/3A/M542 |
|||
|
Maximum operating speed: |
4000mm/min (Engraving speed: 300-3000mm/min) |
|||
|
Repeat positioning Accuracy: |
0.03mm |
|||
|
Software Compatability: |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam) |
|||
|
Command code: |
G code/.nc/.ncc/.tab/.txt |
|||
|
Rotation Axis (4th Axis) Description: |
Chuck Size: 80mm self-centering chuck Center height: H = 70mm Clamping diameter: 63mm or less Deceleration mode: Gear box Deceleration ratio: 20:1 Stepper motor: 57 type / 3A two phase 4 line Positioning accuracy: 0.075 ° |
|||
