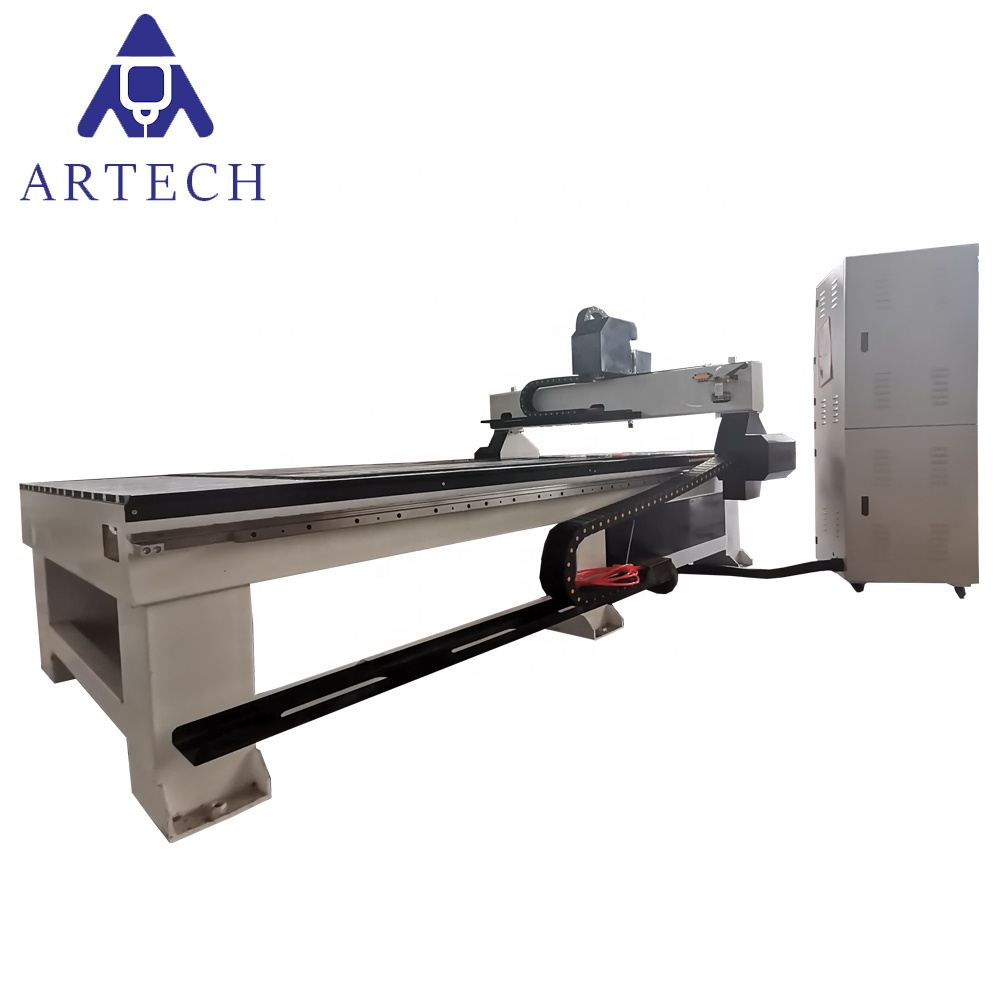

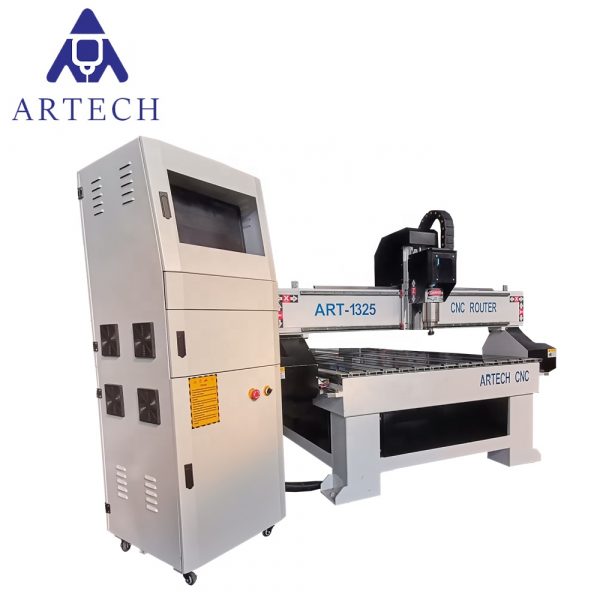

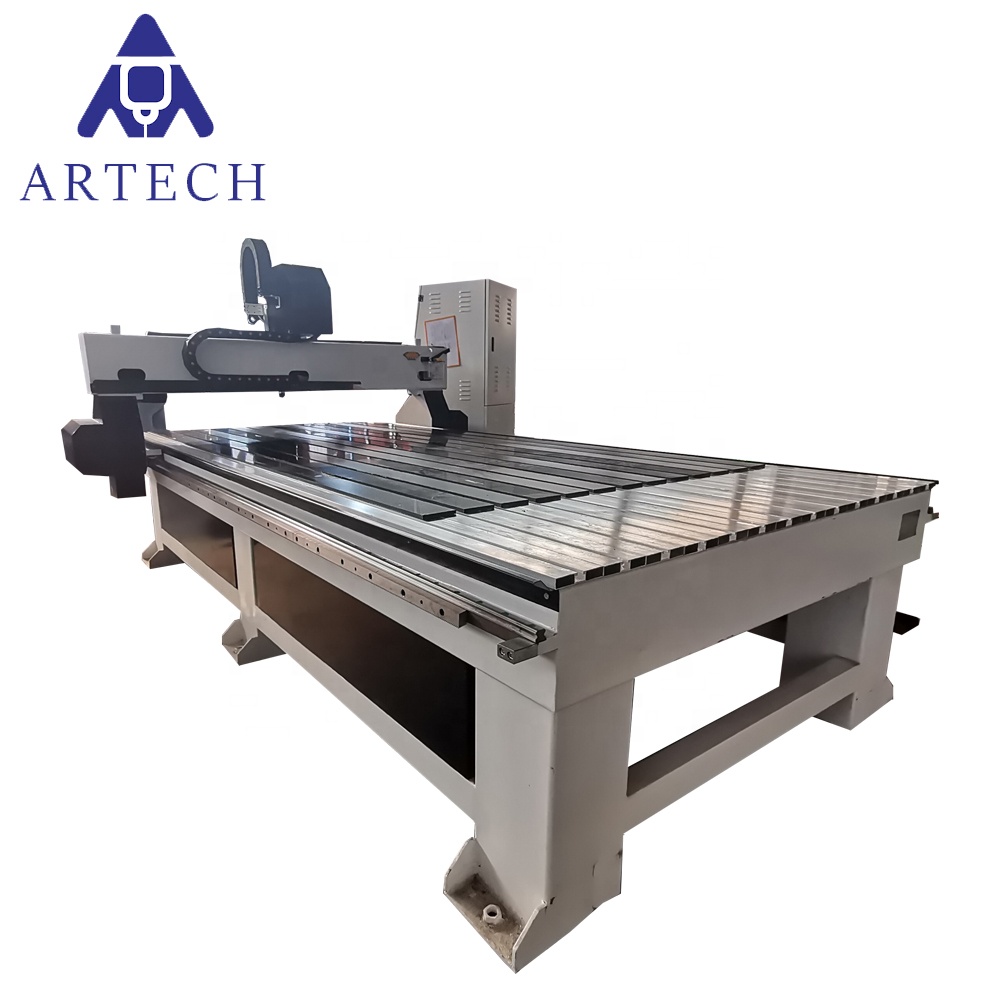

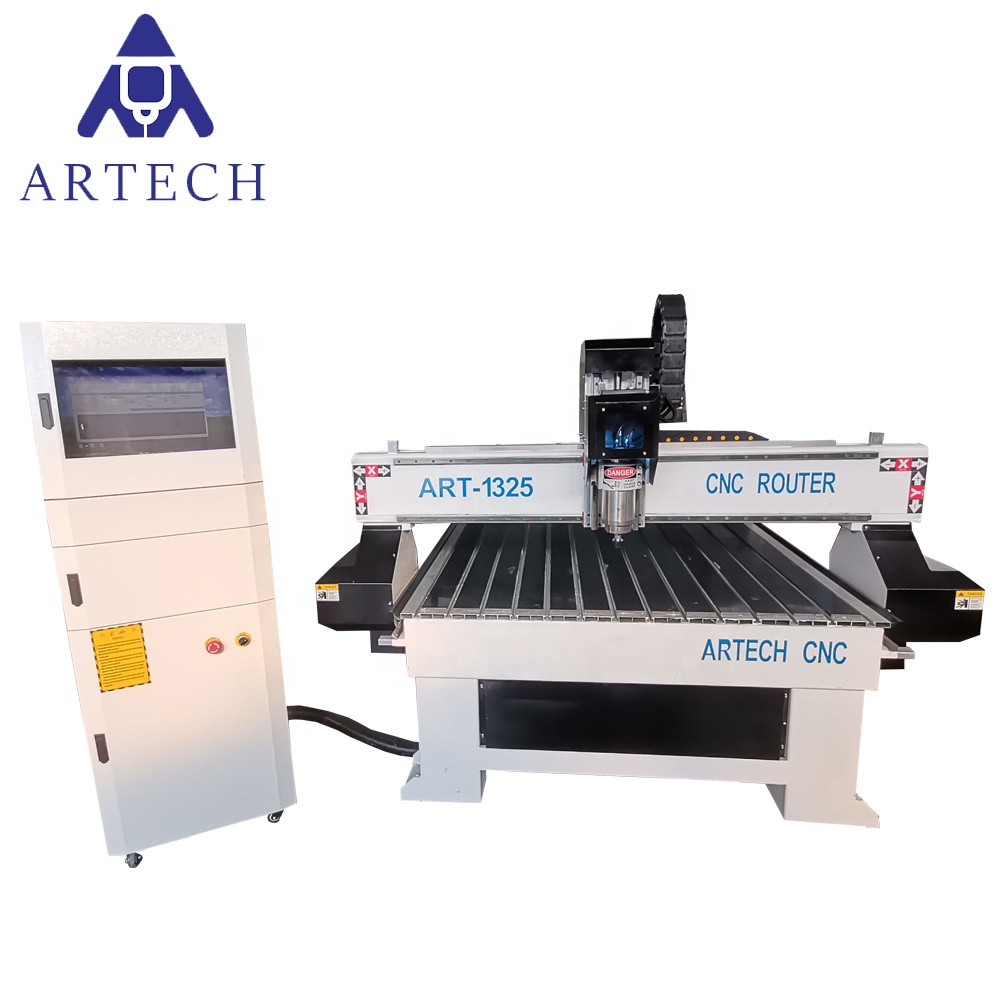

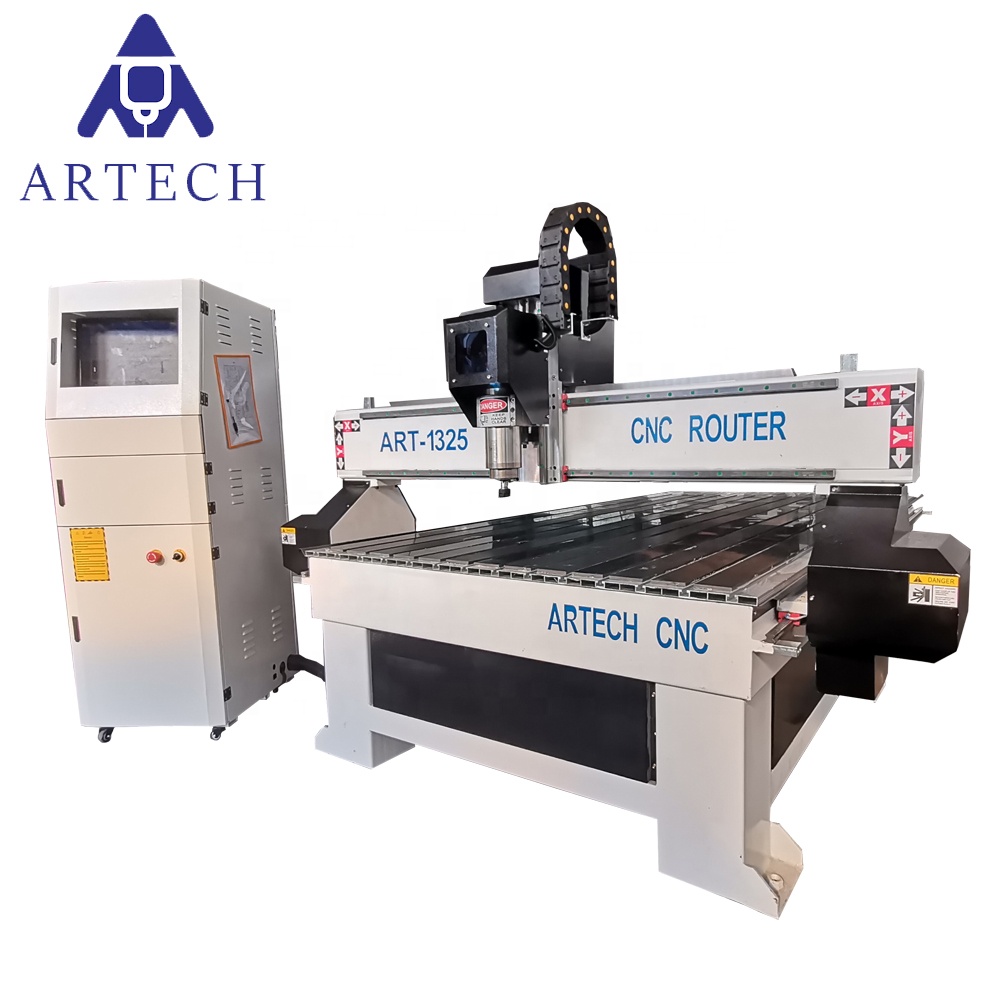

Cnc router cnc 3d router hot sales 1325 price 3d wood carving machine cnc router
Feature of cnc router 1325:
1. Ball screw for Z axis.It’s stable running,precision and fast.
2. X,Y axis are gear rack,steady rate transmission,fast speed and high efficiency.
3. With NC studio control system,easy to learn design software,just install it onto your computer and start creating patterns.
4. With T.slot working table,holding the materials with clamps,you can do variety of high precision works.
5. Heavy duty frame and gantry,it’s very strong and stability.
Technical Parameter of cnc router 1325:
Parameters |
Standard Specifications |
X,Y,Z Working Area |
1300*2500*250mm jinan unique cnc router |
Spindle Power |
3.2kw water cooling spindle |
X,Y,Z Traveling Positioning Accuracy |
±0.01/2000mm |
Table |
T.slot table or vacuum table |
vacuum pump |
air cooling 5.5kw pump |
X,Y,Z Rail and Transmission |
Taiwan TBI Ball Screw and gear rack |
Max. Rapid Travel Rate |
50000mm/min |
Max. Working Speed |
30000mm/min |
Spindle Speed |
24000RPM |
Drive Motors |
stepper motor and drivers or servo motor and drivers |
Working Voltage |
AC380V/3PH/50Hz or 220V |
Command Language |
G Code |
Operating System |
Nc studio or DSP/Mach3/Syntec |
Software Compatibility |
Option:Type3, Ucancam, Artcam, solidworks,etc. |
Running Environment |
Temperature: 0℃~45℃ Relative Humidity: 30%~75% |
Parameters |
Standard Specifications |
Oil system |
Handel |
Frame structure |
Welding structure |
Collect |
ER32 collect |
Dust collector |
1 pieces |
wireless wheel |
Yes |
Application of cnc router 1325:
1. Woodworking industry:wood crafts,picture frames cutting,handicraft carving wave plates,wooden door production and processing.
2. Advertising industry:advertising materials such as PVC,acrylic,double color plate.
3. Stone working industry:such as natural marble,granite,artificial stone,tombstones,milepost,ceramic tile,glass and other materials.
4. Metal industry:carving aluminum,copper,stainless steel and so on.
Production Process:
Package and Delivery of cnc router 1325:
Package Detail: 1.Outside package:Standard plywood package.
2.Inner package:Stretchy film and plastic film for humidity.
And we can package according to your requests.
Delivery Detail: For atandard machines,it will be 7-15 working days after payment;For non-standard machines and customized machines according to clients’ specific requirements,it will be 15 to 30 working days after payment.
Artech is comprehensive in the production, design, manufacturing, trade and service of CNC machine, and provide high quality and good efficient CNC machines worldwide. With a strong staff team, “Brand ArtechCNC” gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China’s forefront in development and expansion.
Q1 For offer the most suitable machine,how should i do ?
1).The exact material you want to engrave/cut? (such as wood, acrylic, cloth, fabric, leather, metal…. ? )
2). For the Spindle Power, may I know the cutting or engraving depth you want?
3). The working area you demand? (such as max dimension of material, width*length,1200*1200mm,1300*2500mm,2000*3000mm, etc…
4). Do you want to engrave on planar &flat surface or round &curved surface?
If yes,the machine shall be added optional items, such as rotary attachment. if you can provide some pictures of your products,that would be great! after your tell us these,we will send you more information about the machine and price.
Q2.If we donot know how to use the machine,can you teach us?Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee, like tickets and hotel and meal.
Q3.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q4.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
Customers Working:
Customers Feedback:
Reviews
There are no reviews yet.
