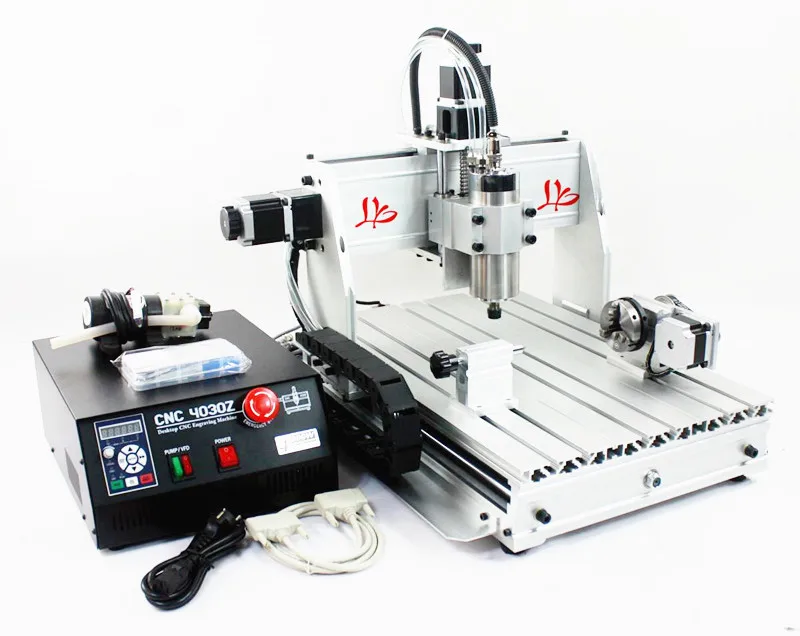

CNC Router 3040 Z-S 4 Axis CNC Milling Machine With 800W VFD Water Cooled Spindle for 3D Engraving Work

ر.س6,158.33

Qty:

  CNC Router 3040 Z-S 4 Axis CNC Milling Machine with 800W VFD Water Cooled Spindle for 3D Engraving Work

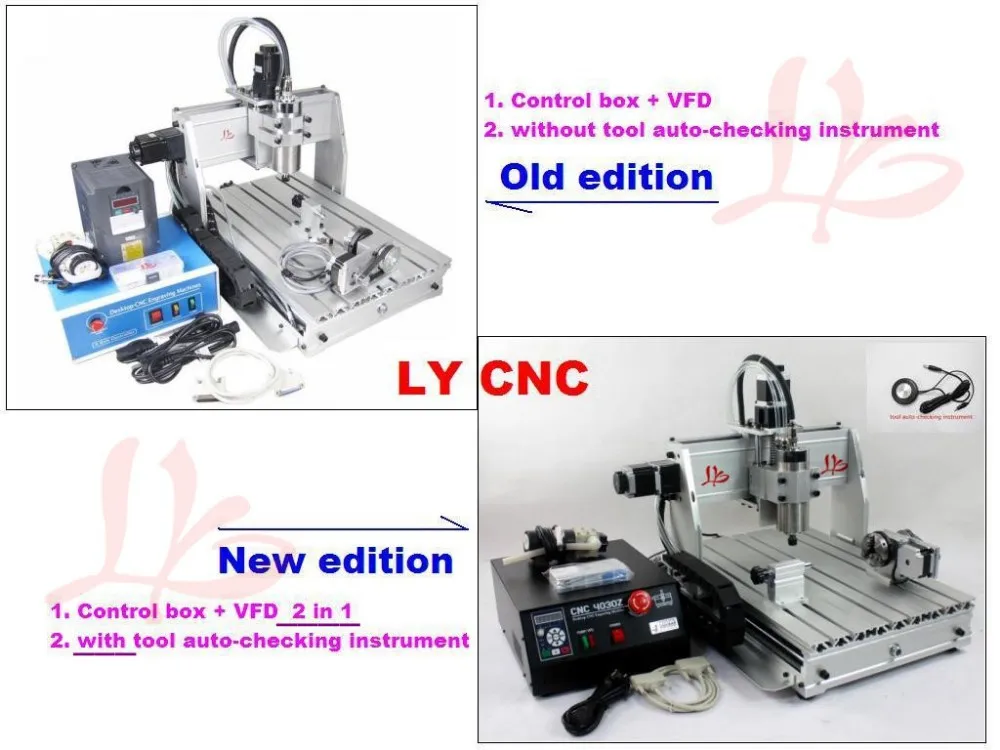

ATTENTION:this machine has been upgraded,the VFD has been put in the control box.Below is the picture












Introduction



The CNC router is suitable for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes…



The 3040Z+S 4axis is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.



The 4th axis is rotational axis, is very good for working for 3D;





Technical Parameters

CNC3040Z+S Triaxial Engraving Machine Part Parameters:













Effective working travel:

410(X)mm*280(Y)mm*75(Z)mm

Shape dimension:

660*530*480mm

Max.thickness of the meterials :

90mm(the distance between Z axis and the bottom of the working station)

Frame materials:

6061 aluminum alloy + 6063 Industrial aluminum

Driving units :

X axis

NEW 1605 ball screws

Y axis

NEW 1605 ball screws

Z axis

NEW 1605 ball screws

Sliding units :

X axis

Dia.16mm chrome plate shafts

Y axis

Dia.20mm chrome plate shafts

Z axis

Dia.13mm chrome plate shafts

Stepping motor type :

57 two-phase 3A ,super-low noise ,NEW

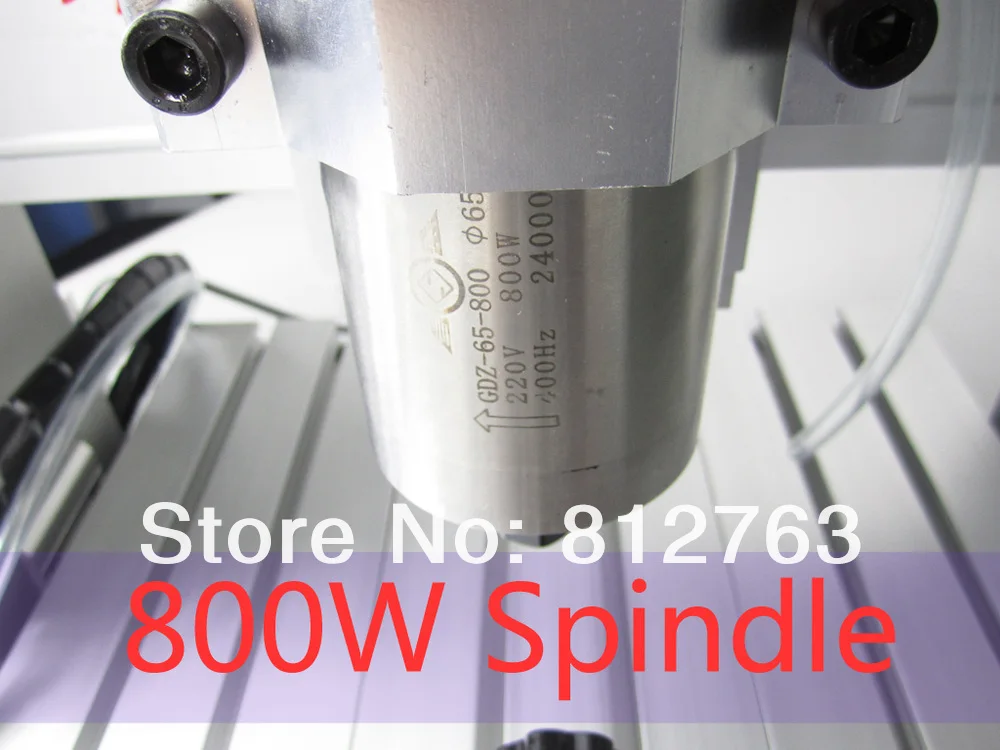

Spindle motor:

0.8KW VFD water cooling spindle ,NEW

Principal axis collet:

ER11/3.175 collet

Spindle speed:

1000-24000RPM/MIN

Empty line speed:

0-5000mm/min

Resetting accuracy:

0.05mm

Engraving accuracy:

better than 0.04mm (has been tested)

Spindle precision:

radial runout≤0.03mm

Control unit:

triaxial one-piece drive + ring variable power + PWM speed

Communication interface:

through parallel connection with computer

Software environment:

Windows 2000 / xp

Carving speed:

0-2500mm/min (different materials differ)

Warranty:

1 year warranty machine part;

6 months warranty Electrical parts, stepping motor and spindle

Interface:

Parallel port (25pin)

Software Compatability:

Mach3/Emc2,(Type3,Wentai, ArtCAM)

Command code:

G code/.nc/.ncc/.tab/.txt

Machine weight :

45KG

In addition, it can be upgraded to be installed a 4th axis.

The 4th axis is rotational axis, is very good for working for 3D;













Packing list:

1× Engraving machine
1× Control box with VFD

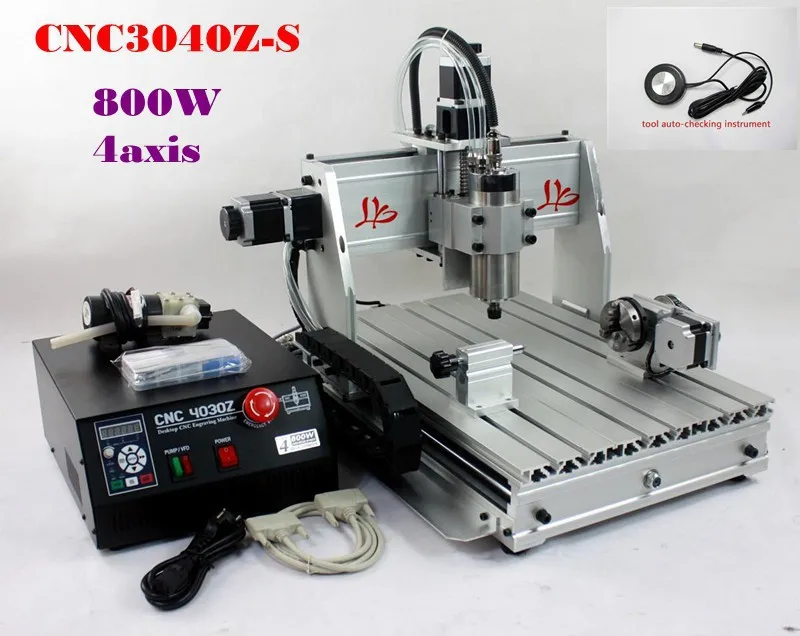

1× tool auto-checking instrument
1× Parallel port cable 25pin
2× Power cable

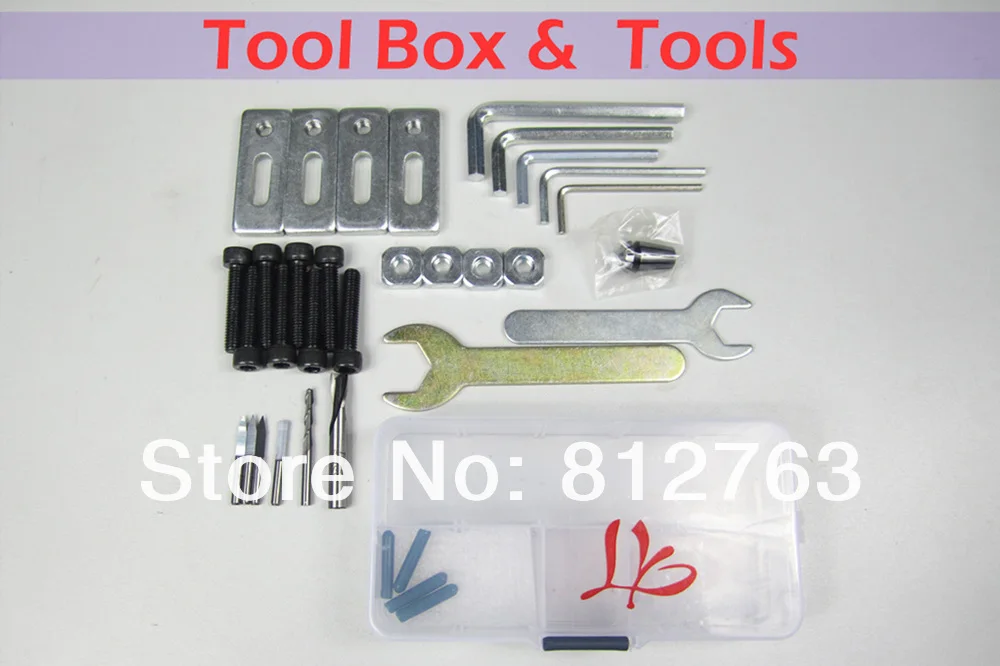

1× Tool box and tools
3× Axis motors
1x Rotation axis
1× water pump
1× CD of manual and software MACH3 (if not get, may be lost in customs, please contact us)

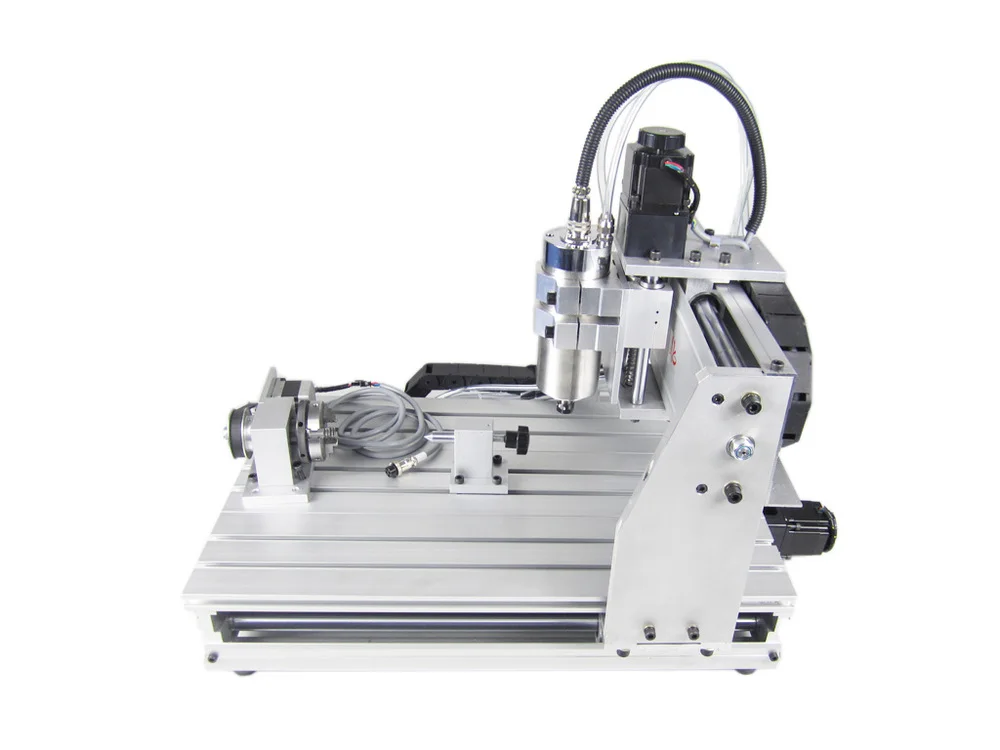

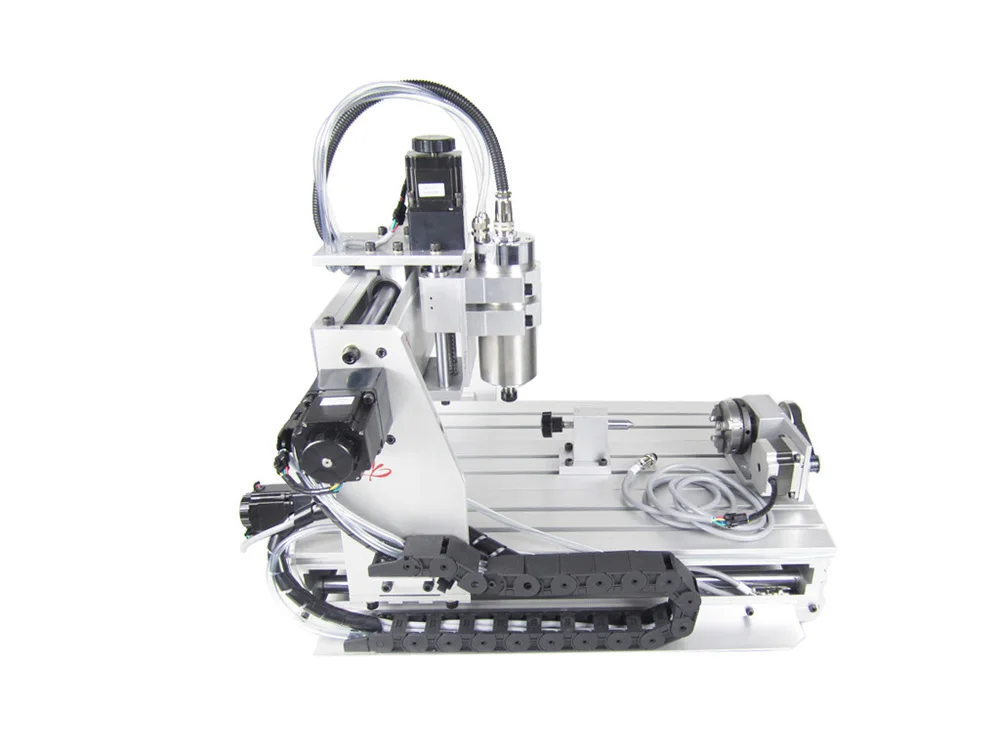

Detailed Machine photos:







3040Z-S 4axis (5).jpg3040Z-S 4axis (6).jpg3040Z-S 4axis (7).jpg3040Z-S 4axis (8).JPG3040Z-S 4axis (9).JPG

 3040Z-S 4axis (10).JPG3040Z-S 4axis (12).JPG3040Z-S 4axis (15).JPG

3040Z-S 4axis (17).JPG
