Name: CNC Router 1325 3.2kw Single-head Mini CNC Router Metal Machine for Optical Frames
SKU: 212171200019181
Availability: InStock

CNC Router 1325 3.2kw Single-head Mini CNC Router Metal Machine for Optical Frames

ر.س18,090.41

Product Description

CNC Router 1325 3.2kw Single-head engraving machine

Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

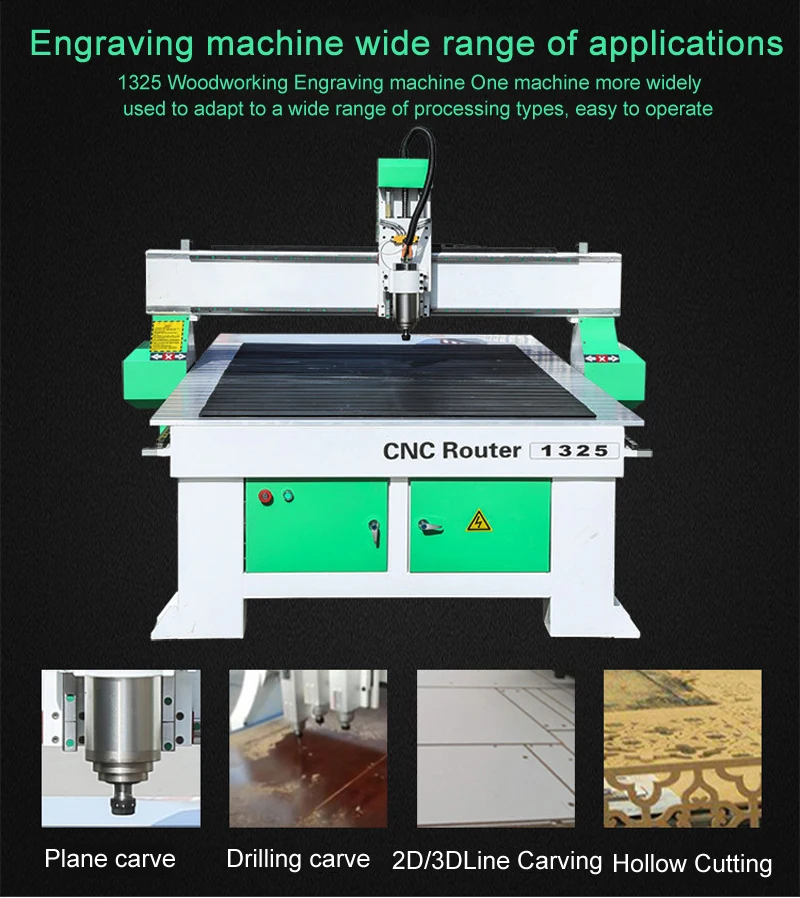

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

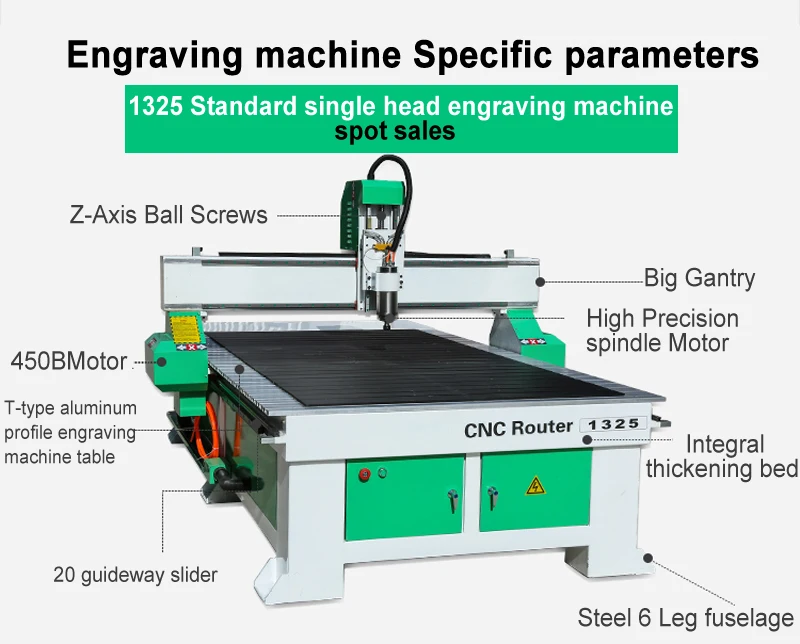

Model and Technical Parameters

Model	1325 Single-head engraving machine

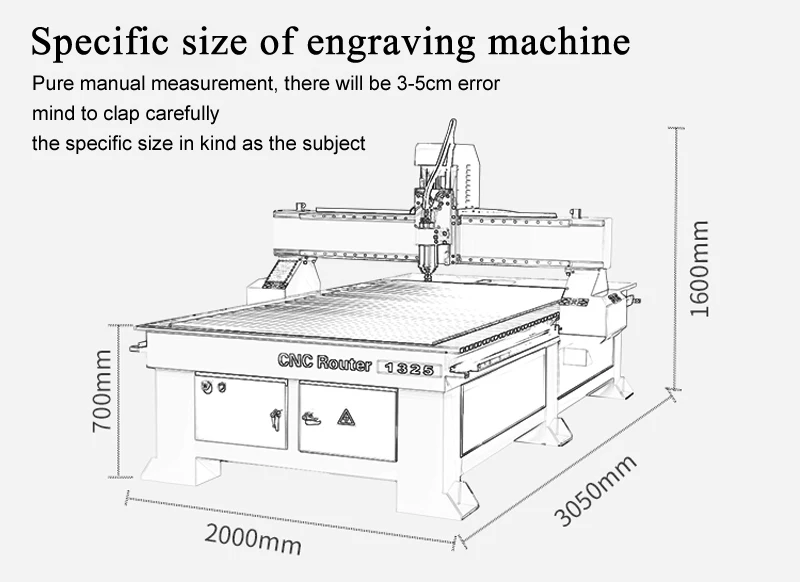

Profile Dimensions	1900mm×3000mm×1600mm

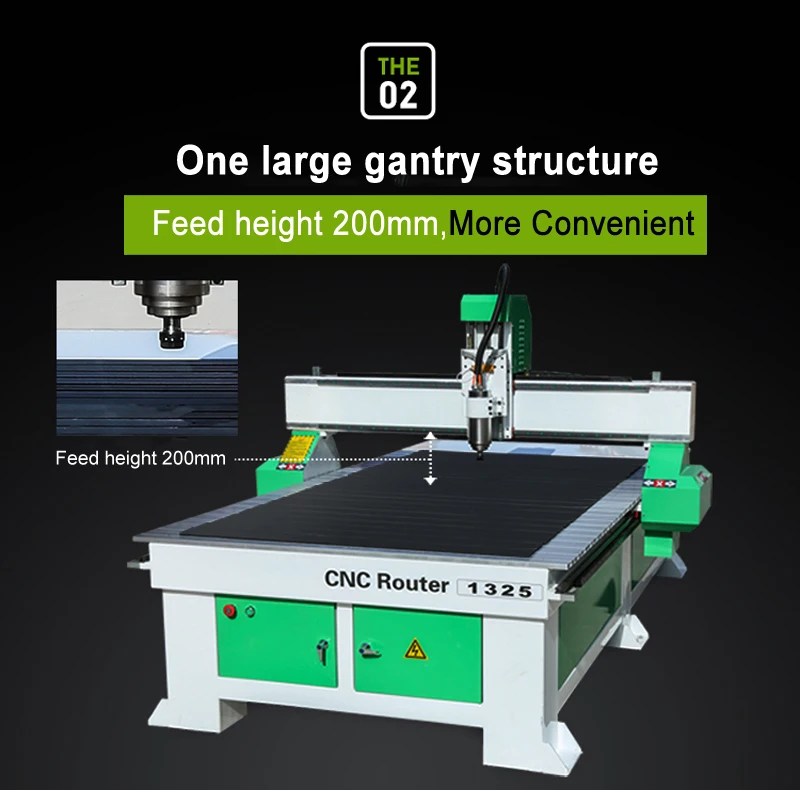

Work itinerary	1300mm×2500mm×200mm
Spindle Power	3.2kw water-cooled 100mm diameter

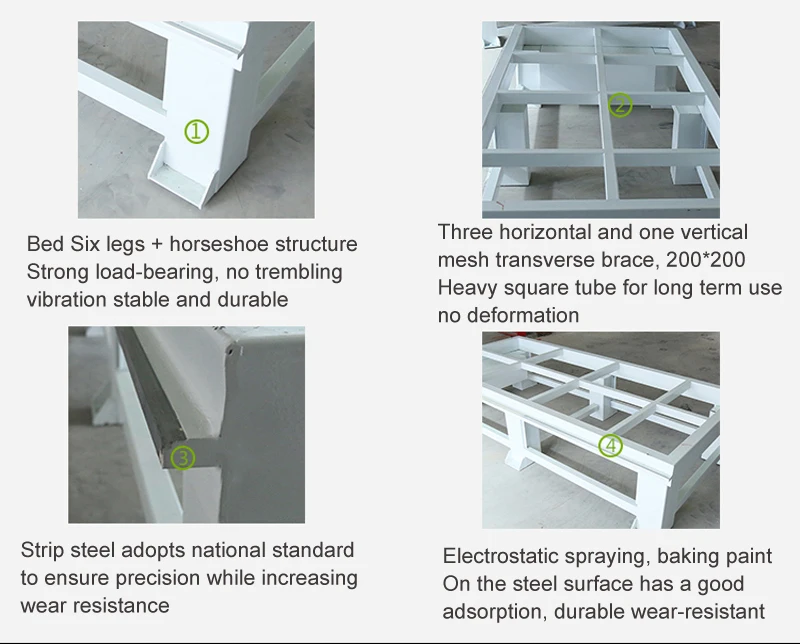

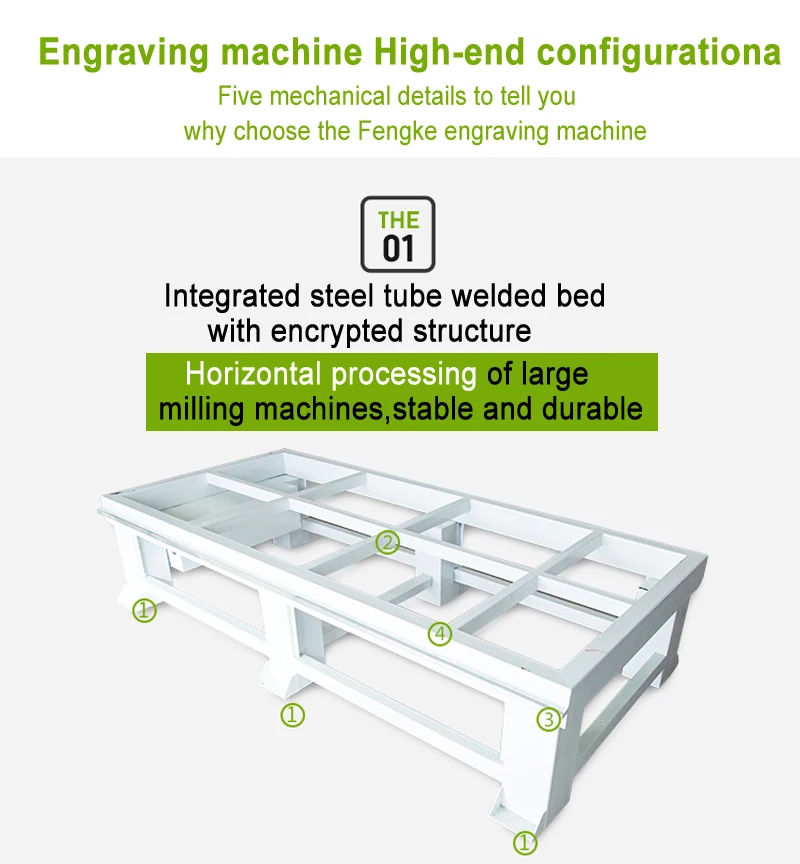

Bed body	Widened thickened square tube welded bed body (With Horseshoe)
Gantry	Cast Iron Side Plate
Z-Axis Ball Screw	Domestic 25 Ball Screw, Lead 5mm
Tooth strip	High Precision Oblique rack, Carburizing Treatment

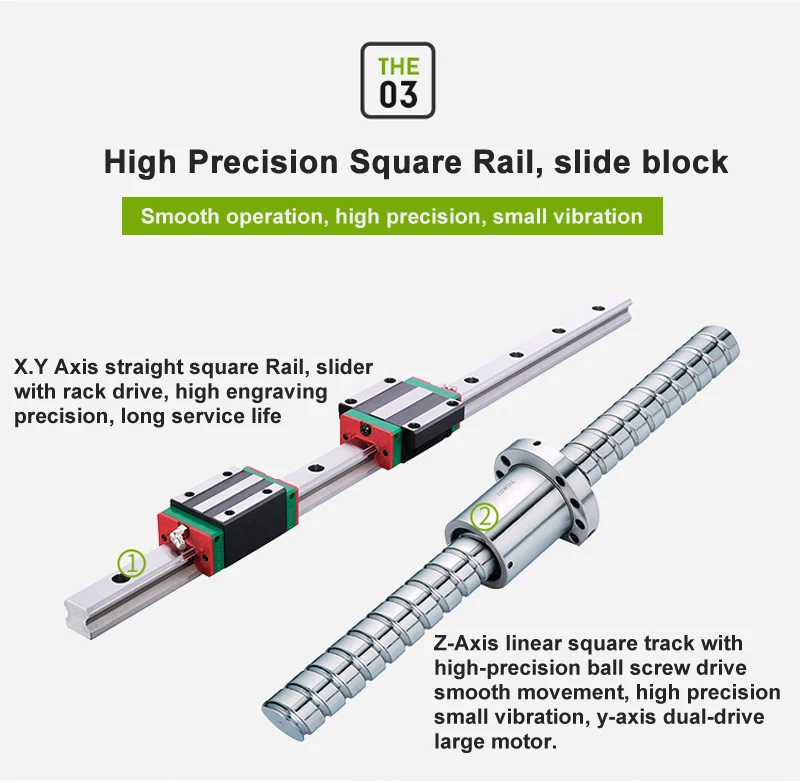

Guide	Square Rail(20)
Frequency converter	Bainst4kw,Change in 1 years
Countertops	Aluminum profile +pvc countertops
Stepper Motor	450B-14 With Keyway
Stepper Motor Driver	Shenzhen Leadshine 860H Driver

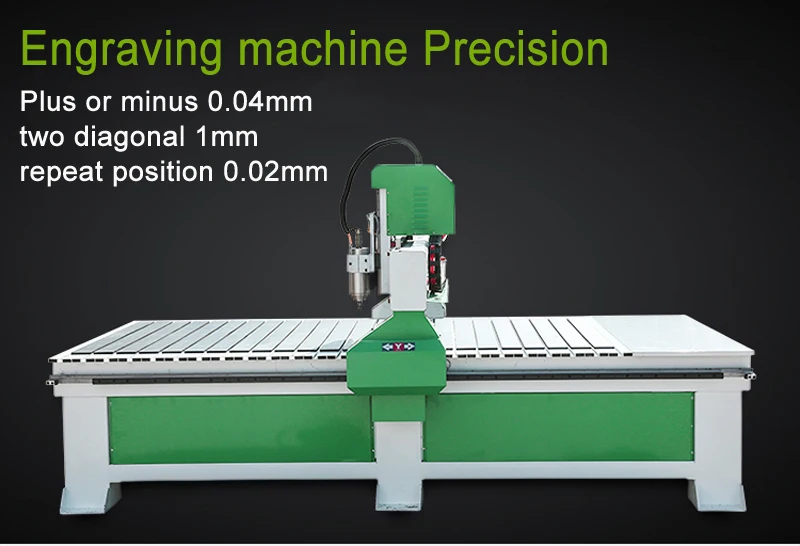

Precision	Plus or minus 0.4mm, two diagonal 1mm, repeat position 0.02mm
running velocity	12000mm/min
Tool diameter	1mm-16mm Holding Range
Transformer	Fengke 1000w Pure Copper Transformer
Engraving instructions	HPGL G Code

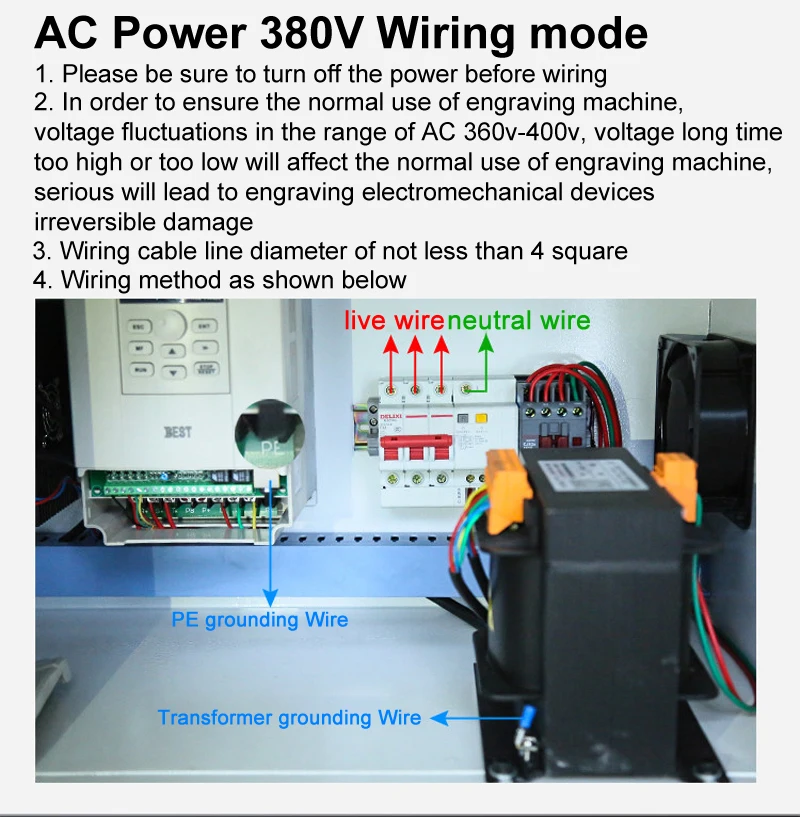

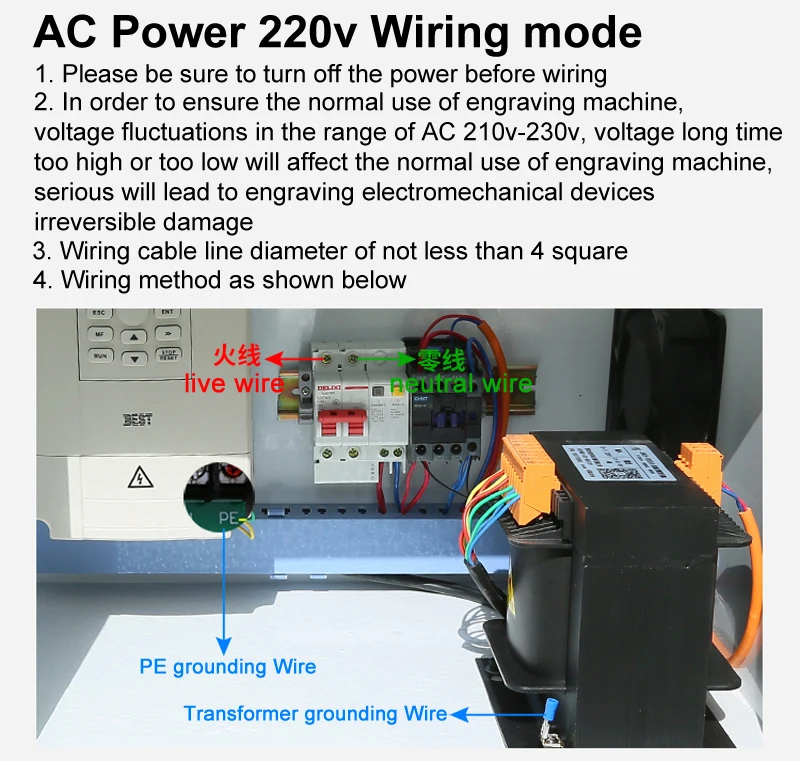

Voltage	220/380v
Applicable software	JDpaint,type3,Artcut2002,Artcut v8,Artcam,MACH3
