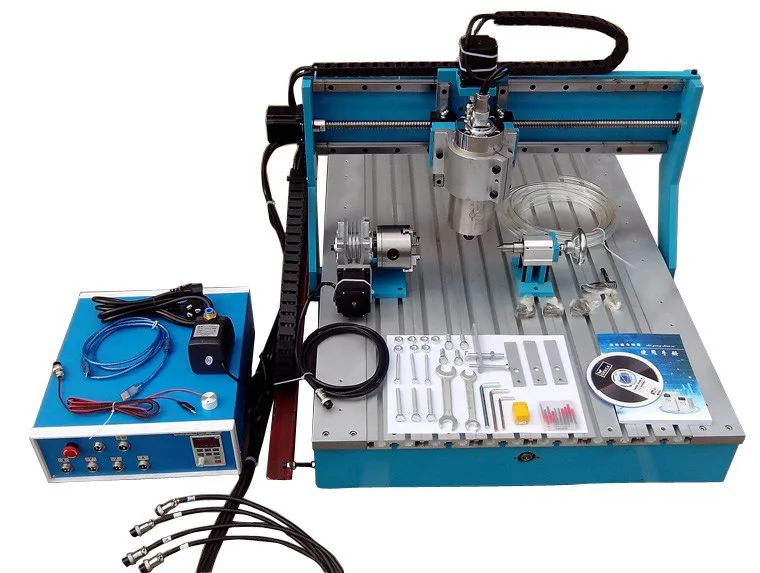

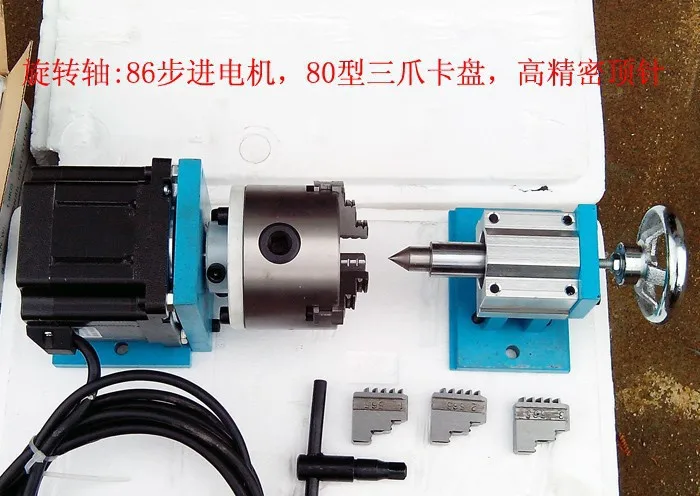

cnc metal engraving machine 3D CNC Router 6090 4 Axis 1.5KW VFD water cooled spindle,cnc milling machine
Introduction
The cnc rotuer 6090 1500W Easily produce name wood, metal , pcb, badges, equipment tags, small signs, plaques and awards, gift items, pet tags,ID tags, electrical tags, name tags, desk plates, or mark industrial parts.
Whether you are a startup business, or a model enthusiasts, or looking to add a machine to supplement the capacity of an existing operation, the 6090 1500W
is a great fit.
We look forward, The 6090 1500W will become your good helper
Technical Parameters :
X,Y,Z Working area: 580*880*120mm
Max. Feeding height: ≤140mm
Outside dimension: 900×1200×600mm
Table size: 640×1080mm (20mm aluminum alloy T table)
Lathe structure: 6061/6063 Aluminium alloy
Stepping motor: two-phase 57/3A
Drive unit: 1605 Ball screw
Sliding unit: Chromeplate shaft
Maximum speed: 0-4000mm/min
Engraving speed: 300-3000mm/min
Repeat positioning Accuracy: 0.03mm
Spindle: 1500W VFD spindle motor
Spindle speed: 24000rpm
Cutting tool-holder: ER11/6mm and 3.175mm
Interface: Parallel port
Software Compatability: Mach3/Emc2,(Type3,Wentai, ArtCAM)
Command code: G code/.nc/.ncc/.tab/.txt
Weight: 152kg
|
