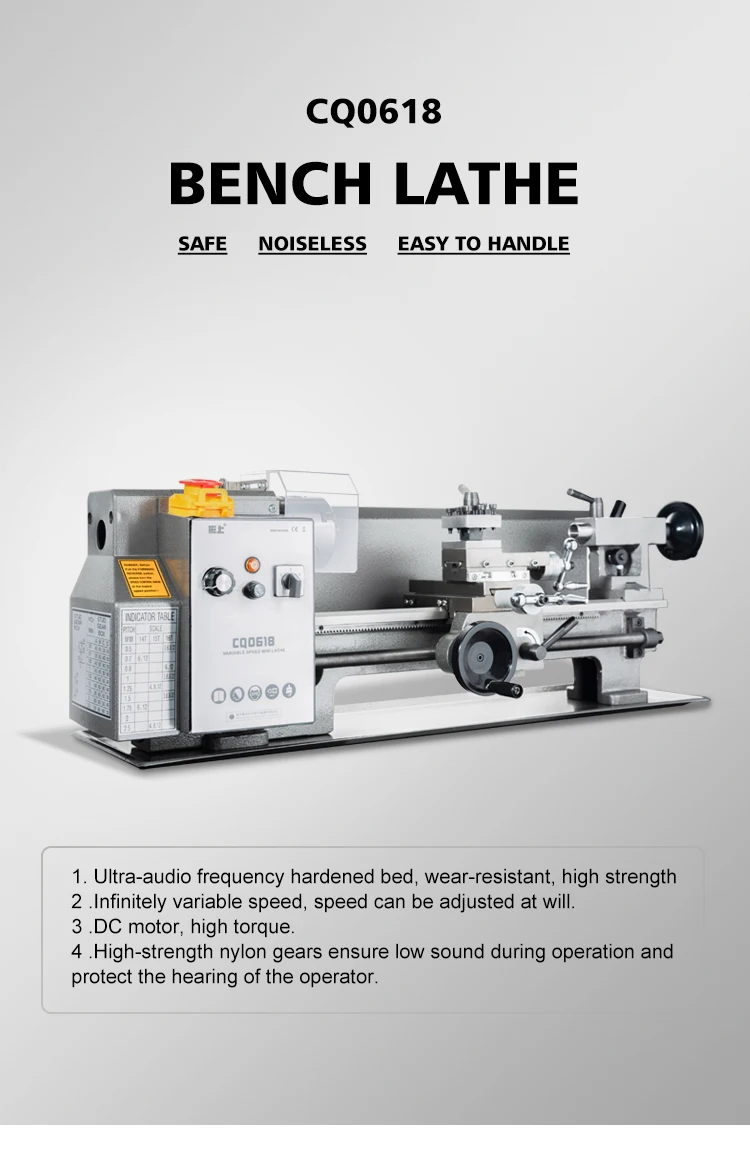

Features:
1. Ultra-audio frequency hardened bed, wear-resistant, high strength
2 .Infinitely variable speed, speed can be adjusted at will.
3 .DC motor, high torque.
4 .High-strength nylon gears ensure low sound during operation and protect the hearing of the operator.
| Maximum turning diameter bed | 180mm |
| Maximum turning diameter of middle carriage | 100mm |
| Two top distance | 300mm |
| Width of bed | 83mm |
| Spindle speed range/Grade | 100-2500rpm |
| Taper of spindle bore | MT3 |
| Chuck specifications | 80mm |
| Spindle bore | 20mm |
| Tailstock quill travel | 40mm |
| Tailstock quill diameter | 22mm |
| Taper of tailstock quill | MT2 |
| Turning tool height | 10mm |
| Cross slide travel | 65mm |
| Top slide travel | 35mm |
| Range of metric threads/Grade | 0.4-2.0mm/10 |
| Range of inch threads/Grade | 12-52T.P.I/19 |
| N.W./G.W. | 40/45KG |
| Machine size | 720×300×290mm |
| Packing size | 800×370×420mm |
