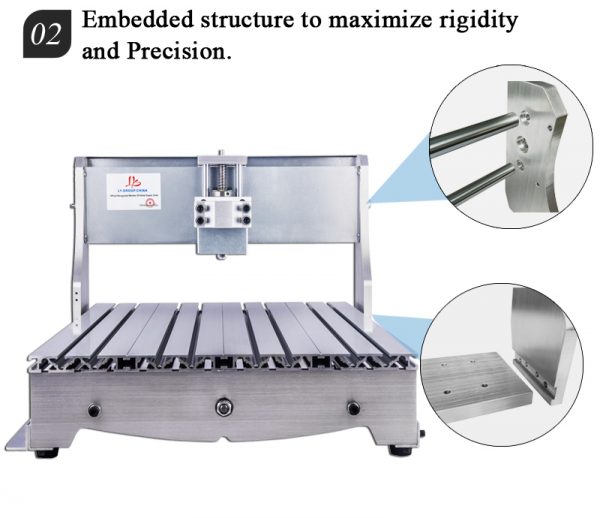

CNC 6040Z CNC frame of Engraver/Engraving Drilling and Milling Machine
For DIY CNC
Model and Technical Parameters
|
MODEL |
CNC 6040 Frame |
||||
|
Attribute |
3axis |
3axis+Motor |
|||
|
Axis |
3axis |
3axis |
|||
|
Stepper motor base |
Yes |
yes |
|||
|
Coupling |
No |
Yes |
|||
|
Stepper Motor |
No |
Yes 57mm |
|||
|
Type of screw |
1605 Ball screw |
1605 Ball screw |
|||
|
Weigh |
34 |
36 |
|||
|
Machine Dimensions |
860X690X550mm |
||||
|
Rack material |
6061 and 6063 Hard aluminum alloy |
||||
|
Engraving area |
600X400mm |
||||
|
Z-Axis Stroke |
80mm, Engraving depth depends on the length of the tool edge |
||||
|
Acceptable material thickness |
≤80mm |
||||
|
Rail type |
Chromeplate shaft + Linear Bearings, Surface hardening 61HRC |
||||
|
Diameter of Spindle motor |
65mm ( 52mm & 80mm optional) |
||||
|
Stepper motor size |
57mm |
||||
|
Repeat positioning Accuracy |
≤0.03mm |
||||
Warranty
1 year full warranty directly from factory .
Shipping
By DHL & UPS & FEDEX with tracking number, need 4~7 days;
By SEA , need 40~50 days;
We will mark the item at the very low value, so that you do not need to pay for the tax or pay a little tax.
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
LY CNC business group is located in Shenzhen, China.
CNC machines and CNC Laser like cnc 3020/4030/6040/9060/1309 …series products are hot sale in the world, especially in these countries from North and South American,European and Asian.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
If you have any question about our product. please contact us.
