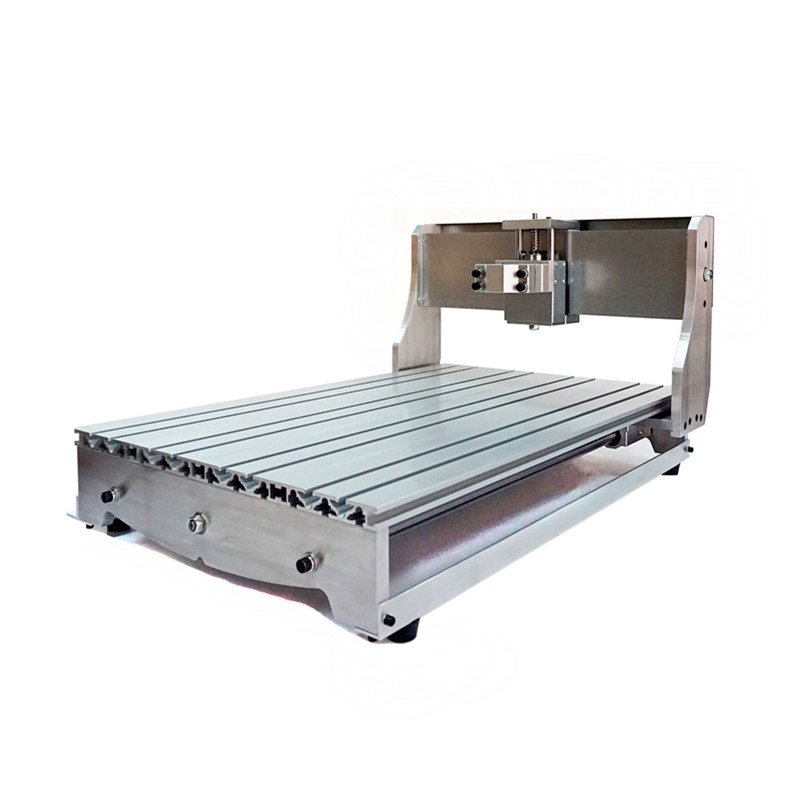

CNC 6040 lathe bed frame parts with high precision ball screw for diy your cnc 6040 with different spindle motor and inverte
The CNC router frame need self-assembled for DIY amateur;
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
Model and Technical Parameters
|
MODEL |
6040 CNC |
||||
|
Attribute |
|
|
Z |
Z+Stepper Motor |
|
|
Axis |
|
|
3axis |
3axis |
|
|
Stepper motor base |
|
|
Yes |
yes |
|
|
Coupling |
|
|
No |
Yes |
|
|
Stepper Motor |
|
|
No |
Yes 57mm |
|
|
Type of screw |
|
|
1605 Ball screw |
1605 Ball screw |
|
|
Weigh |
|
|
34 |
36 |
|
|
Machine Dimensions |
860X690X550mm |
||||
|
Rack material |
6061 and 6063 Hard aluminum alloy |
||||
|
Engraving area |
600X400mm |
||||
|
Z-Axis Stroke |
80mm, Engraving depth depends on the length of the tool edge |
||||
|
Acceptable material thickness |
≤80mm |
||||
|
Rail type |
Chromeplate shaft + Linear Bearings, Surface hardening 61HRC |
||||
|
Diameter of Spindle motor |
65mm ( 52mm optional) |
||||
|
Stepper motor size |
57mm |
||||
|
Repeat positioning Accuracy |
≤0.03mm |
||||
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
LyBGA factory is located in Shenzhen, China.
Our factory owns 2 brands , Ly and Bauer.
We has 10 years experiences in manufacturing and exporting BGA rework stations.
Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …
CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
separating stations like 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
