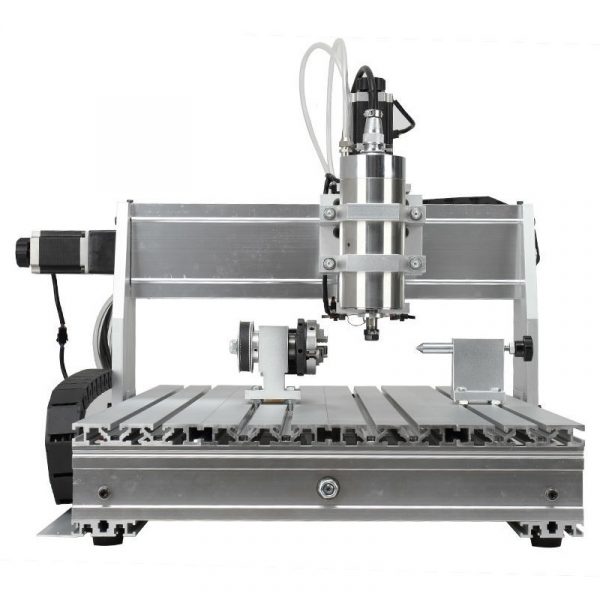

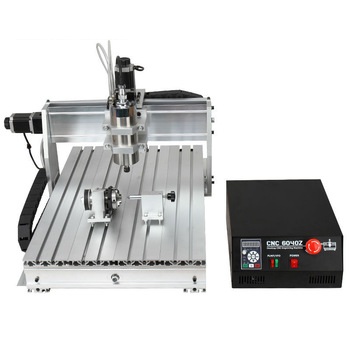

USB CNC 6040 2.2KW 4axis router with mach3 controller engraving Milling Machine
Highlights for this Multi-function 4 axis 6040 drilling and milling machine
Machine Structure Highlights
1.USB and parallel port connect with computer both support
2.Ball screw made it a higher precision
3.Limited switch added
4.2200W water cooling spindle
5.Independent power supply for mainboard, prolong using life.
6.Auto-Checking function

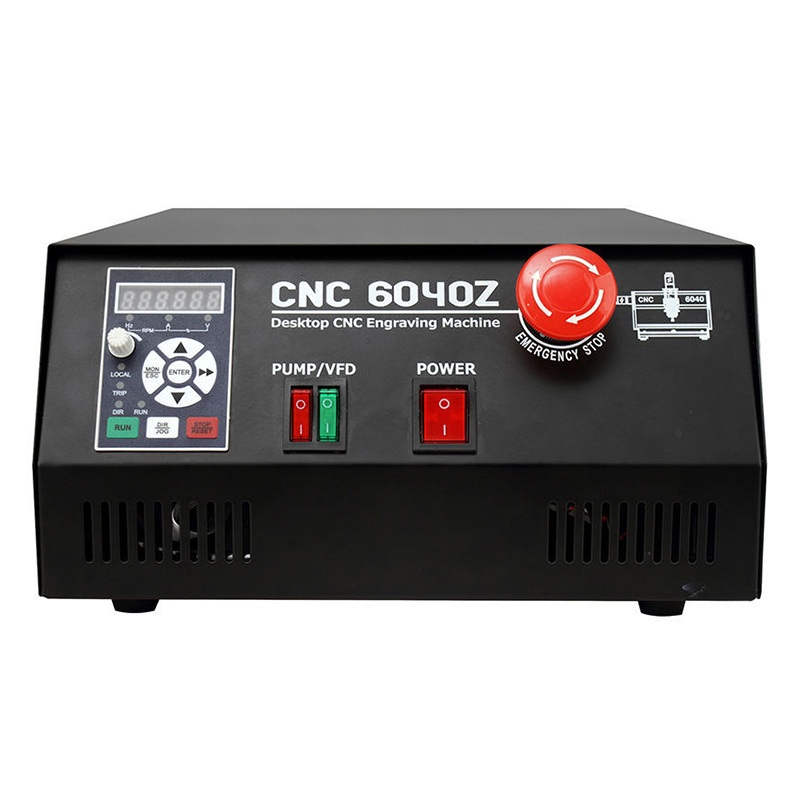

7.Control System Highlights
Easy operate Mach 3 or USB CNC software
Auto-Checking function, easy to set origin of Z axis
Built-in frequency converter in control box
The control box can be CNC 4 axis universal
China Mini CNC Machine Manufacturer Excellent Service
Got CE approved
From reliable & trusworthy profesional China CNC router engraver manufacturer
Youtube cnc machine video support
Technical team always available
English manual available
This Easy handle 4 axis 6040 cnc bobby engraving machine can be widely used
A. Widely used not only for Aluminum but also acrylic, brass, wood, PVC, PCB and so on.
B. Ideal for milling, engraving, drilling & routing.
C. For Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes, Building Model Making, Advertising Signs,Artwork,Crafts,Aircraft Models,RC Model parts
|
Effective working travel |
580(X)mm*400(Y)mm*105(Z)mm |
|
|
Shape dimension |
880*670*640mm |
|
|
Max.workpiece dimension |
750mm*450mm<150m |
|
|
Work table dimension |
742mm*480mm |
|
|
Frame materials |
Aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let counterfeiters dwarfs |
|
|
acceptable material thickness |
≤150mm |
|
|
Driving units |
X/Y/Z axis |
1605 ball screw |
|
Sliding units |
X axis |
Dia.16mm chrome plate shafts |
|
Y axis |
Dia.20mm chrome plate shafts |
|
|
Z axis |
Dia.13mm chrome plate shafts |
|
|
Stepping motor type |
57 two-phase 3A 150N.cm |
|
|
Spindle motor |
Brand new 1500W water cooling spindle, 24000RPM |
|
|
Principal axis collet |
ER-11A 3-7mm, ER-16A 3-10mm |
|
|
Repeat accuracy |
0.05mm |
|
|
Spindle precision |
radial beat accuracy is 0.03 mm |
|
|
Carving Instructions |
G code/TAB files/nc file/NCC files |
|
|
Communication interface |
parallel port |
|
|
Software environment |
Windows xp/Win7/Win8/Win10 |
|
|
Maximum speed |
0-4000mm/min |
|
|
Carving speed |
0-2500mm/min(different materials differ) |
|
|
Control unit |
Toroidal transformer+PWM power supply module +TB6560 3axis drive board |
|
|
Computer connection |
USB and parallel interface both support |
|
|
Command code |
G code |
|
|
Acceptable software |
Mach3 |
|
|
protection |
Emergency stop button |
|
|
Operating Voltage |
AC110V/220V |
|
|
Machine weight (Package weight) |
3 axis 61KG /4 axis 68kg |
|
|
Package dimension |
Top:62*49*52cm Bot:80*22*63cm |
|
|

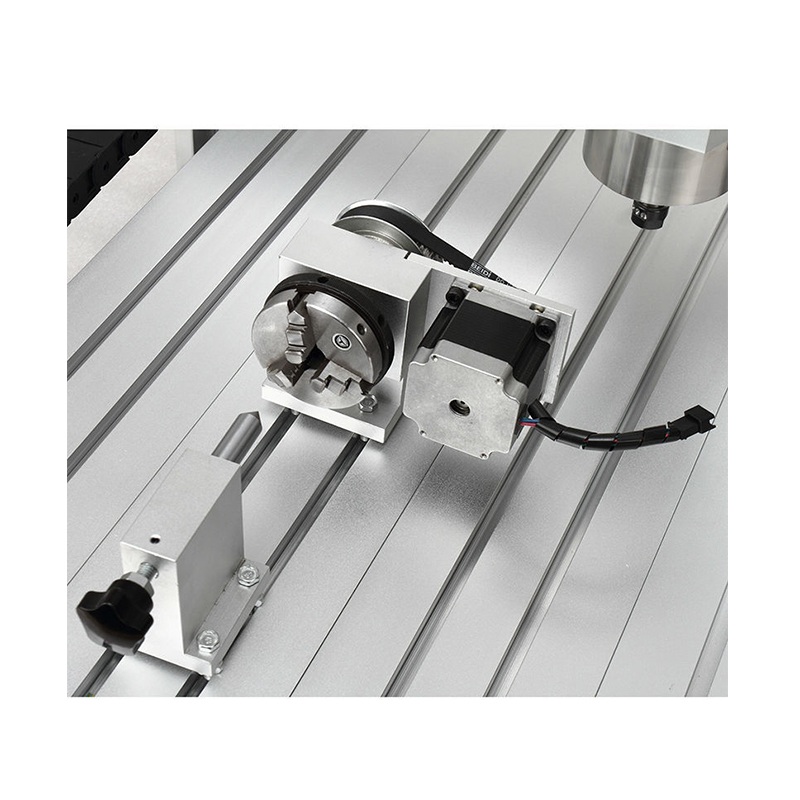

The 4th axis parameter |
||
|
Size |
220(L)*116(W)*105(H)mm |
|
|
Centre-height |
65mm |
|
|
Clamping diameter |
80mm |
|
|
Reduction ratio |
1:3 |
|
Why CNC 6040 Machine be better than others?
6 Limit Switches On X / Y / Z Axes
Packing list : (TWO Carton Box, 62*49*52cm / 80*22*63 cm, total weight 68KG)
1 * CNC 6040 engraving machine
1 * 4axis controller box
1 * 4th axis for CNC6040
1 * water pump for cooling spindle
1 * CD (software)
4 * Fixed briquetting
1 * milling bit
3 * clamp tool
1 * parallel cable
1 * cable(one end is USB port and the other end is parallel port)
1 * auto-checking tool
6 * clamp tool
3 * engraving bit
1 * collet 3.175
4 * screws
4 * limited switch
