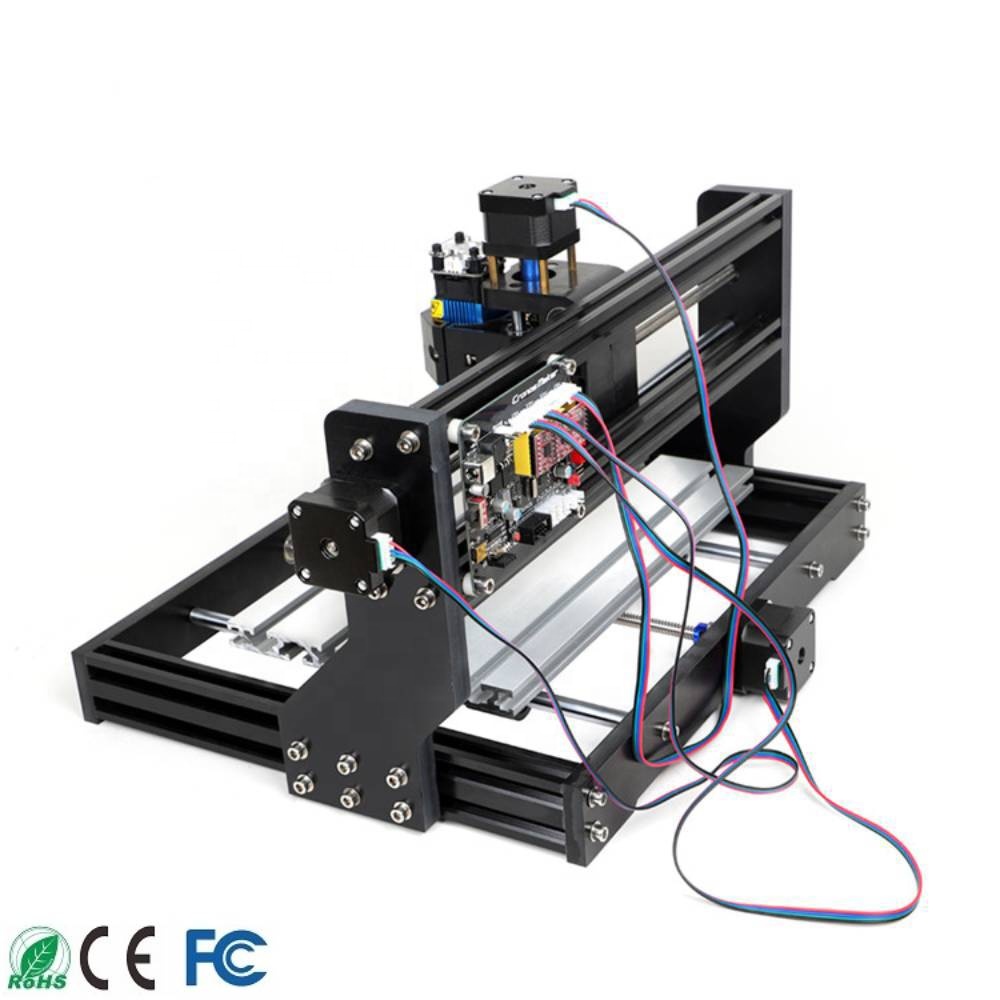

CNC 3018 Pro+pcb milling machine+CNC router GRBL control+laser engraving+craved metal+wood router+offline CNC engraving machine

ر.س1,690.23ر.س2,726.20

Clear
Qty:
Compare

Request quotation for: CNC 3018 Pro+pcb milling machine+CNC router GRBL control+laser engraving+craved metal+wood router+offline CNC engraving machine

Product Description

Pay Attention To:
The 3018 Pro machine frame features an upgraded version of the BAKELITE for better insulation, mechanical strength,
anti static, intermediate electrical insulation, wear resistance and high temperature resistance.

Please contact us for SOFTWARE AND INSTRUCTION MANUAL download link!
*The laser can be carved including: Can Engrave:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum/Ceramics/Stone/Stainless steel
*Can Not Engrave:Metal/Glass/PCB/Reflective Material/Transparent Material
*We have a 15W Laser, which can engrave metal materials such as stainless steel and alumina.
*The blade can be engraved plastic, wood, acrylic, pvc, pcb, wood or the like material
*ER11 needs shrink fitting. Both the spindle and ER11 have the correct diameter, but ER11 is designed to be minus tolerence to spindle so you cannot put it on directly.
*Offline controller supports offline work, you will not need to connect to a computer
*We have EU and US adapters and I will send the correct plugs according to your country.
*If you need any question,feel free to contact me.

Control software
GRBL control
Construction
Aluminum + Bakelite
Working area
300*180*40mm
Frame size
400*330*240mm
Spindle
775 spindle motor 24V: 10000r/min
Step motor
1.3A 0.25N.m
Power supply
24v 5A
Supported system
Windows XP/ Win 7/ Win 8/ Win10 Home
Laser (options)
0.5W 12V 405nm
2.5W/5.5W/15W 12V 450nm
(15W Can engrave on stainless steel)

WithOUT Offline Control:
Package1: 1 x Engraving machine + 1 x ER11 +10 x Cutters+4 x Plates + 1x4G U Disk
Package2: 1 x Engraving machine + 1 x ER11 +10 x Cutters+4 x Plates + 500MW Laser + 1x4G U Disk
Package3: 1 x Engraving machine + 1 x ER11 +10 x Cutters+4 x Plates + 2500MW Laser + 1x4G U Disk
Package4: 1 x Engraving machine + 1 x ER11 +10 x Cutters+4 x Plates + 5500MW Laser + 1x4G U Disk
Package5: 1 x Engraving machine + 1 x ER11 +10 x Cutters+4 x Plates + 15000MW Laser + 1x4G U Disk

With Offline Control:
Package1.1 1 x Engraving machine + 1 x ER11 +10 x Cutters+4 x Plates + 1xOffline control+ 1x4G U Disk
Package2.2 1x Engraving machine + 1 x ER11 +10 x Cutters+4 x Plates + 500MW Laser +1xOffline control + 1x4G U Disk
Package3.2 1x Engraving machine + 1 x ER11 +10 x Cutters+4 x Plates + 2500MW Laser +1xOffline control + 1x4G U Disk
Package4.2 1x Engraving machine + 1 x ER11 +10 x Cutters+4 x Plates + 5500MW Laser +1xOffline control+ 1x4G U Disk
Package5.2 1x Engraving machine + 1 x ER11 +10 x Cutters+4 x Plates + 15000MW Laser +1xOffline control + 1x4G U Disk

Friendly Reminder:
We suggest that you make an unboxing video upon receival of this machine. Just in case you receive any defective or damaged part, please contact us for replacements.



Engraving printer.png



Product Description



Detailed Images

 Engraving machine 1.pngEngraving machine 2.pngEngraving machine 3.pngEngraving machine 5.pngEngraving machine 6.pngEngraving machine 7.png



Upgrade 3Pin+2Pin Laser Cable:



Engraving machine 8.pngEngraving machine 9.pngEngraving machine 10.png

Control board

 Engraving machine 11.pngEngraving machine 12.png



Related Products

Company Information

    Shenzhen Ucreate 3D Intelligent Technology Co., Ltd. is the manufacturer of the Ortur brand of 3D Printers & Accessories. From our headquarters in Shenzhen China we supply customers in North and South America, Europe, Australia and Asia. Our executive team is the most knowledgeable in the 3D Printer industry with over 10 years’ experience in the design and manufacturing of 3d printers.What distinguishes us from our competitors is our ability to guide customers to the most cost effective supply solution. We can ship bulk orders direct from our factories in China or for smaller quantities supply from our wholesale distribution centers in the US, UK and Russia. For customers without their own freight forwarder we can provide a full logistics service, handling shipping direct to your warehouse.Our customers are typically distributors supplying both of major physical stores and online stores. Our reach is worldwide, in fact you will find our OEM 3d printers anywhere that the people needs 3d printing.



3d printer



    In March and August 2018, Ucreat3d group company invested a total of 12 million yuan, and built a 15,000-square meter 3D printer and accessories production workshop in the second industrial zone of Heshi Road, Hekeng Village, Qiaotou Town, Dongguan City. The Yuanjiangyuan Industrial Zone in Changping Town, Dongguan City was built. 2000 square meters of 3D printing additive production workshop, a total of 6 3D printers and accessories production line, 1 additive production line, with 5,000 high-end 3D printers per month and 10 tons of various 3D printing additive production capacity.

    Rooted in the operating philosophy of customer satisfaction as the basic principle, relying on customers to trust the brand reputation, is the constant pursuit of ucreate.In the future, relying on the spirit of the new era of craftsmen, ucreate will continue to provide users with higher quality, higher technology level 3D printers and additive products. Here, all ucreate people sincerely invite customers to join hands with ucreate intelligence to set sail together and create a more brilliant tomorrow.

FAQ



Q: Does this machine need to be assembled when I received it?
A: This machine comes as a kit. You need to assemble it yourself. All tools and part are included in the kit.

Q: Are there software and instructions can I get it?
A:You can get the software ,contact us.

Q: Whick type computer system can run its software?
A:The software only support the Windows system.

Q: What’s the laser’s lifetime?
A: The laser module have over 6,000 hours lifetime.

Q: What material can it engrave?
A:Wood, bamboo, plastic, paper, leather, rubber, metal, etc.

Q:What material can it cut?
A:cork wood, paper, thin leather.

Q: Can I regulate the laser power or the laser power is adjustable?
A: Sorry that the Fixed laser power is not adjustable, but the engraving speed is adjustable.

Q: How long can the machine work continuously?
A: It can work continuously about 45 minutes, after the laser mould cool down(about half of an hour), then start work again. Long time work continuously with shorten the laser module liftetime.

Q: When I receive it, how to let it work?

A: Fist of all, you need to plug the stepper motor power cable to the controller board, then installl the software and the driver, power supply the machine,that’s all.
