Name: CNC 3018 Pro Max +Offline Laser Engraver DIY CNC Router Pcb Milling engraving Machine GRBL Control Craved On wood
SKU: 663521019181
Price: 1990.35 SAR
Availability: InStock

CNC 3018 Pro Max +Offline Laser Engraver DIY CNC Router Pcb Milling engraving Machine GRBL Control Craved On wood

ر.س1,990.35

Compare

Request quotation for: CNC 3018 Pro Max +Offline Laser Engraver DIY CNC Router Pcb Milling engraving Machine GRBL Control Craved On wood

CNC 3018 Pro Max +Offline Laser Engraver DIY CNC Router Pcb Milling engraving Machine GRBL Control Craved On wood

Product Description

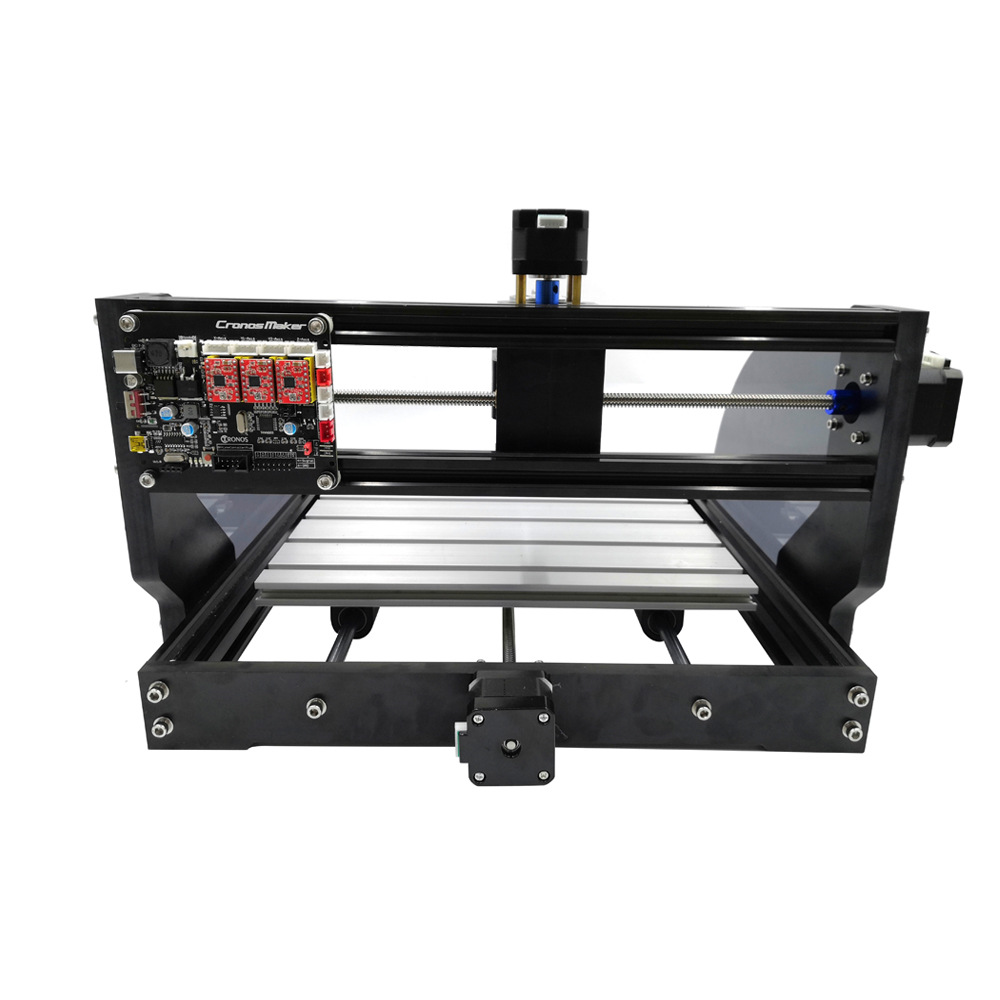

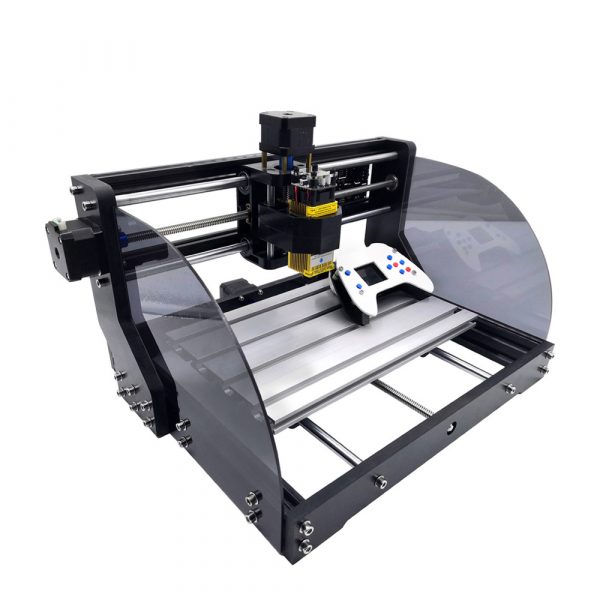

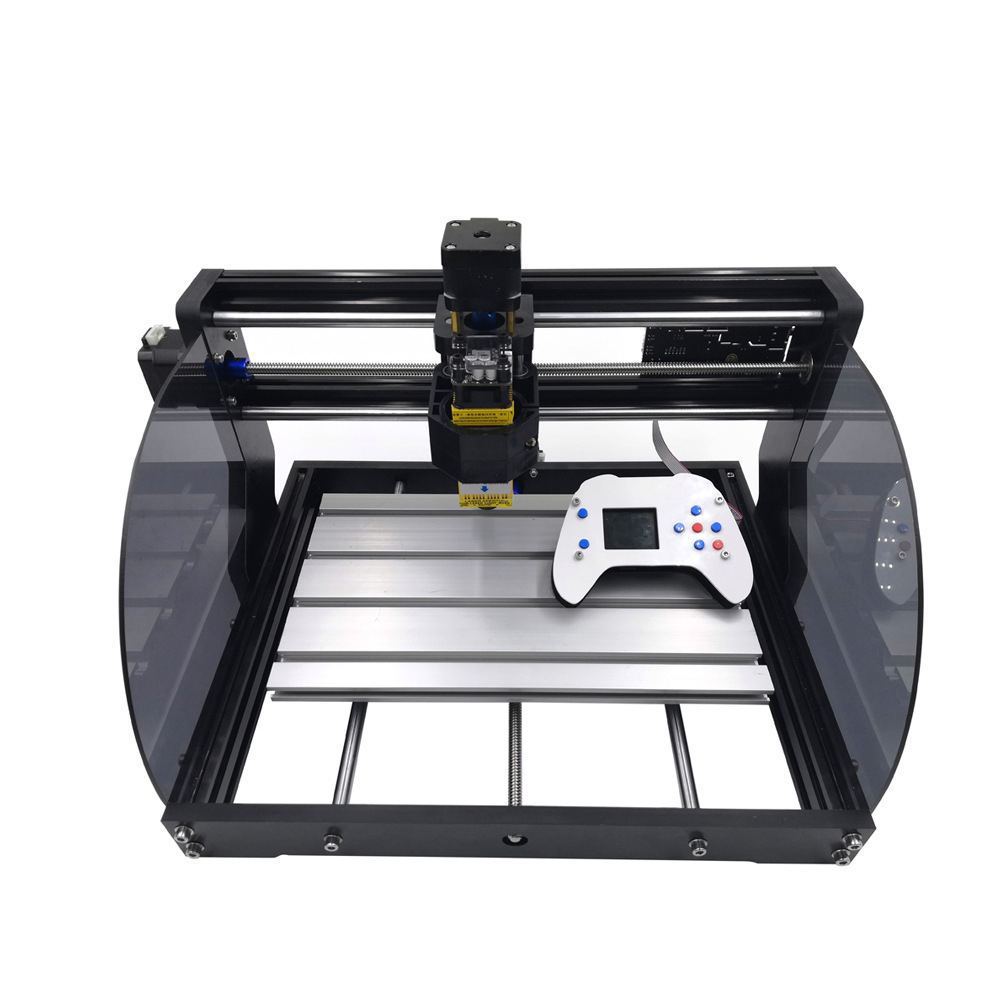

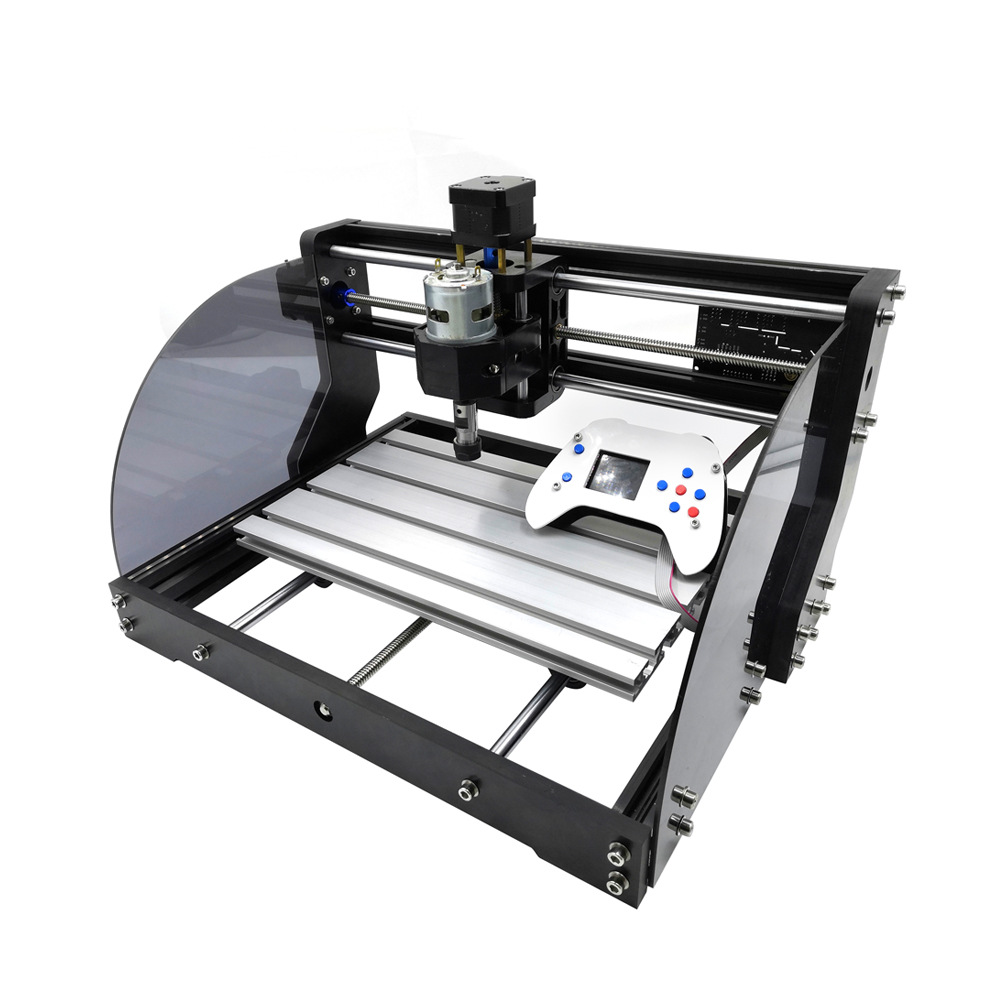

CNC 3018 Pro Max GRBL Diy mini CNC engraving machine, 3-axis pcb milling machine, laser engraving wood engraving machine, CNC3018 Pro Max(support offline) can work without connecting to a computer.

Control board, three-axis drive Dual Y-axis, full-featured. Support for offline laser output 2P/3P supports PWM TTL function. Black injection molded parts, mold opening to create durable injection molded parts, high precision, long life.

Control board introduction:

1, GRBL1.1f firmware, stable performance

2, offline engraving (optional offline module), offline tool setting, engraving

3, support limit switch, tool setting, steering gear, cooling fan and other functions

4, support 2P / 3P laser, support PWM / TTL signal control, power 0-100% adjustable!

5, the spindle supports PWM power 0-100% adjustable

6, stepper motor over-current protection to avoid damage, upgrade A4988 drive, stable and reliable performance.

7, laser directly into the picture engraving, no programming, no design, simple and convenient!

Offline controller : new version with button battery, 1.8in LCD monitor with installed SD card

This machine only with 15W laser can work for stainless steel

APPLICATION:

Highlights

1. Grbl1.1f firmware, stable performance;

2. Offline carving in the whole process (offline module is selected), offline knife setting and carving;

3. Supporting 2P/3P laser, PWM/TTL signal control; power 0-100% adjustable;

4. The spindle supports 0-100% adjustable PWM power;

5. Stepper motor overcurrent protection avoids damage; upgrade DRV8825 drive performs far better than A4988;

6. Laser directly imported into the picture engraving, no programming, no design, simple and convenient!

Specifications

Control software	GRBL control
Construction	Aluminum + *BAKELITE*
Working area	30018040mm
Frame size	400330240mm

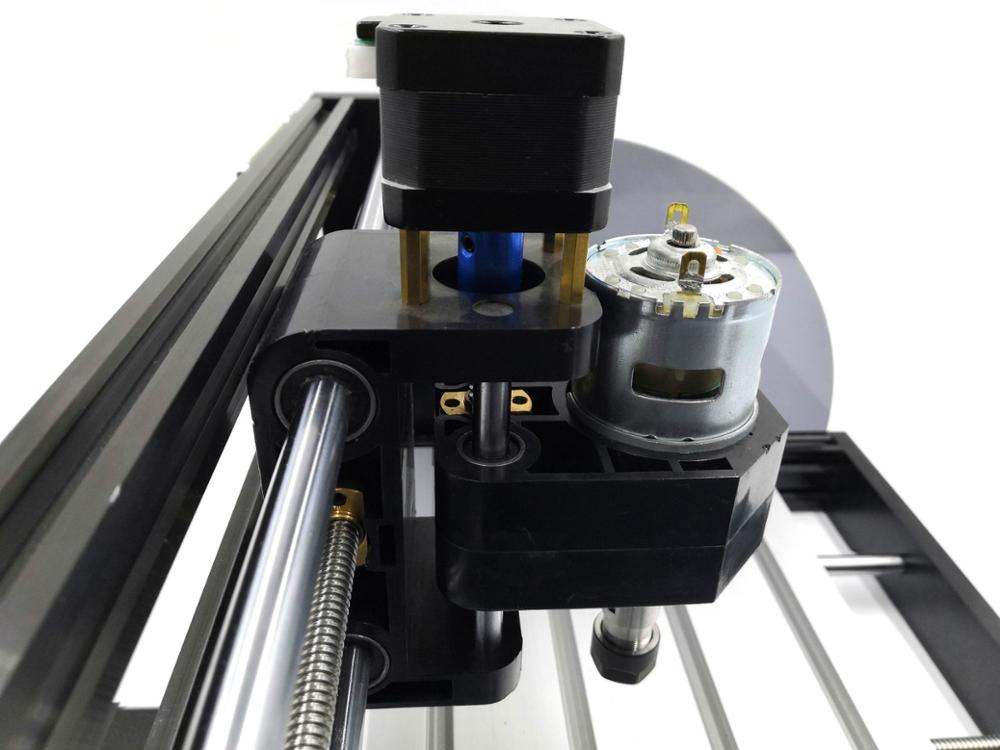

Spindle	775 spindle motor 24V: 10000r/min, n
Step motor	1.3A 0.25N.m
Power supply	24V 5A
Supported system	Windows XP/ Win 7/ Win 8/ Win10 Home
Laser (options)	0.5W/2.5W 12V 405nm 3.5W/5.5W 12V 450nm 15W Can engrave on stainless steel
