Name: CNC 3018 PRO Max Laser Engraver Wood Router Machine GRBL ER11 Hobby DIY Engraving with GRBL ER11 offline control
SKU: 661537019181
Price: 1516.32 SAR
Availability: InStock

CNC 3018 PRO Max Laser Engraver Wood Router Machine GRBL ER11 Hobby DIY Engraving with GRBL ER11 offline control

ر.س1,516.32

Compare

Request quotation for: CNC 3018 PRO Max Laser Engraver Wood Router Machine GRBL ER11 Hobby DIY Engraving with GRBL ER11 offline control

CNC 3018 PRO Max Laser Engraver Wood Router Machine GRBL ER11 Hobby DIY Engraving with GRBL ER11 offline control

1- - .jpg

Product Description

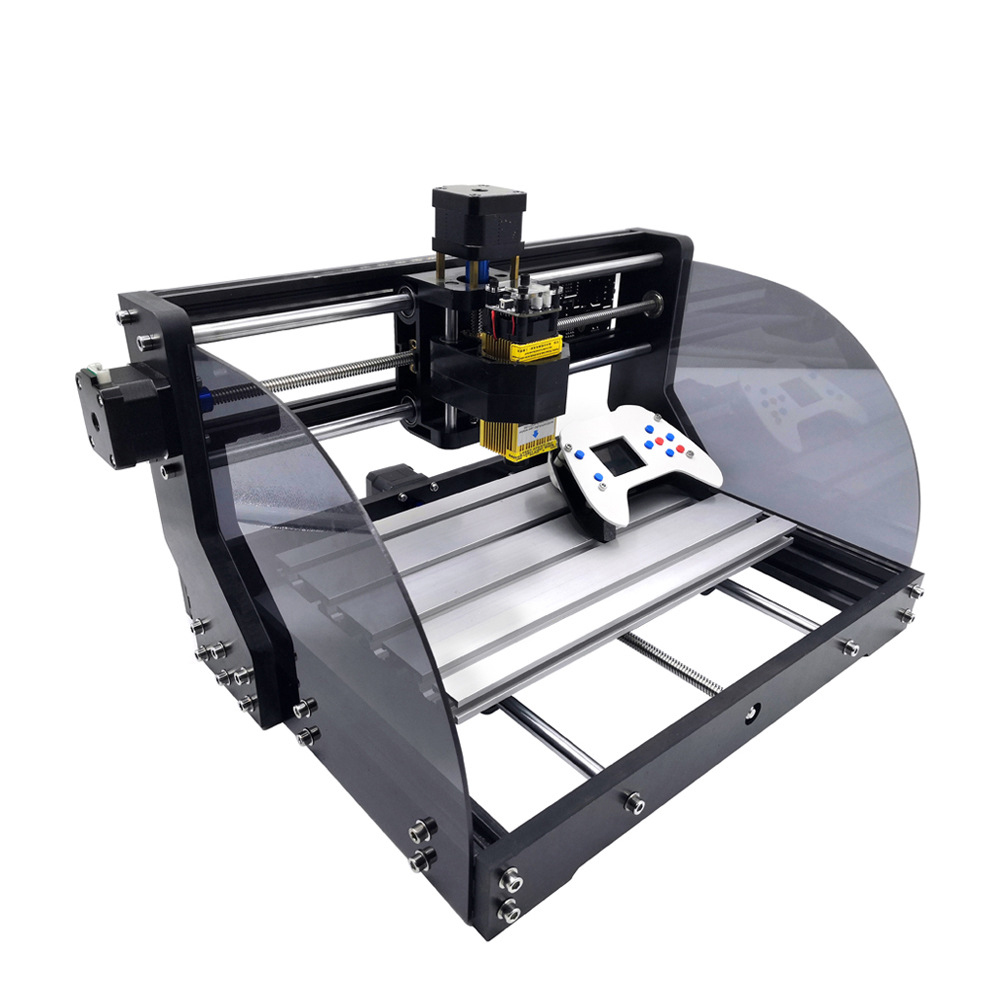

CNC 3018 Pro Max GRBL Diy mini CNC engraving machine, 3-axis pcb milling machine, laser engraving wood engraving machine, CNC3018 Pro Max(support offline) can work without connecting to a computer.

Control board, three-axis drive Dual Y-axis, full-featured. Support for offline laser output 2P/3P supports PWM TTL function. Black injection molded parts, mold opening to create durable injection molded parts, high precision, long life.

Control board introduction:

1, GRBL1.1f firmware, stable performance

2, offline engraving (optional offline module), offline tool setting, engraving

3, support limit switch, tool setting, steering gear, cooling fan and other functions

4, support 2P / 3P laser, support PWM / TTL signal control, power 0-100% adjustable!

5, the spindle supports PWM power 0-100% adjustable

6, stepper motor over-current protection to avoid damage, upgrade A4988 drive, stable and reliable performance.

7, laser directly into the picture engraving, no programming, no design, simple and convenient!

Offline controller : new version with button battery, 1.8in LCD monitor with installed SD card

This machine only with 15W laser can work for stainless steel

APPLICATION:

Highlights

1. Grbl1.1f firmware, stable performance;

2. Offline carving in the whole process (offline module is selected), offline knife setting and carving;

3. Supporting 2P/3P laser, PWM/TTL signal control; power 0-100% adjustable;

4. The spindle supports 0-100% adjustable PWM power;

5. Stepper motor overcurrent protection avoids damage; upgrade DRV8825 drive performs far better than A4988;

6. Laser directly imported into the picture engraving, no programming, no design, simple and convenient!

Specifications

Control software	GRBL control
Construction	Aluminum + *BAKELITE*
Working area	30018040mm
Frame size	400330240mm
Spindle	775 spindle motor 24V: 10000r/min, n
Step motor	1.3A 0.25N.m
Power supply	24V 5A
Supported system	Windows XP/ Win 7/ Win 8/ Win10 Home
Laser (options)	0.5W/2.5W 12V 405nm 3.5W/5.5W 12V 450nm 15W Can engrave on stainless steel
