Product Description
SPECIFICATIONS:
Big force,low noise and easy to operate
Nice look,performance,price
ISO certificate
|
MODEL
|
CM-10
|
|
Max hose ID
|
φ 6~ 51mm (maximum 2 inch, min 2 min)
|
|
Rated voltage
|
Three-phase AC380V or single-phase AC220V
|
|
Random supporting mold
|
10 set (15, 19, 23, 27, 31, 36, 41, 47, 53, 58) STD
|
|
Weight
|
120 Kg
|
|
Dimensions
|
630(L)x750(W)x800 (H)mm
|
Instructions for use

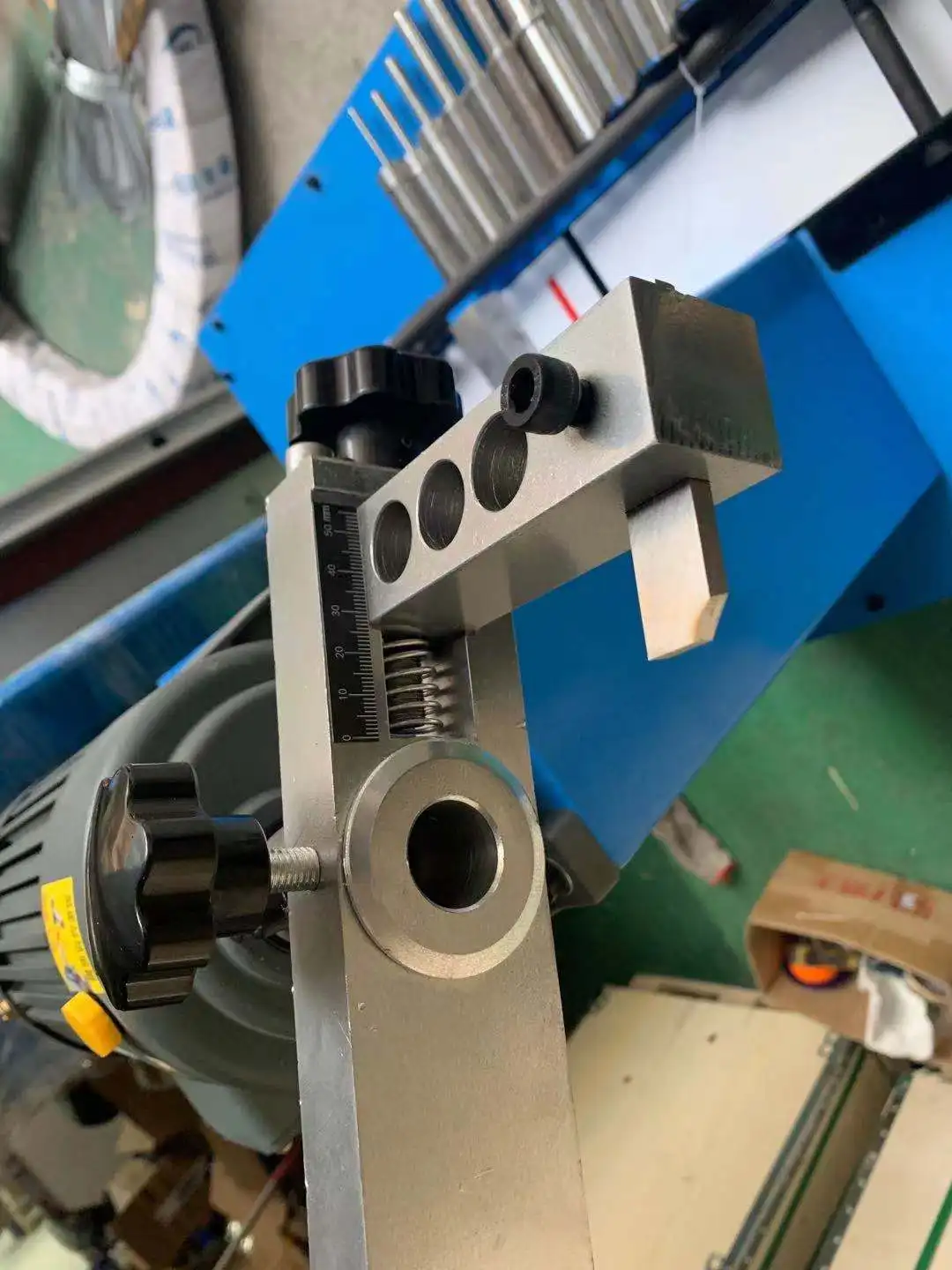

Before turning on the machine, please install the corresponding peeling mandrel into the bushing, and tighten the top wire, then install the turning tool on the peeling tool bar, and adjust the length of the turning tool handle until the adjustment can be completed. Then tighten the top wire of the fixed cutter bar, and then check whether the fasteners are fastened again. After confirming, you can turn on the machine, and then you can try to cut the hose. If the peeling is not clean, you can continue Adjust the handle of the turning tool to the center so that it can be turned to a greater depth. If the hose is wound with steel wire, turn on the switch depending on the winding direction, and the turning direction of the turning tool is determined by the reverse switch.
-
Instructions for use and precautions
-
1. Turn on the power, start the machine, and check the blade.
2. It is forbidden to put it on the pipe cutting machine to prevent
vibration, equipment and personal accidents.
3. The distance of the blades should be adjusted according to different tube diameters, and the electrical buttons must be
accurate.
4. To replace the blade and adjust, the power must be cut off.
5. If abnormal sound is found, stop the machine immediately, cut off the power supply, and repair it.
6. When the pipe cutting machine is working, it is not allowed to carry out repairs, oiling, cleaning, etc. to avoid
strangulation.
7. The pipe cutting machine must be personally responsible, and others are not allowed to use it at will.
vibration, equipment and personal accidents.
3. The distance of the blades should be adjusted according to different tube diameters, and the electrical buttons must be
accurate.
4. To replace the blade and adjust, the power must be cut off.
5. If abnormal sound is found, stop the machine immediately, cut off the power supply, and repair it.
6. When the pipe cutting machine is working, it is not allowed to carry out repairs, oiling, cleaning, etc. to avoid
strangulation.
7. The pipe cutting machine must be personally responsible, and others are not allowed to use it at will.
