Flat bed CNC lathe / Heavy duty model suitable for large workpiece
Features：
-High precision CNC flat bed lathe with hard rail.
-The bed ways are induction hardened, with hardness around HRC50.
-Spindle with high precision cylindrical roller bearings, the rigidity and precision of heavy cutting.
-Good quality grinding grade ball screw ensure positioning accuracy is more stable.
-Siemens,Fanus, Syntec, Fagor controller as optional.
-Monoblock cast iron base ensure high rigidity of the whole machine.
-The bed ways are induction hardened, with hardness around HRC50.
-Spindle with high precision cylindrical roller bearings, the rigidity and precision of heavy cutting.
-Good quality grinding grade ball screw ensure positioning accuracy is more stable.
-Siemens,Fanus, Syntec, Fagor controller as optional.
-Monoblock cast iron base ensure high rigidity of the whole machine.
SPECIFICATION
|
MODEL
|
CK6180
|
|||||||
|
Distance between centers
|
1000mm
|
1500mm
|
2000mm
|
3000mm
|
||||
|
Max. swing over bed
|
Φ800mm
|
|||||||
|
Max. swing over cross slide
|
Φ560mm
|
|||||||
|
Width of bed
|
460mm
|
|||||||
|
Spindle
|
||||||||
|
Max. Spindle speed
|
150-1600rpm
|
|||||||
|
Spindle bore
|
Φ 86mm (105mm as optional) |
|||||||
|
Spindle nose
|
A2-8 (105mm for A2-11)
|
|||||||
|
Taper of spindle bore
|
Φ90mm 1:20 (105mm for 115mm 1:20)
|
|||||||
|
Chuck diameter
|
Φ250mm (105mm for 320mm) |
|||||||
|
Stroke & Feeding Speed
|
||||||||
|
X axis travel
|
380mm
|
|||||||
|
Z axis travel
|
1000 mm |
1500mm |
2000mm
|
3000mm
|
||||
|
X/Z axis Rapid traverse
|
6/ 8 m/min |
|||||||
|
Turret
|
||||||||
|
Type
|
Electrical turret |
|||||||
|
Tool station number
|
4
|
|||||||
|
Tool holder
|
30x30mm |
|||||||
|
Tailstock Sleeve
|
||||||||
|
External diameter
|
Φ100 mm |
|||||||
|
Max. travel
|
235 mm |
|||||||
|
Taper of bore
|
MT5
|
|||||||
|
Motor
|
||||||||
|
Spindle motor power
|
11 KW |
|||||||
|
Coolant pump power
|
250W
|
|||||||
|
Machine Dimensions
|
||||||||
|
Overall dimension(L×W×H)
|
3000 / 3320 / 3830 / 4830 x1600x1830mm |
|||||||
|
Packing size(L×W×H)
|
3300 / 3520 / 4030 / 5030 x1800x2030mm |
|||||||
|
Net/Gross weight
|
3800/4100kg |
4300/4600kg |
4700/5000kg
|
5100/5400kg
|
||||
FLAT BED CNC LATHE MACHINE
-EFFORT lathe machinery factory provide quality flat bed CNC lathe machine and reliable services with accumulated technology.
-EFFORT Flat bed CNC lathe machine with high quality bearings, high precision C3 grade ball screw and high strength cast iron.
-We make a great effort to get customers satisfaction and warmly seek the opportunity to cooperate with you.
Standard Accessories
* GSK 928TDL controller
* GSK feed motor and driver
* Stepless Spindle
* Variable frequency spindle motor
* 3-jaw 250mm manual chuck
* Manual tailstock
* 4-station electric turret
* One-piece cast
* Automatic lubrication system
* Automatic cooling system
* Leveling block set
* GSK feed motor and driver
* Stepless Spindle
* Variable frequency spindle motor
* 3-jaw 250mm manual chuck
* Manual tailstock
* 4-station electric turret
* One-piece cast
* Automatic lubrication system
* Automatic cooling system
* Leveling block set
GSK 928TDL Controller
Hydraulic 3-jaw chuck
Manual tailstock

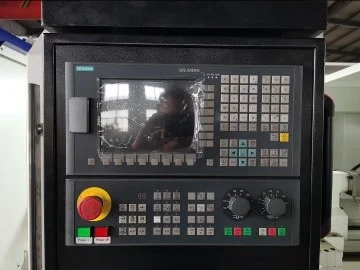

Electrical 4 station turret
Variable frequency spindle motor
Optional Accessories
* Siemens, Fanuc, Syntec, Fagor Controller
* Servo spindle motor
* Cartridge type spindle
* Hydraulic chuck & tailstock
* Pneumatic chuck & tailstock
* 6 or 8 station electric turret
* Gang tool
* Living tool
* Automatic bar-feeder
* 3-gear spindle speed
* Servo spindle motor
* Cartridge type spindle
* Hydraulic chuck & tailstock
* Pneumatic chuck & tailstock
* 6 or 8 station electric turret
* Gang tool
* Living tool
* Automatic bar-feeder
* 3-gear spindle speed
Siemens, Fanuc, SYNTEC, Fagor Controller etc

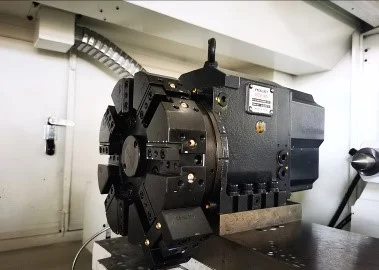

6 or 8 station electric turret
Servo spindle motor
Conveyor
Living tool
Gang tool
Cartridge type spindle
Hydraulic tailstock
Spring collet
Automatic bar-feeder
