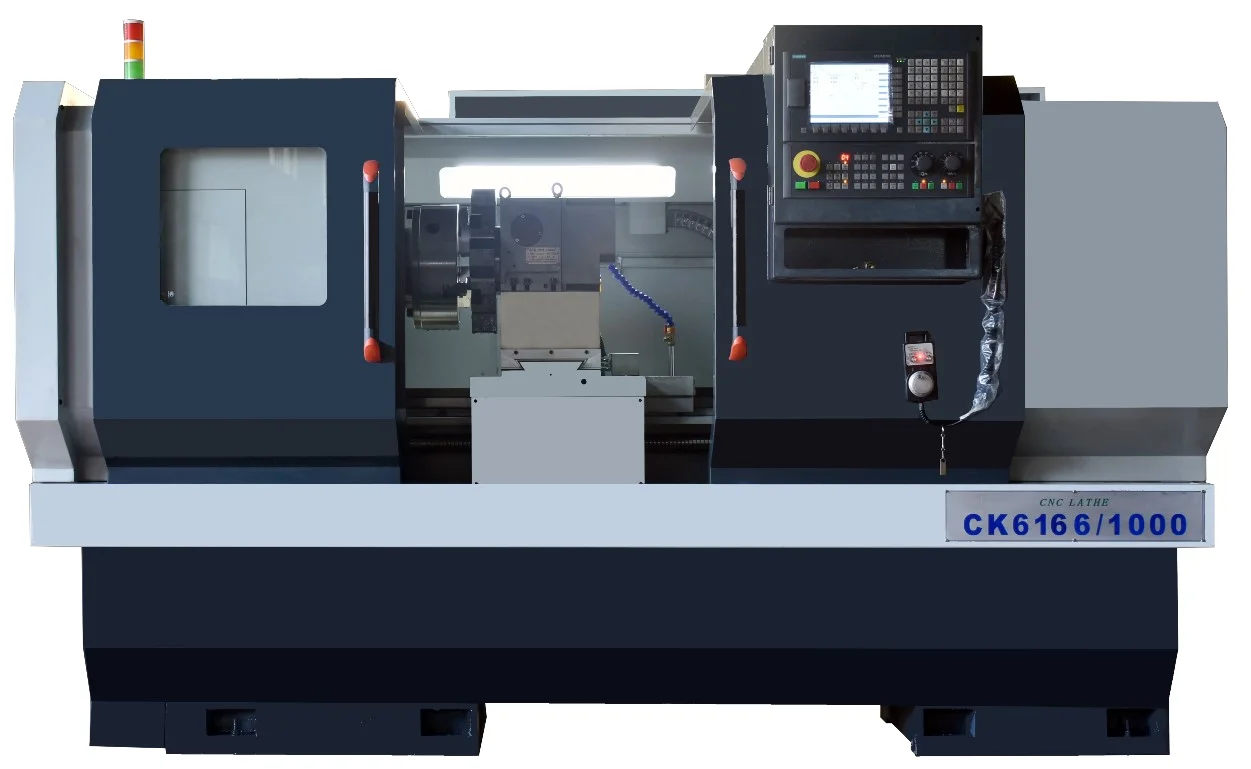

Name: Ck6166X750mm Precision CNC Lathe Machine for Metal Cutting with Siemens 808d Controller
SKU: 212464913019181
Availability: InStock

Ck6166X750mm Precision CNC Lathe Machine for Metal Cutting with Siemens 808d Controller

ر.س76,068.93

Flat bed CNC lathe / Heavy duty model suitable for large workpiece

Features：

-High precision CNC flat bed lathe with hard rail.
-The bed ways are induction hardened, with hardness around HRC50.
-Spindle with high precision cylindrical roller bearings, the rigidity and precision of heavy cutting.
-Good quality grinding grade ball screw ensure positioning accuracy is more stable.

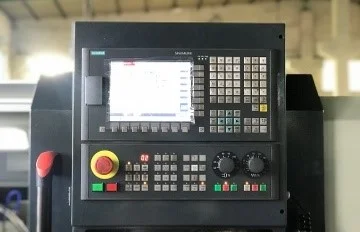

-Siemens,Fanus, Syntec, Fagor controller as optional.
-Monoblock cast iron base ensure high rigidity of the whole machine.

SPECIFICATION

MODEL	CK6166
Distance between centers	750mm	1000mm	1500mm	2000mm
Max. swing over bed	Φ660mm
Max. swing over cross slide	Φ440mm
Width of bed	400mm
Spindle
Max. Spindle speed	150-1600rpm
Spindle bore	Φ 82mm (105mm as optional)
Spindle nose	A2-8 (105mm for A2-11)
Taper of spindle bore	Φ90mm 1:20
Chuck diameter	Φ250mm
Stroke & Feeding Speed
X axis travel	350mm
Z axis travel	750 mm	1000mm	1500mm	2000mm
X/Z axis Rapid traverse	6/ 8 m/min
Turret
Type	Electrical turret
Tool station number	4
Tool holder	25x25mm
Tailstock Sleeve
External diameter	Φ75 mm
Max. travel	150 mm
Taper of bore	MT5
Motor
Spindle motor power	11KW
Coolant pump power	120W
Machine Dimensions
Overall dimension(L×W×H)	2420 / 2860 / 3320 / 3820 x1600x1830mm
Packing size(L×W×H)	2600 / 3050 / 3520 / 4020 x1800x2140mm
Net/Gross weight	2950/3200kg	3300/3650kg	3550/3850kg	3750/4050kg

FLAT BED CNC LATHE MACHINE

-EFFORT lathe machinery factory provide quality flat bed CNC lathe machine and reliable services with accumulated technology.

-EFFORT Flat bed CNC lathe machine with high quality bearings, high precision C3 grade ball screw and high strength cast iron.

-We make a great effort to get customers satisfaction and warmly seek the opportunity to cooperate with you.

Standard Accessories

* GSK 928TDL controller
* GSK feed motor and driver
* Stepless Spindle
* Variable frequency spindle motor

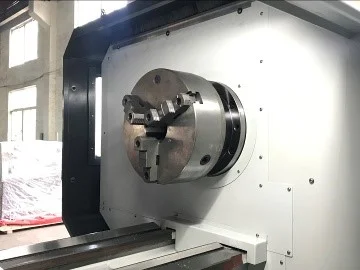

* 3-jaw 250mm manual chuck
* Manual tailstock
* 4-station electric turret
* One-piece cast
* Automatic lubrication system
* Automatic cooling system
* Leveling block set

GSK 928TDL Controller

Hydraulic 3-jaw chuck

Manual tailstock

Electrical 4 station turret

Variable frequency spindle motor

Optional Accessories

* Siemens, Fanuc, Syntec, Fagor Controller
* Servo spindle motor
* Cartridge type spindle
* Hydraulic chuck & tailstock
* Pneumatic chuck & tailstock

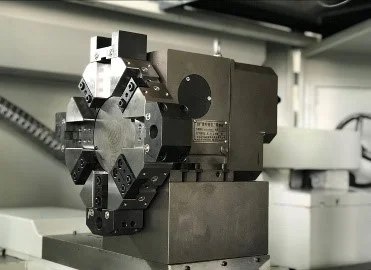

* 6 or 8 station electric turret
* Gang tool
* Living tool
* Automatic bar-feeder
* 3-gear spindle speed
