Name: Ck6132 Precision Flat Bed CNC Lathe Machine for Metal Work with Ce
SKU: 211907218019181
Availability: InStock

Ck6132 Precision Flat Bed CNC Lathe Machine for Metal Work with Ce

ر.س59,572.06

Flat bed CNC lathe / Heavy duty model suitable for large workpiece

Features：

-High precision CNC flat bed lathe with hard rail.
-The bed ways are induction hardened, with hardness around HRC50.
-Spindle with high precision cylindrical roller bearings, the rigidity and precision of heavy cutting.
-Good quality grinding grade ball screw ensure positioning accuracy is more stable.
-Siemens,Fanus, Syntec, Fagor controller as optional.
-Monoblock cast iron base ensure high rigidity of the whole machine.

SPECIFICATION

MODEL	CK6432
Distance between centers	500mm	750mm	1000mm
Max. swing over bed	Φ360mm
Max. swing over cross slide	Φ155mm
Width of bed	260mm
Spindle
Max. Spindle speed	150-2500rpm
Spindle bore	Φ 60mm
Spindle nose	A2-6
Taper of spindle bore	MT6
Chuck diameter	Φ200mm
Stroke & Feeding Speed
X axis travel	350mm
Z axis travel	500mm	750mm	1000mm
X/Z axis Rapid traverse	6/ 8 m/min
Turret
Type	Electrical turret
Tool station number	4
Tool holder	20x20mm
Tailstock Sleeve
External diameter	Φ50 mm
Max. travel	110 mm
Taper of bore	MT4
Motor
Spindle motor power	4 KW
Coolant pump power	120W
Machine Dimensions
Overall dimension(L×W×H)	1800 / 2060 / 2320 x1200x1600mm
Packing size(L×W×H)	1920 / 2250 / 2500 x1460x2000mm
Net/Gross weight	1300/1450kg	1450/1650kg	1600/1800kg

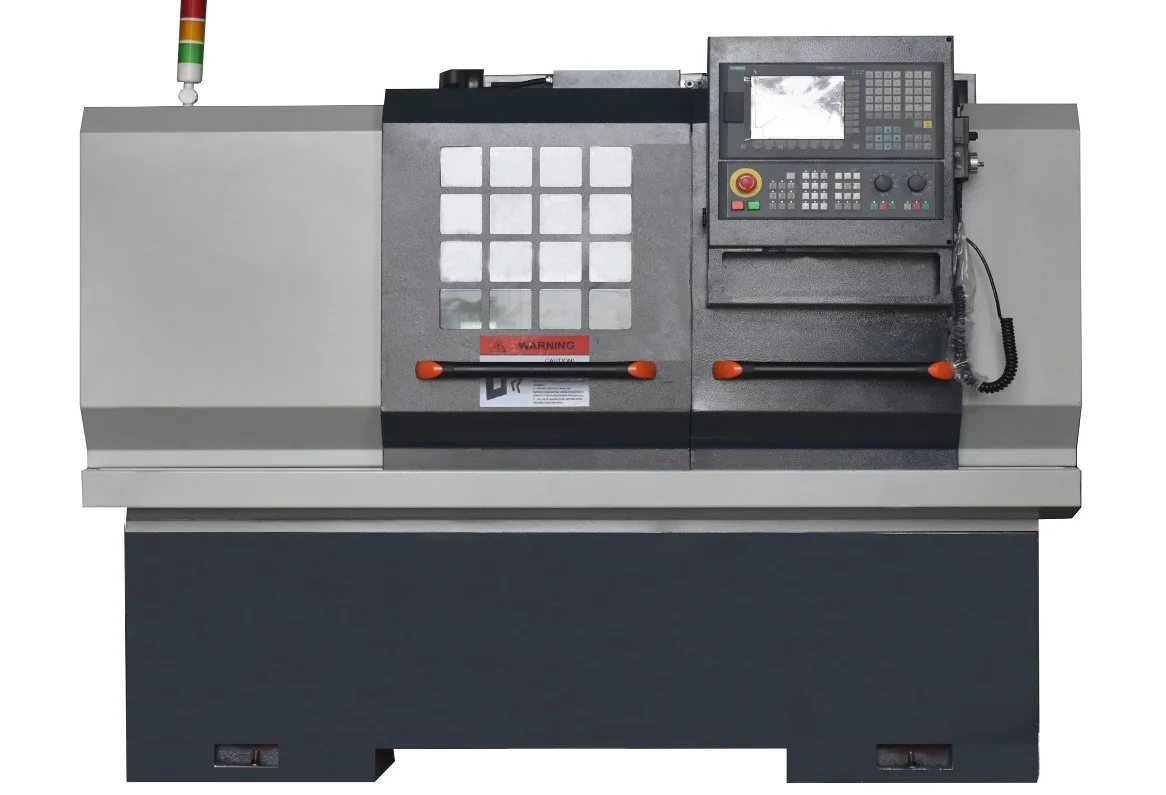

FLAT BED CNC LATHE MACHINE

-EFFORT lathe machinery factory provide quality flat bed CNC lathe machine and reliable services with accumulated technology.

-EFFORT Flat bed CNC lathe machine with high quality bearings, high precision C3 grade ball screw and high strength cast iron.

-We make a great effort to get customers satisfaction and warmly seek the opportunity to cooperate with you.

Standard Accessories

* GSK 928TDL controller
* GSK feed motor and driver
* Stepless Spindle
* Variable frequency spindle motor
* 3-jaw 250mm manual chuck
* Manual tailstock
* 4-station electric turret
* One-piece cast
* Automatic lubrication system
* Automatic cooling system
* Leveling block set

GSK 928TDL Controller

Hydraulic 3-jaw chuck

Manual tailstock

Electrical 4 station turret

Variable frequency spindle motor

Optional Accessories

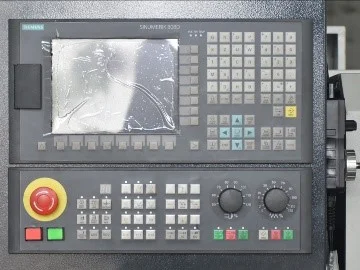

* Siemens, Fanuc, Syntec, Fagor Controller
* Servo spindle motor
* Cartridge type spindle

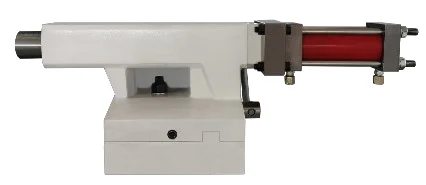

* Hydraulic chuck & tailstock
* Pneumatic chuck & tailstock

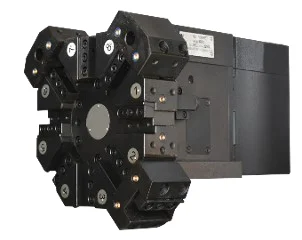

* 6 or 8 station electric turret
* Gang tool
* Living tool
* Automatic bar-feeder
* 3-gear spindle speed
