CK-102 Concrete Wall Crack Width and Depth Test detection equipment detector
CK-102 series of quantitative detection of crack width gauge can be widely used in bridges, tunnels, buildings, concrete pavement, metal surface crack width. Equipment mainly consists of a handheld color LCD screen host, color microscopic amplification probe (with 1 m connection cable) constitutes a measurement program automatically scans the capture cracks
and crack width values in real-time display on the screen, can also be the need to crack take pictures (cracks in the photo while preserving fracture images, the width of the data, scales, to enlarge the image information) of the factor and the crack number,crack photo as a standard BMP format and stored directly to any U disk to facilitate further image analysis of the user or print archive.

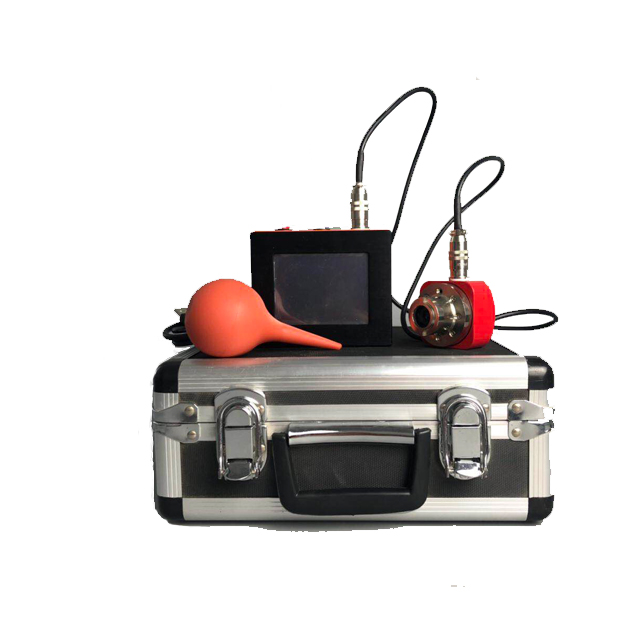

Reall pictures for crack width gauge
photos of crack images
|
Maximum detection range
|
0-8mm
|
|
Accuracy
|
better than0.02mm
|
|
Magnification
|
40 times / 20 times / 13 times / 10 times, optional
|
|
Operating Temperature
|
-20 ~ 60 ° C
|
|
Host Interface
|
standard USB
|
|
Storage media
|
can be stored for more than 3000 photos (SD Card is free to expand)
|
|
Image storage format
|
BMP format, 24 bit color / 320 * 240;
|
|
Power supply
|
lithium battery, standby time: 18 hours
|
Come with a aluminum carrying case, the outer package will be carton case
CK102 metal surface crack width. Equipment mainly consists of a handheld color LCD screen host, color microscopic amplification probe (with 1 m connection cable)
