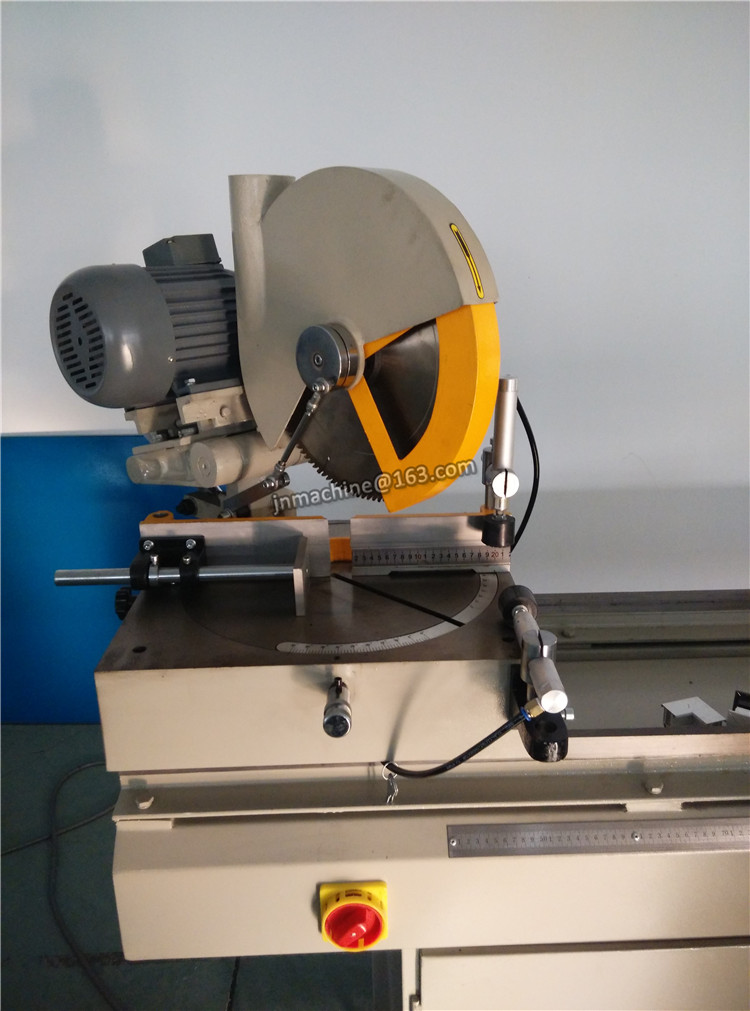

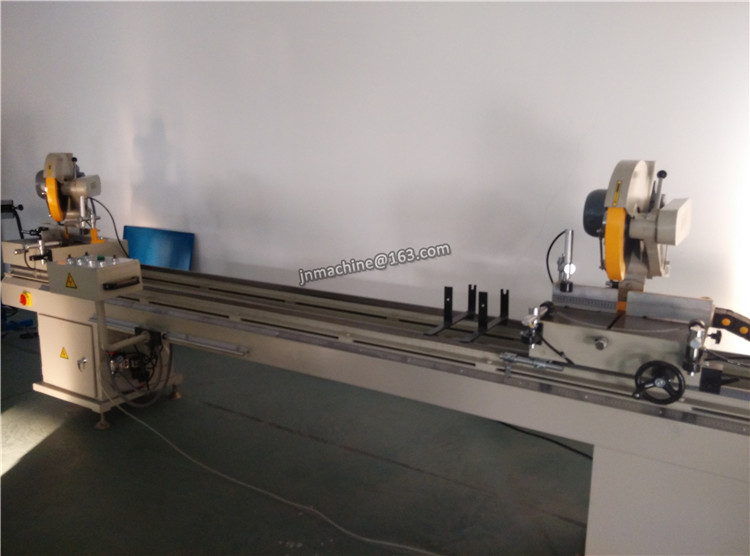

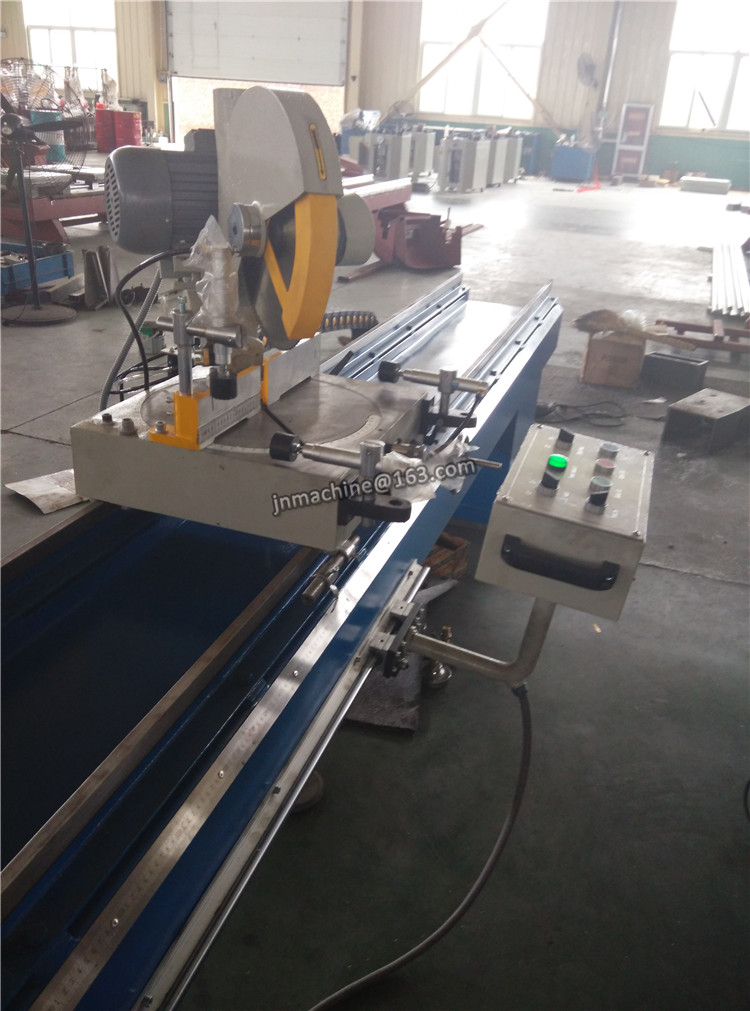

PVC window door double heads cutting saw/upvc window door making mahcine/pvc profile cutting saw
1. Features
1). The machine is used for processing the aluminum and plastic profiles at angle of 45 degree, 90 degree.
2). The swaying stable feeder is adopted..
3). The pneumatic driving system is used in profiles clamping and cutting.
4). It has the features of easy operation and high accuracy.
2. Technical Data
Brand name |
MingMei |
Model |
SJZ2-400*3500 |
Power Supply |
380V 50Hz |
Input Power |
2*1.1KW |
Air pressure |
0.5-0.8 Mpa |
Air consumption |
100L/min |
Saw cutting |
Height: 150mm Width: 100mm |
Max/Min cutting length |
3500-450mm |
Saw blade dimension |
Φ400*Φ30 |
Main motor rotation speed |
2800r/min |
Saw blade swing angle |
90°~45° |
Over all dimension |
4000*1000*1450mm |
Weight |
1000kg |
