conservation , Pharmaceutical industry, Cleaning, Bath Heating,Leisure Industry,Service Industry, Textile Industry,Foodservice
Industry, etc..
Automatic LCD intelligent control system
1.,Safety and Science :with a safety valve, pressure controller, water level control protector,
2,multiple chain protection device, safe and reliable.
3,Choose imported Italian burner, burning more fully, more stable operation and lower noise.
4,High quality parts adopt domestic famous brand Delixi electric appliance
5,High Quality Steam Rapidly
6,Easy to install and operate
7,the boiler thermal efficiency above 93%
8,Product quality ensured by :Hydraulic teat ,X-ray ,non-destructive test .
|

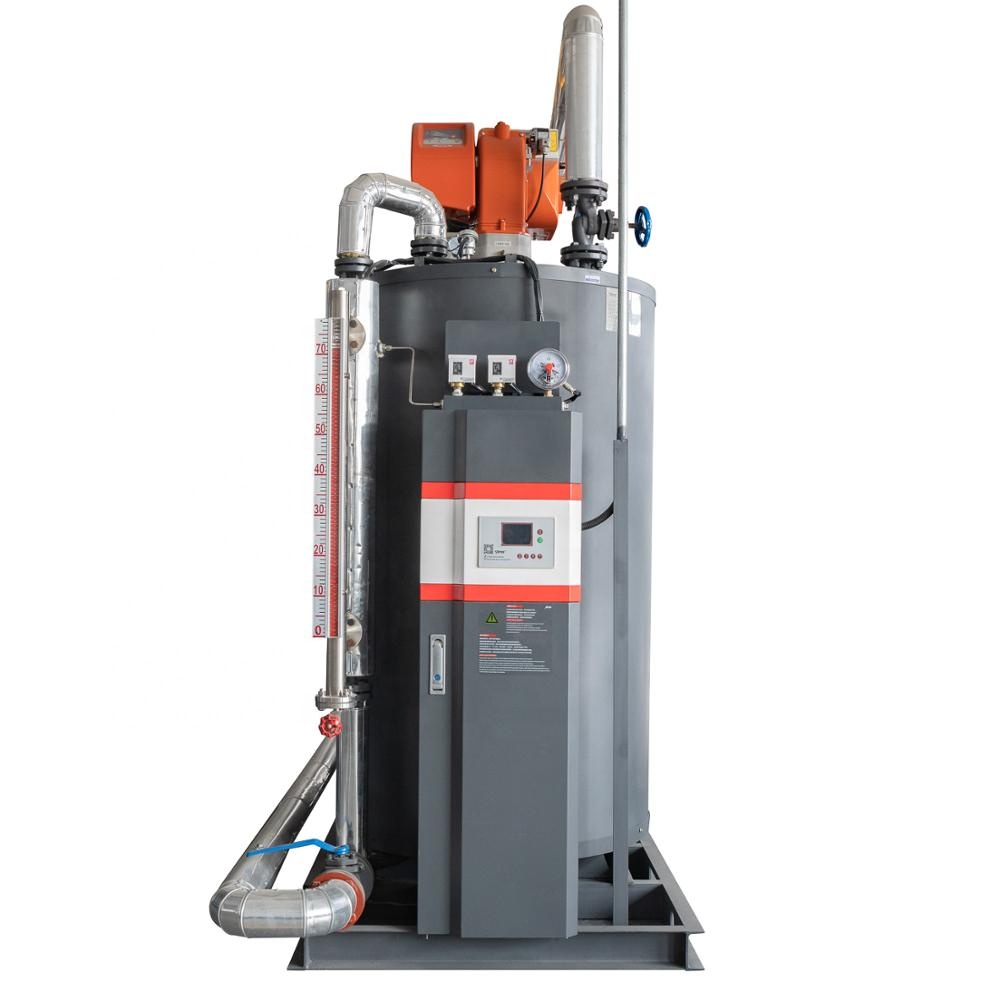

Technical Parameter of Gas/Oil fired Industrial Steam Boilers Manufacturers
|
Style
|
|||
|
Product series type
|
GLS 300
|
|||
|
Product body type
|
LSS0.3-0.8-Y/Q
|
|||
|
Rated evaporation
|
300 Kg/h
|
|||
|
Rated pressure
|
0.8MPa
|
|||
|
Steam temperature
|
175℃
|
|||
|
Water capacity
|
48.2 L
|
|||
|
Exhaust gas temperature
|
135/66℃
|
|||
|
Thermal efficiency
|
Natural gas
|
100.1%
|
||
|
Liqufied
|
98.0%
|
|||
|
Diesel
|
94.1%
|
|||
|
Fuel consumption
|
Natural
|
21.2Nm³/h
|
||
|
Liqufied
|
16.7kg/h
|
|||
|
Brand
|
Diesel
|
18.1 kg/h
|
||
|
Steam production time
|
..
|
5 min
|
||
|
To the rated pressure time
|
..
|
10 min
|
||
|
Dimension
|
Gas
|
1770*830*2260
|
||
|
Fuel
|
1600*830*2260
|
|||
|
Weight
|
950 kg
|
|||
|
Water inlet caliber
|
DN25
|
|||
|
Steam caliber
|
DN25
|
|||
|
Drain outlet caliber
|
DN40
|
|||
|
chimney caliber
|
∮159 mm
|
|||
|
No Emission
|
＜80mg/m³
|
|||
2. Original: China
3. Advantage:
Computer Welding Technology is more Stable than Traditional Manual Welding.
Four Time Periods Can be Set, Can use the Off-Peak Electricity easily.
1.Brand: Aolong
2. Original: Made in Zhejiang,China
3. Advantage:Compact Structure,High Mechanical Strength and Stable Performance
2. Surface Load <11W Ensure the Lifespan of the Heating Tube.
3. Lifespan is 30% Higher than Normal 304 Stainless Steel.
4.Temperature Resistance Reached at highest 900 Degrees.
Standard Export Wooden Package for Mini Steam Boiler
Port：Shanghai,/Ningbo for Mini Steam Boiler
Lead Time : Shipped in 5 days after payment
wooden casePicture Example:
Lead Time:
Quantity(Sets)1 – 100>100Est. Time(days)20To be negotiated
Application field
paint,
engine carbon cleaning, aircraft landing and jet engine rotation system cleaning.
2) Automobile industry: automobile engine internal carbon cleaning, (using chemical cleaning at least 48 hours in the
past, the steam with cleaner need only 10 minutes). Automobile carburetor cleaning , valve nozzle cleaning, cleaning
surface and engine oil, etc.
3) Electric power industry: for indoor and outdoor transformer, power distribution cabinet and wire, cable and clean.
Generator, electric motor, rotor, stator parts without damage, such as cleaning, as well as on the turbine, turbine
impeller and blade parts, such as cleaning rust scale, hydrocarbons and sticky powder.
4) Petrochemical industry: for the PVC resin on the heat exchanger, compressor, all kinds of pressure vessel and
tank rust scale, hydrocarbons and surface dirt effectively removed, other equipment such as machine tools,
assembly line cleaning.
5) Food pharmaceutical, cookie bar, conveyor belt, dough mixer, oven, oven, stove plate, container, such as refrigerator
inner structure for effective cleaning. At the same time can artificial or get rid of salmonella bacteria and lister.
6) The electronics industry, including robotics, automation equipment internal clean oil and dirt, integrated circuit
boards, after welding
welding flux, pollution, resin, solvent coating, coating layer, as well as printed circuit boards photosensitive
corrosion inhibitor, etc.
7 ) Ink removal of printing industry.
8) Other: It can be widely used in precision film, foam and PVC, rubber membrane, solid fuel film, aluminum or PVC
construction cleaning products and a variety of different products, etc.Application field
