Products Description

self propelled remote control automatic robot lawn mower

The intelligent lawn mower can complete the work of mowing the lawn independently, without direct human control and operation, and has low power, low noise, exquisite and beautiful appearance, and greatly reduces manual operation.

Range of application	Orchard, garden lawn, weeds, embankment slope, etc.
Whole machine size	*1210880560mm*
Packing size	*1260930660mm*
Whole machine quality	140kg
Cutting width	600mm
Adjust height	10-150mm
Cutting height	20-150mm
Walking speed	0-6km/h
Working slope	0-30°
Minimum ground clearance	20mm
Mode of operation	Remote control walking, remote control cutter head lifting
Walking mode	Crawler self-propelled
Brand	ZONGSHEN
Power	9.5hp
Type	Vertical axis four stroke

The lawn mower can be operated remotely to reduce the labor intensity of workers and the damage caused by noise and vibration, which solves the time and effort of manual mowing and sun exposure Troubled by the wind, people can sit at home to complete the work.

*01 LAWN MOWER

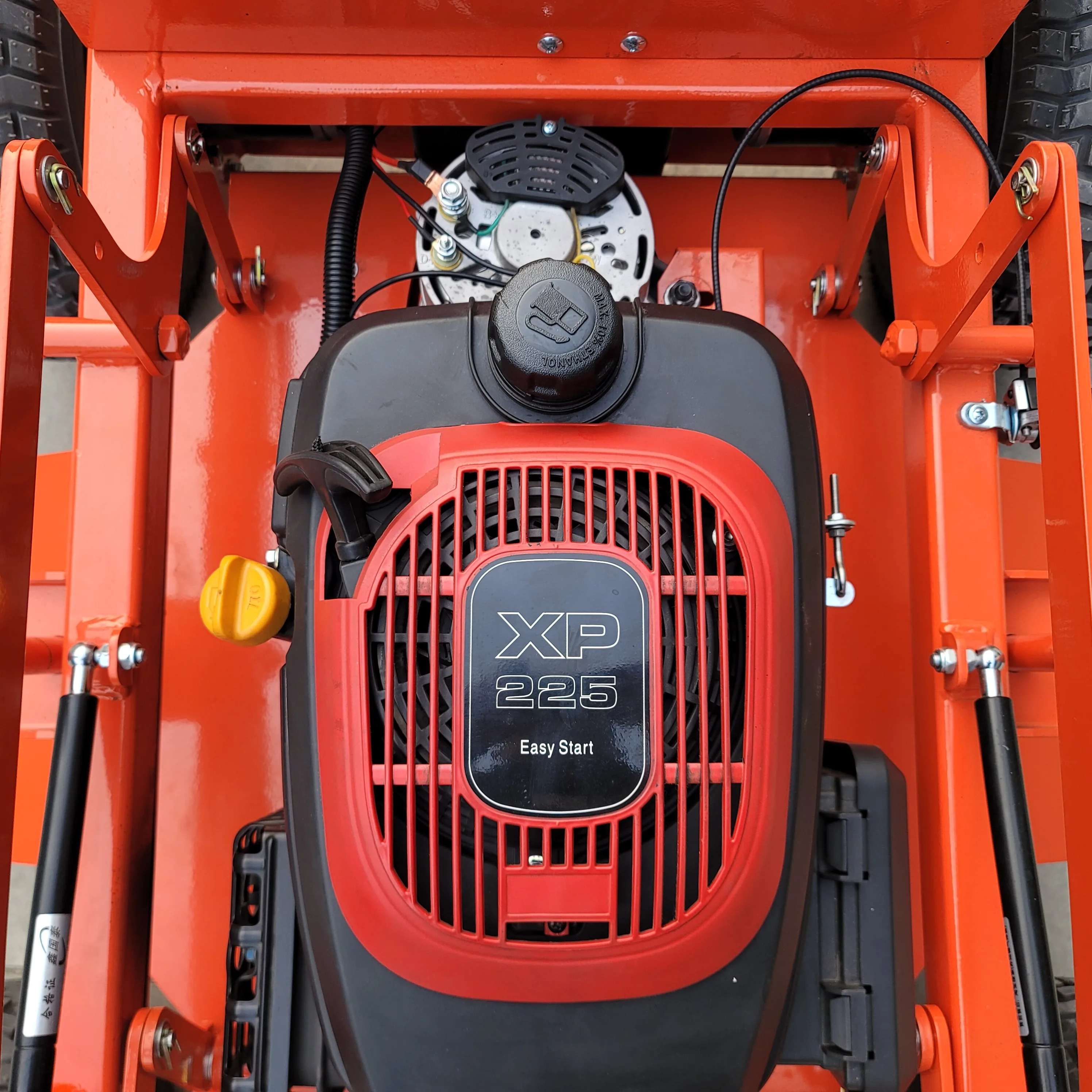

Throttle Control Strong Momentum

*02 LAWN MOWER

The service life of WHEEL can reach more than 5 years

*03 LAWN MOWER

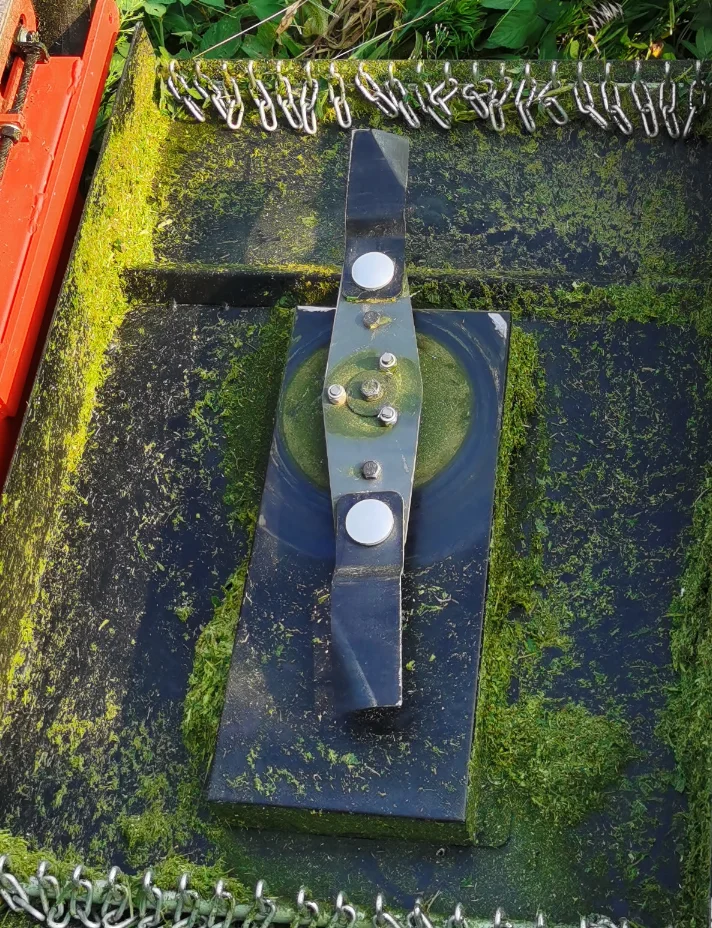

Super wear-resistantmanganese steelflail-knife.

The maximum cutting width is 550mm, cutting 10-150 mm

*04 LAWN MOWER

One-button start Intelligent remote control

Scope of application

Robot lawn mower adopts advanced detection and identification technology, remote control operation and four-wheel drive, respectively facing the family courtyard, public green space, orchard cultivation, airport , In the field of household lawn mowers and commercial lawn mowers such as river and embankment vegetation maintenance. it can adapt to various complex geographical environments such as forests and slopes. They can perform about 3-5 acres per hour. The weeding operation of acres is not big, but it can remove 40 acres of orchard weeds in a day, without bending down and effort, as long as you move your fingers, and it can cut thick and fine grass, and the height of the remaining grass is adjustable. Called a great artifact of orchard mowing!

Wheeled type lawn mower

.
The remote control lawn mower is a remote control intelligent agricultural and forestry equipment, suitable for forestry, grassland, roads, dams, agriculture and forestry, orchards, vegetables, greenhouses, farms, ecological gardens, etc.

Automatic intelligent mini lawn mower

1, Preparation before starting the remote control mower
(1)Be sure to confirm the tightness of screws of all parts before starting up.

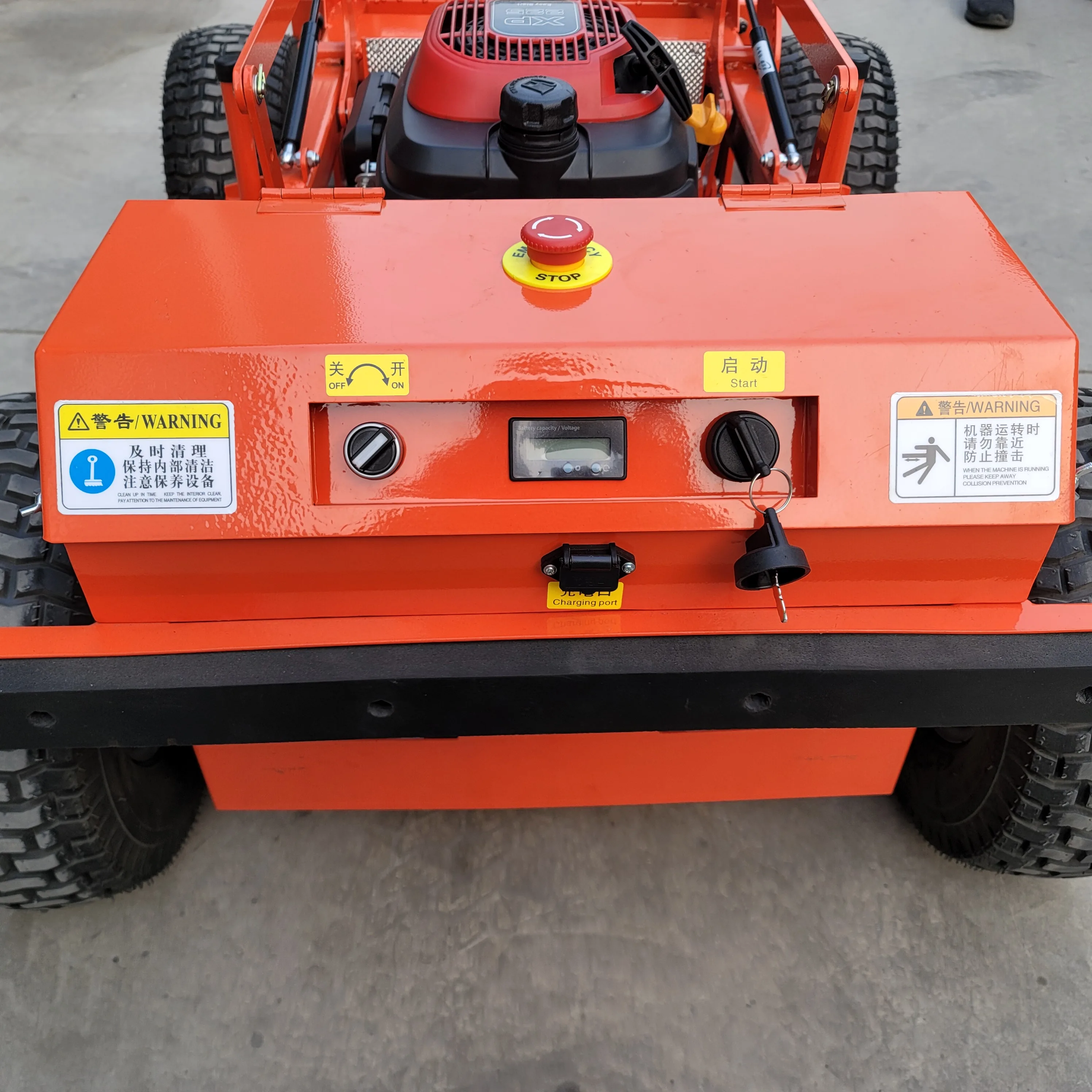

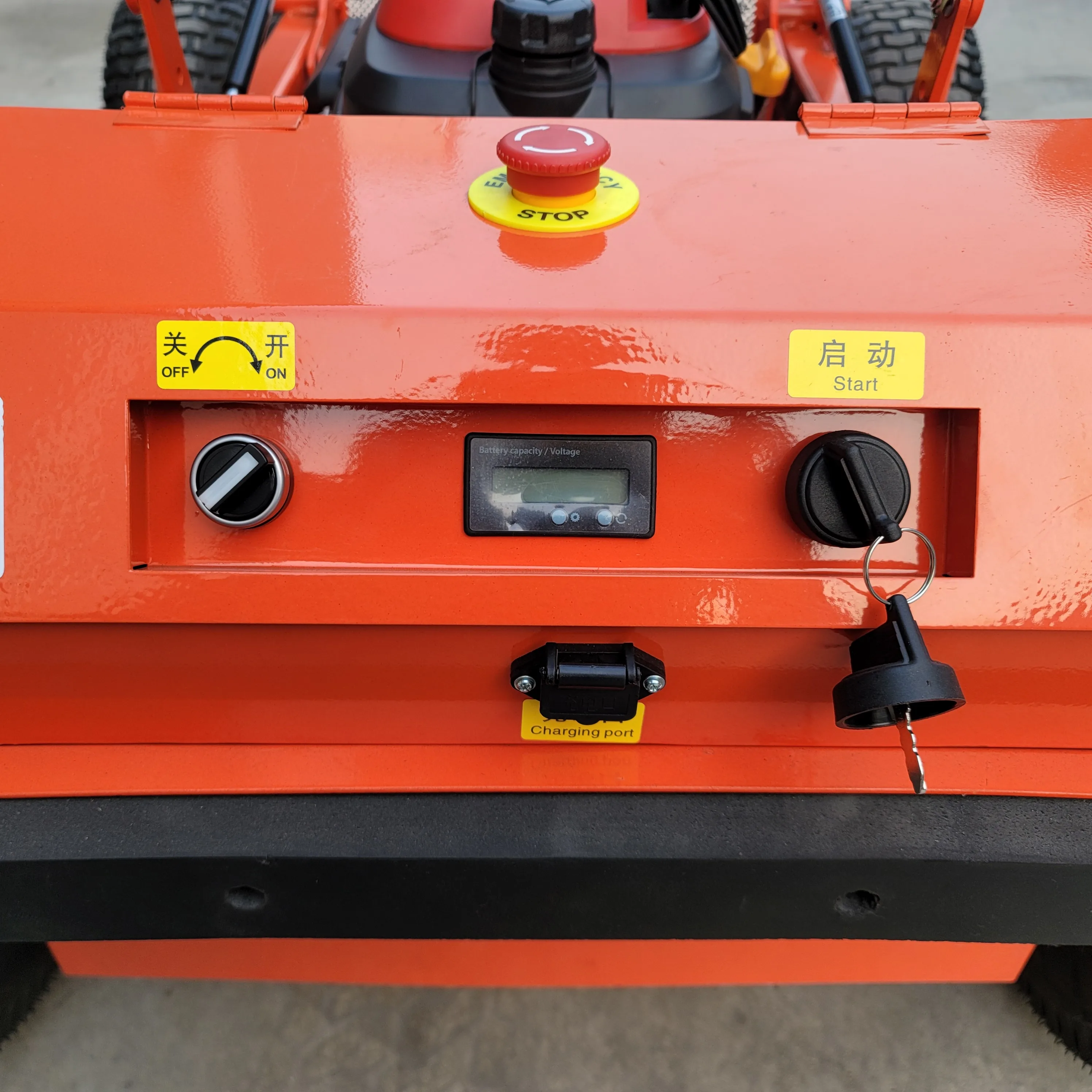

(2)Turn on the machine power key switch, pull back the right control lever and hold it, then press the switch key of the remote controller to turn on the remote controller.
(3)When the remote control is turned on, a “drip” will appear, indicating that the machine matches the remote control normally.
(4)engine start:

a,Release the brake on the right side of the engine (also disconnect the flameout switch);
b,Turn the left throttle counterclockwise to the end (so as to open the engine throttle at the same time);
c,Pull hard on the pull rope of the hand pull plate to start the engine;
d,Adjust the throttle to the proper speed in time after starting the engine;
e,Operate the remote control to cut grass.
2,Remote control description:
D/R switch (large and small rudder): adjust the walking speed of the machine (the factory default is high speed gear) The left joystick controls the machine to walk forward and backward, and the right joystick controls left and right turns 5 Channel
(two-stage switch):The cutter head rises and falls to adjust the cutting height of the cutter head.
Rudder fine adjustment (left-right adjustment): When adjusting the walking speed of the machine, the electronic adjustment in the machine will make a “drip” sound. Only then can the “Rudder fine adjustment” button be used until the electronic adjustment in the machine does not make a sound.

Throttle fine adjustment (up and down adjustment): the same principle as the “rudder fine adjustment” button.

Power switch: push up to turn on the remote control, and pull down to turn off the remote control.

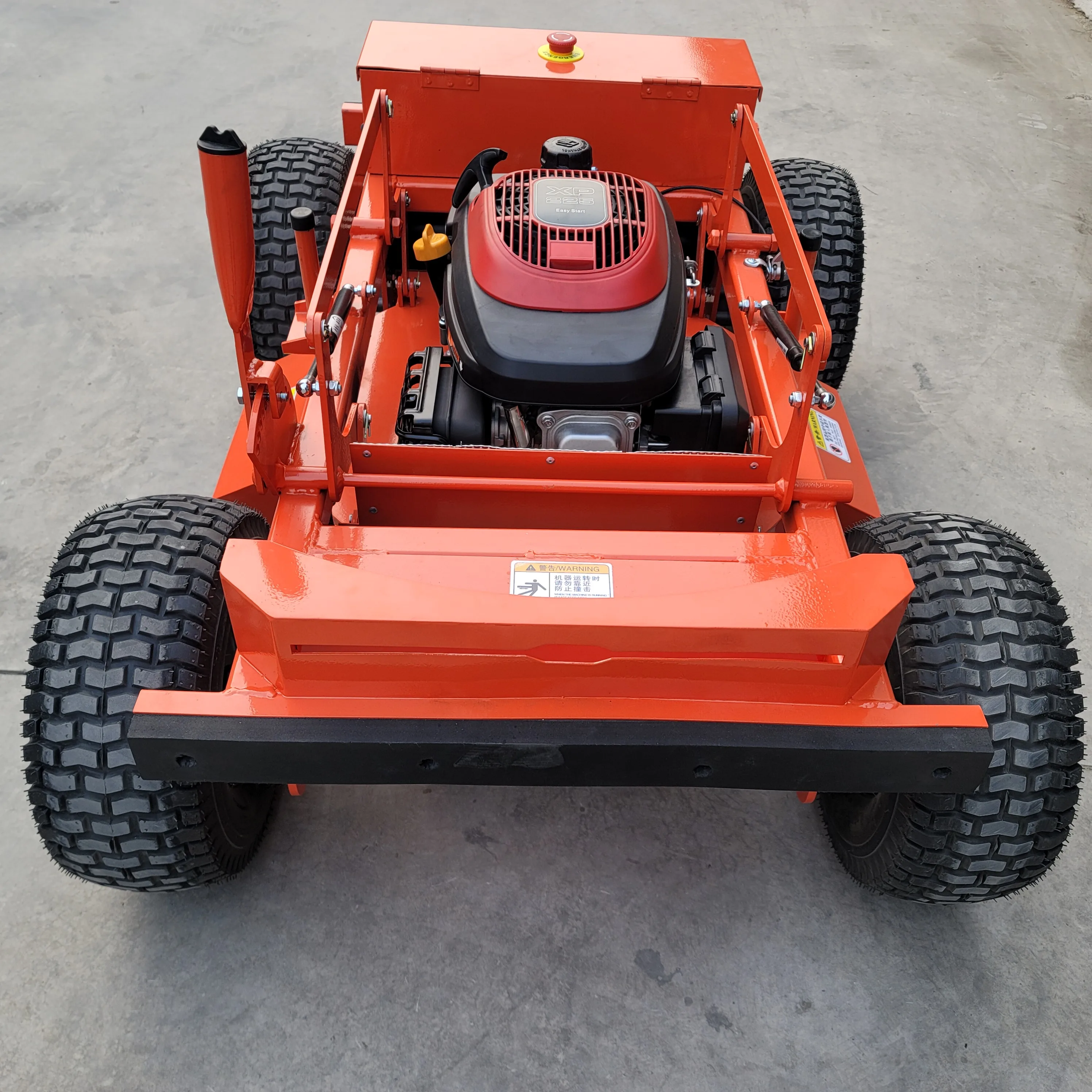

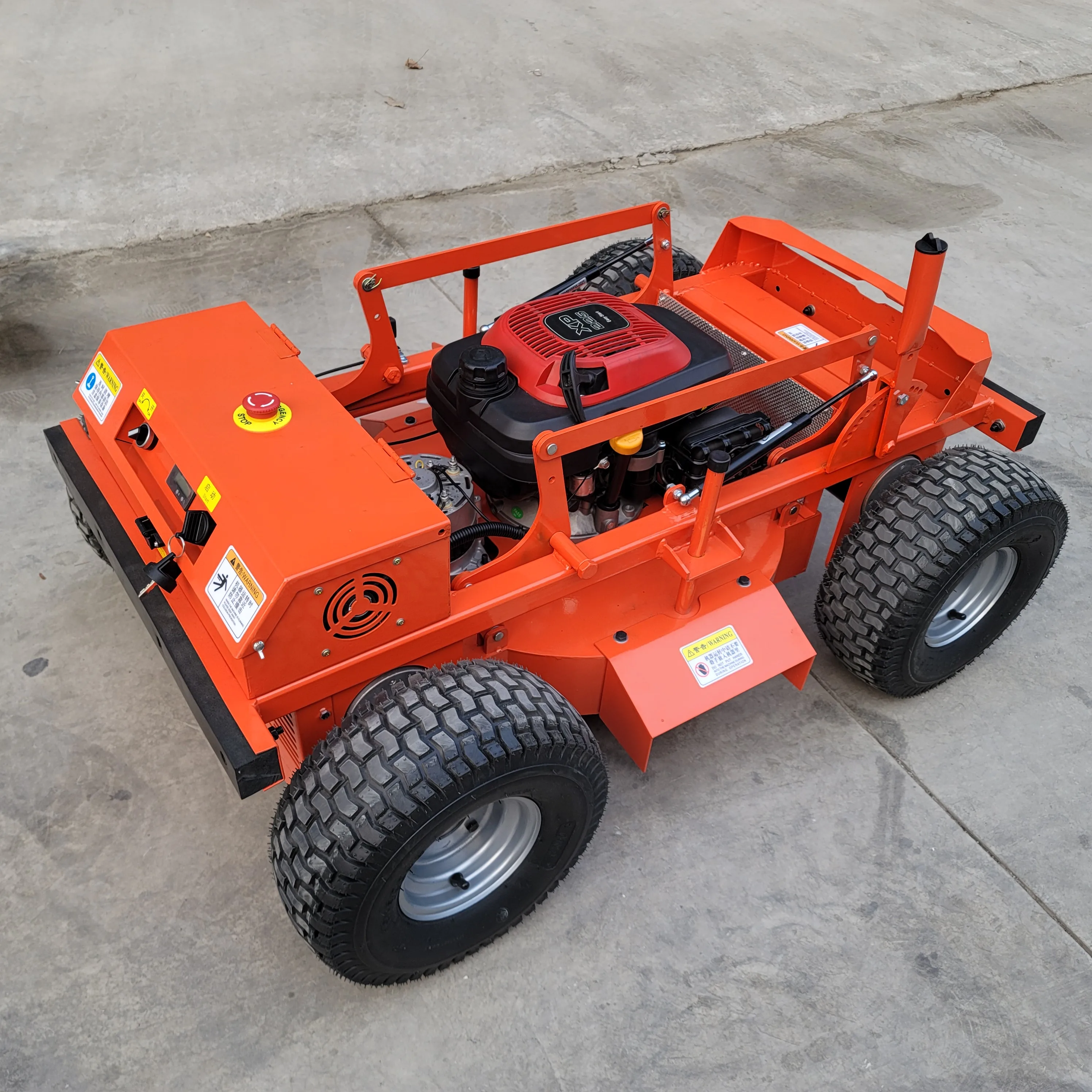

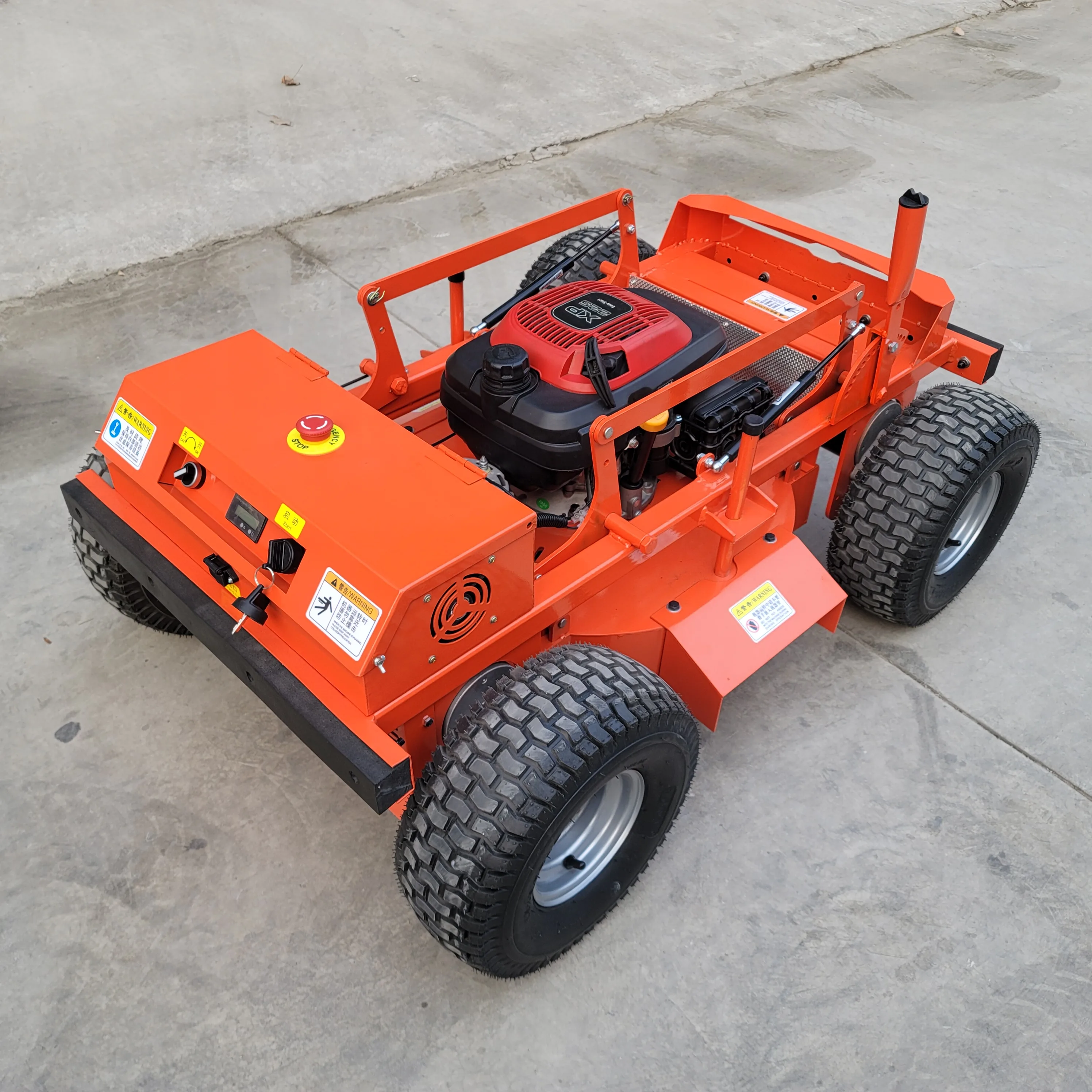

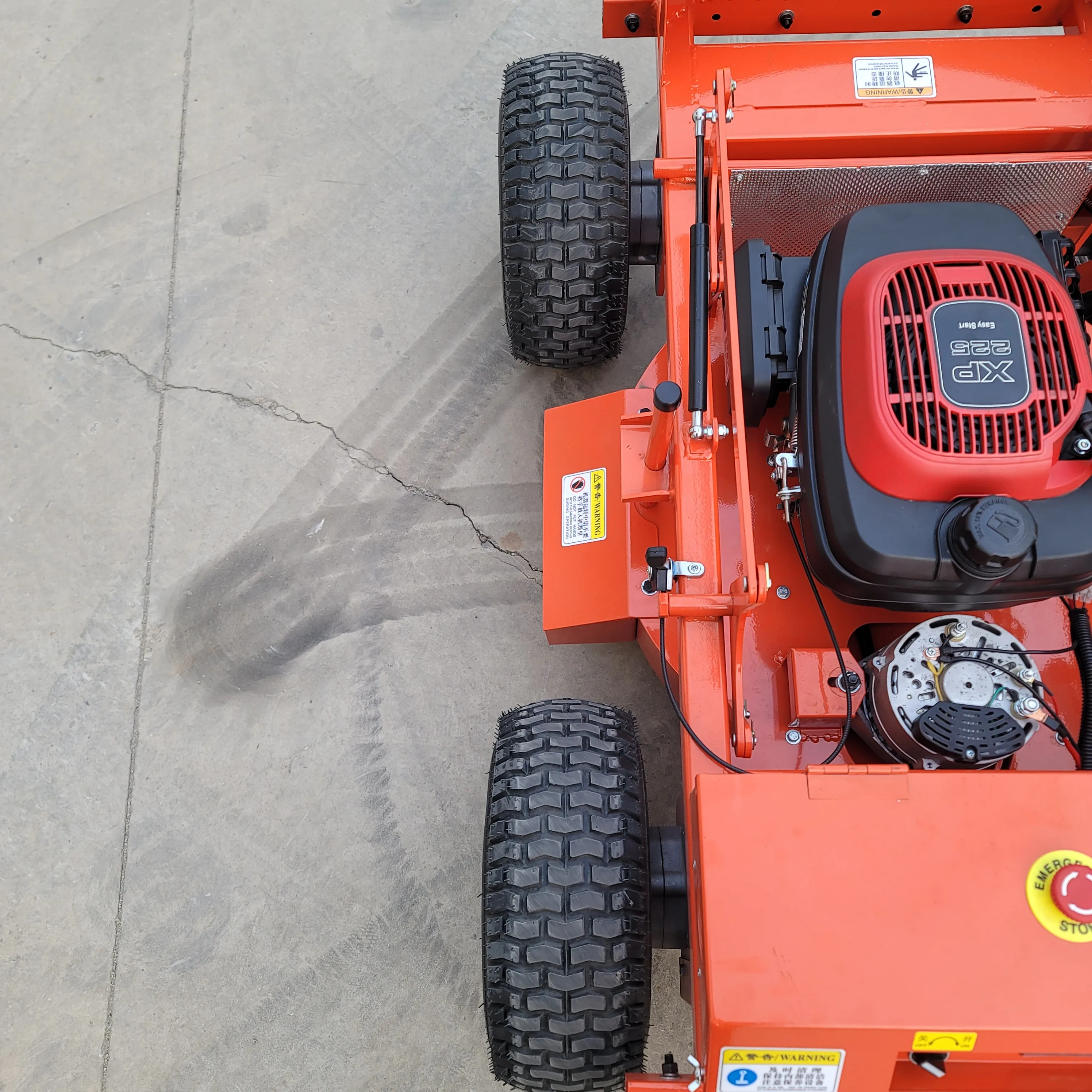

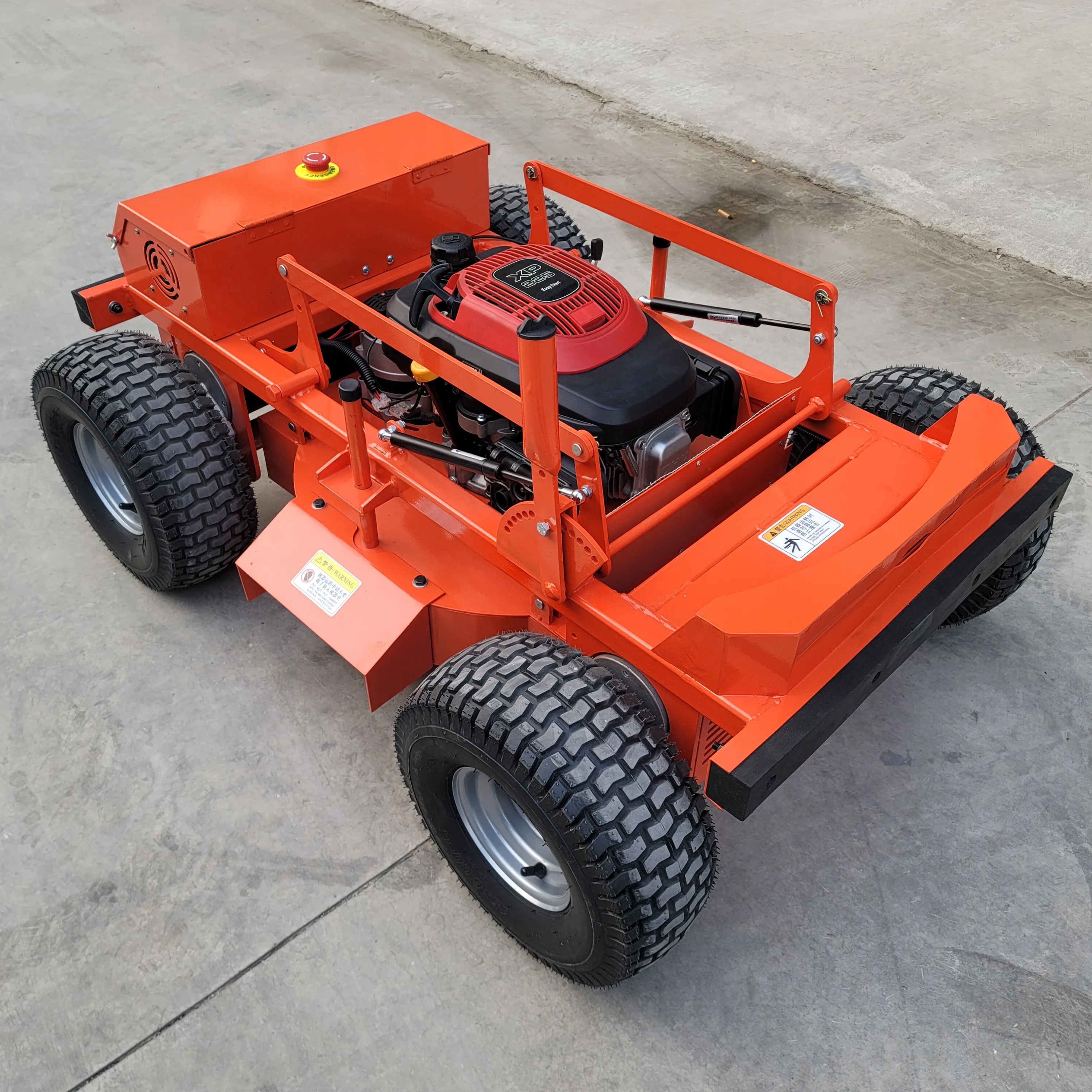

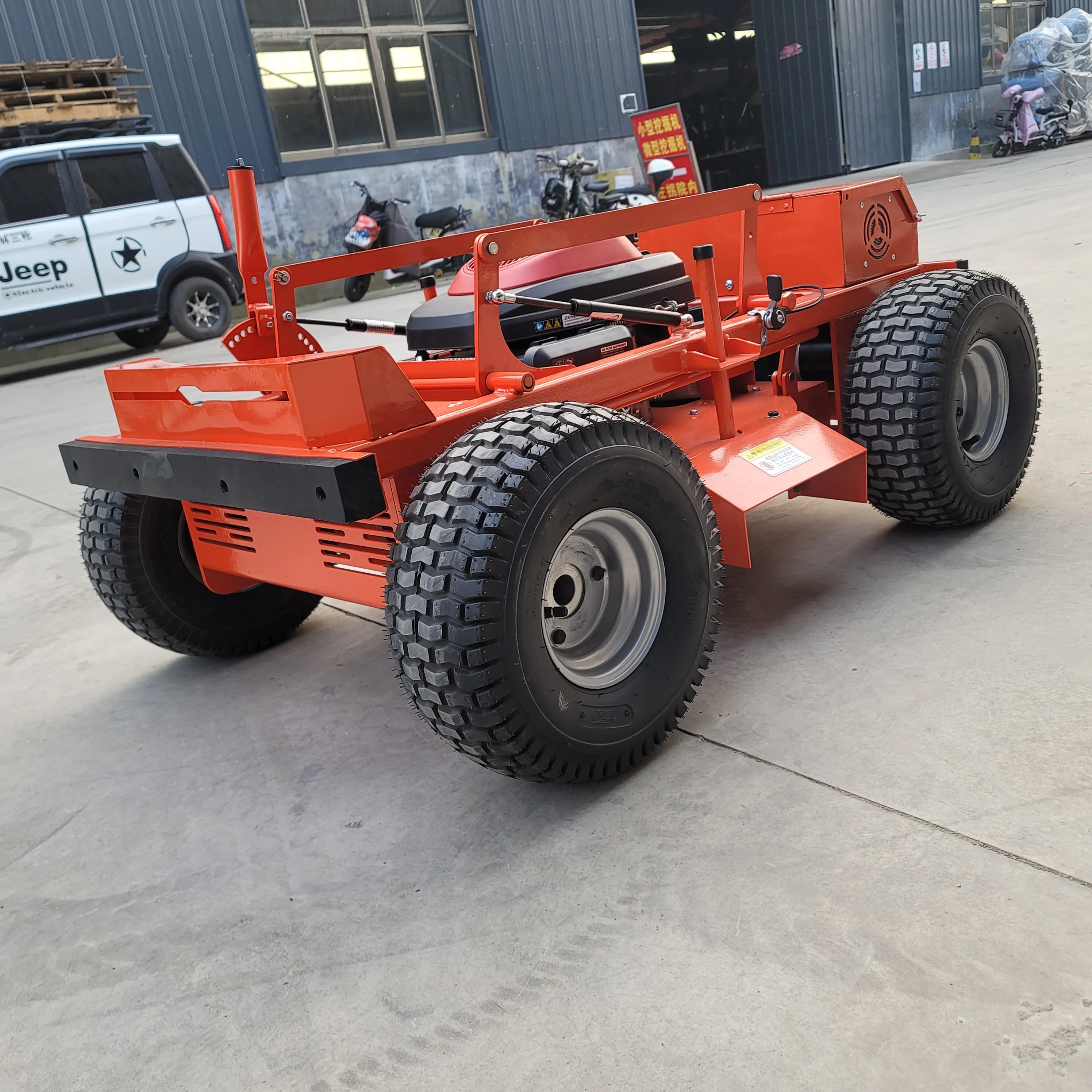

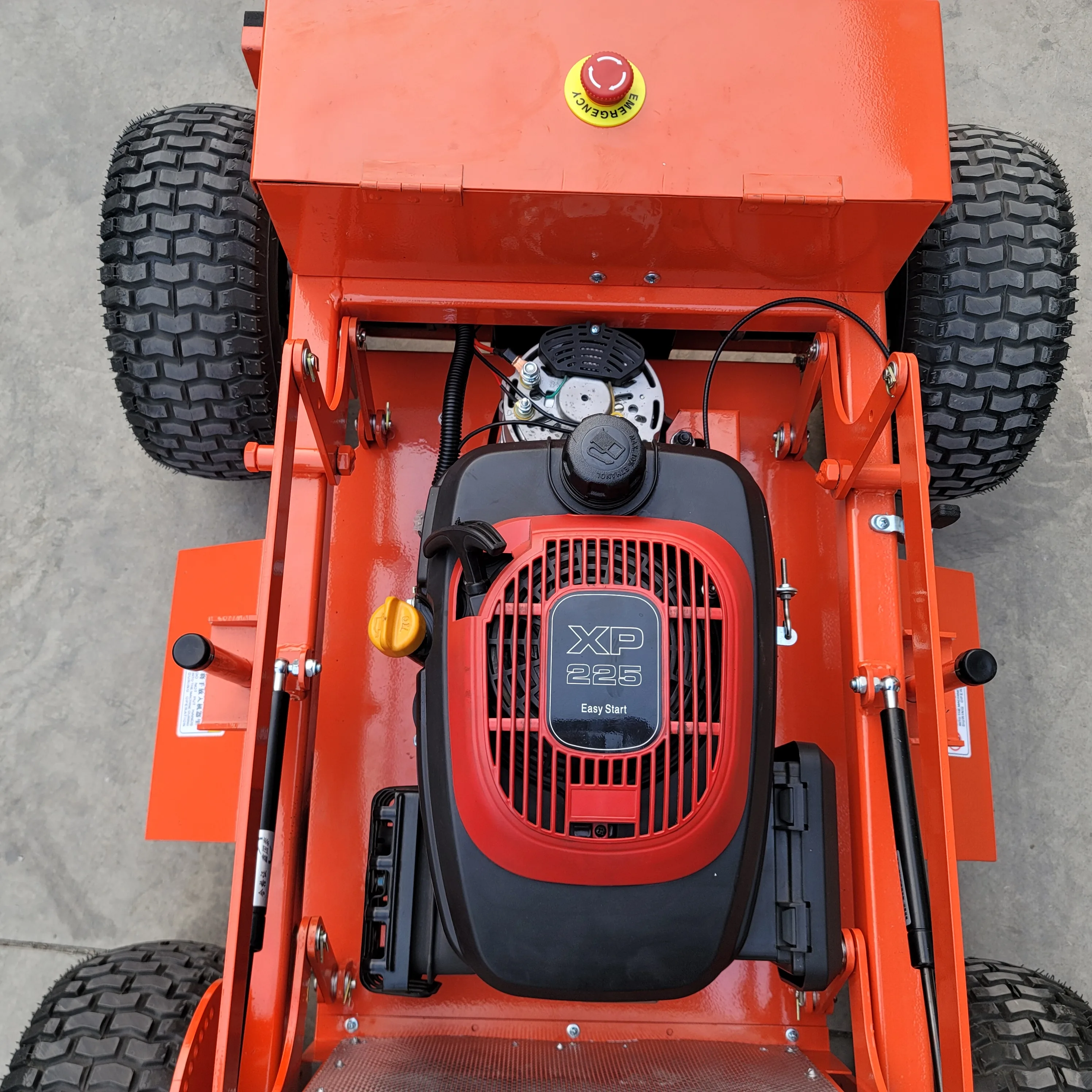

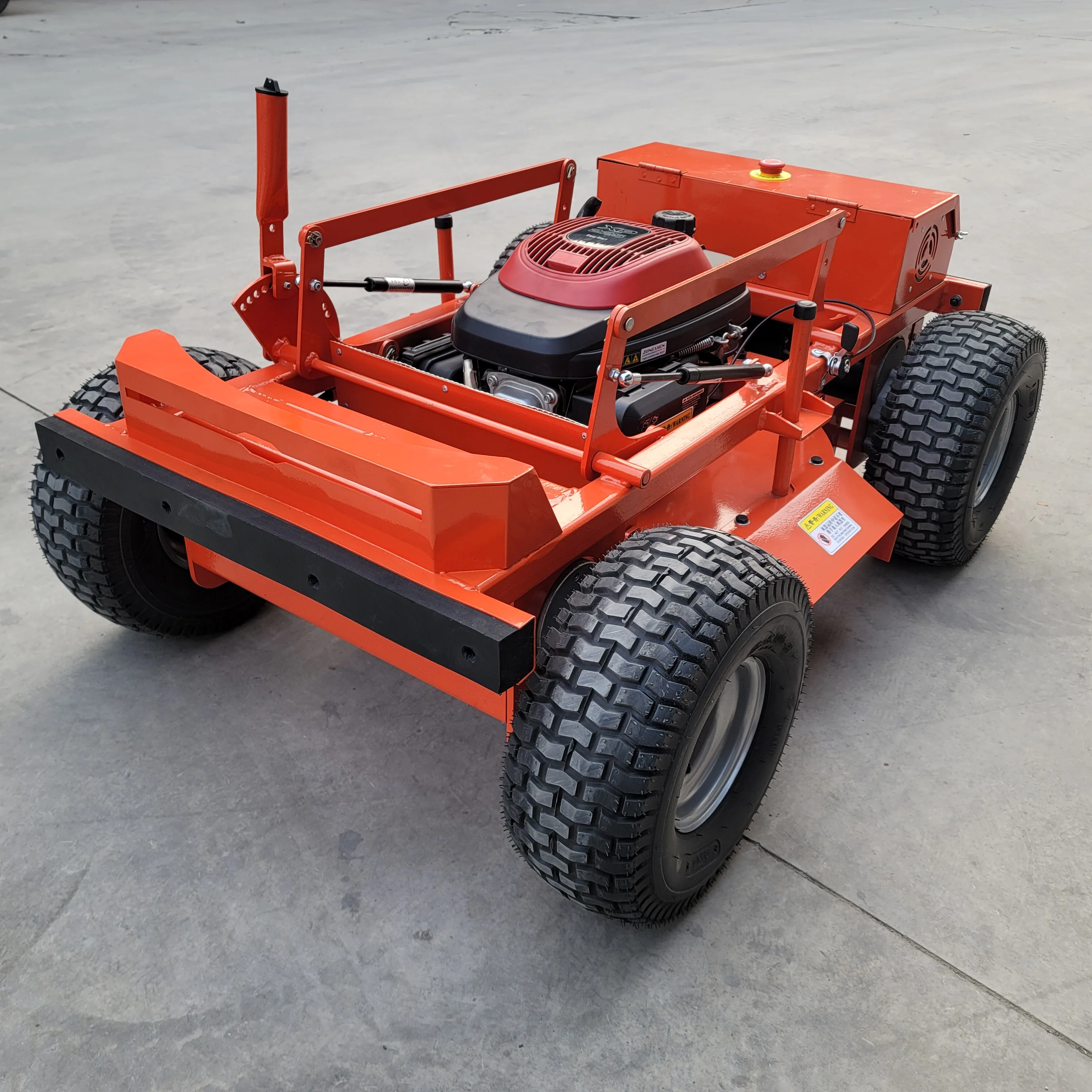

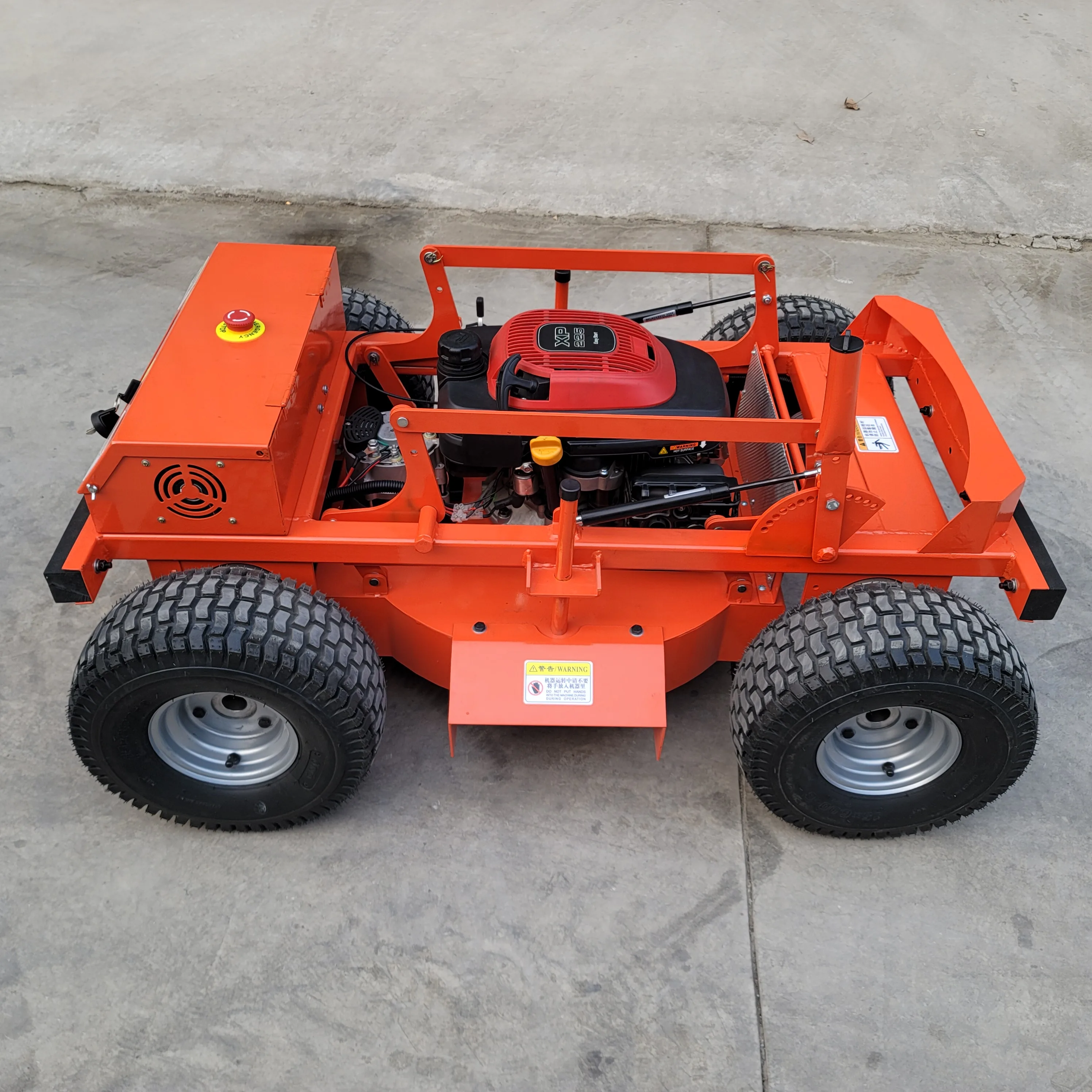

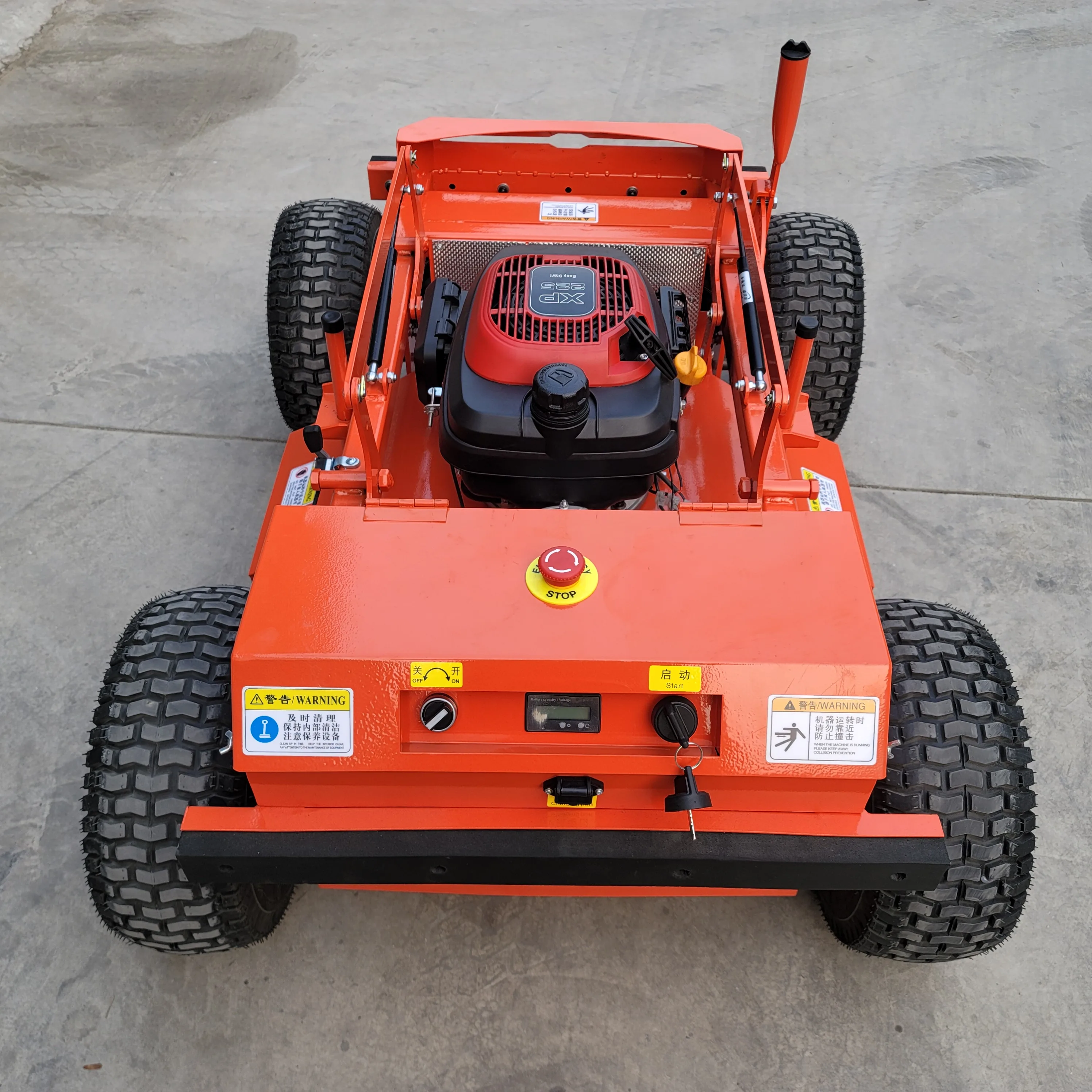

Product live shooting
